PANEL DESCRIPTION

I Rear panel

!2

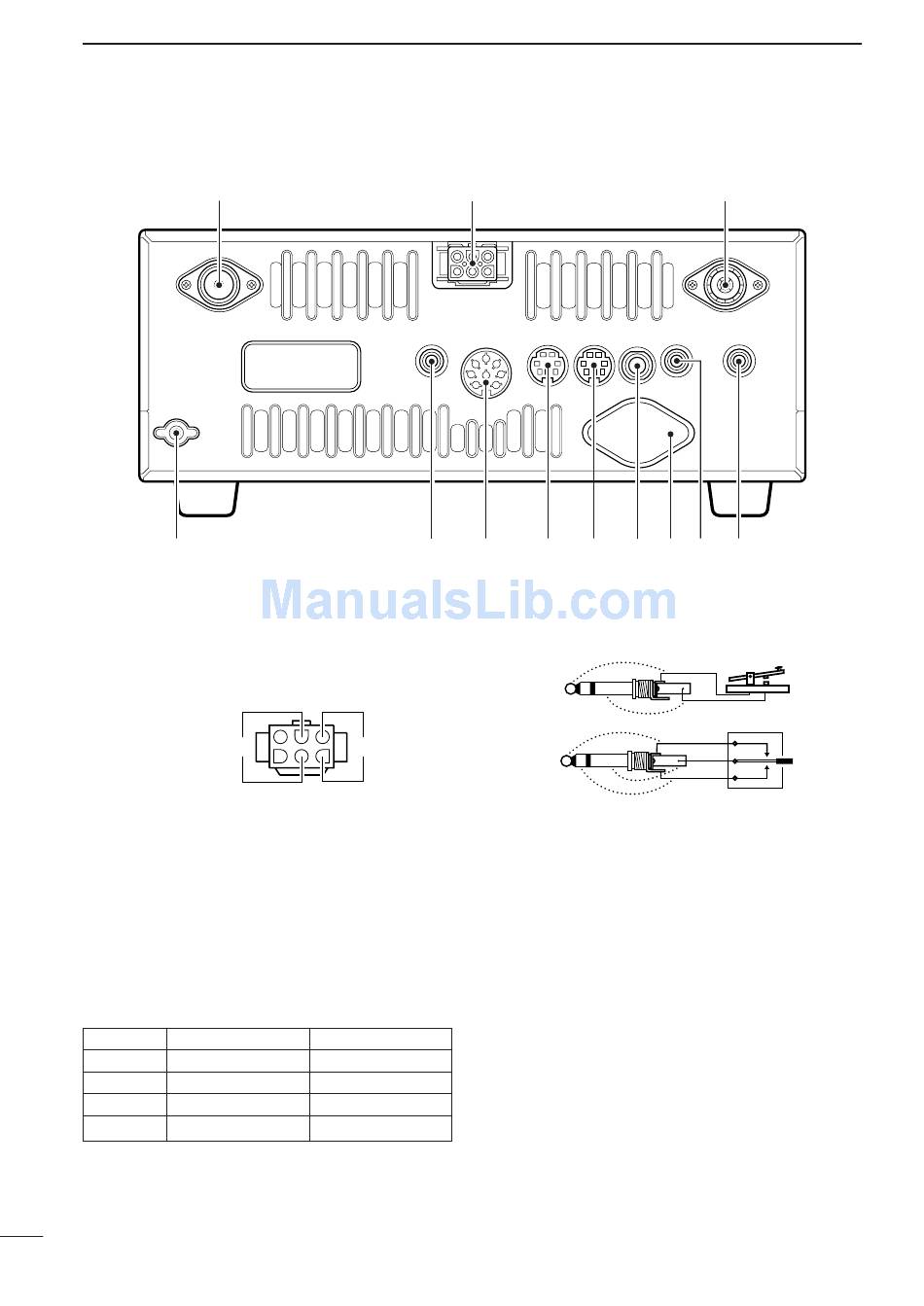

q 430(440) MHz ANTENNA CONNECTOR (p. 15)
Accepts a 50 Ω antenna with a type-N connector.
w DC POWER SOCKET [DC 13.8V] (p. 17)
Accepts 13.8 V DC through the supplied DC power
cable (OPC-657A).
Rear panel
view
e 144 MHz ANTENNA CONNECTOR (p. 15)
Accept a 50 Ω antenna with a PL-259 connector.
r SUB BAND EXTERNAL SPEAKER JACK
[SP (SUB)]
t MAIN BAND EXTERNAL SPEAKER JACK
[SP (MAIN)] (p. 16)
Accepts a 4–8 Ω speaker.
By connecting an external speaker for each or both
jacks, the audio for both the MAIN and SUB bands
is output as follows.
No
SP (MAIN)
SP (SUB)
Both Ext. SP (MAIN)
y 1200 MHz ANTENNA CONNECTOR (p. 15)
Available when the optional 1200 MHz band unit is
installed. Accepts a 50 Ω antenna with a type-N
connector.
12
q
_ +
MAIN AF SUB AF
Int. SP Int. SP
Ext. SP Ext. SP
Int. SP Ext. SP
Ext. SP (SUB)
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
w
!1 !0 o i
u KEY JACK [KEY] (p. 15)
Accepts a paddle, a straight key or external elec-
tronic keyer with
i SUB BAND DATA SOCKET [DATA (SUB)]
o MAIN BAND DATA SOCKET [DATA (MAIN)]
(p. 13)
6-pin mini plug DIN jack to connect a TNC, etc. for
high speed data communications.
Simultaneous data communications are provided by
equipping independent data sockets for both MAIN
and SUB bands.
!0 ACCESSORY SOCKET [ACC(1)]
Enables connection of external equipment such as
a TNC for data communications, etc.
• See the right table for socket information.
!1 CI-V REMOTE CONTROL JACK [REMOTE]
(p. 78)
Designed for use with a personal computer via the
optional CT-17 for remote control of transceiver
functions.
!2 GROUND TERMINAL [GND] (p 14)
Connect this terminal to a ground to prevent electri-
cal shocks and other problems.
e
u y t r
1
⁄ inch standard plug.
8
(+)
(_)
(dot)
(com)
(dash)
