PANEL DESCRIPTION

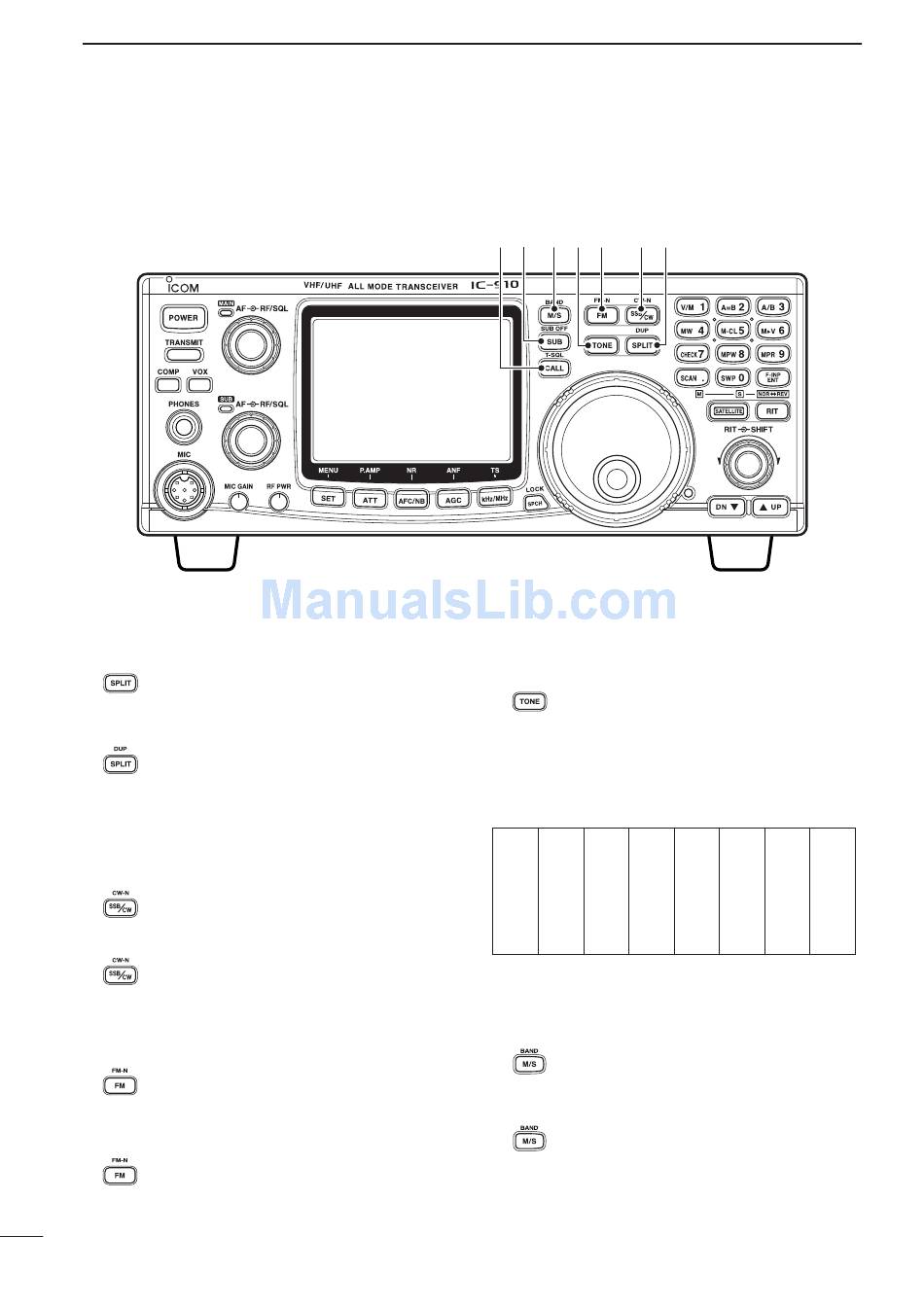

I Front panel
@9 SPLIT•DUPLEX SWITCH [SPLIT•DUP]
➥ Push to turn the split function, with the
VFO A and B, ON and OFF. (p. 37)
• The split operation is not available for the
SUB band.
➥ Push for 1 sec. to select the duplex (re-
peater) direction or to turn the function
OFF. (p. 34)
For 1 sec.
• The duplex operation is not available for the
SUB band.
#0 SSB/CW•CW-NARROW SWITCH
[SSB/CW•CW-N]
➥ Push to switch the operating mode be-
tween SSB and CW. (p. 23)
➥ Push for 1 sec. to switch the operating
mode between USB and LSB or between
CW and CW narrow during SSB or CW
For 1 sec.
mode, respectively.
#1 FM•FM-NARROW SWITCH [FM•FM-N] (p. 23)
➥ Push to switch the operating mode be-
tween FM and FM repeater mode.
• The duplex operation can be made in MAIN
band only, it cannot be operated in SUB
band.
➥ Push for 1 sec. to switch the operating
mode between FM and FM-N (FM nar-
row).
For 1 sec.
• The FM-N mode cannot be selected in
8
(continued)
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
#5 #4 #3 #2 #1 #0 @9
1200 MHz band operation.
#2 TONE SWITCH [TONE]
➥ Push to turn the tone encoder function
ON and OFF in FM mode. (p. 31; except
for European version)
• "T" indicator appears in the display when the
tone encoder is activated.
➥ Push to transmit a 1750 Hz repeater tone
in FM mode for European version.
67.0 085.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
Available repeater tones
#3 MAIN/SUB CHANGE•BAND SWITCH
[M/S•BAND]
➥ Push to replace the MAIN band's fre-
quency and mode with the SUB band's.
(p. 19)
➥ Push for 1 sec. to change the operating
band during single band operation or
when the optional band unit, UX-910, is
For 1 sec.
installed. (p. 20)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
(Unit: Hz)
