PANEL DESCRIPTION

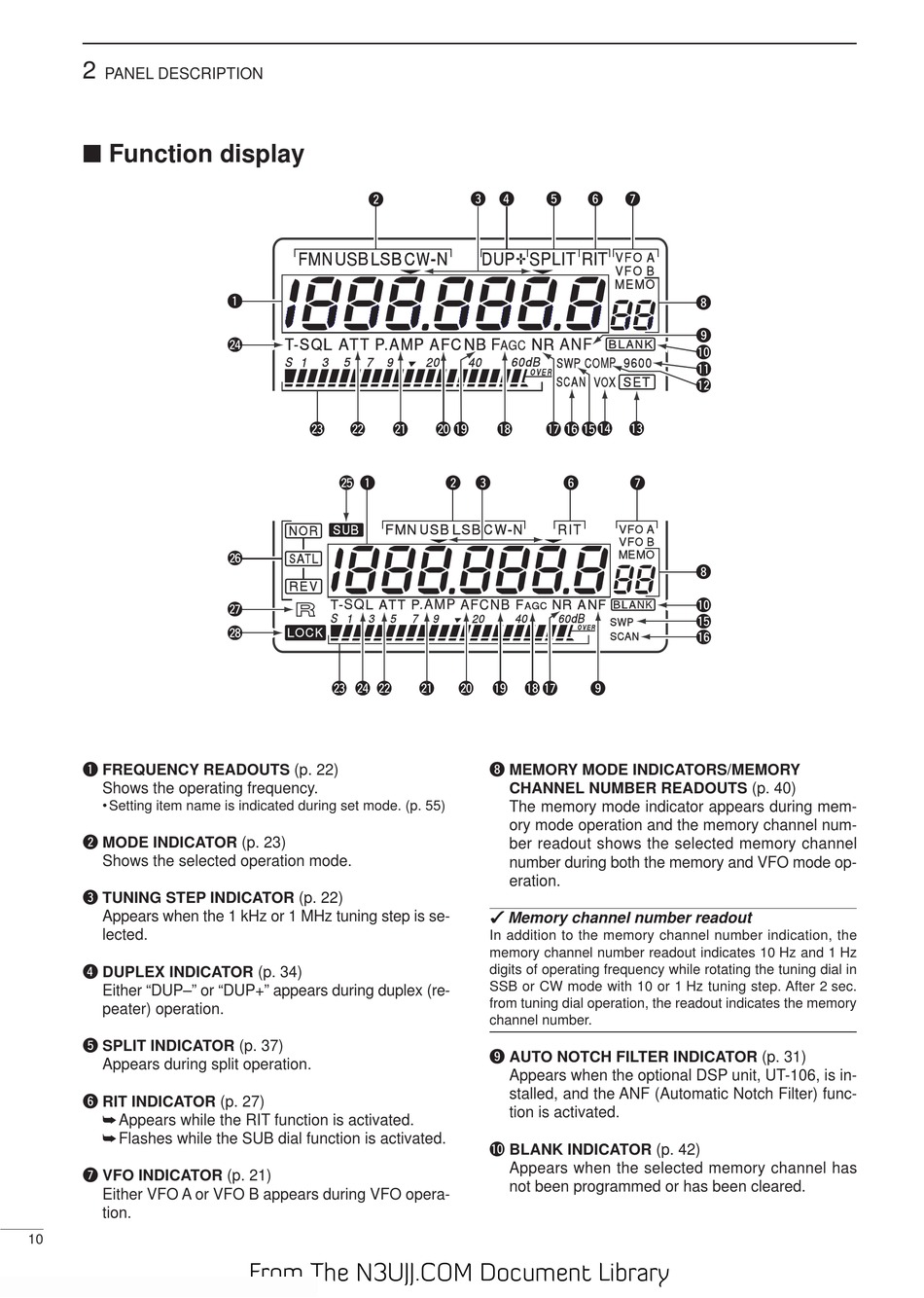

I Function display

q FREQUENCY READOUTS (p. 22)
Shows the operating frequency.
• Setting item name is indicated during set mode. (p. 55)
w MODE INDICATOR (p. 23)
Shows the selected operation mode.
e TUNING STEP INDICATOR (p. 22)
Appears when the 1 kHz or 1 MHz tuning step is se-
lected.
r DUPLEX INDICATOR (p. 34)
Either "DUP–" or "DUP+" appears during duplex (re-
peater) operation.
t SPLIT INDICATOR (p. 37)
Appears during split operation.
y RIT INDICATOR (p. 27)
➥ Appears while the RIT function is activated.
➥ Flashes while the SUB dial function is activated.
u VFO INDICATOR (p. 21)
Either VFO A or VFO B appears during VFO opera-
tion.
10
w
FMN USB USB LSB CW N
q
@4
T-SQL ATT P.AMP AFC NB F
S 1 3 5 7 9
@3 @2 @1
@5 q
FM
SUB
NOR
@6
SATL
RE V
T-SQ SQL ATT P.AMP
@7
S 1 3 5
@8
LOCK
@3 @4
@2
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
e r t
DUP SPLIT SPLIT
NR ANF ANF
AGC AGC
20 40 60dB
SWP
O V E R
SCAN
@0 !9 !8 !7 !6
w e y
N USB LSB C W N RIT
.AMP AFC AFCNB NB F NR A NF
AGC
7 9 20 40 60dB
O V E R O V E R
@1 @0 !9 !8 !7
i MEMORY MODE INDICATORS/MEMORY
CHANNEL NUMBER READOUTS (p. 40)
The memory mode indicator appears during mem-
ory mode operation and the memory channel num-
ber readout shows the selected memory channel
number during both the memory and VFO mode op-
eration.
✔ Memory channel number readout
In addition to the memory channel number indication, the
memory channel number readout indicates 10 Hz and 1 Hz
digits of operating frequency while rotating the tuning dial in
SSB or CW mode with 10 or 1 Hz tuning step. After 2 sec.
from tuning dial operation, the readout indicates the memory
channel number.
o AUTO NOTCH FILTER INDICATOR (p. 31)
Appears when the optional DSP unit, UT-106, is in-
stalled, and the ANF (Automatic Notch Filter) func-
tion is activated.
!0 BLANK INDICATOR (p. 42)
Appears when the selected memory channel has
not been programmed or has been cleared.
y u
RIT RIT VFO A
VFO B
MEMO
i
o
B L A N K
!0
COMP MP 9600
!1
!2
VOX SET
!5 !4 !3
u
VFO A
VFO B
MEMO
i
!0
BLANK NK
!5
SWP
!6
SCAN
o
