I UX-910

1200 MHz BAND UNIT

The UX-910 is a band unit for 1200 MHz band opera-
tion. FM, SSB (USB/LSB), CW and CW narrow mode
operations are available.

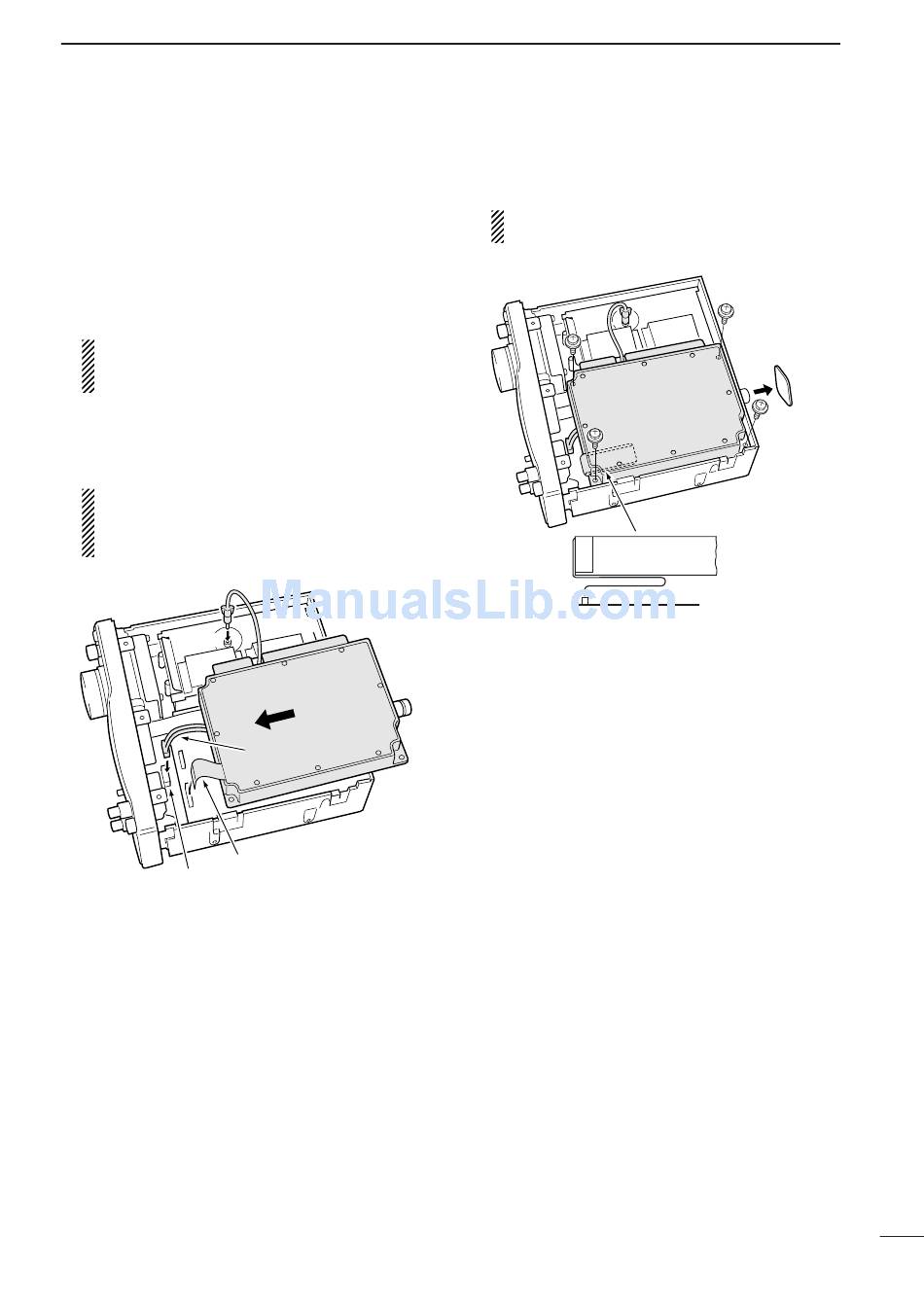

q Remove the bottom cover as shown in the diagram
on p. 71.
w Remove the antenna plate from the chassis using
a standard screw driver.
WARNING!
NEVER attempt to remove the antenna plate
using your finger, this may result in injury.
e Connect the FFC (Flexible Flat Cable) of the
UX-910 to J2 on the MAIN unit, DC power cable to
the power connector (W305) from the PA unit and
the coaxial cable to the J541 on the PLL unit.
CAUTION
NEVER catch the cables from the optional DSP
unit(s) between chassis and the UX-910, this
may damage the DSP unit(s) and/or transceiver.
Coaxial cable
J541
J2
Power connector
PLL unit
UX-910
DC power cable
Flexible flat cable
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
OPTION INSTALLATIONS
r Place the UX-910 using the supplied 4 screws.
BE CAREFUL not to drop the supplied screws
inside the transceiver.
UX-910
J2
MAIN unit
Turn the flexible flat cable up under the UX-910.
t Return the bottom cover to its original position.
11
Antenna plate
UX-910
Flexible flat cable
73
