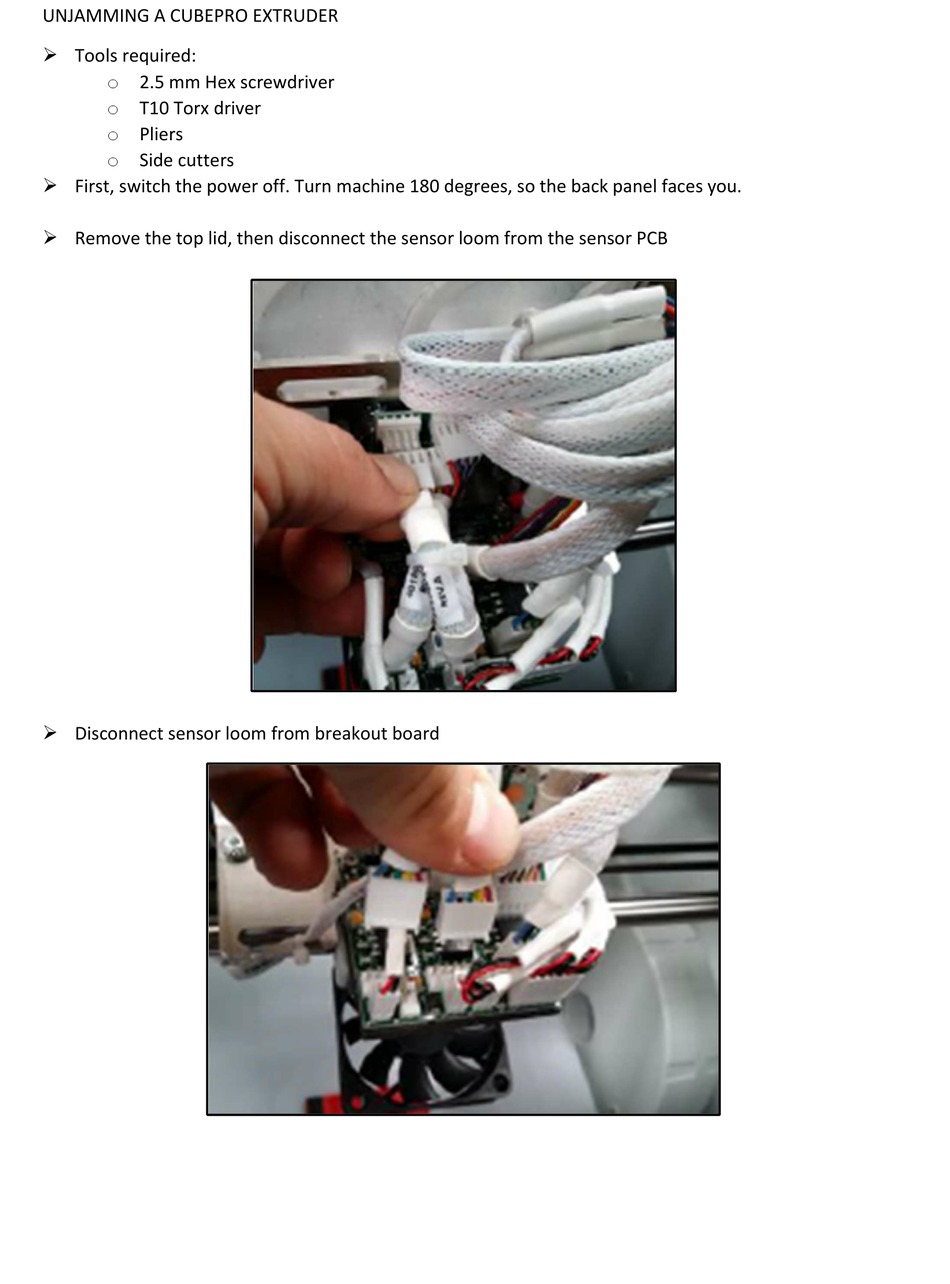

UNJAMMING A CUBEPRO EXTRUDER
 Tools required:
o 2.5 mm Hex screwdriver
o T10 Torx driver
o Pliers
o Side cutters
 First, switch the power off. Turn machine 180 degrees, so the back panel faces you.
 Remove the top lid, then disconnect the sensor loom from the sensor PCB
 Disconnect sensor loom from breakout board
