CL-2

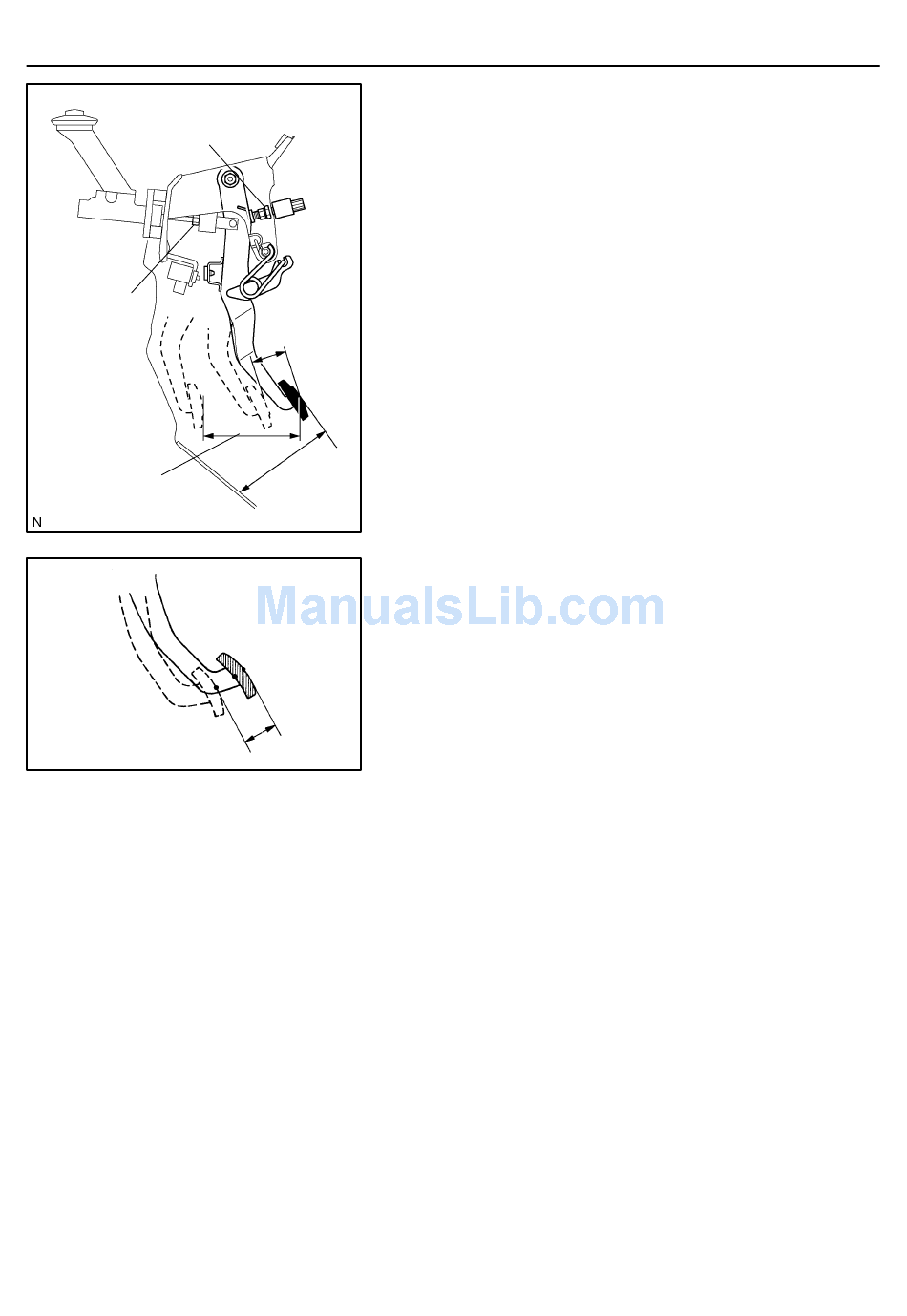

Pedal Height
Adjust Bolt
Push Rod
Play Adjust
Point
Full Pedal Stroke
Pedal Free Play
2005 LEXUS IS300 (RM1140U)
CLUTCH
CLUTCH PEDAL
INSPECTION
1. CHECK PEDAL HEIGHT
Pedal height from asphalt sheet:
162 - 172 mm (6.38 - 6.77 in.)
2. IF NECESSARY, ADJUST PEDAL HEIGHT
(a) Remove the lower finish panel (See page
(b) Loosen the lock nut and clutch switch until the height is
correct. Tighten the lock nut.
Push Rod
Torque: 15.7 N·m (160 kgf·cm, 12 ft·lbf)
Play
HINT:
Before rotating the clutch switch for pedal height adjustment,
disconnect the clutch switch connector.
(c) Install the lower finish panel (See page
Pedal
Height
D11473
3. CHECK THAT PEDAL FREE PLAY AND PUSH ROD
PLAY ARE CORRECT
(a) Depress the pedal until the clutch resistance begins to
felt.
Pedal free play: 5.0 - 15.0 mm (0.197 - 0.591 in.)
(b) Gently push on the pedal until the resistance begins to in-
crease a little.
Push rod play at pedal top:
1.0 - 5.0 mm (0.039 - 0.197 in.)
CL0102
4. IF NECESSARY, ADJUST PEDAL FREE PLAY AND
PUSH ROD PLAY
(a) Loosen the lock nut and turn the push rod until the free
play and push rod play are correct.
(b) Tighten the lock nut.
Torque: 12 N·m (120 kgf·cm, 9 ft·lbf)
(c) After adjusting the pedal free play, check the pedal
height.
- CLUTCH PEDAL
Author :
CL0CZ-01
BO-135 ).
BO-135 ).
