Lexus 2007 GS430 Quick Manual

page of 613

/ 613

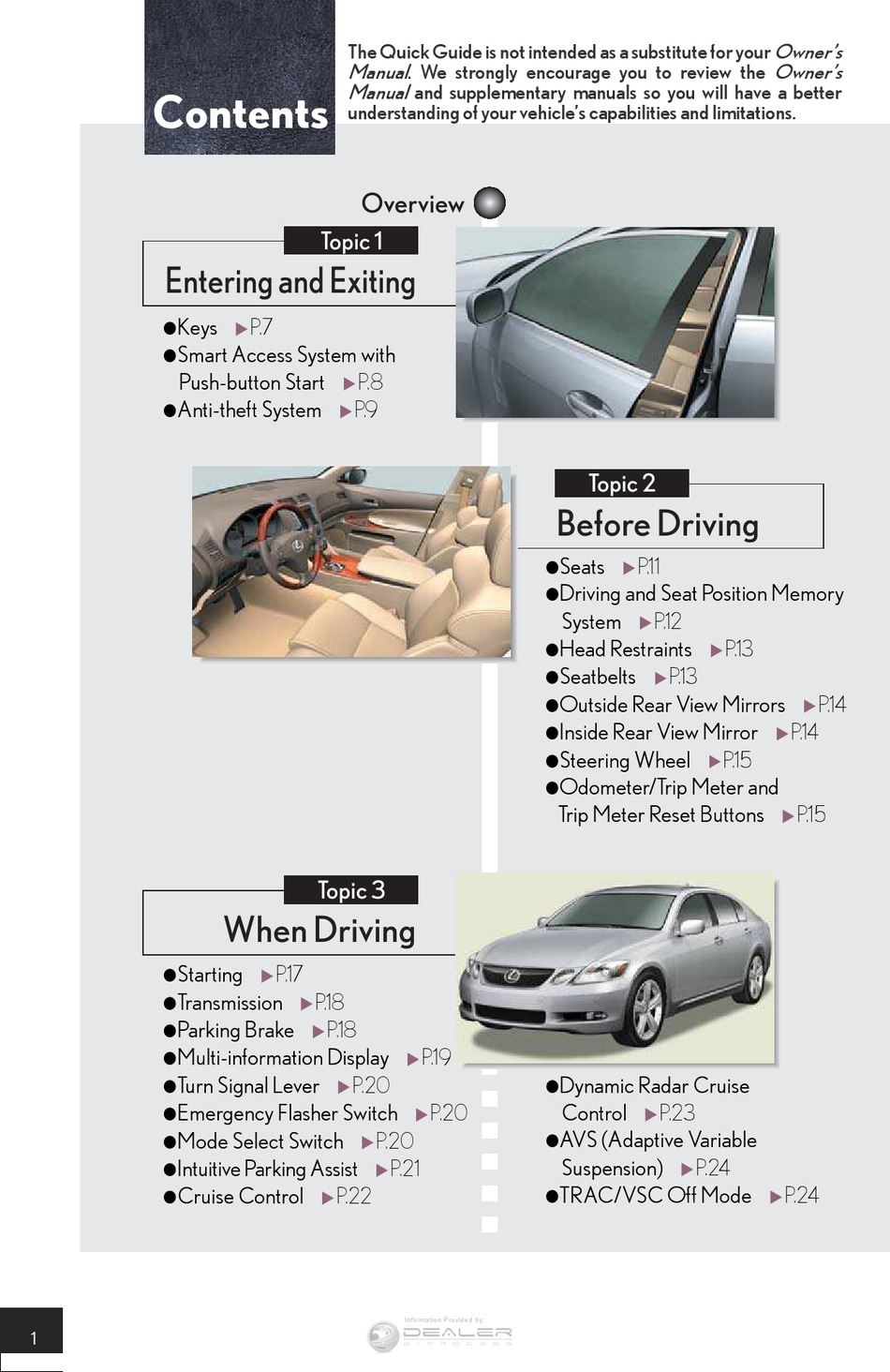

Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Contents

Entering and Exiting

Keys

Smart Access System with

Push-button Start

Anti-theft System

Starting

Transmission

Parking Brake

Multi-information Display

Turn Signal Lever

Emergency Flasher Switch

Mode Select Switch

Intuitive Parking Assist

Cruise Control

The Quick Guide is not intended as a substitute for your

Manual

understanding of your vehicle's capabilities and limitations.

Overview

Topic 1

P.7

P.8

P. 9

Topic 3

When Driving

P. 1 7

P. 1 8

P.20

P.21

P.22

. We strongly encourage you to review the

and supplementary manuals so you will have a better

Before Driving

Seats

Driving and Seat Position Memory

System

Head Restraints

Seatbelts

Outside Rear View Mirrors

Inside Rear View Mirror

Steering Wheel

Odometer/Trip Meter and

Trip Meter Reset Buttons

P. 1 9

Dynamic Radar Cruise

Control

P.20

AVS (Adaptive Variable

Suspension)

TRAC/VSC Off Mode

I n f o r ma t i o n P r o v i d e d b y :

Topic 2

P. 1 1

P. 1 2

P. 1 3

P. 1 5

P.23

P.24

Owner's

P. 1 4

P. 1 5

P.24

Table of Contents

Chapters

Table of Contents

Summary of Contents for Lexus 2007 GS430

Page 1: When Driving
Owner’s The Quick Guide is not intended as a substitute for your Manual Owner’s . We strongly encourage you to review the Manual and supplementary manuals so you will have a better Contents understanding of your vehicle’s capabilities and limitations. Overview Topic 1 Entering and Exiting...
Page 2: Topic
P.37 Rear Sunshade P.41 Seat Heaters/Seat Heaters Compass P.41 and Ventilators P.38 Luggage Mat P.42 Console Box P.39 Lexus Link System P.42 Glove Box P.40 Cup Holders P.40 Topic 6 Opening and Closing Door Locks P.45 Power Windows P.46 Moon Roof P.46...
Page 3 Overview Instrument Panel Windshield wipers and Headlight switch P.27 washer switch P.28 Turn signal lever P.20 Fog light switch P.28 Multi-information display P.19 Driving and seat position memory switches P.12 Inside door lock button P.45 Window lock switch P.46 Power window switches P.46 Door lock switch P.45...
Page 4 Engine switch P.17 Audio system P.34 Air conditioning system P.32 Rear window and outside rear view mirror defoggers P.29 Security indicator Glove box P.40 Trunk opener main switch P.48 Emergency flashers P.20 Seat heater switches Seat heater/ventilator switches P.38 Vehicle stability control system off switch P.24 Mode select switch P.20...
Page 5 Overview Instrument Panel Headlight cleaner switch P.29 Rear sunshade switch P.41 Intuitive parking assist switch P.21 AFS cancel switch P.27 Odometer/trip meter and trip meter reset buttons P.15 Instrument panel light control P.29 Trunk opener P.48 Fuel filler door opener P.47 Outside rear view mirror switches P.14...
Page 6: Topic
Topic 1 Entering and Exiting Keys Electronic key l Locks and unlocks the doors l Opens the trunk l Starts and stops the engine Mechanical key l Locks and unlocks the doors l Opens the trunk l Locks and unlocks the glove box The mechanical key is stored inside the electronic key.
Page 7: Entering And Exiting
Topic 1 Entering and Exiting Smart Access System with Push-button Start The smart access system with push-button start allows you to enter and exit the vehicle or start the engine by simply carrying the electronic key in your pocket or bag. For details on starting the engine, see page 17.
Page 8: Entering And Exiting
Topic 1 Entering and Exiting Anti-theft System The anti-theft system includes the following features to help protect your vehicle from theft. Engine immobilizer system The engine immobilizer system prevents the engine from being started in the event that an attempt is made to start the vehicle using an unregistered key.
Page 9: Entering And Exiting
Entering and Exiting Topic 1 Keys ................7 Smart Access System with Push-button Start ................8 Anti-theft System............. 9 I n f o r ma t i o n P r o v i d e d b y :...
Page 10 Topic 2 Before Driving Seats Adjusting seat position Moves the seat forward Moves the seat backward Adjusting seatback angle Tilts the seatback forward Reclines the seatback Adjusting the seat cushion Raises and lowers the front of the cushion Raises and lowers the entire seat Adjusting the lumbar support Firmer Softer...
Page 11 Topic 2 Before Driving Driving and Seat Position Memory System (If Equipped) The seats can be returned to a previously set position by simply pressing a button. The position of the steering wheel and the outside rear view mirrors is adjusted along with the driver's seat.
Page 12 Topic 2 Before Driving Head Restraints Driver’s seat Height adjustment: head restraint height can be adjusted automatically along with the seat position adjustment. ( P.11) Horizontal adjustment: grip head restraint and twist to tilt forward or backward. Front and rear passenger’s seat Height adjustment: to raise the head restraint, pull it upward.
Page 13 Topic 2 Before Driving Outside Rear View Mirrors Adjusting the mirrors To select the mirror you wish to adjust (L or R), use the select switch. To adjust mirror angle, use the control switch. The mirrors will automatically angle downwards when the vehicle is reversing.
Page 14 Topic 2 Before Driving Steering Wheel Down Away from the driver Toward the driver The steering wheel retracts automatically when the engine switch is turned OFF to allow for easy exit and entry. The steering wheel returns automatically to its previously set position when the engine switch is switched to ACC or IG-ON mode.
Page 15: Table Of Contents
Before Driving Topic 2 Seats ................11 Driving and Seat Position Memory System... 12 Head Restraints ............. 13 Seatbelts..............13 Outside Rear View Mirrors ....... 14 Inside Rear View Mirror........14 Steering Wheel............15 Odometer/Trip Meter and Trip Meter Reset Buttons..............
Page 16: Topic 3
Topic 3 When Driving Starting With the electronic key on your person, the engine can be started by simply pressing the engine switch, while depressing the brake pedal. (The mechanical key cannot be used to start the engine.) Starting the engine Make sure the parking brake is engaged and the shift lever is in P.
Page 17: Shift Positions
Topic 3 When Driving Transmission Shift positions Park* Reverse Neutral (drive not engaged) Drive S mode *: The engine can only be started in P. The vehicle can only be shifted out of P when the engine switch is in IG-ON mode and the brake pedal is depressed.
Page 18: L Intuitive Parking Assist
Topic 3 When Driving Multi-information Display The multi-information display shows information about your vehicle, including the items shown below. Display information l Trip information Outside temperature Driving range ILYQ3A003 Average fuel consumption after refueling Current fuel consumption l Intuitive parking assist information (if equipped) l Dynamic radar cruise control settings (if equipped)
Page 19 Topic 3 When Driving Turn Signal Lever Left turn signal Right turn signal To signal a lane change, move the lever partway and hold. Emergency Flasher Switch Engaging the emergency flasher switch causes all the turn signal lights to flash. Mode Select Switch Use the mode select switch to select the driving mode that best suits the driving and road conditions.
Page 20 Topic 3 When Driving Intuitive Parking Assist (If Equipped) The system uses a screen display and buzzer to inform the driver of obstacles near the vehicle when parking or driving at low speed. Turning the system on and off The system can be turned on and off using the intuitive parking assist switch.
Page 21 Topic 3 When Driving Cruise Control Cruise control allows the driver to maintain a constant speed without having to operate the accelerator pedal. Use for highway driving or when traveling at a constant speed for long periods of time. Setting the speed Press the ON-OFF button.
Page 22 Topic 3 When Driving Dynamic Radar Cruise Control (If Equipped) Dynamic radar cruise control supplements conventional cruise control with a vehicle-to- vehicle distance control mode. Cruise control display Cruise control settings are shown on the multi- information display. Vehicle ahead indicator Vehicle-to-vehicle distance Preset speed Vehicle-to-vehicle distance control mode...
Page 23 Topic 3 When Driving AVS (Adaptive Variable Suspension) (If Equipped) AVS controls the suspension and steering wheel operation according to the road and driving conditions. Sports mode Suitable for meandering mountainous driv- ing or high speed driving. Normal mode ILYQ3A005 Suitable for normal driving.
Page 24 Topic 3 When Driving I n f o r ma t i o n P r o v i d e d b y :...
Page 25 When Driving Topic 3 Starting ..............17 Transmission............18 Parking Brake............18 Multi-information Display........19 Turn Signal Lever..........20 Emergency Flasher Switch........ 20 Mode Select Switch..........20 Intuitive Parking Assist ........21 Cruise Control ............22 Dynamic Radar Cruise Control....... 23 AVS (Adaptive Variable Suspension)....
Page 26 Topic 4 Rain and Night Driving Headlights The side marker, parking, tail, license plate and instrument panel lights turn on. The headlights and all lights listed above turn on. The headlights and parking lights turn on/off automatically in accordance with ambient light levels.
Page 27 Topic 4 Rain and Night Driving Fog Lights The fog lights can be used only when the head- lights (low beam) are on. Windshield Wipers and Washers Intermittent wiper with interval adjuster (if equipped) MIST: operates once INT: intermittent operation* LO: low speed HI: high speed *: Wiper interval can be adjusted by turning the...
Page 28 Topic 4 Rain and Night Driving Headlight Cleaner The headlight cleaner can be used only when the engine switch is in IG-ON mode and the headlights are on. Rear Window and Outside Rear View Mirror Defoggers To defog the rear window and outside mirrors, press the button.
Page 29 Rain and Night Driving Topic 4 Headlights............... 27 Fog Lights..............28 Windshield Wipers and Washers ....28 Headlight Cleaner ..........29 Rear Window and Outside Rear View Mirror Defoggers..........29 Instrument Panel Light Control ....... 29 I n f o r ma t i o n P r o v i d e d b y :...
Page 30 Maintenance Telephone screen Telephone Adjust clock screen Adjust Clock Calendar screen* Calendar LEXUS Park Assist setting screen LEXUS Park Assist Select language screen Language Screen setting screen Screen Setting *: See Navigation System Owner’ s Manual. I n f o r ma t i o n P r o v i d e d b y :...
Page 31 Topic 5 Driving Comfort Air Conditioning System Press to display the air conditioning operation screen. For details, refer to the Owner’ s Manual. Vehicles with navigation system Vehicles without navigation system Air conditioning operation screen display button Driver’ s side temperature control Automatic mode Dual operation switch Passenger’...
Page 32 Topic 5 Driving Comfort Using the automatic mode Press Adjust the temperature using Adjusting the temperature in DUAL mode In DUAL mode, driver and passenger side tem- perature settings can be adjusted separately. Touch on the operation screen. Adjust the driver side temperature using , and the passenger side temperature using I n f o r ma t i o n P r o v i d e d b y :...
Page 33: Basic Operation
Tape slot *: Various adjustments can be made in each mode. **: The optional Lexus genuine satellite tuner and antenna allows you to receive and play XM satellite radio broadcasts. (Subscription is required.) For details, refer to the Owner’ s Manual.
Page 34 Topic 5 Driving Comfort Listening to the radio Press to choose an AM or FM band. Tune to your desired station. For tuning adjustment and further information, refer to the Owner’ s Manual. Playing the cassette player You have 2 methods to play your cassette player. l Insert a cassette tape into the tape slot.
Page 35 Topic 5 Driving Comfort Hands-free System ® To use the hands-free system, you must register your Bluetooth phone in the system. For details, see the Owner’ s Manual. Making a call Press Touch Inputting the phone number. For another way of calling, see the Owner’ s Manual.
Page 36 Topic 5 Driving Comfort Hanging up the phone Touch or press on the steering switch. Ashtrays Front To remove the ashtray, push the release lever. Rear To remove the ashtray, press down on the plate and lift the ashtray out. I n f o r ma t i o n P r o v i d e d b y :...
Page 37 Topic 5 Driving Comfort Seat Heaters / Seat Heaters and Ventilators (If Equipped) Seat heaters Turn the dial toward ILYQ5A001 Seat heaters and ventilators Seat heaters: turn the dial toward Ventilators: turn the dial toward ILYQ5A002 I n f o r ma t i o n P r o v i d e d b y :...
Page 38 Topic 5 Driving Comfort Console Box Front console box To open, slide and lift the armrest with the knob pulled up. ILYQ5A003 Overhead console box To open, press the lid. There is a power outlet located in the front console box. I n f o r ma t i o n P r o v i d e d b y :...
Page 39 Topic 5 Driving Comfort Glove Box Open: press the button. Lock Unlock The glove box can be locked and unlocked using the mechanical key. Cup Holders Front To open, press down on the front of the lid. Rear To open, press in and release the rear cup holder on the rear center armrest.
Page 40 Topic 5 Driving Comfort Interior Lights The light comes on if a door is opened. Rear Sunshade To raise the rear sunshade, press the switch. Press the switch again to lower it. The sunshade automatically lowers to ensure visi- bility when reversing. Compass (If Equipped) To display the compass, press and hold the AUTO button for 3 or more seconds.
Page 41 The lever can be hooked on the edge of the trunk. Lexus Link System (If equipped) The Lexus Link System is a communication service that uses the GPS (Global Position- ing System) data and cellular service to provide you with safety, security and conve- nience.
Page 42 Stolen vehicle location assistance If you vehicle is stolen, call the Lexus Link Call Center and then select the option for Lexus Link. l Remote horn/light and remote...
Page 43 Cup Holders............40 Interior Lights............41 Rear Sunshade ............41 Compass..............41 Luggage Mat............42 Lexus Link System ..........42 I n f o r ma t i o n P r o v i d e d b y :...
Page 44 Topic 6 Opening and Closing Door Locks Locking the vehicle from inside Inside lock button Locks Unlocks Door lock switch Operates all door locks. Locks Unlocks Locking the vehicle from outside Using the entry function or wireless remote control ( P.7, 8) Rear door child-protector lock Setting the switch to the LOCK position prevents...
Page 45 Topic 6 Opening and Closing Power Windows Power window switches To open: press the switch. To close: pull the switch up. Fully pulling up and releasing the switches causes the windows to close fully. Fully pressing down and releasing the switches causes the windows to open fully.
Page 46 Topic 6 Opening and Closing Fuel Tank Cap Press the fuel filler door opener. Slowly remove the cap by turning it counter- clockwise. Hood Pull the hood release lever. Insert your fingers under the hood, pull the hood catch and lift the hood. I n f o r ma t i o n P r o v i d e d b y :...
Page 47 Topic 6 Opening and Closing Trunk Trunk opener To open the trunk from inside the cabin, simply press the trunk opener. To disable the trunk opener, turn OFF the main switch in the glove box. When the trunk opener is disabled, the trunk can- not be opened using the entry function or the wireless remote control.
Page 48 Opening and Closing Topic 6 Door Locks ............. 45 Power Windows............ 46 Moon Roof.............. 46 Fuel Tank Cap............47 Hood................. 47 Trunk................. 48 I n f o r ma t i o n P r o v i d e d b y :...
Page 49 What to do if ... List of Warning/Indicator Lights ILYQ6A00 Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. (U.S.A.) Brake system warning light (Canada) Stop the vehicle immediately. Charging system warning light Have the vehicle inspected immediately. /VSC warning light (U.S.A.) Malfunction...
Page 50 Have the malfunction repaired immediately. Front passenger’ s seat belt Open door warning light reminder light (On the cen- ter panel) Low fuel level warning light Tire pressure warning light Driver’ s seat belt reminder light Master warning light (On the instrument cluster) See the Owner's Manual...
Page 51 What to do if ... Spare Tire and Tool Compartment (If Equipped) Jack, tools, and spare tire Tools Jack Spare tire Taking out the spare tire Lift up the panel on the trunk floor, and remove the tool tray. Loosen the center fastener and remove the spare tire.
Page 52 For instructions on replacing the electronic key battery, refer to the Owner's Manual. If you need further assistance, contact your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 53 If the engine still does not start, see the Owner's Manual for more information or contact your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 54 Electronic Key Alarm The electronic key alarm uses an alarm and warning messages to indicate that the electronic key has been used improperly. Take appropriate measure in response to any warning mes- sages that are displayed. In some cases, an alarm may sound without an accompanying warning message.
Page 55 Your vehicle includes a variety of electronic features that can be personalized to your preferences. Programming these preferences requires specialized equipment and may be performed by an authorized Lexus dealership. Some function settings are changed simultaneously with other functions being customized.
Page 56 Default Customized Item Function setting setting Driver's door unlocked in All doors one step, all Unlocking using a key unlocked in doors one step. unlocked in two steps Speed-detecting automatic Door lock door lock function Opening driver's door unlocks all doors Shift the shift lever to P unlocks all doors.
Page 57 Customizing Your Lexus Default Customized Item Function setting setting Switching operation when the vehicle is stationary Windshield Drip prevention function wipers and Variable washer Time elapsed before the drip depending on 3 seconds prevention function operates the vehicle speed Time elapsed before lights turn 7.5 seconds...
Page 58 Your Lexus dealer Your Lexus dealer will provide quality maintenance and any other assistance you may require. If there is not a Lexus dealer near you, please call the following number: nU.S. OWNERS lIn the U.S. mainland or Canada: Lexus Roadside Assistance...
Page 59 TABLE OF CONTENTS Adjusting and operating features such as door locks, mir- Before driving rors, and steering column. When driving Driving, stopping and safe-driving information. Air conditioning and audio systems, as well as other interior Interior features features for a comfortable driving experience. Maintenance Cleaning and protecting your vehicle, performing do-it-your- and care...
Page 60 Index TABLE OF CONTENTS 1-6. Anti-theft system ......52 Before driving Engine immobilizer system..52 Alarm............ 54 1-1. Key information ......2 Theft prevention labels (U.S.A.)..........56 Keys ............2 1-7. Safety information....... 57 1-2. Opening, closing and locking Correct driving posture ....57 the doors and trunk .....
Page 61 Fog light switch ........ 119 Automatic air conditioning system ..........190 Windshield wipers and washer..........120 Rear window and outside rear view mirror defoggers ......198 Headlight cleaner switch ... 123 3-3. Using the audio system.... 199 2-4. Using other driving systems..124 Audio system type ......
Page 62 411 Garage door opener....334 Headlight aim......... 429 Compass.......... 339 Light bulbs........431 Lexus Link System ....... 343 When trouble arises Maintenance and care 5-1. Essential information....438 4-1. Maintenance and care.... 358 If your vehicle needs to be Cleaning and protecting the towed..........
Page 63 If a warning light turns on or a For US owners warning buzzer sounds....449 If a warning message is displayed........455 Reporting safety defects for If you have a flat tire (Vehicles U.S. owners......... 530 with run-flat tires) ...... 472 If you have a flat tire (Vehicles Index with standard tires)....
Page 64 Pictorial index Exterior Headlight (low beam) Windshield wipers P. 120 P. 116 Moon roof Parking light P. 46 P. 116 Outside rear view mirror P. 41 Hood P. 372 Side marker light P. 116 Fog light P. 119 Turn signal light P.
Page 65 Rear window defogger P. 198 Tail lights P. 116 Fuel filler door P. 49 Trunk P. 21 Door P. 17 Tire Rotation P. 390 Replacement Turn signal light P. 473 P. 104 Inflation pressure P. 505 Side marker light P. 116 Information P.
Page 66 Pictorial index Interior Door pocket Seat belt P. 315 P. 33 Head restraint Floor mat P. 30 P. 330 Power window Driver airbag P. 59 switch P. 43 Knee airbags P. 59 Front passenger airbag P. 59 Front seat P. 25 Armrest P.
Page 67 Inside rear view mirror P. 40 Lexus link system switches P. 343 Personal light P. 306 Moon roof switch P. 46 Personal light P. 306 Interior light P. 306 SRS curtain shield airbag P. 59 Interior light P. 306 Vanity mirror P.
Page 68 Pictorial index Interior Driving position memory switches P. 27 Door lock switch P. 17 Window lock switch P. 43 Power window switches P. 43 I n f o r ma t i o n P r o v i d e d b y :...
Page 69 Cup holders P. 314 Shift lever P. 100 Cigarette lighter P. 321 Ashtray P. 320 Shift lock override button P. 484 : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 70 Pictorial index Instrument panel Windshield wipers and washer switch P. 120 Multi-information display P. 113 Gauges and meters P. 106 Seat heater switches P. 323 Seat heater/ventilator switches Headlight switch P. 116 P. 325 Turn signal lever P. 104 Fog light switch P.
Page 71 Audio remote control switches P. 259 Telephone switch P. 262 “DISP” switch P. 114 Distance switch P. 129 Cruise control switch P. 124, 127 Talk switch P. 274 : If equipped : Refer to “Navigation System Owner's Manual”. xiii I n f o r ma t i o n P r o v i d e d b y :...
Page 72: System P.
Pictorial index Instrument panel Clock Outside temperature display P. 318 P. 319 Navigation system Security indicator P. 52, 54 Air conditioning Rear window and outside system P. 190 rear view mirror defoggers P. 198 Audio system P. 199 Emergency flashers I n f o r ma t i o n P r o v i d e d b y :...
Page 73 Headlight cleaner switch P. 123 Rear sunshade switch P. 328 Intuitive parking assist switch P. 136 “AFS OFF” switch P. 117 Odometer/trip meter and trip meter reset button P. 107 Instrument panel light control P. 107 Trunk opener P. 21 Fuel filler door opener P.
Page 74: For Your Information
All specifications provided in this manual are current at the time of printing. How- ever, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of color and equipment.
Page 75 Scrapping of your Lexus The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.
Page 76 CAUTION General precautions while driving Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others.
Page 77 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment. Safety symbol Throughout this manual, you will also see the symbol of a circle with a slash through it.
Page 78 I n f o r ma t i o n P r o v i d e d b y :...

Page 79: Key Information
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Lexus dealer using the key number plate. ( P. 485)
Page 80 1-1. Key information NOTICE To prevent key damage Do not bend the keys, subject them to storing impact, expose them to high tem- peratures by placing them in direct sunlight, or get them wet. Do not expose the keys to electromagnetic materials or attach any material that blocks electromagnetic waves to the key surface.
Page 81: Opening, Closing And Locking The Doors And Trunk
1-2. Opening, closing and locking the doors and trunk Smart access system with push-button start The following operations can be performed simply by carrying the elec- tronic key, for example in your pocket. Locks and unlocks the doors ( P. 5) Unlocks the trunk ( P.
Page 82 1-2. Opening, closing and locking the doors and trunk Locking and unlocking the doors Press the lock button to lock the door. Grip the handle to unlock the door. Make sure to touch the sensor on the back of the handle. The door cannot be unlocked for 3 seconds after the door is locked.
Page 83 1-2. Opening, closing and locking the doors and trunk Antenna location Antennas outside cabin Antennas inside cabin Antenna outside trunk Antenna inside trunk I n f o r ma t i o n P r o v i d e d b y :...
Page 84 1-2. Opening, closing and locking the doors and trunk Operation signals A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Conditions affecting operation The smart access system with push-button start uses weak radio waves. In the fol- lowing situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start and wireless remote control from operating properly.
Page 85 1-2. Opening, closing and locking the doors and trunk Switching the door unlock function It is possible to set which doors the entry function unlocks. Turn the engine switch “OFF”. STEP When the indicator on the key surface is turned off, push and STEP hold , or...
Page 86 1-2. Opening, closing and locking the doors and trunk Battery-saving function In the following circumstances, the entry function is disabled in order to prevent the vehicle and electronic key batteries from discharging. When the entry function has not been used for 2 weeks or more When the electronic key has been left within approximately 3 ft.
Page 87 1-2. Opening, closing and locking the doors and trunk Note for the smart access system with push-button start The doors may unlock if a large amount of water splashes on the door handle, such as in the rain or in a car wash. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.) Gripping the door handle when wearing a glove may not unlock the door.
Page 88 1-2. Opening, closing and locking the doors and trunk Alarms and warning indicators A combination of exterior and interior alarms as well as warnings displayed on the multi-information display are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures in response to any warning indications on the multi-information display.
Page 89 1-2. Opening, closing and locking the doors and trunk Alarm Situation Correction procedure Switched to “ACC” mode while the driver's door is Turn the engine switch open (Opened the driver's “OFF” and close the door when the engine switch driver's door. Interior alarm rings is in “ACC”...
Page 90 1-2. Opening, closing and locking the doors and trunk For vehicles sold in Canada NOTE: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device.
Page 91: Wireless Remote Control
1-2. Opening, closing and locking the doors and trunk Wireless remote control The wireless remote control can be used to lock and unlock the vehicle and the trunk from outside the vehicle. Locks all doors Unlocks all doors Opens the windows and moon roof (push and hold) Unlocks the trunk (push and hold)
Page 92 1-2. Opening, closing and locking the doors and trunk Conditions affecting operation P. 7 Low battery If the wireless remote control does not function or if it only operates very close to the vehicle, the battery may be low. ( P. 409) Customization Settings (e.g.
Page 93 1-2. Opening, closing and locking the doors and trunk FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Certification for wireless remote control For vehicles sold in the Canada NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer-...
Page 94: Doors
1-2. Opening, closing and locking the doors and trunk Doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch. Smart access system with push-button start P. 5 Wireless remote control P. 14 Door lock switch Locks all doors Unlocks all doors...
Page 95 1-2. Opening, closing and locking the doors and trunk Rear door child-protector lock The door cannot be opened from inside the vehicle when the locks are set. These locks can be set to prevent children from opening the rear doors. Push down rear door switches to lock the rear doors.
Page 96 1-2. Opening, closing and locking the doors and trunk Setting and canceling the functions To switch between setting and canceling, follow the procedure below: Close all the doors and switch the engine switch to “IG-ON” STEP mode. (Perform step 2 within 10 seconds.) Shift the shift lever to “P”...
Page 97 1-2. Opening, closing and locking the doors and trunk Closing the front doors from outside with the inside lock button set in the locked position The door cannot be locked if the engine switch is in “ACC” or “IG-ON” mode, or the electronic key is left in the vehicle.
Page 98: Trunk
1-2. Opening, closing and locking the doors and trunk Trunk The trunk can be opened using the trunk opener, entry function or wireless remote control. Smart access system with push-button start P. 5 Wireless remote control P. 14 Trunk opener Open the trunk lid.
Page 99 1-2. Opening, closing and locking the doors and trunk Luggage security system The trunk opener feature using the trunk opener switch, wireless remote control and smart access system with push-button start can be disabled by turning off a switch inside the glove box. This function allows you to keep valuables safety locked in the trunk when leaving a key with a park- ing attendant.
Page 100 1-2. Opening, closing and locking the doors and trunk Trunk lid closer In the event that the trunk lid is left slightly open (not latched properly), the trunk easy closer will automatically close it to the fully closed position. Trunk light When the trunk light switch is set to ON, the trunk light turns on when the trunk is opened.
Page 101 1-2. Opening, closing and locking the doors and trunk CAUTION Caution while driving Keep the trunk lid closed. This not only keeps personal belongings from being thrown out, but also prevents exhaust gases from entering the vehicle. When children are in the vehicle Never leave children unattended in the vehicle as they may lock themselves in the vehicle or trunk, which could cause the child to overheat or suffocate resulting in death or serious injury.
Page 102: Seats
1-3. Adjustable components Front seats Seat position fore/aft control switch For driver’ s seat only: Height of the head restraint also moves upward or downward with the seat movement. Seatback angle control switch Seat cushion (front) angle control switch Vertical height control switch Lumbar support control switch I n f o r ma t i o n P r o v i d e d b y :...
Page 103 1-3. Adjustable components CAUTION Reclining adjustment Do not recline the seat more than necessary when the vehicle is in motion, to reduce the risk of sliding under the lap belt. If the seat is too reclined during an accident, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoul- der belt, increasing the risk of death or serious injury.
Page 104: Driving Position Memory System
1-3. Adjustable components Driving position memory system (if equipped) Your preferred driving position (the position of the driver's seat, steering wheel and outside rear view mirrors) can be entered into the computer's memory and recalled with the touch of a button. It is also possible to set this function to activate automatically when the doors are unlocked.
Page 105 1-3. Adjustable components Recalling the memorized position Check that the shift lever is set in “P”. Switch to “IG-ON” mode. STEP Push button “1”, “2” or “3” to STEP recall the desired position. Linking driving position memory with door unlock operation (driver side only) Memorized driving positions can be recalled when you unlock the driver’...
Page 106 1-3. Adjustable components Open one of the doors. STEP If a door is not opened within 60 seconds after is pressed, the doors will be locked again and the alarm will automatically be set. In case that the alarm is triggered, immediately stop the alarm. ( P.
Page 107: Head Restraints
1-3. Adjustable components Head restraints Vertical adjustment Driver’ s seat Head restraint height can be adjusted automatically along with the seat position adjust- ment. ( P. 25) Front passenger’ s and rear seats Grip head restraint and move it up or down. Push and hold the lock release button when lowering the head Lock...
Page 108 Push and hold the lock release button when lowering or raising the head restraint. Removing the driver’s seat head restraint For removal and installation, ask your Lexus dealer. Adjusting the height of the head restraints Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
Page 109 1-3. Adjustable components CAUTION Head restraint precautions Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. Adjust the head restraints to the correct position at all times. Do not drive with the head restraints removed. I n f o r ma t i o n P r o v i d e d b y :...
Page 110: Seatbelts
1-3. Adjustable components Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. Correct use of the seat belts Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 111 1-3. Adjustable components Adjusting the height of the belt (front seats) Down Move the height adjuster up and down as needed until you hear a click. Seat belt comfort guide (outboard rear seats) If the shoulder belt fits close to a person’...
Page 112 1-3. Adjustable components Pre-collision seat belts (front seats of vehicles with pre-collision system) When the pre-collision sensor detects an obstacle and determines that a collision is unavoidable, the seat belts lessen collision injury by retracting the slack in the front seat belts before the collision, thus restraining the driver and passenger at an earlier stage.
Page 113 Replacing the belt after the pretensioner has been activated The seat belts cannot be used if a pretensioner has activated. After an accident, have your Lexus dealer inspect the pretensioners and replace them, if necessary. Seat belt extender If your seat belts cannot be fastened securely...
Page 114 Do not attempt to install, remove, modify, disassemble or dispose of a seat belt. Have any necessary repairs carried out by your Lexus dealer. Inappropriate han- dling of the pretensioner may cause it to activate or operate improperly and may cause death or serious injury.
Page 115 1-3. Adjustable components CAUTION Using a seat belt extender Do not wear the seat belt extender, if you can fasten the seat belt without the extender. Do not use the seat belt extender when installing a child restraint system, because the belt will not securely hold the child restraint system, increasing the risk of death or injury in the event of a collision.
Page 116: Steering Wheel
1-3. Adjustable components Steering wheel The steering wheel can be adjusted to a comfortable position while the engine switch is in “ACC” or “IG-ON” mode. Down Toward the driver Away from the driver Auto tilt away and auto return When the engine switch is turned “OFF”, the steering wheel returns to its stowed position by moving up and away to enable easier driver...
Page 117: Inside Rear View Mirror
1-3. Adjustable components Inside rear view mirror In the “AUTO” mode, sensors are used to detect the headlights of vehicles behind and automatically reduces the reflected light. Turns “AUTO” mode on/off The indicator comes on when “AUTO” mode is turned ON. The anti-glare mirror default mode is “AUTO”.
Page 118: Outside Rear View Mirrors
1-3. Adjustable components Outside rear view mirrors Mirror angle can be adjusted using the switch when the engine switch is in “ACC” or “IG-ON” mode. Select the mirror to adjust (“L”: left or “R”: right) Adjust the mirror up, down, in, or out using the switch Folding the mirrors Press the switch...
Page 119 1-3. Adjustable components Linked mirror function when reversing The outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. However, this function will not operate when the mirror select switch is in the neutral position (neither “L” nor “R”...
Page 120: Opening And Closing The Windows And Moon Roof
1-4. Opening and closing the windows and moon roof Power windows The power windows can be opened and closed using the following switches. Opening One-touch opening Closing One-touch closing :Pushing the switch in the opposite direction will stop window travel partway. Lock switch Press the switch down to lock pas- senger window switches.
Page 121 1-4. Opening and closing the windows and moon roof The power windows can be operated when The engine switch is in “IG-ON” mode. Linked door lock window operation The power windows can be opened and closed using the mechanical key. ( P.
Page 122 1-4. Opening and closing the windows and moon roof CAUTION When closing the windows Observe the following precautions. Failing to do so may result in death or serious injury. Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.
Page 123: Moon Roof
1-4. Opening and closing the windows and moon roof Moon roof (if equipped) Use the overhead switches to open, close, and tilt the moon roof up and down. Opening and closing Open Stops just before it is opened fully. Press the switch again to fully open.
Page 124 1-4. Opening and closing the windows and moon roof The moon roof can be operated when The engine switch is in “IG-ON” mode. Linked door lock moon roof operation The moon roof can be opened and closed using the mechanical key. ( P. 486) The moon roof can be opened using the wireless remote control.
Page 125 1-4. Opening and closing the windows and moon roof CAUTION When opening the moon roof Observe the following precautions. Failing to do so may cause death or serious injury. Do not allow any passengers to put their hands or heads outside the vehicle while it is moving.
Page 126: Refueling
1-5. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. Before refueling the vehicle Turn the engine switch “OFF” and ensure that all the doors and win- dows are closed. Opening the fuel tank cap Press the fuel filler door STEP opener switch.
Page 127 When the fuel filler door opener switch is inoperable If the fuel filler door opener switch is inopera- ble, contact your Lexus dealer to service the vehicle. If you must refuel your vehicle, you can open the fuel filler door manually as shown.
Page 128 This may cause static electricity to build up, resulting in a possible ignition hazard. When replacing the fuel tank cap Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Failure to do so may cause a fire or other incident which may result in death or seri- ous injury.
Page 129: Anti-Theft System
1-6. Anti-theft system Engine immobilizer system The vehicle's keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle's on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light flashes after the engine switch has been turned “OFF”...
Page 130 1-6. Anti-theft system CAUTION Certifications for the engine immobilizer system Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. NOTICE For proper system operation Do not modify, remove or disable the engine immobilizer system. If any unautho- rized changes or modifications are made, the proper operation of the system can- not be guaranteed.
Page 131: Alarm
1-6. Anti-theft system Alarm The system sounds the alarm and flashes the vehicle lights when an attempt to steal the vehicle is detected. Triggering the alarm The alarm is triggered in the following situations. l A locked door or trunk is unlocked or opened in any way other than using the entry function, wireless remote door lock function or using the mechanical key.
Page 132 1-6. Anti-theft system Items to check before locking the vehicle To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following Nobody is in the vehicle. The windows and moon roof are closed before the alarm is set. No valuables or other personal items are left in the vehicle.
Page 133: Theft Prevention Labels (U.s.a.)
1-6. Anti-theft system Theft prevention labels (U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from stolen vehicles. Do not remove under penalty of law. I n f o r ma t i o n P r o v i d e d b y :...
Page 134: Safety Information
1-7. Safety information Correct driving posture Drive with a good posture as follows: Sit upright and well back in the seat. Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 135 1-7. Safety information CAUTION Caution while driving Do not adjust the position of the driver’ s seat. Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.
Page 136: Srs Airbags
1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.
Page 137 1-7. Safety information Curtain shield airbag Can help protect primarily the head of front occupants and rear out- board occupants. Airbag system components Occupant detection system SRS warning light (ECU and sensors) Rear side airbag (if equipped) Front passenger’ s seat belt Driver airbag buckle switch Driver’...
Page 138 1-7. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on US motor vehicle safety standards (FMVSS208). The airbag system controls airbag deployment power for the driver and front passenger. The driver airbag system consists of the driver seat’ s position sensor etc. The front passenger’...
Page 139 1-7. Safety information Operating conditions (front airbags) The SRS front airbags will deploy if the severity of the frontal impact is above the designed threshold level, comparable to an approximate 15 mph (25 km/h) col- lision, when the vehicle impacts straight into a fixed barrier that does not move or deform.
Page 140 1-7. Safety information Types of collisions that may not deploy the SRS airbag (front airbags) The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli- sion.
Page 141 1-7. Safety information When to contact your Lexus dealer In the following cases, contact your Lexus dealer as soon as possible. Do not dis- connect the battery cables before contacting your Lexus dealer. Any of the SRS airbags have been inflated.
Page 142 1-7. Safety information CAUTION SRS airbag precautions Observe the following precautions regarding the airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. The SRS airbags are supplemental devices to be used with the seat belts. The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag.
Page 143 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
Page 144 1-7. Safety information CAUTION SRS airbag precautions Do not sit on the edge of the seat or lean against the dashboard. Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger while the vehicle is moving.
Page 145 If the areas where the SRS airbags are stored, such as the steering wheel pad and front pillar garnish, are damaged or cracked, have them replaced by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 146 Modification and disposal of SRS airbag system components Do not dispose of your vehicle or perform any of the following modifications with- out consulting your Lexus dealer. The SRS airbag may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 147: Front Passenger Occupant Classification System
1-7. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification sys- tem. This system detects the conditions of the front passenger seat and activates or deactivates the devices for front passenger. SRS warning light AIRBAG OFF indicator light AIRBAG ON indicator light Front passenger’...
Page 148 1-7. Safety information Condition and operation in the front passenger occupant classification system Adult AIRBAG ON and AIRBAG OFF AIRBAG indicator lights Indicator/ SRS warning light warning light Front passenger’ s seat belt reminder light Flashing Front passenger airbag Side airbag on the right side passenger seats Devices Curtain shield airbag in the front...
Page 149 1-7. Safety information Unoccupied AIRBAG ON and AIRBAG OFF Not illumi- indicator lights nated Indicator/ warning light SRS warning light Front passenger’ s seat belt reminder light Front passenger airbag Deactivated Side airbag on the right side passenger seats Devices Curtain shield airbag in the front Activated passenger side...
Page 150 1-7. Safety information There is a malfunction in the system AIRBAG ON and AIRBAG OFF AIRBAG indicator lights Indicator/ warning light SRS warning light Front passenger’ s seat belt reminder light Front passenger airbag Deactivated Side airbag on the right side passenger seats Devices Curtain shield airbag in the front...
Page 151 1-7. Safety information CAUTION Front passenger occupant classification system precautions Observe the following precautions regarding front passenger occupant classifica- tion system. Failure to do so may cause death or serious injury. Wear the seat belt properly. Make sure the front passenger’ s seat belt tab has not been left inserted into the buckle before someone sits in the front passenger seat.
Page 152 Do not kick the front passenger seat or subject it to severe impact. Otherwise, the SRS warning light may come on to indicate a malfunction on the detection system. In this case, contact your Lexus dealer immediately. Child restraint systems installed on the rear seat should not contact the front seat- backs.
Page 153: Child Restraint Systems
1-7. Safety information Child restraint systems A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 154 1-7. Safety information Convertible seat Booster seat When the child restraint system is not in use Leave the child restraint system properly secured on the seat. Do not store the restraint loosely on a passenger seat or in the trunk. Selecting an appropriate child restraint system Get an appropriate child restraint system for the child.
Page 155 In an accident, the child can be crushed against the wind- shield, or between you and the vehicle's interior. Lexus strongly urges the use of a proper child restraint system that conforms to the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 156: Installing Child Restraints
1-7. Safety information Installing child restraints Follow the child restraint system manufacturer's instructions. Firmly secure child restraints to the outboard rear seats using a seat belt or a child restraint lower anchor belt. Attach the top strap when installing a child restraint.
Page 157 1-7. Safety information Installing child restraints using a seat belt (child restraint lock function belt) Rear facing child seat Infant/convertible Place the child seat on the rear STEP seat facing the rear of the vehicle. Run the seat belt through the infant STEP seat and insert the plate into the buckle.
Page 158 1-7. Safety information While pushing the child seat down STEP into the rear seat, allow the shoul- der belt to retract until the child seat is securely in place. After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 159 1-7. Safety information While pushing the child seat into STEP the rear seat, allow the shoulder belt to retract until the child seat is securely in place. After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 160 1-7. Safety information Removing a child restraint installed with a seat belt Push the buckle release button and fully retract the seat belt. Installation with child restraint lower anchorages Type A Widen the gap between STEP the seat cushion and seat- back slightly.
Page 161 1-7. Safety information Type B Widen the gap between STEP the seat cushion and seat- back slightly. Latch the buckles onto the STEP anchorages. If the child restraint has a top strap, the top strap should be latched onto the anchorage. For owners in Canada: The symbol on a child restraint sys- tem indicates the presence of a...
Page 162 1-7. Safety information Open the anchor bracket cover, STEP latch the hook onto the anchor bracket and tighten the top strap. Make sure the top strap is securely latched. Laws and regulations pertaining to anchorages Anchorages conform to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used.
Page 163 1-7. Safety information CAUTION When installing a child restraint system Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place. If the child restraint system is not correctly fixed in place, the child may be injured or even killed in the event of sudden braking or an accident.
Page 164 1-7. Safety information CAUTION Do not use a seat belt extender If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of a collision.
Page 165 1-7. Safety information I n f o r ma t i o n P r o v i d e d b y :...
Page 166: Driving Procedures
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driving. Starting the engine ( P. 97) Driving With the brake pedal depressed, shift the shift lever to “D”. STEP ( P. 100) Release the parking brake. ( P.
Page 167 2-1. Driving procedures Breaking in your new Lexus To extend the life of the vehicle, the following precautions are recommended to observe: For the first 180 miles (300 km): Avoid sudden stops. For the first 1000 miles (1600 km): • Do not drive at extremely high speeds.
Page 168 2-1. Driving procedures CAUTION When starting the vehicle Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping. When driving the vehicle Do not drive if you are unfamiliar with the location of the brake and accelerator pedals to avoid depressing the wrong pedal.
Page 169 2-1. Driving procedures CAUTION When driving the vehicle Do not under any circumstances shift the shift lever to “P”, “R” or “N” while the vehicle is moving. Doing so can cause significant damage to the transmission and may result in a loss of vehicle control.
Page 170 2-1. Driving procedures CAUTION When shifting the shift lever Be careful not to shift the shift lever with the accelerator pedal depressed. This may lead to unexpected rapid acceleration of the vehicle that may cause an accident and result in death or serious injury. When the vehicle is stopped Do not race the engine.
Page 171 2-1. Driving procedures CAUTION When taking a nap in the vehicle Always turn the engine off. Otherwise, you may accidentally move the shift lever or press the accelerator pedal, which could cause an accident or fire due to abnormal engine overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust fumes may enter the vehicle and cause gas poisoning.
Page 172 If you hear a squealing or scraping noise (brake pad wear limit indicators) Have your Lexus dealer check and replace the brake pads as soon as possible. The rotor damage can result if the pads are not replaced when needed.
Page 173: Starting The Engine
2-1. Driving procedures Starting the engine Modes can be switched by pressing the engine switch when carrying the electronic key on your person. (The engine can be started in any mode by operating the switch at the same time as depressing the brake pedal.) Changing engine switch mode “OFF”...
Page 174 If the engine does not start The engine immobilizer system may not have been deactivated. ( P. 52) When the engine switch indicator flashes in amber The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer immediately. Auto power OFF function The engine switch will automatically turn OFF when left in “ACC”...
Page 175 2-1. Driving procedures NOTICE To prevent battery discharge Do not leave the engine switch in “ACC” or “IG-ON” mode for long periods if the engine is not running. When starting the engine Do not race the engine. If the engine becomes difficult to start or stalls frequently, have the engine checked immediately.
Page 176: Transmission
2-1. Driving procedures Transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever While the engine switch is in “IG-ON” mode, depress the brake pedal and move the shift lever. I n f o r ma t i o n P r o v i d e d b y :...
Page 177 2-1. Driving procedures Shift position uses Shift position Function Parking the vehicle or starting the engine Reversing Neutral Normal driving “S” mode driving ( P. 102) : To improve fuel consumption and reduce noises, set the shift lever in the “D”...
Page 178 2-1. Driving procedures Changing shift ranges in “S” mode Shift the shift lever to the “S” position and operate the shift lever. Upshifting Downshifting The initial shift range in “S” mode is automatically set to “5” or “4” accord- ing to the vehicle's speed. However, the initial shift range may be set to “3”...
Page 179 “S” This may indicate a malfunction in the automatic transmission system. Have the vehicle inspected by your Lexus dealer immediately. (In this situation, the vehicle will operate as if the shift lever is in “D”.)
Page 180: Turn Signal Lever
2-1. Driving procedures Turn signal lever Left turn Right turn Move and hold the lever part- way to signal a lane change The left hand signal will flash until you release the lever. Move and hold the lever part- way to signal a lane change The right hand signal will flash until you release the lever.
Page 181: Parking Brake
2-1. Driving procedures Parking brake Sets the parking brake (Depressing the pedal again releases the parking brake.) U.S.A. Canada : Fully depress the parking brake pedal with your left foot while depressing the brake pedal with your right foot. NOTICE Before driving Fully release the parking brake.
Page 182: Instrument Cluster
2-2. Instrument cluster Gauges and meters Tachometer Displays the number of engine speed in revolutions per minute. (RPM) Speedometer Displays the vehicle speed. Fuel gauge Displays the quantity of fuel remaining in the tank. Engine coolant temperature gauge Displays the engine coolant temperature. Multi-information display P.
Page 183 2-2. Instrument cluster Odometer/trip meter and trip meter reset button Changes the display Resets the trip meter driving range to “0”. Instrument panel light control The brightness of the instrument panel lights excluding the clock and out- side temperature display, can be adjusted. Brighter Darker Maximum brightness...
Page 184 2-2. Instrument cluster Light sensitive optitron meter To reduce glare or reflection of the instrument cluster, the cluster glass is tinted automatically or manually. You can select a setting from 7 modes. Display the present setting, then change the mode. To change the mode, press the but- ton once and then again within 6 seconds.
Page 185 2-2. Instrument cluster NOTICE To prevent damage to the engine and its components Do not let the indicator needle of the tachometer enter the red zone, which indi- cates the maximum engine speed. The engine may be overheating if the temperature gauge is in the red zone (“H”). In this case, immediately stop the vehicle in a safe place.
Page 186: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems. Instrument cluster Center panel I n f o r ma t i o n P r o v i d e d b y :...
Page 187 2-2. Instrument cluster Indicators The indicators inform the driver of the operating state of the vehi- cle’ s various systems. Turn signal indicator Cruise control indicator ( P. 104) ( P. 124) Headlight high beam indi- Damping mode indicator cator ( P. 116) (GS430) ( P.
Page 188 Have the vehicle inspected by your Lexus dealer immediately if this occurs. I n f o r ma t i o n P r o v i d e d b y :...
Page 189: Multi-Information Display
2-2. Instrument cluster Multi-information display The multi-information display provides information including your vehicle’s driving condition, outside temperature, and warning messages. l Trip information ( P. 114) Displays driving range, fuel con- sumption and other cruising related information. l Intuitive parking assist dis- play (if equipped) ( P.
Page 190 2-2. Instrument cluster Display items can be switched by pushing the “DISP” switch. Trip information Outside temperature Displays the outside air temperature. The temperature range that can be displayed is from -40°F (-40°C) to 122°F (50°C). Driving range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.
Page 191 2-2. Instrument cluster System check display After switching the engine switch to IG-ON mode, “CHECK” is displayed while system operation is checked. When the system check is complete, “COMPLETED” is displayed before returning to the normal screen. CAUTION The multi-information display at low temperatures Allow the interior of the vehicle to warm up before using the liquid crystal informa- tion display.
Page 192: Operating The Lights And Windshield Wipers
2-3. Operating the lights and windshield wipers Headlight switch The headlights can be operated manually or automatically. The side marker, parking, tail, license plate and instrument panel lights U.S.A. turn on. The headlights and all Canada lights listed above turn The headlights and all the lights listed above turn on and off automatically.
Page 193 2-3. Operating the lights and windshield wipers AFS (Adaptive Front lighting System) AFS improves visibility at intersections and on curves by automatically adjusting the level of the headlights according to vehicle speed and the degree of the tire angle that are controlled by steering input. Operates at speeds of 6 mph (10 km/h) or higher.
Page 194 If the indicator flashes... It may indicate a malfunction in the system. Contact your Lexus dealer. Customization Settings (e.g. light sensor sensitivity) can be changed. ( P. 523) NOTICE To prevent battery discharge Do not leave the lights on longer than necessary if the engine is not running.
Page 195: Fog Light Switch
2-3. Operating the lights and windshield wipers Fog light switch The fog lights improve visibility in difficult driving conditions, such as in rain or fog. They can be turned on only when the headlights are on low beam. I n f o r ma t i o n P r o v i d e d b y :...
Page 196: Windshield Wipers And Washer
2-3. Operating the lights and windshield wipers Windshield wipers and washer Intermittent wiper with interval adjuster (if equipped) Wiper intervals can be adjusted for intermittent operation (when “INT” is selected). Intermittent wiper interval adjustment (increase) Intermittent wiper interval adjustment (decrease) Intermittent wiper operation Low speed wiper operation High speed wiper operation...
Page 197 2-3. Operating the lights and windshield wipers The windshield wiper and washer can be operated when The engine switch is in “IG-ON” mode. Dripping prevention wiper sweep After washing and wiping operation several times, the wipers operate one more time after a short delay to prevent dripping. However, the last sweep will not happen if the vehicle is traveling above 106 mph (170 km/h).
Page 198 2-3. Operating the lights and windshield wipers If no windshield washer fluid sprays Check that the washer nozzles are not blocked if there is washer fluid in the wind- shield washer fluid reservoir. In extremely hot or cold weather The system will turn off if the windshield gets extremely hot (at more than 176°F [80°C]) or cold (at less than 14°F [-10°C]).
Page 199: Headlight Cleaner Switch
2-3. Operating the lights and windshield wipers Headlight cleaner switch Washer fluid can be sprayed on the headlights. Press the switch to clean the headlights. The headlight cleaner can be operated when When the engine switch is in “IG-ON” mode and the headlight switch is turned NOTICE When the washer fluid tank is empty Do not use this function when the washer fluid tank is empty.
Page 200: Cruise Control
2-4. Using other driving systems Cruise control Use the cruise control to maintain a set speed without using the accelera- tor. Set the vehicle speed Turn the “ON-OFF” button ON. STEP Push the button once more to deactivate the cruise control. Accelerate or decelerate to the STEP desired speed and press the...
Page 201 Have the vehicle inspected by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 202 2-4. Using other driving systems CAUTION To avoid operating the cruise control by mistake Keep the “ON-OFF” button off when not in use. Situations unsuitable for cruise control Do not use cruise control in any of the following situations. Doing so may result in control of the vehicle being lost and could cause serious or fatal accident.
Page 203: Dynamic Radar Cruise Control
2-4. Using other driving systems Dynamic radar cruise control (if equipped) Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-vehicle distance control. In the vehicle-to-vehicle dis- tance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehicles ahead. Select cruise mode Selecting vehicle-to-vehicle dis- tance control mode...
Page 204 2-4. Using other driving systems Driving in the selected cruise control mode Accelerate or decelerate to the desired speed and press the lever down to set. Adjusting the speed setting Increase speed Decrease speed Hold the lever until the desired speed setting is displayed.
Page 205 2-4. Using other driving systems Changing the vehicle-to-vehicle distance Each pull of the switch changes Preceding the vehicle-to-vehicle distance vehicle mark Long Medium Short The vehicle-to-vehicle distance is automatically set to the long mode when the engine switch is set to the “IG-ON” mode. A vehicle mark is displayed ahead if one is detected.
Page 206 2-4. Using other driving systems Cruising in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles within 400 ft. (120 m) ahead and to judge the distance between your vehicle and those vehicles. Note that vehicle-to-vehicle distance will close when traveling on long down- hill slopes.
Page 207 2-4. Using other driving systems Example of follow-up cruising (when following a vehicle driving slower than the set speed): When the speed is set to 62 mph (100 km/h) and the vehicle ahead is driving at 50 mph (80 km/h) The system continues follow-up cruising while adjusting for changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis- tance set by the driver.
Page 208 If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Lexus dealer. Automatically canceling constant speed control The set speed is automatically canceled in the following situations.
Page 209 2-4. Using other driving systems Radar sensor and grille cover Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle distance control operates properly. (Some obstructions, such as snow, ice or plastic objects, cannot be detected by the obstruction sensor.) Dynamic radar cruise control is canceled if an obstruction is detected.
Page 210 2-4. Using other driving systems CAUTION Before using dynamic radar cruise control Do not overly rely on vehicle-to-vehicle distance control. Be aware of the set vehicle speed. If automatic deceleration/acceleration is not appropriate, adjust the vehicle speed, as well as the distance between your vehicle and vehicles ahead by applying the brakes, etc.
Page 211 2-4. Using other driving systems CAUTION When the radar sensor may not be correctly detecting the vehicle ahead Apply the brakes as necessary when any of the following types of vehicles are in front of you. As the sensor may not be able to correctly detect these types of vehicles, the prox- imity alarm ( P.
Page 212: Intuitive Parking Assist
2-4. Using other driving systems Intuitive parking assist (if equipped) Intuitive parking assist uses sensors in the front and rear of the vehicle to detect the distance between the vehicle and any obstacles, and informs the driver of this distance using the multi-information display, the touch screen, and warning beeps.
Page 213 2-4. Using other driving systems Intuitive parking assist switch Press the intuitive parking assist switch to turn the system on/off. The indicator light will come on when the intuitive parking assist is turned ON. You can use the system if the engine switch is in the “IG-ON”...
Page 214 2-4. Using other driving systems Multi-information display and touch screen If the sensors detect an obstacle, it is displayed on the multi-information display in the instrument cluster. You can change the conditions under which information is displayed on the touch screen. ( P. 150) Multi-information display Dual sensor detection Steering guide symbol...
Page 215 2-4. Using other driving systems Display distance and beeps When the intuitive parking assist is activated, the approximate distance to the obstacle is displayed. Also, if an obstacle with which a collision is pos- sible is detected, a warning beep will sound. Dual sensor detection display and obstacle distance Touch screen Approximate...
Page 216 2-4. Using other driving systems Rear corner sensor detection display and obstacle distance Approximate distance Multi-information Touch screen to obstacle display 1.5 ft. (50 cm) to 1.1 ft. (37.5 cm) (continuous) (continuous) 1.1 ft. (37.5 cm) to 0.8 ft. (25 cm) (continuous) (continuous) Less than 0.8 ft.
Page 217 2-4. Using other driving systems Touch screen (insert display) Dual sensor (corner) detection Rear corner sensor detection Back sensor detection The tire display and the steering guide symbol will not be displayed. Dual sensor detection display and obstacle distance Approximate distance With beeps No beeps to obstacle...
Page 218 2-4. Using other driving systems Rear corner sensor detection display and obstacle distance Approximate distance to obstacle Touch screen 1.5 ft. (50 cm) to 1.1 ft. (37.5 cm) (blinking) 1.1 ft. (37.5 cm) to 0.8 ft. (25 cm) (blinking rapidly) Less than 0.8 ft.
Page 219 2-4. Using other driving systems Steering guide symbol Displays the steering maneuvers required to avoid an obstacle. Move the steering wheel in the direction shown by the arrow. Multi-information display Touch screen • The steering guide symbol only shows the maneuvers necessary to avoid an obstacle.
Page 220 2-4. Using other driving systems Beeps and obstacle distance A beep sounds when an obstacle with which there is a danger of collision is detected. As the vehicle moves closer to the obstacle, the interval of the beep becomes shorter. l When the following obstacle distances are reached, the beep changes from intermittent to continuous: •...
Page 221 2-4. Using other driving systems Obstacle detection range About 10.0 ft. (300 cm) About 3.0 ft. (100 cm) About 5.0 ft. (150 cm) About 1.5 ft. (50 cm) The detection area of the sensors is shown to the left. If obstacles move too close to the sensors, they will not be detected.
Page 222 Have the vehicle checked by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 223 The location of the malfunctioning sensor is displayed. (The above illus- tration shows a malfunctioning left front sensor.) Have the vehicle checked by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 224 If the steering guide symbol disappears, the steering sensor has been ini- tialized. If the steering guide symbol does not disappear, have the vehicle checked by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 225 If the system is unable to receive signals from the steering sensor, or there is a malfunction in the VGRS, the steering guide symbol and both arrows will flash if the dual sensors detect an obstacle. In this case, have the vehicle checked by your Lexus dealer. Multi-information display Touch screen If the steering guide symbol is on or flashing, the intuitive parking assist maximum detection range is reduced from 3.0 ft.
Page 226 2-4. Using other driving systems Warning beep volume and touch screen settings You can change the warning beep volume and touch screen operating conditions. Push to display the “Information” screen. Then touch Changing the warning beep volume Touch STEP Adjust the beep volume, then touch STEP Changing the touch screen operating conditions Touch...
Page 227 2-4. Using other driving systems When the system malfunctions If a malfunction occurs and no obstacles have been detected, a warning is dis- played, and a malfunction beep sounds for 7 seconds. If an obstacle has been detected, or another malfunction occurs in a different sensor, the malfunction beeps will not sound.
Page 228 2-4. Using other driving systems In the following situations, the intuitive parking assist may not function correctly, possibly leading to an accident. • There is ice, snow or mud on the sensors. (Wiping the sensors will resolve this problem.) • The sensor area is frozen. (Thawing the area will resolve this problem.) In especially cold weather, if a sensor is frozen the screen may show an abnor- mal display, or obstacles may not be detected.
Page 229 2-4. Using other driving systems Certification For vehicles sold in the U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 230 When using intuitive parking assist In the following situations, the system may not function correctly due to a sensor malfunction etc. Have the vehicle checked by your Lexus dealer. • A beep does not sound when you turn the main switch ON.
Page 231: Rear View Monitor System
2-4. Using other driving systems Rear view monitor system The rear view monitor system assists the driver by displaying an image of the view behind the vehicle while reversing. The image is displayed in reverse on the screen. This allows the image to appear in the same manner as that of the rear view mirror.
Page 232 2-4. Using other driving systems Rear view monitor system camera In the following cases, it may be difficult to see the images on the screen, even when the system is functioning correctly. • In the dark (e.g. at night). • If the temperature near the lens is extremely high or low.
Page 233 Conditions which may affect the rear view monitor system If the back of the vehicle is hit, the camera's position and mounting angle may change. Contact your Lexus dealer. Rapid temperature changes, such as when hot water is poured on the vehicle in cold weather, may cause the system to function abnormally.
Page 234: Avs (Adaptive Variable Suspension System) (Gs430)
2-4. Using other driving systems AVS (Adaptive Variable Suspension System) (GS430) AVS controls the suspension according to the road and driving conditions. Selecting an optimum driving mode allows good vehicle posture and steer- ing wheel operation in conjunction with VGRS, EPS and active stabilizer suspension system.
Page 235: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) Restrains the vehicle from slipping when driving on slick road surfaces or in the event of sudden braking.
Page 236 2-4. Using other driving systems VDIM (Vehicle Dynamics Integrated Management) (GS430) Provides integrated control of the ABS, VSC, TRAC, hill-start assist con- trol, VGRS and EPS systems. Maintains vehicle stability when swerving on slippery road surfaces by controlling the brakes, engine output, and the movement of the front wheels.
Page 237 2-4. Using other driving systems To disable TRAC and/or VSC If the vehicle gets stuck in fresh snow or mud, TRAC and VSC may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it. Turning off TRAC only Quickly push and release the but- ton to turn off TRAC.
Page 238 2-4. Using other driving systems Automatic reactivation of TRAC and VSC Turning the engine switch OFF after turning off the TRAC and VSC systems will automatically re-enable them. Automatic TRAC reactivation If only the TRAC system is turned off, the TRAC system will turn on when the vehi- cle speed increases.
Page 239 2-4. Using other driving systems CAUTION The ABS does not operate effectively when The limits of tire gripping performance have been exceeded. The vehicle hydroplanes while driving at high speed on the wet or slick road. Stopping distance when the ABS is operating on the wet or slick roads The ABS is not designed to shorten the vehicle’...
Page 240 The ABS and VSC will not function correctly if different tires are fitted on the vehi- cle. Contact your Lexus dealer for further information when replacing tires or wheels. Handling of tires and suspension (GS430) Using tires with any kind of problem or modifying the suspension will affect the VDIM, and may cause the system to malfunction.
Page 241: Pcs (Pre-Collision System)
2-4. Using other driving systems PCS (Pre-Collision System) (if equipped) Safety systems such as the brakes and seat belts are automatically engaged to lessen impact and injuries to occupants as well as vehicle dam- age when the radar sensor detects an unavoidable frontal collision. Pre-collision seat belts (front seats only) The seat belts are immediately retracted as the effect of the pretensioner is increased ( P.
Page 242: Avs (Adaptive Variable Suspension)
2-4. Using other driving systems The pre-collision system is operational when Seat belt (linked to the radar sensor) • Vehicle speed is above 3 mph (5 km/h). • The speed at which your vehicle is approaching the obstacle or oncoming vehicle exceeds 18 mph (30 km/h).
Page 243 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area are subject to a strong impact, always have the area inspected and adjusted by a Lexus dealer. Do not disassemble the sensor.
Page 244: Driving Information
2-5. Driving information Cargo and luggage Take notice of the following information about storage precautions, cargo capacity and load. l Stow cargo and luggage in the trunk whenever possible. Be sure all items are secured in place. l Be careful to keep the vehicle level. Placing the weight as far for- ward as possible helps maintain vehicle balance.
Page 245 2-5. Driving information (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. ( P. 171) Example on your vehicle Cargo capacity Total load capacity...
Page 246 2-5. Driving information CAUTION Storage precautions Do not place anything on the package tray behind the rear seatback. Such items may be thrown about and possibly injure people in the vehicle during sudden braking or in an accident. Do not drive with objects on top of the instrument panel. They may interfere with the driver’...
Page 247: Vehicle Load Limits
Even if the number of occupants are within the seating capacity, do not exceed the total load capacity. Towing capacity Lexus does not recommend towing a trailer with your vehicle. Cargo capacity Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 248: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropriate to the prevailing weather conditions. Pre-winter preparations l Use fluids that are appropriate to the prevailing outside tempera- tures.
Page 249 2-5. Driving information Before driving the vehicle Perform the following according to the driving conditions. l Do not try to forcibly open a window or move a wiper that is fro- zen. Pour warm water over the frozen area to melt the ice. Wipe away the water immediately to prevent it from freezing.
Page 250 2-5. Driving information Regulations on the use of snow chains l Regulations regarding the use of tire chains vary according to location and type of road. Always check local regulations before installing chains. l Use SAE Class “S” type radial tire chains, with the exception of radial cable chains or V-bar type chains.
Page 251 2-5. Driving information To retract position Lower the wipers by pressing on the upper part of the hook section. Snow chain installation Observe the following precautions when installing and removing chains. Install and remove tire chains in a safe location. Install tire chains on the rear tires.
Page 252 NOTICE Repairing or replacing snow tires Request repairs of and obtain replacement snow tires from Lexus dealers. This is because the removal and attachment of snow tires affects the operation of the tire pressure warning valves and transmitters. Fitting tire chains The tire pressure warning valves and transmitters may not function correctly when tire chains are fitted.
Page 253: Trailer Towing
2-5. Driving information Trailer towing Lexus does not recommend towing a trailer with your vehicle. Lexus also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your Lexus is not designed for trailer towing or for the use of tow hitch mounted carriers.
Page 254: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle Do not tow your vehicle with four wheels on the ground. I n f o r ma t i o n P r o v i d e d b y :...
Page 255: Using The Touch Screen
3-1. Using the touch screen Touch screen By touching the screen with your finger, you can control the audio system and air-conditioning, adjust the screen display etc. Vehicles with navigation system Vehicles without navigation system The “Information” screen shown in the above illustration is displayed when is pressed.
Page 256 Trip Information. (Displaying the P. 182 “Trip Information” screen) Maintenance Navigation System Owner's Manual Telephone P. 267 Calendar Navigation System Owner's Manual “LEXUS Park Assist” P. 150 Language P. 184 Screen Setting P. 187 P. 318/ Adjust Clock Navigation System Owner's Manual The initial screen If the engine switch is set to “ACC”...
Page 257 3-1. Using the touch screen Trip information Trip information such as driving time, driving distance, average vehicle speed, fuel consumption, etc. can be displayed on the screen. The dis- played figure is for general information and may not always reflect pre- cise and actual conditions.
Page 258 3-1. Using the touch screen • Distance Displays the total distance since the engine was stared or the function was reset. Resetting the data Touching will reset the “Average Speed” and “Distance”. To avoid damaging the touch screen Touch the screen lightly with your finger. If there is no response, remove your fin- ger from the screen and try again.
Page 259: Setting The Touch Screen
3-1. Using the touch screen Setting the touch screen You can change the touch screen to your desired settings. Language settings The language used for all voice guidance, messages and touch screen switches may be changed. Press STEP Touch on the “Information” screen. STEP Select the desired language.
Page 260 3-1. Using the touch screen Adjusting the display Press STEP Adjust the display as desired using STEP If you do not touch the screen for 20 seconds, the system will return to the previous screen. Vehicles with CD player Vehicles with DVD player Color Green Tone...
Page 261 3-1. Using the touch screen “Day Mode” When the headlights are turned on, the screen dims. However the screen can be switched to “Day Mode”. The screen will stay in “Day Mode” when the headlights are turned on until touched again. If the instrument panel light control is set to “MAX”, “Day Mode”...
Page 262 3-1. Using the touch screen Screen settings The following screen settings can be changed. Automatic transition 20 seconds after air-conditioning or audio system use, the system will return the display to the previous screen. Switch color You can select the switch color. Personal data deletion The following personal data is deleted:...
Page 263 3-1. Using the touch screen Setting automatic transition Press STEP Touch on the “Information” screen. STEP Touch on the “Screen Setting” screen. STEP Press STEP Setting the switch color Press STEP Touch on the “Information” screen. STEP Touch on the “Screen Setting” screen. STEP Press STEP...
Page 264 3-1. Using the touch screen When deleting personal data Data can only be deleted when the vehicle is stopped. When selling the vehicle Be sure to initialize both the call history and personal data. ( P. 187) If you touch the The display returns to the previous screen.
Page 265: Using The Air Conditioning System And Defogger
3-2. Using the air conditioning system and defogger Automatic air conditioning system Airflow and outlets are automatically adjusted according to the tempera- ture setting. Press to display the air conditioning operation screen. Air conditioning operation screen display button Dual operation switch Airflow display Passenger’...
Page 266 3-2. Using the air conditioning system and defogger Using the automatic mode Press STEP The air conditioning system will begin to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting. Press to switch to automatic mode. STEP Automatically switches between outside air and recirculated air modes.
Page 267 3-2. Using the air conditioning system and defogger Adjusting the fan speed Touch any switch of (decrease increase) on the operating screen. Press to turn the fan off. Changing the air outlets Touch any mode on the operating screen. Air flows to the upper body. Air flows to the upper body and feet.
Page 268 3-2. Using the air conditioning system and defogger Switching between outside air and recirculated air modes Press The mode switches between (recycles air inside the vehicle), “AUTO” (introduces air from outside the vehicle) modes each time the button is pressed. When the system is switched to automatic mode, the air conditioning sys- tem operates automatically.
Page 269 3-2. Using the air conditioning system and defogger Adjusting the sensitivity of the air intake control in automatic mode Press until the smog sensor screen appears while the STEP vehicle is stopped. Touch switch STEP (lower sensi- tivity higher sensitivity) on the operating screen.
Page 270 3-2. Using the air conditioning system and defogger Side outlets Direct air flow to the left or right, up or down Turn the knob to open or close the vent Rear seat outlets Direct air flow to the left or right, up or down Turn the knob to open or close the vent...
Page 271 There may be a problem in the air conditioning system if the indicator light continues to flash. Turn the air conditioning system off and have it inspected by your Lexus dealer. Automatic mode for air intake control In automatic mode, the system detects exhaust gas and other pollutants and auto- matically switches between outside air and recirculated air modes.
Page 272 3-2. Using the air conditioning system and defogger CAUTION To prevent the windshield from fogging up Do not use during cool air operation in extremely humid weather. The differ- ence between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.
Page 273: Rear Window And Outside Rear View Mirror Defoggers
3-2. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers These features are used to defog the rear window, and to remove rain- drops, dew and frost from the outside rear view mirrors. Press the button. Press the button to turn on the rear window and outside rear view mirror defoggers.
Page 274: Using The Audio System
3-3. Using the audio system Audio system type CD and (optional) DVD player with changer, cassette player, and AM/ FM radio This illustration below is for a vehicle not equipped with the DVD player. Vehicles with navigation system Vehicles without navigation system The audio system appearance and screen may differ slightly for vehi- cles equipped with the DVD player.
Page 275 3-3. Using the audio system CD player: Plays audio CDs, CD text, MP3 discs and WMA discs. DVD player: Plays audio CDs, CD text, video CDs, MP3 discs, WMA discs, DVD video discs and DVD audio discs. Title Page Using the radio P.
Page 276 3-3. Using the audio system CAUTION For vehicles sold in the U.S.A. and Canada Part 15 of the FCC Rules FCC Warning: Any unauthorized changes or modifications to this equipment will void the user’ s authority to operate this device. Laser products •...
Page 277: Using The Radio
3-3. Using the audio system Using the radio Press to choose either an AM or FM band. When you press while listening to the radio, the following audio con- trol screen appears. Display audio control screen Preset stations Scan for receivable stations (AM mode only) Adjust the...
Page 278 3-3. Using the audio system ® Setting station presets (excluding XM Satellite Radio) Search for desired stations by turning the dial or pressing STEP or on Touch and hold one of the preset stations (1 - 6) until you hear a STEP beep.
Page 279 3-3. Using the audio system Scanning all radio stations within range AM station Touch on the screen or press STEP “SCAN” appears on the screen and all stations with reception will be played for a few seconds each. When the desired station is reached, touch or press STEP once again.
Page 280 3-3. Using the audio system The type of program changes each time the button is pressed. l ROCK l EASYLIS (Easy listening) l CLS/JAZZ (Classical music and Jazz) l R & B (Rhythm and Blues) l INFORM (Information) l RELIGION l MISC (Miscellaneous) l ALARM (Emergency messages) If the system receives no RDS stations, “NO PTY”...
Page 281 3-3. Using the audio system Traffic announcement Touch on the screen. “TRAF SEEK” appears on the dis- play, and the radio will start seeking any station broadcasting traffic program information. If no traffic program station is found, “NOTHING” appears on the display.
Page 282 3-3. Using the audio system ® Scanning XM Satellite Radio channels l Scanning channels in the current category Touch on the screen or press STEP “SCAN” appears on the screen. When the desired channel is reached, touch or press STEP the button once again.
Page 283 ® Receiving XM Satellite Radio The optional Lexus genuine satellite radio tuner and antenna allows you to receive ® and play XM Satellite Radio broadcasts. (Subscription is required. Available only in the 48 contiguous United States.) ®...
Page 284 XM antenna cable is attached securely. ANTENNA There is a short-circuit in the antenna or the surround- ing antenna cable. See a Lexus certified dealer. ® You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryption code.
Page 285 3-3. Using the audio system The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previ- ous channel or “CH001”. If it does not change auto- matically, select another channel. ® Contact the XM Listener Care Center at 1-877-515-3987 during the following hours...
Page 286: Using The Cassette Player
3-3. Using the audio system Using the cassette player Insert a cassette tape or press with a tape inserted. When you press while listening to the tape, the following audio con- trol screen appears. Display audio control screen Rewind Fast forward Repeat play Change playback Skip play...
Page 287 3-3. Using the audio system Selecting a track Skip a number of tracks at a time. Press on STEP Press until the number you want STEP to skip appears. 9 tracks can be skipped at a time. Rewind a number of tracks at a time. Press on STEP Press...
Page 288 3-3. Using the audio system ® Using Dolby Noise Reduction Touch on the screen. Reduces the level of noise for tapes recorded with Dolby NR only. Dolby noise reduction is manufactured under license from Dolby Laborato- ries Licensing Corporation. DOLBY and the double-D symbol registered trademarks of Dolby Laboratories.
Page 289 3-3. Using the audio system NOTICE Cassette tapes that cannot be used Do not use a cassette tape if it has been damaged or tangled or if its label is peeling off. Such tapes may affect playing speed and may also get stuck in the player. Cassette player precautions Store cassette tapes away from direct sunlight.
Page 290: Using The Cd Player
3-3. Using the audio system Using the CD player Insert a CD or press with a CD inserted. When you press while listening to a CD, the following audio control screen appears. Display audio control screen Display track list Select CD Search playback Repeat play Random playback...
Page 291 3-3. Using the audio system Loading a CD Loading a single CD Press STEP When the indicator changes from flashing amber to green, insert STEP a CD after the CD/DVD player door opens. Loading multiple CDs Press and hold until you hear a beep. STEP When the indicator changes from flashing amber to green, insert STEP...
Page 292 3-3. Using the audio system Selecting, fast forwarding and scanning tracks Selecting a track Press to move up and to move down using until the desired track number appears on the screen. To fast forward or rewind, press and hold or on Selecting a track from the track list Touch on the screen.
Page 293 3-3. Using the audio system Selecting a CD To select a CD to play Touch the desired disc number (1 - 6) on the screen or press or on To scan loaded CDs Touch and hold on the screen until “D SCAN” appears. STEP The first 10 seconds of the first track on each CD will be played.
Page 294 If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 16 letters can be displayed. Error messages Refer to the following table and take the appropriate measures. If the problem is not rectified, take the vehicle to your Lexus dealer. Correction Message Cause...
Page 295 3-3. Using the audio system CD compatibility Only audio CDs with the marks shown to the Audio CDs left can be used. The following products may not be playable on your CD player. SACDs dts-CDs Copy-protected CDs CD player protection feature To protect the internal components, playback is automatically stopped when a problem is detected.
Page 296 3-3. Using the audio system NOTICE Discs and adapters that cannot be used Do not use the following types of discs, 3 in. (8 cm) disc adapters or dual discs. Doing so may damage the player and render the disc insert/eject function unus- able.
Page 297 3-3. Using the audio system NOTICE Player precautions Failure to follow the precautions below may result in damage to the discs or the player itself. Do not insert anything other than discs into the disc slot. Do not apply oil to the player. Store discs away from direct sunlight.
Page 298: Playing Mp3 And Wma Discs
3-3. Using the audio system Playing MP3 and WMA discs Insert an MP3 or WMA disc or press with a disc inserted. When you press during playback of the disc, the following audio con- trol screen appears. Display audio control screen Display folder list Select folder Repeat play...
Page 299 3-3. Using the audio system Loading, ejecting and selecting MP3 and WMA discs Refer to the section entitled “Using the CD player” for details. ( P. 216) Selecting a folder Selecting a folder Touch “FOLDER ” or “ ” on the screen to select the previ- ous/next folder.
Page 300 3-3. Using the audio system Selecting and scanning files Selecting one file at a time Turn the dial or press or on to select the desired file. Selecting a file from the file list Touch on the screen to turn the folder list on. STEP Touch on the folder list...
Page 301 3-3. Using the audio system Selecting a desired file by cueing the files in the folder Touch on the screen. When the desired file is reached, touch once again. File repeat Touch on the screen. Folder repeat Touch and hold on the screen until the “FLD RPT”...
Page 302 3-3. Using the audio system MP3 and WMA files MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. WMA (Windows Media Audio) is a Microsoft audio compression format. This format compresses audio data to a size smaller than that of the MP3 format.
Page 303 3-3. Using the audio system Compatible disc formats The following disc formats can be used. • Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2 • File formats: ISO9660 level 1, level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above may not play correctly, and their file names and folder names may not be dis- played correctly.
Page 304 3-3. Using the audio system MP3 and WMA playback When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.
Page 305 3-3. Using the audio system CD-R and CD-RW discs CD-R/CD-RW discs that have not been subject to the “finalizing process” (a process that allows discs to be played on a conventional CD player) cannot be played. It may not be possible to play CD-R/CD-RW discs recorded on a music CD recorder or a personal computer because of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc.
Page 306: Using The Dvd Player
3-3. Using the audio system Using the DVD player (if equipped) Insert a disc or press with a disc inserted. When you press during the playback of the disc, the following audio/ video control screen appears. Display audio/video control screen Select disc Disc slot Power Volume...
Page 307 3-3. Using the audio system Loading a discs Loading a single disc Push STEP When the indicator changes from flashing amber to green, insert STEP a disc after the DVD player door opens. Loading multiple discs Press and hold until you hear a beep. STEP When the indicator changes from flashing amber to green, insert STEP...
Page 308 3-3. Using the audio system Ejecting discs Ejecting a disc To select the disc to be ejected, touch the desired disc on the STEP screen or press or on Press and remove the disc. STEP Ejecting all discs Press and hold until you hear a beep, then remove the discs.
Page 309: Playing Dvd Video/Audio
3-3. Using the audio system Playing DVD video/audio For safety reasons, you can enjoy the visual contents of discs only when the vehicle is completely stopped with the engine switch in “ACC” or “IG-ON” mode and the parking brake applied. While you are driving, only audio con- tents may be played.
Page 310 3-3. Using the audio system Control icon screen Touch any part of the screen if no icons are shown while watching video, the following screen appears. DVD video mode Menu control key Return to top menu screen Hide control icons Page 1 Go to page 2 Return to...
Page 311 3-3. Using the audio system DVD audio mode Return to top menu screen Menu control key Hide control icons Page 1 Go to page 2 Change the audio format Fast forward Rewind Playback Stop Pause Initial DVD setup Page 2 Select menu number Return to page 1...
Page 312 3-3. Using the audio system Slow playback Touch and then touch . Video is played slowly while you are touching Searching a desired screen Searching by title (DVD video mode) Touch in the control icons. STEP Input the desired title number and STEP then touch : deletes the last input...
Page 313 3-3. Using the audio system Playing a bonus group (DVD audio mode only, if the DVD has bonus options) Touch in the control icons. STEP Input the desired bonus group STEP number on the group search screen and touch : deletes the number. : returns to previous screen.
Page 314 3-3. Using the audio system Using the DVD menu Touch in the control icons. STEP Touch if the menu control key does not appear on the menu screen. Touch to select a STEP menu item, then touch select. : moves icons up or down. : hides icons.
Page 315 3-3. Using the audio system Changing the audio language (DVD video only) Touch in the control icons. Each time you touch the button, the next available language is selected. : returns to previous screen. Changing the audio format (DVD audio only) Touch in the control icons.
Page 316 3-3. Using the audio system Changing the angle (If the angle option is available) Touch in the control icons. STEP Touch the button. STEP Each time you touch the button, the next available angle is selected. : returns to previous screen. Initial DVD setup Displaying “Setup Menu”...
Page 317 3-3. Using the audio system Setting audio language Touch on the “Setup Menu” screen. STEP Select the desired language. STEP If you cannot find the desired language, touch and input the desired language code. ( P. 245) : returns to previous screen. Setting subtitle language Touch on the “Setup Menu”...
Page 318 3-3. Using the audio system Parental lock Touch on the “Setup Menu” screen. STEP Input the 4-digit password and STEP then touch If you enter wrong numbers, touch to delete the numbers. Touch 10 times to initialize the personal code. Select a parental level (1 - 8).
Page 319 3-3. Using the audio system l Language code Code Language Code Language Code Language 1001 Japanese 0205 Byelorussian 0704 Scots-Gaelic 0514 English 0207 Bulgarian 0712 Galician 0618 French 0208 Bihari 0714 Guarani 0405 German 0209 Bislama 0721 Gujarati 0920 Italian 0214 Bengali 0801...
Page 320 3-3. Using the audio system Code Language Code Language Code Language 1119 Kashmiri 1415 Norwegian 1914 Shona 1121 Kurdish 1503 Occitan 1915 Somali (Afan) 1125 Kirghiz 1513 1917 Albanian Oromo 1201 Latin 1518 Oriya 1918 Serbian 1214 Lingala 1601 Panjabi 1919 Siswati 1215...
Page 321 3-3. Using the audio system Code Language Code Language Code Language 2023 2209 Vietnamese 2515 Yoruba 2111 Ukrainian 2215 Volapük 2621 Zulu 2118 Urdu 2315 Wolof 2126 Uzbek 2408 Xhosa Error messages If “Region Code Error” is displayed, check the region code printed on the DVD matches the player's region code.
Page 322: Playing Video Cd
3-3. Using the audio system Playing video CD For safety reasons, you can enjoy the visual contents of discs only when the vehicle is completely stopped with the engine switch in “ACC” or “IG-ON” mode and the parking brake applied. While you are driving, only audio con- tents may be played.
Page 323 3-3. Using the audio system Control icon screen Touch any part of the screen if no icons are shown while watching a video CD, the following screen appears. Search track Hide control icons Page 1 Go to page 2 Return to registered screen Change sound-multiplex Search previous page...
Page 324 3-3. Using the audio system Fast forwarding/rewinding the video CD Touch and hold in the control icons or press and hold or on until you hear a beep. Slow playback Touch and then touch in the control icons. Video is played slowly while you are touching Using the video CD menu Touch...
Page 325 3-3. Using the audio system Selecting a desired screen Searching manually Touch on the screen, or press until the desired screen appears. Searching by number Touch in the control icons. STEP Input the desired track number on STEP the screen and touch : deletes the last input number.
Page 326: Dvd Player And Dvd Video Disc Information
3-3. Using the audio system DVD player and DVD video disc information DVD video discs The DVD player conforms to NTSC color TV formats. Region code: Some DVD video discs have a region code indicating the region in which you can use the DVD video disc. If the DVD video disc is not labeled as “ALL”...
Page 327 3-3. Using the audio system DVD compatibility Use only discs marked as shown to the left. Audio CDs The following products may not be playable on your DVD player. SACDs dts-CDs Copy-protected CDs DVD-Rs DVD video discs DVD+Rs DVD-RWs DVD+RWs DVD audio discs DVD-ROMs DVD-RAMs...
Page 328 3-3. Using the audio system Viewer restrictions This feature limits what can be viewed in conformity with the level of restrictions of the country. The level of restrictions varies depending on the DVD video disc. Some DVD video discs cannot be played at all, or violent scenes are skipped or replaced with other scenes.
Page 329 3-3. Using the audio system Sound Dolby Digital Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Labo- ratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights reserved. This product incorporates copyright protection technology that is protected by method claims of certain U.
Page 330: Optimal Use Of The Audio/Video System
3-3. Using the audio system Optimal use of the audio/video system Press on the panel to display the audio/video control screen. Operating the radio, cassette player and CD player Adjust sound quality and balance Adjust the DSP Operating the DVD video/audio and video CD Adjust sound quality and balance Adjust screen ratio...
Page 331 3-3. Using the audio system Adjusting sound quality and balance Touch on the screen. STEP Adjust the settings, referring to the STEP following table. Once you have finished, touch Sound quality Display Level Touch mode High-pitched -5 to 5 tones* Mid-pitched -5 to 5 tones*...
Page 332 3-3. Using the audio system Setting DSP The following features can be set as desired by touching on the screen. With CD player With DVD player Turning Automatic Sound Levelizer (ASL) ON or OFF Touch ASL automatically adjusts the volume and tone quality according to the noise level as you drive your vehicle.
Page 333 3-3. Using the audio system Display Listening position Position best suited to the rear seats Position best suited to all seats Turning the surround ON or OFF (with DVD player only) Touch Setting the screen ratio mode (with DVD player only) Touch on the screen.
Page 334: Using The Steering Switches
3-3. Using the audio system Using the steering switches Some audio features can be controlled using the switches on the steering wheel. Power on, select audio source Volume Radio: Select radio stations Cassette: Fast forward, rewind and select- ing tracks CD: Select tracks, discs and folder DVD: Select tracks, discs and...
Page 335 3-3. Using the audio system Adjusting the volume Press “+” on to increase the volume and “-” to decrease the vol- ume. Hold down the button to continue increasing or decreasing the volume. Selecting a radio station Press to select the radio mode. STEP Press or on to select a radio station.
Page 336 3-3. Using the audio system Canceling automatic selection of a radio station Push the same switch. CAUTION To reduce the risk of an accident Exercise care when operating the audio switches on the steering wheel. I n f o r ma t i o n P r o v i d e d b y :...
Page 337: Using The Hands-Free System
3-4. Using the hands-free system Hands-free system The hands-free system is a function that allows you to use your mobile phone without touching it. ® ® This system supports Bluetooth mobile phones. Bluetooth is a wireless data system that allows the mobile phone to wirelessly connect to the hands-free system and make/receive calls.
Page 338 3-4. Using the hands-free system Status display You can check such indicators as signal strength and battery charge on the “Telephone” screen. Connection status Battery charge Call area Signal strength Indicators Conditions Blue: Good Yellow: Bad Connection status : Not connected : Full Battery charge : Low...
Page 339 3-4. Using the hands-free system When using the hands-free system The audio system and voice guidance are muted when making a call. If both parties speak at the same time it may be difficult to hear. If the received call volume is overly loud, an echo may be heard. Try to face the microphone as much as possible when speaking.
Page 340 3-4. Using the hands-free system ® About Bluetooth Bluetooth is a registered trademark of Bluetooth SIG. Inc. Compatible models Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push Profile) Ver. 1.1. Certification for the hands-free system FCC ID: HYQBT0501A IC ID: 1551A-BT0501A This device complies with Part 15 of the FCC Rules and RSS-210.
Page 341 3-4. Using the hands-free system CAUTION FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Radio Frequency Exposure. This device is approved for Mobile Application only and, to comply with applicable FCC radio frequency exposure regulations, must be used with a distance of at least 7.
Page 342: Using The Bluetooth ® Phone
3-4. Using the hands-free system ® Using the Bluetooth phone Telephone screen ® Bluetooth Connection Status Character Deletion Display Last Person Called Make A Call To display the screen shown above, press , then touch on the “Information” screen. I n f o r ma t i o n P r o v i d e d b y :...
Page 343 3-4. Using the hands-free system ® Registering a Bluetooth phone You can register up to 6 phones in the system. Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch STEP Touch STEP I n f o r ma t i o n P r o v i d e d b y :...
Page 344 3-4. Using the hands-free system Input the passkey displayed on STEP screen into your phone. If the message “Bluetooth* con- nection successful” is displayed, registration is complete. If the message “Bluetooth* con- nection failed. Please check the “Passkey” and the settings of the telephone”...
Page 345 3-4. Using the hands-free system ® Reconnecting to the Bluetooth phone If the system cannot connect due to poor signal strength with the engine switch in the “ACC” or “IG-ON” mode, the system will automatically attempt to reconnect. If the phone is turned off, the system will not attempt to reconnect. In this case, con- nection must be made manually, or the phone must be re-selected.
Page 346 3-4. Using the hands-free system Dialing from the phone book You can dial a number from the phone book data imported from your mobile phone. Up to 1000 entries may be stored in the phone book. ( P. 291) Press STEP Touch on the “Information”...
Page 347 3-4. Using the hands-free system Dialing from history You can make a call from past dialed numbers or received calls. Up to 5 numbers are stored, with the last recent number being deleted to make room for a new number. Press STEP Touch...
Page 348 3-4. Using the hands-free system Calling using speed dial You can make a call using numbers registered from the phone book and call history. ( P. 282) Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Choose the desired number to STEP...
Page 349 3-4. Using the hands-free system Calling using voice recognition Using voice recognition, you can call by name from the “Phone Book” screen, call by number from the “Telephone” screen, and send tones from the “Call” screen.( P. 278) Talk switch l Calling by name from the “Phone Book”...
Page 350 3-4. Using the hands-free system l Calling by number from the “Telephone” screen Press the talk switch. STEP Following the system guidance, wait until the beep and then say STEP the desired number. Following the system guidance, press the talk switch. STEP Following the system guidance, wait until the beep and then say STEP...
Page 351 3-4. Using the hands-free system Made/Received call history list If you make a call to or receive a call from a number registered in the phone book, the name is displayed in the call history. If you make multiple calls to the same number, only the last call made is dis- played in the made calls history.
Page 352 3-4. Using the hands-free system To display the voice recognition operating guide After pressing the talk switch, STEP press . If the “Command List” screen is displaying, press Press STEP To cancel voice recognition Press and hold the talk switch. Press on the steering wheel.
Page 353 3-4. Using the hands-free system To refuse a call Touch and hold To adjust the received call volume Press the . You can also adjust the volume using the steer- ing switches. International calls Received international calls may not be displayed correctly, depending on the mobile phone in use.
Page 354 3-4. Using the hands-free system Touch STEP Input the number. STEP If repeated tone symbols* are stored in the phone book, are displayed on the right side of the screen. *: Repeated tone symbols are sym- bols or numbers displayed as p or w, that come after the phone number.
Page 355: Setting The Hands-Free System
3-4. Using the hands-free system Setting the hands-free system You can speed dial, register in and edit the phone book, and set the ® Bluetooth phone. Settings screen Connection Method To display the screen shown above, press , touch on the “Information”...
Page 356 3-4. Using the hands-free system Registering/Deleting a speed dial item Registering a speed dial item You can register a number from the phone book or the call history. Up to 17 entries may be stored. Press STEP Touch on the “Information” screen. STEP Touch the switch on the “Telephone”...
Page 357 3-4. Using the hands-free system Select the number to be regis- STEP tered. Press the desired switch. STEP The last dialed number will be reg- istered in position 6. Deleting a speed dial item Press STEP Touch on the “Information” screen. STEP Touch the switch on the “Telephone”...
Page 358 3-4. Using the hands-free system To delete all speed dial items Follow the steps for “Deleting a speed dial item” to “STEP 5”. In the “Speed Dial” section of the “Speed Dial Settings” screen, touch the . A confirmation message will be displayed. If everything is correct, touch Registering/Editing/Deleting a Speed Tone Registering a speed tone You can register up to 6 items.
Page 359 3-4. Using the hands-free system Input the number and touch STEP Touch the desired switch. STEP Editing a speed tone Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Speed Tone”...
Page 360 3-4. Using the hands-free system Input the name and touch STEP Input the number and touch STEP Deleting a speed tone Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Speed Tone”...
Page 361 3-4. Using the hands-free system Setting the volume Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch to lower or raise STEP the volume. Voice Volume: Change speaker volume Ring Volume: Change the ring vol- Adaptive Volume Control When traveling at 50 mph (80 km/h) or over, the system automatically raises the...
Page 362 3-4. Using the hands-free system Changing the screen settings The following settings can be changed. “Incoming Call Display” The incoming call screen set- tings can be changed. “Auto Answer” When a call is received, the sys- automatically switches to the talking screen after the set period of time, meaning you can speak without pressing any-...
Page 363 3-4. Using the hands-free system “Incoming Call Display” settings Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Select the desired switch. STEP : The hands-free screen is displayed when a call is received, and you can operate the system from that screen.
Page 364 3-4. Using the hands-free system “Show Bluetooth* connection status at startup” settings Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Show Bluetooth* connection STEP status at startup” section of the “Screen Settings” screen. *: Bluetooth is a registered trademark of Bluetooth SIG.
Page 365 3-4. Using the hands-free system Phone book settings Up to 1000 names, 2 items per name, can be registered. Transferring mobile phone data Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch STEP...
Page 366 3-4. Using the hands-free system overwrite data, touch STEP To add to existing data, touch Transfer will begin. If you wish to STEP cancel the transfer before fin- ished, touch Transfer is complete when “Trans- fer completed” is displayed. If “Transfer failed” is displayed, restart the process from the begin- ning.
Page 367 3-4. Using the hands-free system Choose the switch to register. STEP : Input the name on the “Name” screen. Input the number(s) on the “Telephone Num- ber” screen. When you touch , the “Select Icon” screen will appear. Choose desired icon.
Page 368 3-4. Using the hands-free system Add history data to a registered entry Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Choose the desired number from the list. STEP To choose from the received call history, touch then select the desired number.
Page 369 3-4. Using the hands-free system Editing phone book data Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Phone Book” section of the “Phone Book STEP Management”...
Page 370 3-4. Using the hands-free system To delete all data Follow the steps “Deleting phone book data” to “STEP 5”. In the “Phone Book” sec- tion of the “Phone Book Management” screen, touch . To delete all data within a group, touch , then select the group to delete.
Page 371 3-4. Using the hands-free system Changing the phone book group name settings Registering a group name Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch the switch in the “Group Name” section of the STEP “Phone Book Management”...
Page 372 3-4. Using the hands-free system Deleting a group name Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch the switch in the “Group Name” section of the STEP “Phone Book Management”...
Page 373 3-4. Using the hands-free system Deleting the history Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Select the data to delete from the list. STEP To delete data from the received calls history, touch , then select the data to delete.
Page 374 3-4. Using the hands-free system Changing the security code Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Secu- STEP rity Code” section. Input the current security code, STEP and touch Input the new security code, and touch...
Page 375 3-4. Using the hands-free system Enabling security Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Phone Book Lock” section of the “Phone STEP Book Lock” screen. Input the security code, and touch STEP Setting the security code to default...
Page 376 Be sure to choose a number difficult for strangers to guess. Do not forget the security code. Even your Lexus dealer will be unable to dis- able the security. If you do forget the code, initialize all personal data. ( P. 187)
Page 377 3-4. Using the hands-free system ® Setting a Bluetooth phone ® Selecting a Bluetooth phone ® If multiple Bluetooth phones are registered, follow the below proce- ® dure to select the Bluetooth phone to be used. You may only use one phone at a time.
Page 378 3-4. Using the hands-free system ® Displaying Bluetooth information You can check the device address and device name. Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP On the “Select Telephone” screen, select the desired phone and STEP touch To change the device name, touch...
Page 379 3-4. Using the hands-free system To change the device name, touch STEP in the “Device Name” section, and input the name on the “Name” screen (max. 20 charac- ters). To change the passkey, touch in the “Passkey” section, and input 4 - 8 digits on the “Pass- key”...
Page 380 3-4. Using the hands-free system ® To delete the Bluetooth settings Press STEP Touch on the “Information” screen. STEP Touch on the “Telephone” screen. STEP Touch on the “Settings” screen. STEP Touch in the “Bluetooth* Telephone” section of the STEP “Bluetooth* Settings”...
Page 381: Using The Interior Lights
3-5. Using the interior lights Interior lights list Illuminated entry system: The various lights automatically turn on/off according to the presence of the electronic key, whether the doors are locked/unlocked, whether the doors are open/closed, and the engine switch mode. Outer foot light Steering spot light Front personal lights ( P.
Page 382 3-5. Using the interior lights Inside door handle lights Rear personal lights ( P. 308) Rear interior lights Door courtesy lights Foot light Front scuff light When the instrument panel light control switch is turned to minimum, the foot lights, inside door handle lights and shift lever light will turn off. ( P. 107) To prevent battery discharge If the interior lights, personal lights and steering spot light remain ON when the door is not fully closed or the interior light switch in “DOOR”...
Page 383 3-5. Using the interior lights Interior lights “ON” “OFF” “DOOR” The interior lights are turned on/off by the illuminated entry system. Personal lights Front ON/OFF I n f o r ma t i o n P r o v i d e d b y :...
Page 384 3-5. Using the interior lights Rear ON/OFF Customization Settings can be changed. ( P. 526) I n f o r ma t i o n P r o v i d e d b y :...
Page 385: Glove Box
3-6. Using the storage features List of storage features Storage compartment Glove box Overhead console (vehicles without Lexus Link System) Door pocket Cup holders Coin holder Console box I n f o r ma t i o n P r o v i d e d b y :...
Page 386 3-6. Using the storage features Glove box Open (push button) Lock with the mechanical key Unlock with the mechanical key Glove box light The glove box light turns on when the headlight switch is on. Trunk opener main switch The trunk opener main switch is located in the glove box. ( P.
Page 387 Caution while driving Keep the console box closed. Injuries may result in the event of an accident or sudden braking. Overhead console (vehicles without Lexus Link System) The overhead console is useful for temporarily storing sunglasses and similar small items.
Page 388 3-6. Using the storage features Storage compartment CAUTION Caution while driving Do not leave the storage compartment open. The opened compartment many hit your body or items may be thrown out of the compartment in the event of an accident or sudden braking and cause injury. Coin holder Pull up lever to release the lock.
Page 389 3-6. Using the storage features Cup holders Front To open, press down and release the cup holder lid. Rear To open, press in and release the rear cup holder on the armrest. CAUTION Items unsuitable for the cup holder Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 390 3-6. Using the storage features Door pockets The door pocket can be opened and closed. CAUTION Caution while driving Keep the door pockets closed. Injuries may result in the event of an accident or sud- den braking. I n f o r ma t i o n P r o v i d e d b y :...
Page 391: Other Interior Features
3-7. Other interior features Sun visors Forward position: Flip down. Side position: Flip down, unhook, and swing to the side. Side extender: Place in side position, then slide back- wards. I n f o r ma t i o n P r o v i d e d b y :...
Page 392: Vanity Mirror
3-7. Other interior features Vanity mirror The light turns on when the cover is opened. I n f o r ma t i o n P r o v i d e d b y :...
Page 393: Clock
3-7. Other interior features Clock Adjust clock With navigation system: “Navigation System Owner's Manual”. Without navigation system: Perform the following steps. Press STEP Touch STEP Adjust hours. STEP Adjust minutes. Round the nearest hour. Turn daylight saving time on. Turn daylight saving time off. After setting, touch The clock is displayed when The engine switch is in “ACC”...
Page 394: Outside Temperature Display
The engine switch is in “IG-ON” mode. When --- is displayed The system may be malfunctioning. Take your vehicle to your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 395: Ashtrays
3-7. Other interior features Ashtrays Front Slide the lid back to open. Push the lever to remove the ashtray. Push the lid to close. Rear Pull the ashtray lid to open. Hold the plate down and pull the ashtray upwards to remove. CAUTION When not in use Keep the ashtray closed.
Page 396: Cigarette Lighter
3-7. Other interior features Cigarette lighter Slide the lid back to open, and push the cigarette lighter down. The cigarette lighter will pop up when ready for use. The cigarette lighter can be used when The engine switch is in “ACC” or “IG-ON” mode. CAUTION To avoid burns or fires Do not touch the metal parts of the cigarette lighter.
Page 397: Power Outlet
3-7. Other interior features Power outlet The power outlet can be used for 12V accessories that run on less than 10A. The power outlet can be used when The engine switch is in “ACC” or “IG-ON” mode. NOTICE To avoid damaging the power outlet Close the power outlet lid when not in use.
Page 398: Seat Heaters
3-7. Other interior features Seat heaters (if equipped) Heats the seats The indicator light comes on. The higher the number, the warmer the seats become. The seat heaters can be used when The engine switch is in “IG-ON” mode. When not in use Set the dial to “0”.
Page 399 3-7. Other interior features NOTICE To prevent seat heater damage Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. To prevent battery discharge Turn the switches off when the engine is not running. I n f o r ma t i o n P r o v i d e d b y :...
Page 400: Seat Heaters And Ventilators
3-7. Other interior features Seat heaters and ventilators (if equipped) The seat heaters and ventilators heat the seats and maintain good airflow by blowing air from the seats. Heats the seats The indicator light (red) comes The higher the number, the warmer the seats become.
Page 401 3-7. Other interior features NOTICE To prevent seat heater damage Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. To prevent battery discharge Turn the switches off when the engine is not running. I n f o r ma t i o n P r o v i d e d b y :...
Page 402: Armrest
3-7. Other interior features Armrest Pull the armrest down for use. NOTICE To prevent damage to the armrest Do not place too much strain on the armrest. I n f o r ma t i o n P r o v i d e d b y :...
Page 403: Rear Sunshade
3-7. Other interior features Rear sunshade The rear sunshade can be raised and lowered by pressing the switch shown below. Raise/lower The rear sunshade can be used when The engine switch is in “IG-ON” mode. Reverse operation feature To ensure adequate rear visibility, the sunshade automatically lowers when the shift lever is shifted to “R”.
Page 404 3-7. Other interior features CAUTION When the rear sunshade is being raised or lowered Do not place fingers or other objects in the fastener section or in the opening. They may get caught, causing injury. NOTICE To prevent battery discharge Do not operate the rear sunshade when the engine is not running.
Page 405: Floor Mats
3-7. Other interior features Floor mats Securely place a mat that matches the size of the space on the carpet. Secure the floor mat using the hooks provided. CAUTION When inserting the floor mat Make sure the floor mat is properly placed on the vehicle carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident.
Page 406: Trunk Features
3-7. Other interior features Trunk features Cargo hooks Cargo hooks are provided for securing loose items. Shopping bag hooks First-aid kit storage belt Loosen Tighten I n f o r ma t i o n P r o v i d e d b y :...
Page 407: Luggage Mat
3-7. Other interior features Luggage mat Pull the lever upwards when lift- ing the luggage mat up. The lever can be hooked on the edge of the trunk. Trunk storage extension Pull down the rear seat center armrest. Open (push down the handle) Lock with the mechanical key Unlock with the mechanical key I n f o r ma t i o n P r o v i d e d b y :...
Page 408 3-7. Other interior features CAUTION Caution while driving To avoid injury, always return the cargo hooks to their positions when they are not in use. Always keep the trunk storage extension doors closed to reduce the chance of injury in case of accident or sudden stop. NOTICE When closing the trunk Do not leave the luggage mat lever hooked on the edge of the trunk.
Page 409: Garage Door Opener
3-7. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, and security systems, and other devices. The garage door opener (HomeLink Universal Transceiver) is manufactured under license from HomeLink .
Page 410 3-7. Other interior features Press and hold down one of the STEP buttons on the HomeLink the button on the transmitter. When the indicator light on the HomeLink changes from a slow to a rapid flash after 20 seconds, you can release both buttons. Test operation STEP...
Page 411 3-7. Other interior features Programming a Rolling Code system (for U.S.A. owners) If your device is Rolling Code equipped, follow the steps under the heading “Programming the HomeLink ” before proceeding with the steps listed below. Locate the training button on the ceiling mounted garage door STEP opener motor.
Page 412 HomeLink buttons. Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your authorized Lexus dealer for assistance. Reprogramming a button The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 413 3-7. Other interior features Before programming Install a new battery in the transmitter. The battery side of the transmitter must be pointed away from the HomeLink . Certification for the garage door opener This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC Rules.
Page 414: Compass
3-7. Other interior features Compass The compass on the inside rear view mirror indicates the direction in which the vehicle is heading. Operation To turn the compass on or off, push “AUTO” for longer than 3 seconds. Displays and directions Display Direction North...
Page 415 3-7. Other interior features Calibrating the compass The direction display deviates from the true direction determined by the earth’ s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over a map boundary shown in illustration, the compass will devi- ate.
Page 416 3-7. Other interior features Wait a few seconds until the compass direction is displayed. STEP The calibration is complete. Circling calibration If “CAL” appears on the display, drive the vehicle at 5 mph (8 km/ h) or less in a circle until a direction is displayed.
Page 417 3-7. Other interior features CAUTION Caution while driving Do not adjust the display. Be sure to adjust the display only when the vehicle is stopped. When doing the circling calibration Be sure to secure a wide space, and watch out for people and vehicles in the neigh- borhood.
Page 418: Lexus Link System
3-7. Other interior features Lexus Link System (if equipped) The Lexus Link System is a communication service that uses Global Posi- tioning System (GPS) data and cellular service to provide you with safety, security and convenience. This system is only operational in GPS and cellu- lar coverage areas.
Page 419 Important! Read this information before using the Lexus Link System. Exposure to radio frequency signals The Lexus Link System installed in your vehicle is a low power ratio trans- mitter and receiver. When the engine switch is in the “ON” position, it receives and also sends radio frequency (RF) signals.
Page 420 When you press the button, a priority call is placed to the Lexus Link Call Center with your vehicle’ s location. At the Call Center, the Lexus Link Advisor can determine your vehicle’ s location, communicate with you, and, if appropriate, contact the nearest emergency service provider.
Page 421 In the case that you forget where you parked the vehicle, such as in a large parking lot, the Lexus Link Call Center can send a signal to flash the headlights and sound the horn to help you locate the vehicle.
Page 422 • This command takes you from the current function to the “Lexus Link ready” prompt. If the last response from the system was “Lexus Link ready”, this command will exit voice mode. I n f o r ma t i o n P r o v i d e d b y :...
Page 423 There are 5 ways to make a call. Dialing a specific number Press the button. When the system responds with “Lexus STEP Link ready”, say “Dial”. When the system responds with “Phone number to dial please”, STEP say the entire number you wish to dial without pausing.
Page 424 How to store a nametag Press the button. When the system responds with “Lexus STEP Link ready”, say “Store”. When the system responds with “Phone number to store, please”, STEP say the entire number you wish to store with no pauses.
Page 425 When the system responds with “Lexus STEP Link ready”, say “Redial”. The system will respond with “Redialing [#]”. STEP Dialing a number a Lexus Link Advisor downloaded to your vehicle Press the button. When the system responds with “Lexus STEP Link ready”, say “Number recall”.
Page 426 Press the button to try again. How to retrieve your phone number Press the button. When the system responds with “Lexus STEP Link ready”, say “My number”. The system responds with “Your number is [#]”.
Page 427 3-7. Other interior features Verifying remaining units (minutes) To verify remaining minutes Press the button. When the system responds with “Lexus STEP Link ready”, say “Units”. When the system responds with “Verify or add”, say “Verify”. STEP The system responds with “You have [#] units remaining”.
Page 428 3-7. Other interior features Speech recognition information The Lexus Link speech recognition systems use speech technology that is designed to understand a wide range of speakers of American English. However, the technol- ogy may not work as well if a regional or ethnic accent is encountered. If the speech recognition system does not work properly, refer to the following.
Page 429 Some of the voice guidance instructions can be changed to Spanish. Press the button and ask a Lexus Link Advisor. Information on Advanced Services See the Lexus Link area of the Lexus website at www.lexus.com/lexuslink/ or call the Lexus Link Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free) for more information.
Page 430 3-7. Other interior features CAUTION FCC WARNING Changes or modifications in construction not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equip- ment. Radio Frequency Exposure. This device is approved for Mobile Application only and, to comply with applicable FCC radio frequency exposure regulations, must be used with a distance of at least 7.
Page 431 3-7. Other interior features I n f o r ma t i o n P r o v i d e d b y :...
Page 432: Maintenance And Care
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condi- tion. l Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 433 4-1. Maintenance and care Bumpers and side moldings Do not scrub with abrasive cleaners. To prevent paint deterioration and corrosion on the body Wash the vehicle immediately in the following cases: • After driving near the sea coast • After driving on salted roads •...
Page 434: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle's interior and keep it in top condition: Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth dampened with lukewarm water.
Page 435 Wipe the window in strokes running parallel to the heater wires. Caring for leather areas Lexus recommends cleaning the interior of the vehicle at least twice a year to main- tain the quality of the vehicle’ s interior. Shampooing the carpets There are several commercial foaming-type cleaners available.
Page 436 4-1. Maintenance and care NOTICE Cleaning detergents Do not use the following types of detergent, as they may discolor the vehicle inte- rior or cause streaks or damage to painted surfaces. Non-seat portions: Organic substances such as benzine or gasoline, alkaline or acidic solutions, dye, or bleach.
Page 437: Maintenance
It is recommended that genuine Lexus parts be used for repair to ensure perfor- mance of each system. If non-Lexus parts are used in replacement or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
Page 438 4-2. Maintenance Allow inspection and repairs to be performed by a Lexus dealer Lexus technicians are well-trained specialists and are kept up to date with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 439: General Maintenance
Listed below are the general maintenance items that should be performed at the intervals specified in the “Warranty and Services Guide/Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Lexus dealer or qualified service shop for advice. Engine compartment...
Page 440: Vehicle Interior
4-2. Maintenance Vehicle interior Items Check points • Moves smoothly (without uneven pedal Accelerator pedal effort or catching)? Automatic transmission • Can the vehicle be hold securely on an “Park” mechanism incline with the shift lever in “P”? • Moves smoothly? Brake pedal •...
Page 441 4-2. Maintenance Vehicle exterior Items Check points Doors/trunk • Operate smoothly? Engine hood • The lock system works properly? Fluid leaks • Is there any leakage after parking? • Inflation pressure is correct? • Tire surfaces not worn or damaged? Tire •...
Page 442: Emission Inspection And Maintenance (I/M) Programs
The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Lexus dealer to service the vehicle. Your vehicle may not pass the I/M test: l When the battery is disconnected or discharged Readiness codes that are set during ordinary driving are erased.
Page 443: Do-It-Yourself Maintenance
4-3. Do-it-yourself maintenance Do-it-yourself service precautions If you perform maintenance yourself, be sure to follow the correct proce- dure given in these sections. Items Parts and tools • Warm water • Baking soda Battery condition ( P. 387 ) • Grease •...
Page 444 4-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Genuine Motor Oil” or equivalent Engine oil level ( P. 379) • Rag or paper towel, funnel (used only for adding engine oil) • Fuse with same amperage rating as Fuses ( P.
Page 445 4-3. Do-it-yourself maintenance CAUTION When working near the electric cooling fan or radiator grille Be sure the engine switch is “OFF”. With the engine switch in “IG-ON” mode, the electric cooling fan may automati- cally start to run if the air conditioning is on and/or the coolant temperature is high. ( P.
Page 446: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. STEP The hood will pop up slightly. Lift the hood catch and lift the STEP hood. CAUTION Pre-driving check Check that the hood is fully closed and locked.
Page 447: Positioning The Jack
4-3. Do-it-yourself maintenance Positioning the jack When raising your vehicle with the jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. Front Rear I n f o r ma t i o n P r o v i d e d b y :...
Page 448 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle Make sure to observe the following to reduce the possibility of death or serious injury. Do not put any part of your body or get underneath the vehicle supported only by the jack. Always use automotive jack stands or a solid, level, surface.
Page 449: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment GS430 Engine oil filler cap Engine coolant reservoir ( P. 379) ( P. 384) Engine oil level dipstick Electric cooling fans ( P. 380) Condenser ( P. 385) Brake fluid reservoir Radiator ( P. 385) ( P.
Page 450 4-3. Do-it-yourself maintenance GS350 Engine oil level dipstick Engine coolant reservoir ( P. 379) ( P. 384) Engine oil filler cap Electric cooling fans ( P. 380) Condenser ( P. 385) Brake fluid reservoir Radiator ( P. 385) ( P. 386) Fuse box ( P.
Page 451 4-3. Do-it-yourself maintenance Engine compartment cover Removing the cover Front Right-hand side Left-hand side I n f o r ma t i o n P r o v i d e d b y :...
Page 452 4-3. Do-it-yourself maintenance Installing the clips Open Insert Press Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil Park the vehicle on level ground. After turning off the engine, wait STEP a few minutes for the oil to drain back into the bottom of the engine.
Page 453 4-3. Do-it-yourself maintenance Wipe the dipstick and reinsert it fully. STEP Full Adding engine oil If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine. GS430 GS350 Make sure to check the oil type and prepare the items needed before adding oil.
Page 454 4-3. Do-it-yourself maintenance Recommended viscosity SAE 5W-30 is the best choice for good fuel economy, and good starting in cold weather. *: If SAE 5W-30 oil is not available, SAE 10W-30 may be used. However, it should be replaced with SAE 5W-30 at the next oil Outside temperature change.
Page 455 Oil consumption: Max. 1.1 qt./600 miles, 0. 9 lmp.qt./600 miles (1.0 L per 1000 km). If the vehicle consumes more than this amount, contact your Lexus dealer. Resetting the engine oil maintenance data (U.S.A. only) Perform the following steps: Press the “DISP”...
Page 456 Dispose of used oil and filters only in a safe and acceptable manner. Do not dis- pose of used oil and filters in household trash, in sewers or onto the ground. Call your Lexus dealer, service station or auto parts store for information con- cerning recycling or disposal.
Page 457 Visually check the radiator, hoses, engine coolant filler cap, radiator cap, drain cock and water pump. If you cannot find a leak, have your Lexus dealer pressure test the cap and check for leaks in the cooling system. Coolant selection Only use “Toyota Super Long Life Coolant”...
Page 458 Check the radiator and condenser and clear any foreign objects. If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Lexus dealer. CAUTION When the engine is hot Do not remove the radiator cap.
Page 459 4-3. Do-it-yourself maintenance Brake fluid Checking fluid level The brake fluid level should be between the “MAX” and “MIN” lines on the tank. Make sure to check the fluid type and prepare the necessary items. Adding fluid Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items Clean funnel Brake fluid can absorb moisture from the air...
Page 460 Check the battery condition by the indicator color. Blue: Good condition White: Charging necessary. Have the battery checked by your Lexus dealer. Red: Not working properly, have the battery checked by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 461 If the system will not start even after multiple attempts at both methods, contact your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 462 4-3. Do-it-yourself maintenance CAUTION Chemicals in the battery A battery contains poisonous and corrosive sulfuric acid and may produce hydro- gen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near battery: Do not cause sparks by touching the battery terminals with tools.
Page 463 4-3. Do-it-yourself maintenance NOTICE When recharging the battery Never recharge the battery while the engine is running. Also, be sure all accesso- ries are turned off. Washer fluid If any washer does not work or the warning message appears on the multi-information display, washer tank may be empty.
Page 464: Tires
The tire pressure warning system Your Lexus is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire infla- tion pressure before serious problems arise. ( P. 452, 456)
Page 465 Have tire pressure warning valve and transmit- ter ID code registered by your Lexus dealer. ( P. 394) Initializing the tire pressure warning system The tire pressure warning system must be initialized in the following...
Page 466 4-3. Do-it-yourself maintenance How to initialize the tire pressure warning system Park the vehicle in safe place and turn the engine switch to “OFF” STEP mode. While the vehicle is moving, initialization is not performed. Adjust the tire inflation pressure to the specified cold tire inflation STEP pressure level.
Page 467 “2nd” position: The ID code is not registered. When you replace a new set of tires, purchase tire pressure warning valves and transmitters from your Lexus dealer and have the new ID code registered by your Lexus dealer. Selecting ID codes When replacing tires, make sure to select the ID code set that matches the new tire set.
Page 468 A tire goes flat repeatedly or cannot be properly repaired due to the size or location of a cut or other damage If you are not sure, consult with your Lexus dealer. Replacing tires and wheels If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 469 4-3. Do-it-yourself maintenance Maximum load of tire Check that the maximum load of the replaced tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater. As for the maximum load of the tire, see the load limit at maximum cold tire inflation pressure mentioned on the sidewall of the tire, and as for the Gross Axle Weight Ratings (GAWR), see the Certification Label.
Page 470 If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Lexus dealer. When operating the tire pressure warning reset switch, the tire pressure warn- ing light does not flash 3 times and the setting message does not appear on the multi-information display.
Page 471 4-3. Do-it-yourself maintenance Tire pressure warning system certification For vehicles sold in the U.S.A. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 472 When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Lexus dealer as the tire pressure warning valve and trans- mitter may be damaged if not handled correctly. To avoid damaging the tire pressure warning valves and transmitters Do not use liquid sealants on flat tire.
Page 473 4-3. Do-it-yourself maintenance NOTICE Driving on rough roads Take particular care when driving on roads with loose surfaces or potholes. These conditions may cause losses in tire inflation pressure, reducing the cushion- ing ability of the tires. In addition driving on rough roads may cause damage to the tires themselves, as well as the vehicle’...
Page 474: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. ( P. 505) I n f o r ma t i o n P r o v i d e d b y :...
Page 475 4-3. Do-it-yourself maintenance Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the graduations of the gauge. STEP If the tire inflation pressure is not within the recommended lev- STEP...
Page 476 Reduced driving comfort and tire life Reduced safety Damage to the drive train If a tire needs frequent refilling, have it checked by your Lexus dealer. Instructions for checking tire inflation pressure When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 477 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury. Excessive wear Uneven wear Poor handling Possibility of blowouts resulting from overheated tires Poor sealing of the tire bead Wheel deformation and/or tire separation A greater possibility of tire damage from road hazards...
Page 478: Wheels
When replacing wheels The wheels of your Lexus are equipped with tire pressure warning valves and trans- mitters that allow the tire pressure warning system to provide advanced warning in the event of a loss in tire inflation pressure. Whenever wheels are replaced, the tire pressure warning valves and transmitters must be switched over from the old wheels.
Page 479 Replacing tire pressure warning valves and transmitters Because tire repair or replacement may affect the tire pressure warning valves and transmitters, make sure to have tires serviced by your Lexus dealer. In addi- tion, make sure to purchase your tire pressure warning valves and transmitters at your Lexus dealer.
Page 480: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be cleaned or changed regularly to main- tain air conditioning efficiency. Removal method Set the air conditioning system to recirculated mode. STEP The air conditioning filter case cannot be removed with the system in the outside air mode.
Page 481 2 minutes at 72 psi (500 kPa, 5.0 kgf/cm bar). If it is not available, have the filter cleaned by your Lexus dealer. Replacement method Remove the air conditioning fil- ter from the filter case and replace it with a new one.
Page 482 4-3. Do-it-yourself maintenance Checking interval Inspect and replace the air conditioning filter according to the maintenance sched- ule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, refer to the “Warranty and Ser- vices Guide/Owner's Manual Supplement/Scheduled Maintenance”.) If air flow from the vents decreases dramatically The filter may be clogged.
Page 483: Electronic Key Battery
4-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is discharged. You will need the following items: l Flathead screwdriver l Small Phillips-head screwdriver l Lithium battery (CR1632) Replacing the battery Take out the mechanical key. STEP Remove the cover.
Page 484 Use a CR1632 lithium battery Batteries can be purchased at your Lexus dealer, jewelers, or camera stores. Replace only with the same or equivalent type recommended by a Lexus dealer. Dispose of used batteries according to the local laws. CAUTION Removed battery and other parts Keep away from children.
Page 485: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the engine switch to “OFF” mode. STEP Remove the engine compartment cover if necessary. STEP P.
Page 486 4-3. Do-it-yourself maintenance Driver's side instrument panel Remove the lid. Passenger's side instrument panel Remove the lid. Luggage compartment Remove the cover. I n f o r ma t i o n P r o v i d e d b y :...
Page 487 4-3. Do-it-yourself maintenance Luggage compartment (vehicles with active stabilizer suspension system) Remove the lid. After a system failure, see “Fuse layout and amperage ratings” STEP ( P. 418) for details about which fuse to check. Remove the fuse with the pull- STEP out tool.
Page 488 Type C Normal fuse Blown fuse Contact your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 489 4-3. Do-it-yourself maintenance Type D Normal fuse Blown fuse Contact your Lexus dealer. Removing the front controller (engine compartment: type B) Lift the lid off while pushing the tabs on either side. I n f o r ma t i o n P r o v i d e d b y :...
Page 490 Fuse layout and amperage ratings Engine compartment (Type A) Fuse Ampere Circuit VGRS, EPS, Driver’ s seat switch ECU-B module, Lexus Link System ECU ABS MAIN3 ECB system TURN-HAZ Turn signal lights, Emergency flashers IG2 MAIN IG2, GAUGE and IGN RND NO.2...
Page 491 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Foot lights, Vanity lights, Gauges and meters, Steering spot light, Steering switch illumination, Rear personal DOME lights, Automatic transmission selec- tor lever spot light, Front personal lights NOIS FILTER ABS MAIN2 ECB system ABS MOTOR ABS MAIN1 Capacitor E/G-B...
Page 492 4-3. Do-it-yourself maintenance Fuse Ampere Circuit STOP LP R, STOP LP L, RR-B, RR J/B RR TAIL, RR FOG, RR-IG1, PSB, and RR S/SHADE GLW PLG1 Glow plug heater AM1, OBD, STOP SW, TI&TE, PWR OUTLET, FR P/SEAT RH, RH J/B-AM STR LOCK, ECU-IG RH, RH-IG, ACC, CIG, SECURITY, FR S/HER RH and AIR SUS...
Page 493 4-3. Do-it-yourself maintenance Engine compartment (Type B) 6: only for GS430 equipped with active stabilizer suspension system Fuse Ampere Circuit FR CTRL-B Headlight high beam, horn Exhaust system Multiport fuel injection system/ ETCS sequential multiport fuel injection system ALT-S Charging system H-LP CLN Headlight cleaner STB-AM...
Page 494 4-3. Do-it-yourself maintenance Fuse Ampere Circuit H-LP R LWR Headlight low beam (right) H-LP L LWR Headlight low beam (left) F/PMP Fuel system Multiport fuel injection system/ (GS430) sequential multiport fuel injection system (GS350) Multiport fuel injection system/ sequential multiport fuel injection system H-LP UPR Headlight high beams...
Page 495 4-3. Do-it-yourself maintenance Driver’s side instrument panel Fuse Ampere Circuit FR P/SEAT LH Power seat system Air conditioning system Audio system, Air conditioning sys- tem, Rear view monitor system TRK OPN Trunk lid opener LH-B Theft deterrent system S/ROOF Moon roof Steering switch illumination, Audio system, Glove box light, Automatic transmission selector lever illumina-...
Page 496 4-3. Do-it-yourself maintenance Fuse Ampere Circuit VSC system, ECB system, Yaw rate and G sensor, Steering sensor, Cruise control system, Dynamic radar cruise control system, EPS sys- ECU-IG LH tem, VGRS system, Rear view moni- tor system, Four-wheel drive system, Front controller, Moon roof, Rain sen- Seat heater or Heated and ventilated FR S/HTR LH...
Page 497 SRS airbag system, Stop/tail lights, Steering lock system, ECB sys- tem, Lexus Link System ECU, Occu- pant classification system ECU I n f o r ma t i o n P r o v i d e d b y :...
Page 498 Ampere Circuit Multiplex communication system, Smart access system with push-but- ton start, Rear view monitor system, Audio system, Air conditioning sys- tem, Lexus Link System ECU Cigarette lighter PWR OUTLET Power outlet AIR SUS Adaptive variable suspension system Rear right door control system...
Page 499 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Electric tilt and telescopic steering, Multiplex communication system, Smart access system with push-but- ton start, Audio system, Air condi- ECU-IG RH tioning system, Shift lock system, Tire pressure warning system, Combina- tion switch, Front stabilizer, Rear sta- bilizer, DC/DC converter I n f o r ma t i o n P r o v i d e d b y :...
Page 500 4-3. Do-it-yourself maintenance Luggage compartment Fuse Ampere Circuit RR S/SHADE Rear sunshade Pre-collision seat belt RR-IG2 Pre-collision seat belt, seat belt pre- RR-IG1 tensioners RR-B Trunk light RR FOG STOP LP L Stoplights, back-up light STOP LP R High mounted stoplights RR TAIL Tail lights, license plate lights I n f o r ma t i o n P r o v i d e d b y :...
Page 501 If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P. 438) If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer. If there is an overload in the circuits The fuses are designed to blow before the entire wiring harness is damaged.
Page 502 Do not modify fuses or the fuse box. NOTICE Before replacing fuses Have the cause of electrical overload determined and repaired by your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 503: Headlight Aim
4-3. Do-it-yourself maintenance Headlight aim Gauges High beam vertical position Low beam vertical position High beam horizontal posi- tion Low beam horizontal position Adjustment bolts High beam horizontal adjust- ment High beam vertical adjust- ment Low beam adjustment bolt A Low beam adjustment bolt B Before checking the headlight aim Make sure the vehicle has a full tank of gas and the area around...
Page 504 (horizontal). If you feel that there is a large deviation, have the headlight aim adjusted at a Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 505: Light Bulbs
4-3. Do-it-yourself maintenance Light bulbs You may replace the following bulbs yourself. For more information about replacing other light bulbs, contact your Lexus dealer. Prepare a replacement light bulb. Check the wattage of the light bulb being replaced. ( P. 507) Remove the engine compartment cover if necessary.
Page 506 4-3. Do-it-yourself maintenance Replacing light bulbs Headlight high beam Unplug the connector while push- STEP ing the lock release. Turn the bulb base counterclock- STEP wise to remove it. I n f o r ma t i o n P r o v i d e d b y :...
Page 507 4-3. Do-it-yourself maintenance Parking light Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP Back-up light Open the trunk lid. Remove the STEP trunk handle and panel cover clips. Partly remove the trunk panel STEP cover and turn bulb bases coun- terclockwise.
Page 508 4-3. Do-it-yourself maintenance Remove the light bulb. STEP Rear turn signal light Open the trunk lid and remove the STEP cover. Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP I n f o r ma t i o n P r o v i d e d b y :...
Page 509 The tail, tail/stop and high mounted stoplights consist of a number of LEDs. If any LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced. If two or more LEDs in a stoplight burn out, your vehicle may not conform to local laws (SAE).
Page 510 Doing so may result in serious injury due to electric shock. High-intensity discharge (HID) headlights Contact your Lexus dealer before replacing high-intensity discharge headlights (including light bulbs). Do not touch the high-intensity discharge headlight's high voltage socket when the headlights are turned on.
Page 511: Essential Information
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Lexus dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/provincial and local laws.
Page 512 5-1. Essential information Towing eyelet Emergency towing procedure Release the parking brake. STEP Put the shift lever in “N”. STEP The engine switch must be in the “ACC” mode (engine off) or the “IG- STEP ON” mode (engine on). CAUTION Caution while towing Use extreme caution when towing the vehicle.
Page 513 5-1. Essential information Installing towing eyelet Remove the eyelet cover using a STEP flathead screwdriver. To protect the bodywork, place a rag between the screwdriver and the vehicle body, as shown in the illustration. Insert the towing eyelet into the STEP hole and tighten partially by hand.
Page 514 5-1. Essential information CAUTION Installing towing eyelet to the vehicle Make sure that towing eyelet is installed securely. If not securely installed, towing eyelet may come loose during towing. This may lead to accidents that cause serious injury or even death. Towing with a sling-type truck NOTICE To prevent body damage...
Page 515 5-1. Essential information Towing with a wheel lift-type truck From front Use a towing dolly under the rear wheels. NOTICE To prevent causing serious damage to the transmission Never tow this vehicle from the front with the rear wheels on the ground. I n f o r ma t i o n P r o v i d e d b y :...
Page 516 5-1. Essential information From rear (2WD models) Switch to “ACC” mode so that the steering wheel is unlocked. From rear (4WD models) Use a towing dolly under the front wheel. NOTICE To prevent damaging the vehicle Do not tow the vehicle with the engine switch “OFF”. The steering lock mechanism is not strong enough to hold the front wheel straight.
Page 517 5-1. Essential information Using a flat bed truck If your Lexus is transported by a flat bed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45°.
Page 518: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as possible. Visible symptoms l Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 519: Fuel Pump Shut Off System
5-1. Essential information Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision, the fuel pump shut off system stops supplying fuel to the engine. Follow the procedure below to restart the engine after the system is activated. Switch to “ACC”...
Page 520: Event Data Recorder
SRS airbag deployment data l SRS airbag system diagnostic data Your Lexus’ Electronic Control Unit (ECU) may contain another EDR. There are a variety of driving situations which include activating the vehi- cle stability control (VSC) under which the VSC EDR will record certain information.
Page 521 Disclosure of the data Lexus will not disclose the data recorded in an EDR to a third party except when: l An agreement from the vehicle's owner (or the leasing company for a...
Page 522: Steps To Take In An Emergency
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning light...
Page 523 Charging system warning light Indicates a malfunction in the vehicle’ s charging system. Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately.
Page 524 5-2. Steps to take in an emergency Warning light Warning light/Details ABS warning light (U.S.A.) Malfunction in: • The ABS; or (Canada) • The brake assist system. /VSC warning light Malfunction in: • The electronically controlled brake system; or • The VSC. Electric power steering system warning light Malfunction in the EPS.
Page 525 When the light comes on after blinking for 1 minute: Have the system checked by Malfunction in the tire pres- your Lexus dealer. sure warning system. Master warning light A buzzer sounds and the Take appropriate action in warning light comes on and...
Page 526 Is the fuel tank cap loose? If it is, tighten it securely. The light will go off after taking several driving trips. If the light does not go off even after several trips, contact your Lexus dealer as soon as possible. SRS warning light...
Page 527 • If the tire pressure warning light comes on even after tire inflation pressure adjustment, it is probable that you have a flat tire. Have the tire replaced by the nearest Lexus dealer. • Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
Page 528: If A Warning Message Is Displayed
If any of the warning light turns on again after performing the following actions, contact your Lexus dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 529 The warning light may turn on if the engine oil pres- sure is too low. (Flashing) Have the vehicle inspected by your Lexus dealer immediately. A buzzer sounds and a warning message is shown on the multi-informa- tion display. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.
Page 530 5-2. Steps to take in an emergency Warning message Details Malfunction in the rear lights system. Malfunction in the tire pressure warning system. The tire pressure warning light will blink for 1 minute and then stay on. Malfunction in the steering lock system. (Flashing) Malfunction in the active stabilizer suspension sys- tem.
Page 531 5-2. Steps to take in an emergency Warning message Details Malfunction in the PCS. (If equipped) Intuitive parking assist malfunction. The malfunctioning sensor is shown flashing on the display. (The illustration shows malfunctioning left front sensor.) (If equipped) Malfunction in the radar cruise control system. Stop the vehicle in a safe place.
Page 532 If the tire pressure warning light comes on after blinking for 1 minute frequently If the tire pressure warning light comes on after blinking for 1 minute frequently when the engine switch is turned to “IG-ON” mode, have it checked by your Lexus dealer.
Page 533 5-2. Steps to take in an emergency Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warning may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately.
Page 534 5-2. Steps to take in an emergency Warning message Details Malfunction in the VGRS. (GS430) The steering sensor cable is broken and signals can- (Steering guide symbol not be received. and arrows are flashing) (GS430) *: Electronically Controlled Brake System I n f o r ma t i o n P r o v i d e d b y :...
Page 535 5-2. Steps to take in an emergency Have the malfunction repaired immediately. A buzzer sounds and a warning message is shown on the multi-informa- tion display. After taking the specified steps to correct the suspected problem, check that the warning message turns off. Warning message Details Correction procedure...
Page 536 5-2. Steps to take in an emergency Warning message Details Correction procedure The trunk is not fully closed. flashes and a buzzer sounds to indi- Close the trunk. cate that trunk is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
Page 537 5-2. Steps to take in an emergency Warning message Details Correction procedure The engine oil is sched- uled to be changed. Comes on approximately 4500 miles (7200 km) Check the engine oil, and after the engine oil is change if necessary. changed.
Page 538 5-2. Steps to take in an emergency Warning message Details Correction procedure Clean the grille and the sensor. This message appears The PCS is not currently when the pre-collision functional. (Flashing) system is hot. In this case, wait until the system (If equipped) cools down.
Page 539 5-2. Steps to take in an emergency Warning message Details Correction procedure Your vehicle is nearing Slow the vehicle by apply- the vehicle ahead (in ing the brakes. (Flashing) radar cruise mode). (If equipped) The transmission is out of Shift the shift lever to “P” before pressing the “P”...
Page 540 5-2. Steps to take in an emergency CAUTION Maintenance of the tires Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label). (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label [tire and load information label], you should determine the proper tire inflation pressure for those tires.)
Page 541 5-2. Steps to take in an emergency Other messages If the following message is displayed, take appropriate action and confirm that the message has disappeared. Message Details The driver’s door is opened when the transmission is out of “P” with the engine on. Shift the shift lever to “P”.
Page 542 5-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning massage and light turn off. Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic key Confirm the is not detected...
Page 543 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An open door other than the driver's door is Turn the closed while the engine electronic key is switch outside the detec- “OFF” or Once 3 times tion range and the...
Page 544 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An open door has been closed and Press the the engine switch engine has been turned switch while twice to the applying the “ACC” mode from brakes.
Page 545: If You Have A Flat Tire (Vehicles With Run-Flat Tires)
See the tire warranty book. NOTICE When replacing the tires Have the tires replaced by the nearest Lexus dealer or authorized tire dealer. The tire pressure warning valves and transmitters will be affected by the installation or removal of tires.
Page 546: If You Have A Flat Tire (Vehicles With Standard Tires)
5-2. Steps to take in an emergency If you have a flat tire (Vehicles with standard tires) Remove the flat tire and replace it with the spare provided. Before jacking up the vehicle l Stop the vehicle on a hard, flat surface. l Set the parking brake.
Page 547 5-2. Steps to take in an emergency Compact spare tire The compact tire saves space in your luggage compartment, and its lighter weight helps to enhance fuel economy and permits easier installation in case of a flat tire. The compact spare tire is designed for temporary emer- gency use only.
Page 548 5-2. Steps to take in an emergency Taking out the spare tire Lift up the hook of the panel on the STEP trunk floor. Secure the panel using the hook STEP provided. Loosen the center fastener that STEP secures the spare tire. I n f o r ma t i o n P r o v i d e d b y :...
Page 549 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. STEP Flat tire Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 550 5-2. Steps to take in an emergency Turn the tire jack portion “A” by STEP hand until the notch of the jack is in contact with the jack point. Raise the vehicle until the tire is STEP slightly raised off the ground. Remove all the wheel nuts and the STEP tire.
Page 551 5-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign matter STEP from the wheel contact surface. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 552 5-2. Steps to take in an emergency Firmly tighten each nut two or STEP three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) Stow the flat tire, tire jack and all tools. STEP If you have a flat rear tire on a road covered with snow or ice Install the compact spare tire on the front of the vehicle.
Page 553 5-2. Steps to take in an emergency CAUTION Using the tire jack Improper use of the tire jack may lead to death or injuries due to the vehicle sud- denly falling off the jack. Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
Page 554 5-2. Steps to take in an emergency CAUTION When using the spare tire Remember that your spare tire is specifically designed for use with your vehicle. Do not use your spare tire on another vehicle. Do not use two spare tires simultaneously. Replace the spare tire with a standard tire as soon as possible.
Page 555 When replacing the tires When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Lexus dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly. Replace the grommets for the tire pressure warning valves and transmitters as well.
Page 556: If The Engine Will Not Start
5-2. Steps to take in an emergency If the engine will not start If the engine will not start even though correct starting procedures are being followed ( P. 97), consider each of the following points. The engine will not start even when the starter motor operates normally.
Page 557: If The Shift Lever Cannot Be Shifted From P
If the shift lever cannot be shifted with your foot on the brake, there may be a problem with the shift lock system (a system to prevent accidental opera- tion of the shift lever). Have the vehicle inspected by your Lexus dealer immediately.
Page 558: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine Lexus keys can be made by your Lexus dealer using one of the other keys and the key number stamped on your key number plate. I n f o r ma t i o n P r o v i d e d b y :...
Page 559: If The Electronic Key Does Not Operate Properly
5-2. Steps to take in an emergency If the electronic key does not operate properly If communication between the electronic key and vehicle is interrupted ( P. 7) or the electronic key cannot be used because the battery is depleted, the smart access system with push-button start and wireless remote control cannot be used.
Page 560 Modes can be changed each time the switch is pressed. ( P. 97) To start the engine: Press the engine switch within 5 seconds after the buzzer sounds, keep the brake pedal depressed. In the event that the engine still cannot be operated, contact your Lexus dealer. Stopping the engine...
Page 561: If The Vehicle Battery Is Discharged
You can call your Lexus dealer, Roadside Assistance or Lexus Customer Service Assistance. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your Lexus following the steps below. GS350 only: Remove the engine compartment covers.
Page 562 STEP cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Lexus dealer as soon as possible. Avoiding a discharged battery Turn off the headlights and the audio system while the engine is turned off.
Page 563 5-2. Steps to take in an emergency CAUTION Avoiding battery fires or explosions Observe the following precautions to prevent accidentally igniting the flammable gas that may be emitted from the battery. Make sure the jumper cable is connected to the correct terminal and that it is not unintentionally in contact with any part other than the intended terminal.
Page 564 5-2. Steps to take in an emergency NOTICE To prevent damaging the vehicle Do not pull- or push-start the vehicle, because the three-way catalytic converter may overheat and become a fire hazard. When handling jumper cables Be careful that the jumper cables do not become tangled in the cooling fan or any of the belts when connecting or disconnecting them.
Page 565: If Your Vehicle Overheats
If the fan is operating: Wait until the engine coolant temperature gauge begins to fall and then stop the engine. If the fan is not operating: Stop the engine immediately and call your local Lexus dealer. After the engine has cooled STEP...
Page 566 Water can be used in an emer- gency measure if coolant is unavailable. ( P. 502) Have the vehicle checked at your nearest Lexus dealer as soon as pos- sible. Overheating In the following situations, your vehicle may be overheating.
Page 567 5-2. Steps to take in an emergency NOTICE When adding engine coolant Wait until the engine has cooled down before adding engine coolant. When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly can cause damage to the engine. I n f o r ma t i o n P r o v i d e d b y :...
Page 568: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow. Stop the engine. Set the parking brake and shift the shift lever STEP in “P”.
Page 569 5-2. Steps to take in an emergency I n f o r ma t i o n P r o v i d e d b y :...
Page 570: Specifications
6-1. Specifications Maintenance data Dimensions and weight Overall length 189. 9 in. (4825 mm) Overall width 71.6 in. (1820 mm) 2WD models 56.1 in. (1425 mm) Overall height 4WD models 56.4 in. (1435 mm) Wheelbase 112.2 in. (2850 mm) Front 60.4 in.
Page 571 Vehicle identification The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel and in the engine compartment.
Page 572 6-1. Specifications Engine GS430 GS350 Model 3UZ-FE 2GR-FSE 8-cylinder V type, 4- 6-cylinder V type, 4- Type cycle, gasoline cycle, gasoline 3.58 3.25 in. 3.70 3.27 in. Bore and stroke (91.0 82.5 mm) (94.0 83.0 mm) Displacement 262.0 cu.in. (4293 cm ) 210.
Page 573 4.0 lmp.qt.) lmp.qt.) 5.3 lmp.qt.) Oil grade ILSAC multigrade engine oil Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the above grade and viscosity. Recommended oil viscosity Outside temperature :5W-30 is an oil that provides optimal levels of fuel efficiency.
Page 574 6-1. Specifications Cooling system GS430 GS350 10.7 qt. 9.6 qt. Capacity (10.1 L, 8. 9 lmp.qt.) (9.1 L, 8.0 lmp.qt.) Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non-sili- Coolant type cate, non-amine, non-nitrite, and non-borate cool- ant with long-life hybrid organic acid technology Do not use plain water alone.
Page 575 6-1. Specifications Electrical system Battery Open voltage at 12.6 12.8V Fully charged 68 F (20 C): 12.2 12.4V Half charged 11.8 12.0V Discharged (Voltage is checked 20 minutes after the engine and all lights are turned off.) Charging rates 5A max. Differential GS430 GS350 (2WD)
Page 576 6-1. Specifications Transmission GS430 GS350 (2WD) GS350 (4 WD) Fluid capacity 1.8 qt. 1. 9 qt. 2. 9 qt. Drain and refill (1.7 L, 1.5 lmp.qt.) (1.8 L, 1.5 lmp.qt.) (2.8 L, 2.4 lmp.qt.) Fluid type Toyota Genuine ATF WS NOTICE Transmission fluid type Using transmission fluid other than “Toyota Genuine ATF WS”...
Page 577 6-1. Specifications Steering Free play Less than 1.2 in. (30 mm) Tires and wheels Type A 245/40R18 93Y, P245/40R18 93V, T155/ Tire size 70D17 110M (spare) Driving under normal conditions 33 psi (230 kPa, 2.3 kgf/cm or bar) Driving at high speeds above 100 mph Front and rear tire inflation (160km/h) (in countries where such speeds pressure...
Page 578 6-1. Specifications Type B 225/50R17 94W, P225/50R17 93V, T155/ Tire size 70D17 110M (spare) Driving under normal conditions 33 psi (230 kPa, 2.3 kgf/cm or bar) Driving at high speeds above 100 mph Front and rear tire inflation (160km/h) (in countries where such speeds pressure are permitted by law) (Recommended cold tire inflation...
Page 579 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights (low beam) Headlights (high beam) Front turn signal lights Parking lights Exterior Fog lights Front side marker light Rear turn signal lights Back-up lights Trunk light Interior Vanity lights A: D4S high-intensity discharge bulbs B: HB3 halogen bulbs C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
Page 580: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline To help prevent incorrect fueling, your Lexus has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If premium gasoline is not available If 91 Octane cannot be obtained, you may use unleaded gasoline with an Octane Rating as low as 87 (Research Octane Number 91).
Page 581 Lexus allows the use of oxygenate blended gasoline where the oxygenate con- tent is up to 10% ethanol or 15% MTBE. If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 87.
Page 582 6-1. Specifications NOTICE Notice on gasoline quality Do not use leaded gasoline. Leaded gasoline can cause damage to your vehicle’ s three-way catalytic convert- ers causing the emission control system to malfunction. Do not use gasohol other than that stated here. Other gasohol may cause fuel system damage or vehicle performance problems.
Page 583: Tire Information
6-1. Specifications Tire information Typical tire symbols Tire size ( P. 514) DOT and Tire Identification Number (TIN) ( P. 512) Location of treadwear indicators ( P. 390) Run-flat tire (RFT) or standard tire ( P. 472) This vehicle can be equipped with either run-flat tires (RFT) or standard tires.
Page 584 6-1. Specifications Radial tires or bias-ply tires A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a bias-ply tire. TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly filled in the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
Page 585 6-1. Specifications Tire size Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 or 3 digits) Speed symbol...
Page 586 Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehi- cles with information on uniform tire quality grading. Your Lexus dealer will help answer any questions you may have as you read this information. DOT quality grades All passenger vehicle tires must conform to Federal Safety Require- ments in addition to these grades.
Page 587 6-1. Specifications Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified gov- ernment test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
Page 588 6-1. Specifications Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure. Glossary of tire terminology Tire related term Meaning...
Page 589 6-1. Specifications Tire related term Meaning Distribution of occupants in a vehicle as specified in Occupant distribution the third column of Table 1 below The combined weight of installed regular production options weighing over 5 lb. (2.3 kg) in excess of the Production options standard items which they replace, not previously weight...
Page 590 6-1. Specifications Tire related term Meaning The surface area of the rim not covered by the Weather side inflated tire The part of the tire that is made of steel wires, Bead wrapped or reinforced by ply cords and that is shaped to fit the rim A breakdown of the bond between components in Bead separation...
Page 591 6-1. Specifications Tire related term Meaning The layer(s) forming the inside surface of a tubeless Innerliner tire that contains the inflating medium within the tire The parting of the innerliner from cord material in the Innerliner separation carcass (a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or Intended outboard side-...
Page 592 6-1. Specifications Tire related term Meaning A tire intended for use on passenger cars, multipur- pose passenger vehicles, and trucks, that have a Passenger car tire gross vehicle weight rating (GVWR) of 10,000 lb. or less A layer of rubber-coated parallel cords A parting of rubber compound between adjacent Ply separation plies...
Page 593 6-1. Specifications Tire related term Meaning A tire that attains a traction index equal to or greater than 110, compared to the ASTM E-1136 Standard Reference Test Tire, when using the snow traction test as described in ASTM F-1805-00, Standard Test Snow tire Method for Single Wheel Driving Traction in a Straight Line on Snow-and Ice-Covered Surfaces,...
Page 594 6-1. Specifications :Table 1 Occupant loading and distribution for vehicle normal load for various designated seating capacities Designated seating Vehicle normal load, Occupant distribution in capacity, Number of Number of occupants a normally loaded vehicle occupants 2 through 4 2 in front 5 through 10 2 in front, 1 in second seat 2 in front, 1 in second...
Page 595 6-1. Specifications I n f o r ma t i o n P r o v i d e d b y :...
Page 596: Customization
Your vehicle includes a variety of electronic features that can be personal- ized to your preferences. Programming these preferences requires spe- cialized equipment and may be performed by an authorized Lexus dealership. Some function settings are changed simultaneously with other functions being customized.
Page 597 6-2. Customization Customized Item Function Default setting setting Operation indicator (Emergency flashers) Operation indicator (Buzzer) Wireless Trunk unlocking function remote con- Push twice trol Trunk unlocking operation Push and hold One short push ( P. 14) Panic function Buzzer sounds when pushing with any door not closed...
Page 598 6-2. Customization Customized Item Function Default setting setting Linked door lock opera- tion Power win- Open only Linked door key opera- dows Open and close tion Close only ( P. 43) Wireless remote control linked operation Linked door lock opera- tion Open only Linked door key opera-...
Page 599 6-2. Customization Customized Item Function Default setting setting Switching operation when the vehicle is stationary Windshield Drip prevention function wipers and Variable washer Time elapsed before the depending on ( P. 120) drip prevention function 3 seconds the vehicle operates speed 7.5 seconds Time elapsed before lights...
Page 600: Initialization
6-3. Initialization Items to initialize After reconnecting or performing maintenance on the battery, the follow- ing items must be initialized for normal system operation. Item When to initialize Reference Power window P. 44 • After reconnecting or changing the Variable gear ratio battery P.
Page 601 6-3. Initialization I n f o r ma t i o n P r o v i d e d b y :...
Page 602: Reporting Safety Defects For U.s. Owners
National Highway Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll- free: 1-800-25-LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 603: Alphabetical Index
Alphabetical index Alphabetical index Optimal use .........258 A/C (Air conditioning system) ..190 ABS (Anti-lock Brake System) ..159 Radio ............202 Active stabilizer suspension Steering switches .......262 Video CD ..........249 system............159 Air conditioning system (A/C) Automatic headlight leveling Air conditioning filter .......407 system ............118 Automatic air conditioning Automatic light control system..
Page 604 Alphabetical index Installing CRS with lower Cruise control anchorages.......... 86 Cruise control........124 Installing CRS with seatbelts ..82 Dynamic radar cruise control..127 Installing CRS with top straps..87 Cup holders ..........314 Child safety Curtain shield airbags......59 Airbag precautions ......67 Customizable features .......523 Child restraint system ......
Page 605 Alphabetical index Preparing and checking Emergency, in case of If a warning light turns on ....449 before winter........172 If a warning message is Engine oil maintenance data ...382 displayed ..........455 EPS (Electric Power Steering) ..159 If the engine will not start ....486 Event data recorder ......
Page 606 If the electronic key does not Replacing light bulbs .......438 operate properly ......489 Switch............116 Wireless remote control .....14 Wattage ..........508 Heaters Lexus link system ........343 Seat heaters......323, 325 Light bulbs Side mirror..........198 Replacing ..........438 Hill-start assist control ......159 Wattage..........508 Hood ............373...
Page 607 Alphabetical index Meter Power outlet ........... 322 Instrument panel light control ..107 Power windows........43 Meters ............106 Micro dust and pollen removal Radar cruise control......127 mode............193 Radiator............385 Mirrors Radio............202 Inside rear view mirror....... 40 RDS (Radio Data System) ....204 Side mirror heater......
Page 608 Sun visors ..........316 Seat adjustment........25 Switch Seat adjustment precautions...25 Fog light switch ........119 Seat heaters......323, 325 Lexus link system switches....343 Ventilated seats........325 Light switches .........116 Service reminder indicators ....111 Mode select switch......101 Shift lever Power door lock switch ......17 If the shift lever cannot be Power switch...........
Page 609 Alphabetical index Tires Vanity lights Chains ............174 Vanity lights..........317 Checking ..........391 Wattage ..........508 Compact spare tire ......477 Vanity mirrors ..........317 If you have a flat tire....474, 476 VDIM (Vehicle Dynamics Inflation pressure....... 506 Integrated Management) ....160 Information..........512 Vehicle identification number..499 Pressure warning system ....391...
Page 610 Alphabetical index Warning messages Washer Anti-lock Brake System (ABS)..460 Checking ..........390 Brake Assist (BA) ......460 Preparing and checking Dynamic radar before winter ........172 cruise control ........458 Switch............120 Engine oil level........463 Washing and waxing......358 Engine oil maintenance....464 Weight Engine oil pressure......456 Cargo capacity........168...
Page 611: What To Do If
What to do if... What to do if... P. 474/ A tire punctures If you have a flat tire Engine immobilizer system P. 52 The engine does not start If the engine will not start P. 486 P. 492 If the battery is discharged If the shift lever cannot be shifted The shift lever cannot be P.
Page 612 What to do if... The warning light or indicator If the warning light turns on P. 449 light comes on nWarning lights Brake system warning light Malfunction indicator lamp P. 449 P. 450 Driver’s seat belt reminder ABS warning light light P.
Page 613 GAS STATION INFORMATION Auxiliary catch lever Trunk opener Fuel filler door P. 373 P. 21 P. 49 Hood lock release lever Fuel filler door opener Tire inflation pressure P. 373 P. 49 P. 506 Fuel tank capacity 18.7 gal. (71 L, 15.6 lmp.gal.) Fuel type Premium unleaded gasoline only P.
