Chapter 5. CONNECTOR PINOUTS
5.1
External Connections

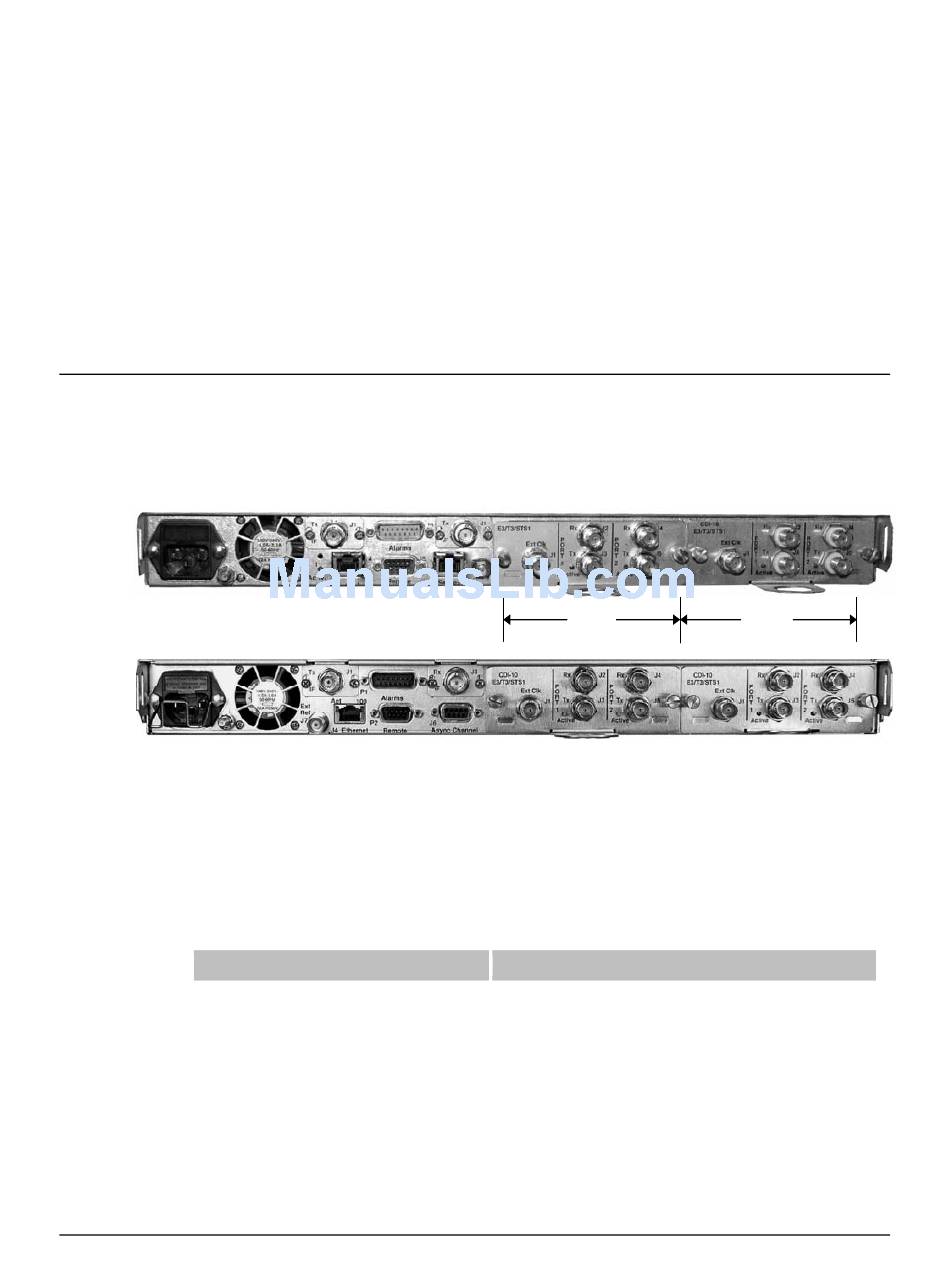

External cables are attached to connectors on the rear panel of the CDM-700. Figure 5-1 shows
the CDM-700 rear panel – both current and original chassis configurations – with typical data
interfaces installed in Slot 1 and Slot 2.
Chassis – Initially Released Version
(70/140 MHz shown)
Chassis – Rev. A or Later Versions
(70/140 MHz shown
Refer to the applicable appendix in this manual for specific Data Interface pinout information.
The initially released chassis differs from the Rev. A chassis as follows:
Chassis – Initially Released Version
J6: RJ-45, SerDes
J7: SMA-F, External Input
For support of 1:1 and 1:N operation, a Rev. A or later chassis is required.
)
Figure 5-1. CDM-700 Chassis – Rear Panel
5–1
Slot 1
Chassis – Rev. A and Later Production Version
J6: 9 Pin D-F, Async Channel
J7: BNC-F, External Input
Slot 2
