Figure 2-1. Installation Of Optional Rear-Mounting Support Brackets (Kit Kt/6228-2) - Comtech EF Data CDM-700 Installation And Operation Manual

CDM-700 High Speed Satellite Modem
Installation
Support Bracket
#10 Bracket Bolt

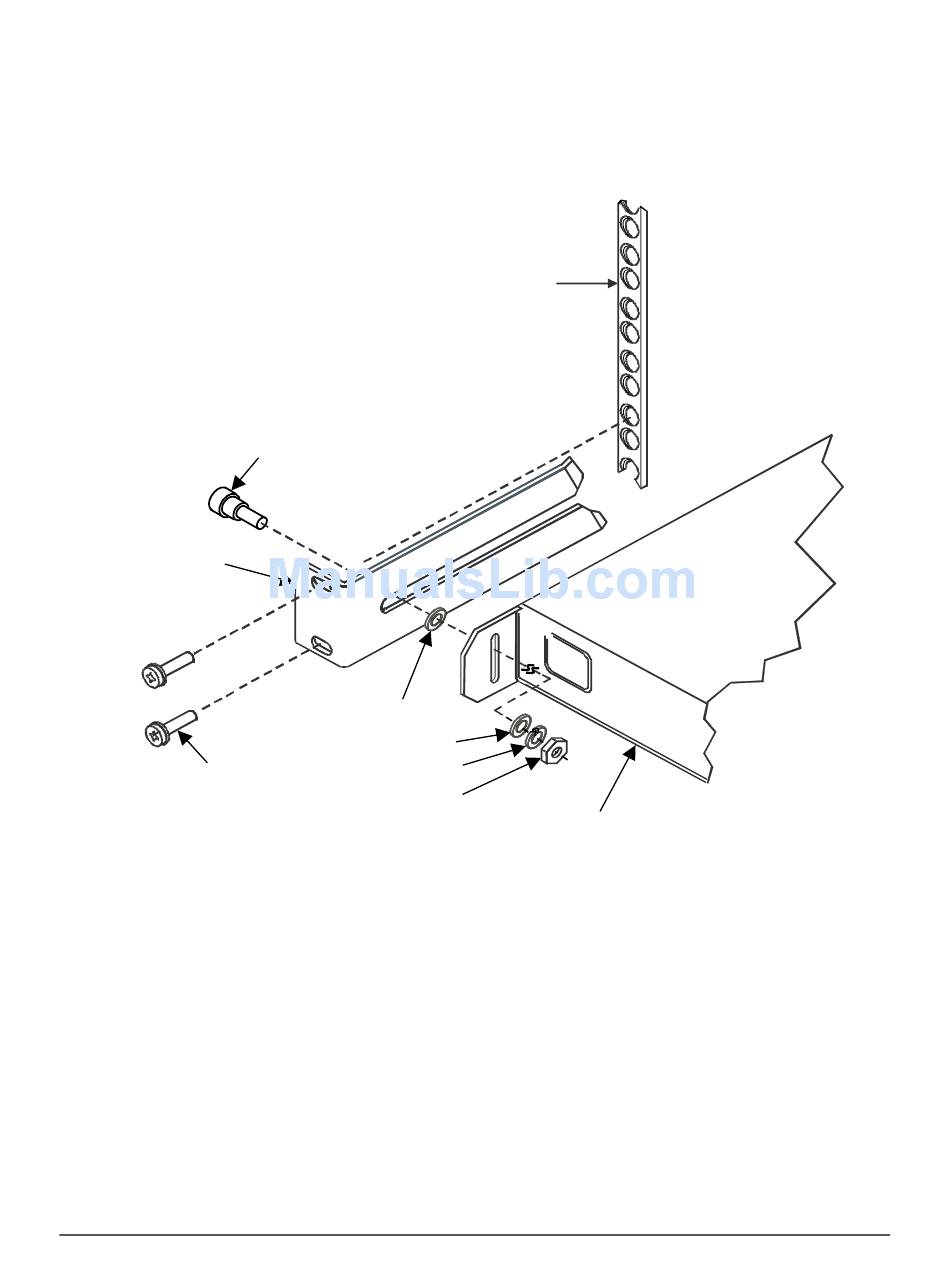

Figure 2-1. Installation of Optional Rear-Mounting Support Brackets (Kit KT/6228-2)

#10 Shoulder Screw
#10 Flat Washer
#10 Flat Washer
#10 Split Washer
#10 Hex Nut
Equipment Rack
Rear Mounting Rail
Back of unit
