CDM-700 High Speed Satellite Modem
Web Server Pages
15.5.3
Config Mdm: INTF1 (Interface 1) Page

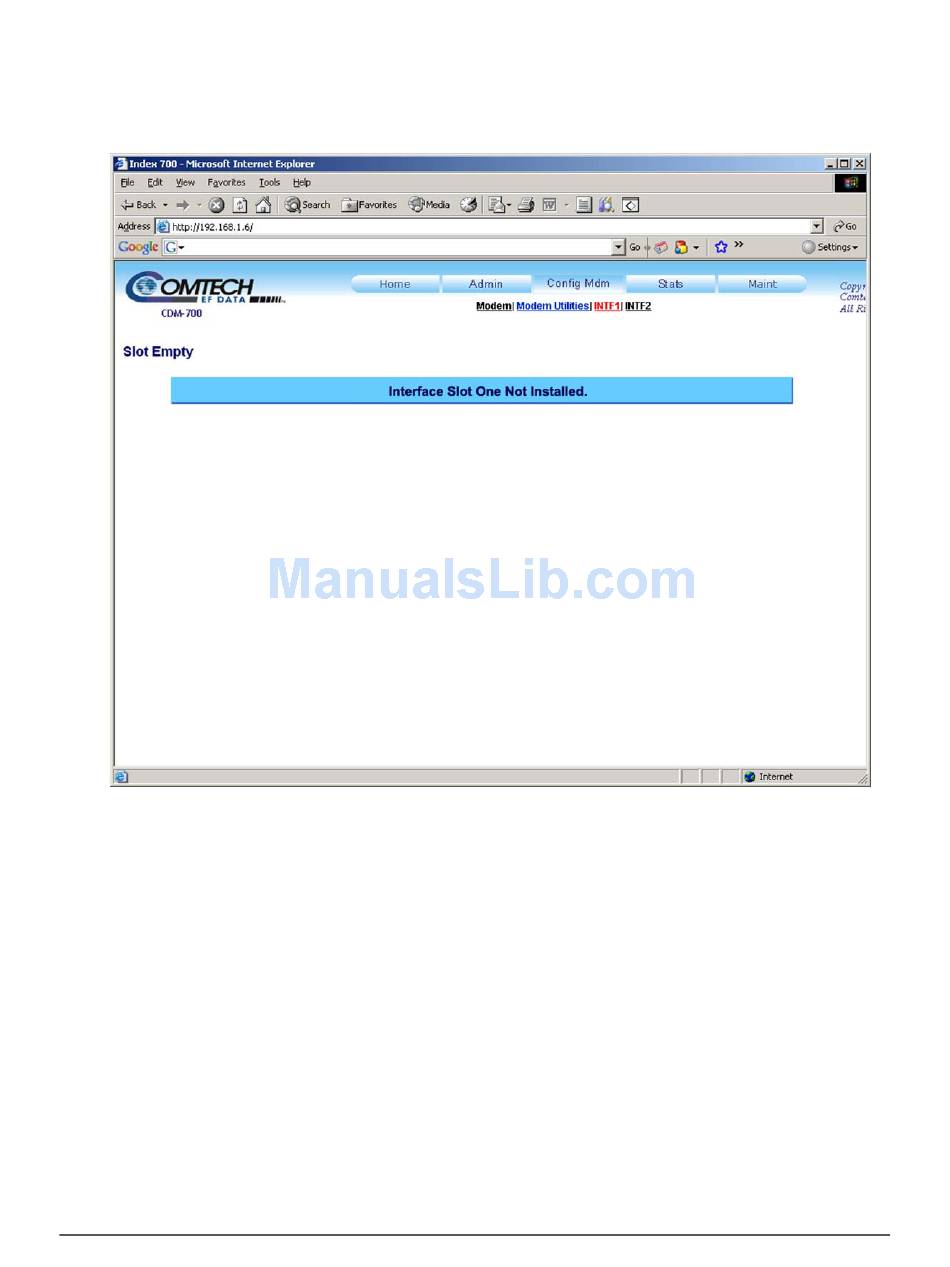

Figure 15-8. Config Mdm: INTF1 Page (Default – no module installed)
The 'Config Mdm: INTF1' page displays the configuration parameters for the Interface module
installed in Slot 1, located on the rear panel of the CDM-700 chassis.
If there is no interface module present, as shown in Figure 15-8 the page header reads "Slot
Empty" and the message "Interface Slot One Not Installed." is displayed in place of an
operable configuration window.
The subsections that follow provide further information on this Web page on an interface-by-
interface basis. For detailed information pertaining to the configuration parameters available for
each of these interfaces, refer to Chapter 6. FRONT PANEL OPERATION, as well as to the
appendix specific to the interface at the end of this manual.
15–10
Revision 5
MN/CDM700.IOM
