8 Click ok. The added DHCP server appears as shown in the following figure:

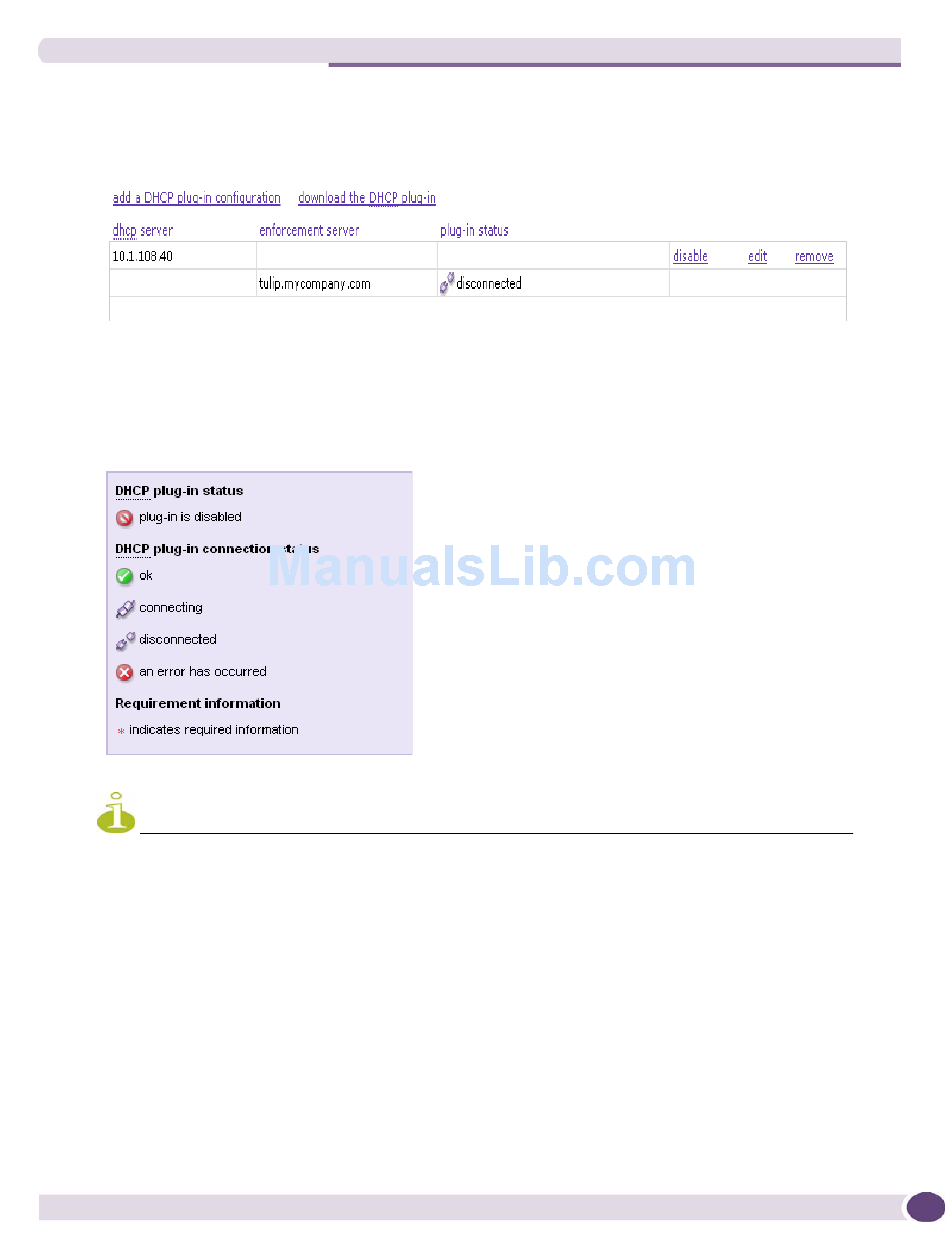

Figure 172: DHCP Plug-in Server Added Example

9 Continue to add DHCP servers until you have added all of them. The possible DHCP server plug-in
status states are shown in the following figure:

Figure 173: DHCP Plug-in Legend

NOTE
Sentriant AG automatically attempts to connect to the DHCP server. The possible DHCP server status states are
shown in Figure 173.
10 Click ok to save the changes and return to the Home window.

Viewing DHCP Server Plug-in Status

DHCP server plug-in status is displayed in the following locations:
System configuration>>Quarantining>>DHCP window
●
System monitor>>select a cluster>>Quarantining window
●
Sentriant AG Software Users Guide, Version 5.3
DHCP Plug-in
303
