Installing the Processor Air Duct

Caution: Before performing any maintenance on the system, back up the data. Follow the
instructions in the operating system manual for shutting down the system.
Warning: Do not operate the Intel® Storage System SSR212CC without the presence of a processor
air duct.
1. Observe all safety and ESD precautions listed in
2. Disconnect all peripheral devices connected to the storage system.
3. Disconnect the AC power cord(s).
4. Remove the enclosure cover. For instructions, see
on page
5. Install the processor air duct.
Intel® Storage System SSR212CC User Guide
14.

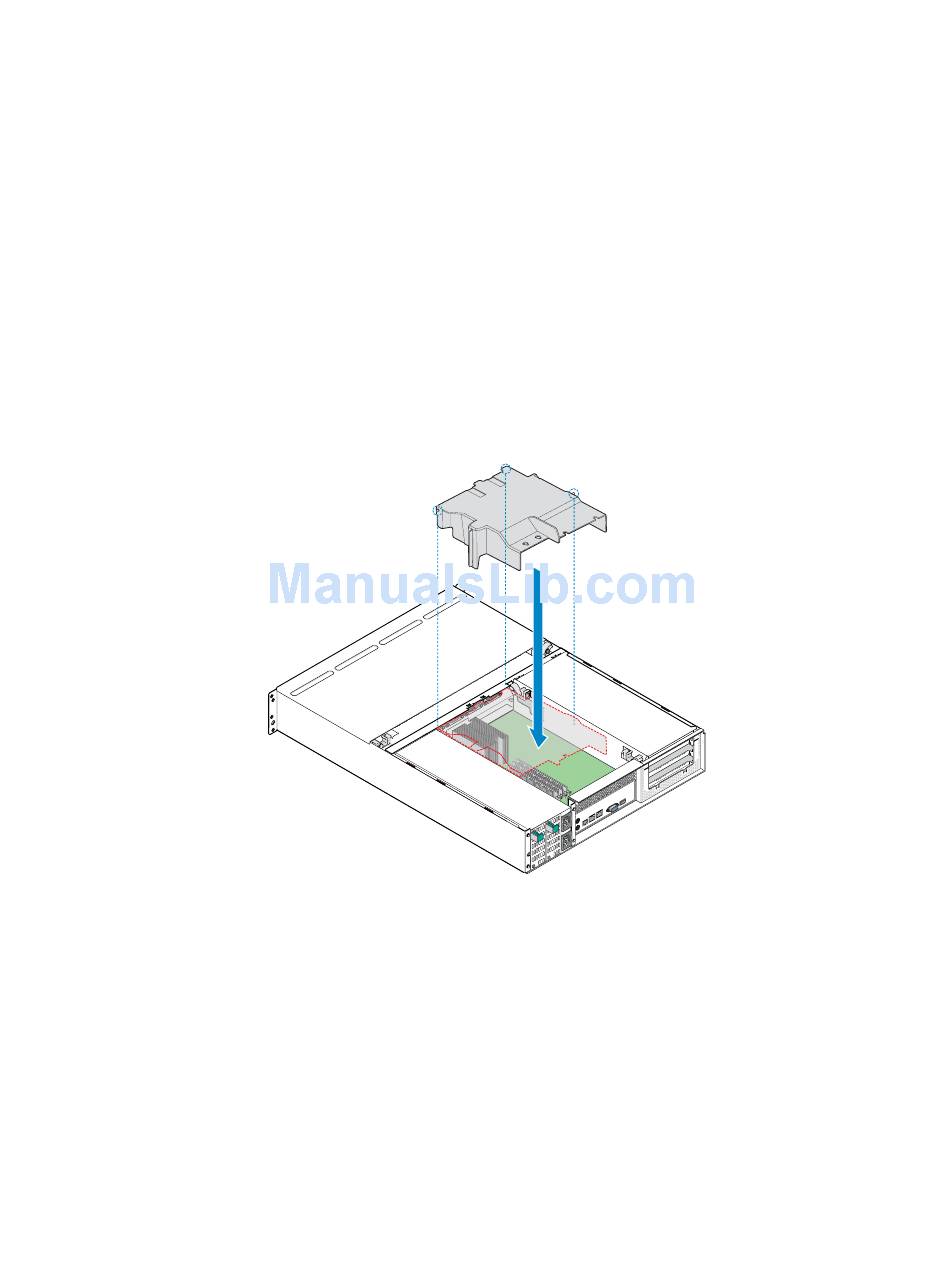

Figure 82. Installing Processor Air Duct

Hardware Installations and Upgrades
Appendix D, "Safety Information".
"Removing the Enclosure Cover"
TP01855
73
