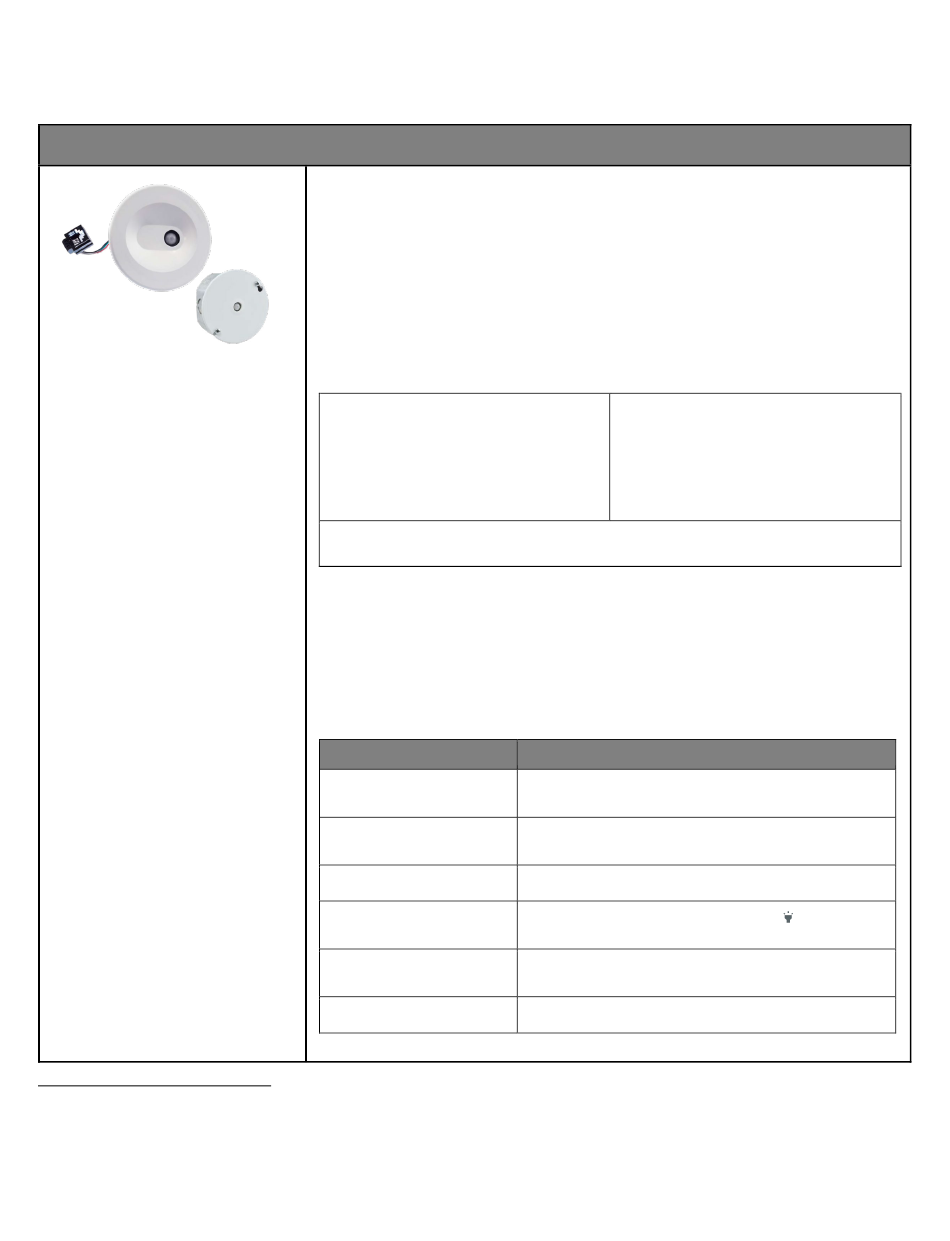

Tilemount Sensor Kit

Tilemount Sensor Kit
Features
Tilemount Sensor
• Integrated photocell for closed loop or open
loop daylighting
26
• Integrated Passive Infrared (PIR) motion sensor
• Bluetooth 4.2 Low Energy transmitter
Control Module
• Universal voltage input (120V-277V)
• Output control (120V-277V)
• Electronic ballast/driver 3 amps
• 0-10V dimming output
• Sinks up to 20mA (approximately 10
ballasts/drivers [2mA each])
Typical Applications
Education, office, and other interior spaces
Models:
• WTK: Wireless Tilemount Sensor Kit
Mobile App Details:
• Device Category: Integrated Sensor
• Default Device Name:
• IS-BLE
Device name is dependent on hardware
Device name will be followed by a number once
provisioned
26 May require firmware update to allow for open loop capability.
Devices with older firmware may not exhibit the exact LED pattern described.
27
28 If a custom template is used, behavior will follow the programming used in the template, not the default behavior shown.
29 Do not use vacancy mode unless WaveLinx Lite Wallstations are installed in the system to allow for manual override.
30 The LED will stop flashing if the light level drops but stays between 50% and 100% of the calibrated light level for 10 minutes OR if the light level falls below 50% of the
calibrated light level for 30 seconds.
31 The LED may be difficult to see in very bright areas.
16
www.cooperlighting.com
The WaveLinx Lite Wireless Tilemount Sensor Kit provides both occupancy and daylight control for 0-10v luminaires that do
not support the WaveLinx Lite integrated sensor. A control module connects to the Tilemount sensor and to the 0-10V
luminaires for an easy control solution.
Out-of-the-Box Operation
• Once power is applied, the attached fixture(s) operates via the motion sensors.
• The occupancy is set for high sensitivity.
• If occupied, the fixture(s) will go to 100%.
• The fixture will dim to 50% after 10 minutes when the space is unoccupied. After 10 additional minutes, the fixture
will dim to OFF and will remain OFF until the space is occupied again.
• The daylight sensor is disabled.
• LED flashes green (in sensor window) for 500ms and then blue for 500ms once every 3 seconds when motion is
detected. 27
Provisioned Device Default Behavior:
Networked Area (default template used)
All sensors in the area's occupancy sensor set control the
lighting.
• Each occupancy sensor is set for low sensitivity.
• If occupied, all controlled zones go to 100%.
• The occupancy set hold time is 20 minutes:
• The fixtures will dim to 50% after 10 minutes when
the space is unoccupied.
• The fixtures will dim to OFF after an additional 10
minutes if the space remains unoccupied.
• The daylight sensor remains disabled
• LED flashes white (in sensor window) for 500ms and then blue for 500ms once every 3 seconds when motion is
detected. 27
Loss of Communications Operation
If a tilemount sensor is no longer communicating with other sensors, the device will continue to operate independently with
its programmed parameters.
Operation upon Return of Power
Upon return of power, the fixture will turn ON to the last known manual light level. If the fixture was OFF, the power up will
trigger the occupancy sensor to issue an occupied command. If occupancy set is set for 'Occupancy' mode, the fixture will
turn ON to the occupied light level until the sensor's hold time expires. If set for 'Vacancy' mode
if it was OFF prior to the power loss.
LED Behavior
The LED is located beneath the sensor lens.
LED conditions
Flashes green for 500ms, blue for
500ms and then turns off. 27 Repeats
every 3 seconds.
Flashes white for 500ms, blue for
500ms and then turns off. 27 Repeats
every 3 seconds.
Flashes white for 10ms every 250ms
(fast blink)
Flashes magenta for 1 second, and
then off for 1 second, repeating for 15
seconds. 27
Flashes magenta for 1 second, and
then off for 1 second, repeating for 45
seconds. 27
LED is OFF
Note: It is recommended to avoid placing sensors within 3ft (1m) of air vents.
Provisioned Device Default Behavior:
Standalone Area (default template used)
28
Once assigned to a standalone area, the device operates
independently.
• The occupancy sensor is set for low sensitivity.
• If occupied the attached fixture(s) turns on to 100%.
• The occupancy hold time is 20 minutes:
• The fixture(s) will dim to 50% after 10 minutes when
the space is unoccupied.
• The fixture(s) will dim to OFF after an additional 10
minutes if the space remains unoccupied.
Meaning
Device is unprovisioned and is detecting motion.
Device is provisioned and is detecting motion
The daylight sensor has exceeded 150% of the calibrated light level for 30
minutes 30
The device has been placed in 'blink to identify' mode (
identifying.
The device has been placed in 'identify' mode using the IR Remote 'Rev ID'
button. The device will remain in this mode for 45 seconds to allow an identify
scan from the mobile app to find this device.
Device is not detecting motion. If motion is occurring, ensure device is
powered and that the LED has not been disabled through the mobile app.
User Manual: WaveLinx Lite (4.0)
28
29 , the fixture will remain OFF
)and is currently
