User Manual: WaveLinx Lite (4.0)
Once complete, the device will return to its default out-of-the-box behavior. The device can be provisioned as a new device.
If a device is no longer communicating, refer to "Replace Devices" on page 167 for details on deleting the device from the mobile application.
Provisioning can also be manually removed. Refer to "WaveLinx Lite Device Reference Sheets" beginning on page 9 for device specific
instructions on how to perform a device factory reset.
Modify Dimmable Device Trims in Standalone Areas
Dimmable devices in a standalone area will allow modification of the device trims. Device trims are typically used to provide a desired aesthetic
or to save energy. When adjusting device settings in a standalone area, the adjustment must be made to each device that requires the change.
The initial device trim settings are dependent on the template used when the standalone area was created. If a custom template was used, the
device trim settings will be as defined in the template. If the default template was used the trim settings are:
• Minimum Level (low end trim): 0%
Sets the lowest level that dimming commands can set the
dimmable light level to. Typically used to provide a desired
aesthetic. Regardless of the minimum level set, a 0% command
will turn the load OFF.
The default settings can be changed to meet other requirements.
To change a dimmable device's trim settings in a standalone area:
1: Ensure that the mobile device Bluetooth is turned on, and then open the WaveLinx Lite Mobile Application.
2: In the site list, select a site and then in the area list, select the standalone area.
3: Bring the mobile device within range (within 60 feet) of the desired device and then select the device from the 'Devices in this Area' section.

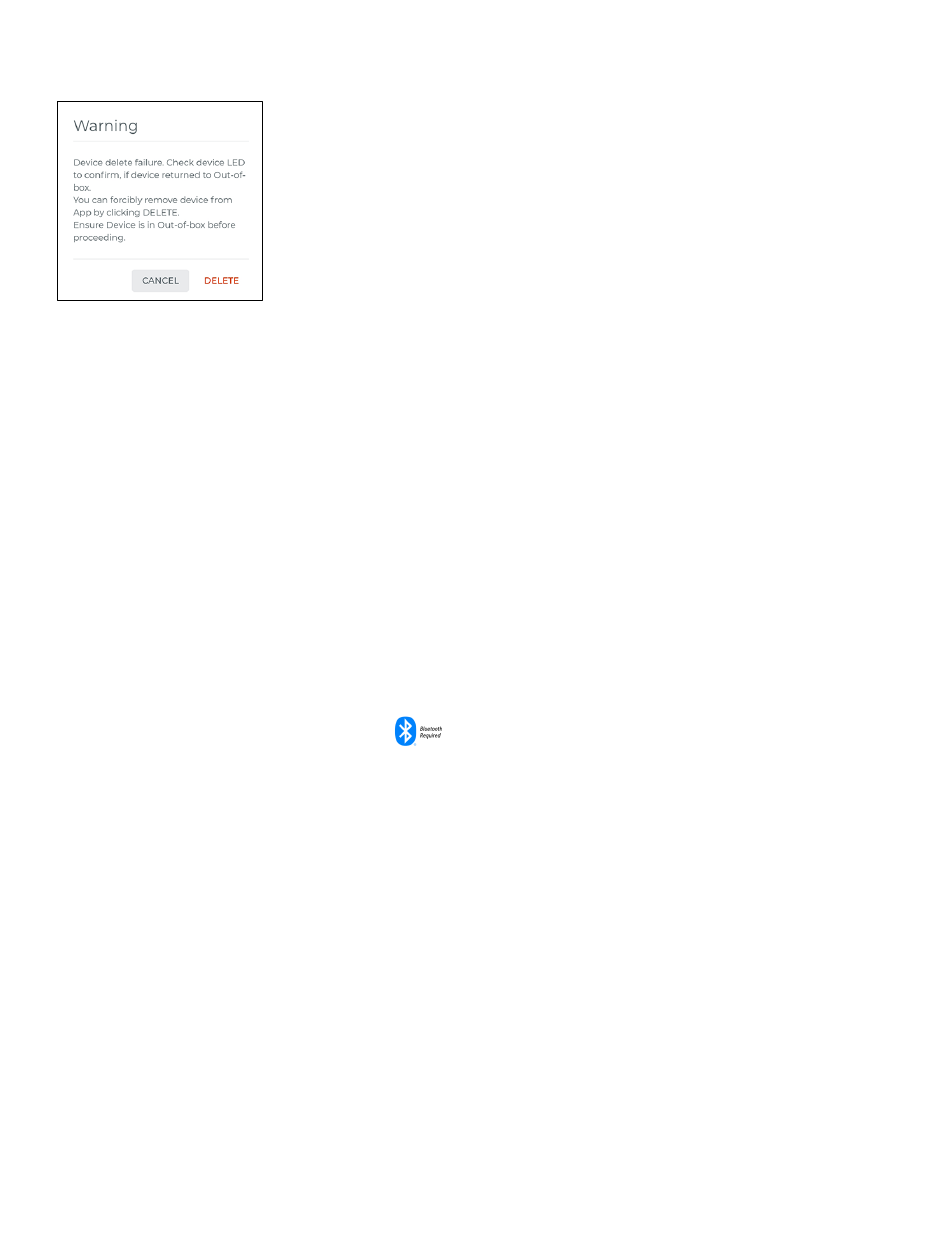

If a Warning! Device Delete Failure message is displayed:
Because the device Bluetooth connection gets disconnected during the deletion process the app
may not have had time confirm success before the connection is severed.
• As directed, look at the device LEDs to confirm that the device is showing out-of-the-box
(unprovisioned) LED status. (See page "WaveLinx Lite Device Reference Sheets" on page 9).
• If the device displays the correct unprovisioned LED status, tap the 'Delete' option on the
warning to remove the device from the mobile app. The device is ready to be provisioned as a
new device.
• If the device still displays provisioned LED behavior, tap 'Cancel'. The device remains listed in
the mobile app. Move closer to the device and then retry steps in this section to delete the
device.
• Maximum Level (high end trim): 100%
Sets the highest level that the dimming command can set the
dimmable light level to. Typically used to save energy or to
provide a desired aesthetic.
www.cooperlighting.com
123
