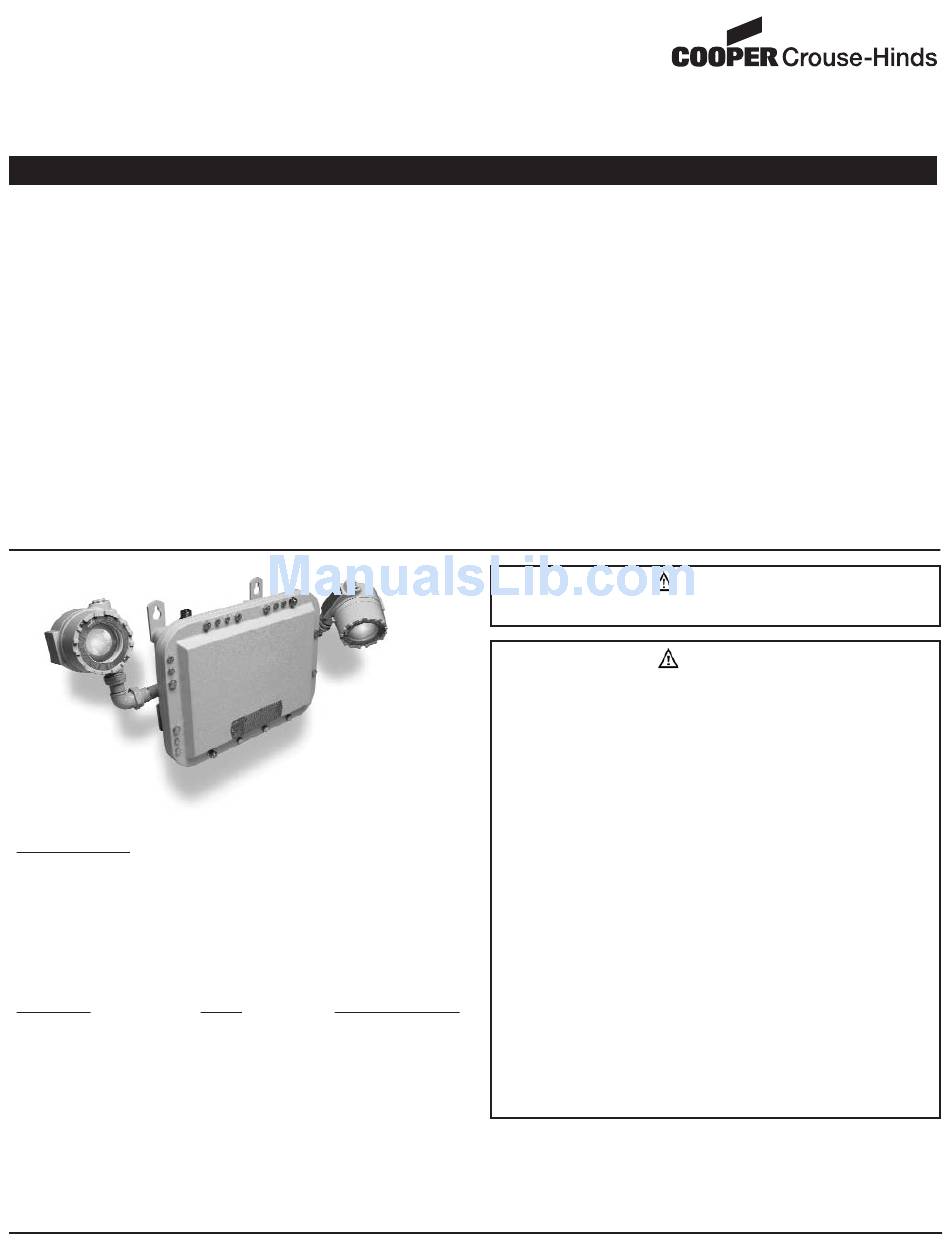

Cooper ELPS502 Installation & Maintenance

EMERGENCY LIGHTING PRODUCTS
ELPS502(M05) SYSTEM, ELPS502(M05) EXS/EXD SYSTEM,
ELPS50(M05) POWER SUPPLY, EVLA12 LIGHTING FIXTURE
Installation & Maintenance Information
APPLICATION
The ELPS502 model #M05 emergency lighting system is designed to automatically
provide illumination to designated areas during failure or interruption of power to the
normal lighting system. The ELPS502 is factory assembled and wired, and consists of one
ELPS50 power supply and two EVLA lighting fixtures.
When properly installed, the following raintight ELPS emergency lighting systems are UL
and cUL Listed for use in:
• ELPS50 Power Supply - Class I, Division 1, Groups B, C & D
• ELPS502 - Class I, Division 1, Groups B, C, D
Exit sign not UL/cUL
• ELPS502 (EXS/EXD) - Class I, Division 1 & 2, Groups C, D
(group B when ordered with GB suffix)
All ELPS emergency lighting systems are suitable for use in Class II, Division 1, Groups E,
F, G and simultaneous presence hazardous (classified) areas as defined by the National
Electrical Code®.
The ELPS50 power supply consists of a battery supply and battery recharging system
housed inside a hazardous area enclosure with all the circuitry to automatically turn on
emergency DC lighting fixture(s) when the normal power supply fails. A pilot light indicates
when normal power is being supplied to the unit. A "push-to-test" push button switch is
provided for periodic testing of the unit.
RATINGS
ELPS50 Power Supply:
Input
Output
Ambient Temp:
Lamp Fixtures:
Input
Ambient Temp.
Operating Temp. Code
NOTE: Ambient temperature at which ELPS50 power supply is rated is 0ºC to 40ºC to
maximize battery capacity. EVLA12 lighting fixtures are permitted in higher, 55ºC ambient
temperature areas for more freedom in selecting remote installation location.
National Electrical Code ® is a registered Trademark of the National Fire Protection Association.
IF 1510 • 05/06
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
-120, 220/240 and 277 VAC ± 5%,
50 or 60Hz
-0.5 Amperes maximum
-12 VDC; 2.5 Amperes
-28 Watts for 1½ hours (ELPS502)
-29 Watts for 1½ hours (ELPS502 EXS/EXD)
-0ºC to 40ºC
EVLA12 ELPS EVI/ELPS EVA GB
-12 VDC -12 VDC
-55ºC maximum -40ºC maximum
-Class I - T4A; -Class I - T4
-Class II, III - T3C -Class II, III - T3C
-Simultaneous Presence - T3C
Copyright © 2006, Cooper Industries, Inc.
Detail indication logic is given below:
No Light
• Steady Light (No blinks)
• Light Blinks Once
• - • Light Blinks Twice
• - • - • Light Blinks Three Times
Immediately after supply power is initiated the indicating lamp will blink/pulse to indicate
that the unit is charging. Once installed with supply power, the ELPS requires 72 hours to
charge the battery. Once the unit has completed charging, the indicating light will stop
blinking and go to steady. Every six months, the unit will automatically perform a 90-
minute battery discharge test.
At the completion of the test, if it is determined not to have met the 90 minute
requirement, the indicating lamp will display circuit failure (3 blinks). At any time, if the
battery connection is not adequate the indicating lamp will display a battery failure (2
blinks).
The EVLA12 lighting fixture is a factory sealed assembly housing a single halogen
lamp/reflector light source. ELPS EVI and ELPS EVA GB Exit Signs are factory sealed
with a single incandescent light source. Lamps are included with all fixtures.
The EVLA12 is suitable for NEMA 4X locations when remote mounted (not installed on an
ELPS Power Supply) and supplied with a NEMA 4X breather/drain.
Emergency lighting system should be installed, inspected, operated, and maintained by
qualified and competent personnel.
To avoid personal injury, electric shock and equipment failure:
1. Do not use this equipment for other than intended use.
2. Do not use accessory equipment not recommended by the manufacturer.
3. Electrical power must be turned OFF before and during installation and
maintenance.
4. Equipment should be mounted in locations and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
5. Do not mount near heat producing equipment.
6. In Class I areas, install and seal all equipment in accordance with the National
Electrical Code articles pertaining to Hazardous (Classified) Locations, plus any
other applicable codes.
7. Install only wiring systems with an equipment grounding conductor (which may
be the conduit system) to supply the ELPS.
8. two single-pole "Designated Disconnect" switches must be installed to
disconnect the battery circuit and the supply circuit for safety in maintenance
and servicing.
9. Free installation area of hazardous atmospheres before wiring.
10. Observe all battery handling precautions contained herein.
11. Hammers or prying tools must not be allowed to damage the flat joint surfaces
of the ELPS50 power supply housing. Do not handle covers roughly, or place
them on surfaces that might damage or scratch the flat joint surfaces.
12. To avoid shattering: Do not operate lamp in excess of rated voltage, protect
lamp against abrasion and scratches, and against liquids when lamp is
operating. Dispose of lamp properly.
IF 1510
AC power is removed from circuit
Fully Charged
Charging
Battery Failure
Circuit Failure
IMPORTANT
WARNING
