4,10 Area 1 Has Unsealed Zone
4,11 Area 2 Has Unsealed Zone
These two outputs operate when a zone in their
corresponding area registers as unsealed either when
the area is armed in AWAY Mode or STAY Mode,
or the area is disarmed.
Example
Zone 1 is allocated to Area 1. If Zone 1 is unsealed,
Output Event Type 4,10 operates. The output is reset
when the zone is resealed.
5,2 Area 1 in Alarm
5,3 Area 2 in Alarm
These two outputs operate when a zone in their
corresponding area registers an alarm. These outputs
are reset when a valid User Code is entered.
Example
Zone 1 is allocated to Area 1. If Zone 1 registers an
alarm, Output Event Type 5,2 operates. The output
is reset when a valid User Code assigned to Area 1 is
entered.
5,6 Area 1 Is Armed
5,7 Area 2 Is Armed
These two outputs operate when their corresponding
area are armed in AWAY Mode or STAY Mode 1.
The output is reset when the corresponding area is
disarmed.
Example
If Area 1 is armed in AWAY Mode or STAY Mode
1, Output Event Type 5,6 operates. The output is
reset when Area 1 is disarmed.
5,10 Area 1 Is Disarmed
5,11 Area 2 Is Disarmed
These two outputs operate when their corresponding
area is disarmed. The output is reset when the
corresponding area is armed.
Example
If Area 1 is disarmed, Output Event Type 5,10
operates. The output is reset when Area 1 is
disarmed.
5,14 Any Areas Armed
This output operates when either Area 1 or Area 2 is
armed in AWAY Mode or STAY Mode 1. The
output is reset when both areas are disarmed.
5,15 Any Areas Disarmed
This output operates when either Area 1 or Area 2 is
disarmed. The output is reset when both areas are
armed in AWAY Mode or STAY Mode 1.
6,0 Area 1 Codepad Data Terminal
This output type is used to connect the data terminal
of the Area 1 codepad when you are using the
Master Partitioned codepad as the main codepad.
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Programmable Outputs
Set DIP Switch 1 to the ON position for the Area 1
codepad to operate correctly.
Refer to Figure 12 on page 17 for the location of the
DIP switches on the pack of the codepad.
If you are not using a Master Partitioned as the main
codepad, connect the data cable from the Area 1
codepad to the DATA terminal on the control panel
and select Option 2 in Location 432 (refer to Section
19.3.1 Partitioning Options 1 on page 82).
Refer to Section 19.7 Codepad Connections For
Partitioning on page 85 for more information on
connecting codepads when the system is partitioned.
6,1 Area 2 Codepad Data Terminal
This output type is used to connect the data terminal
of the Area 2 codepad.
Set DIP Switch 2 to the ON position for the Area 2
codepad to operate correctly.
Refer to Figure 12 on page 17 for the location of the
DIP switches on the back of the codepad.

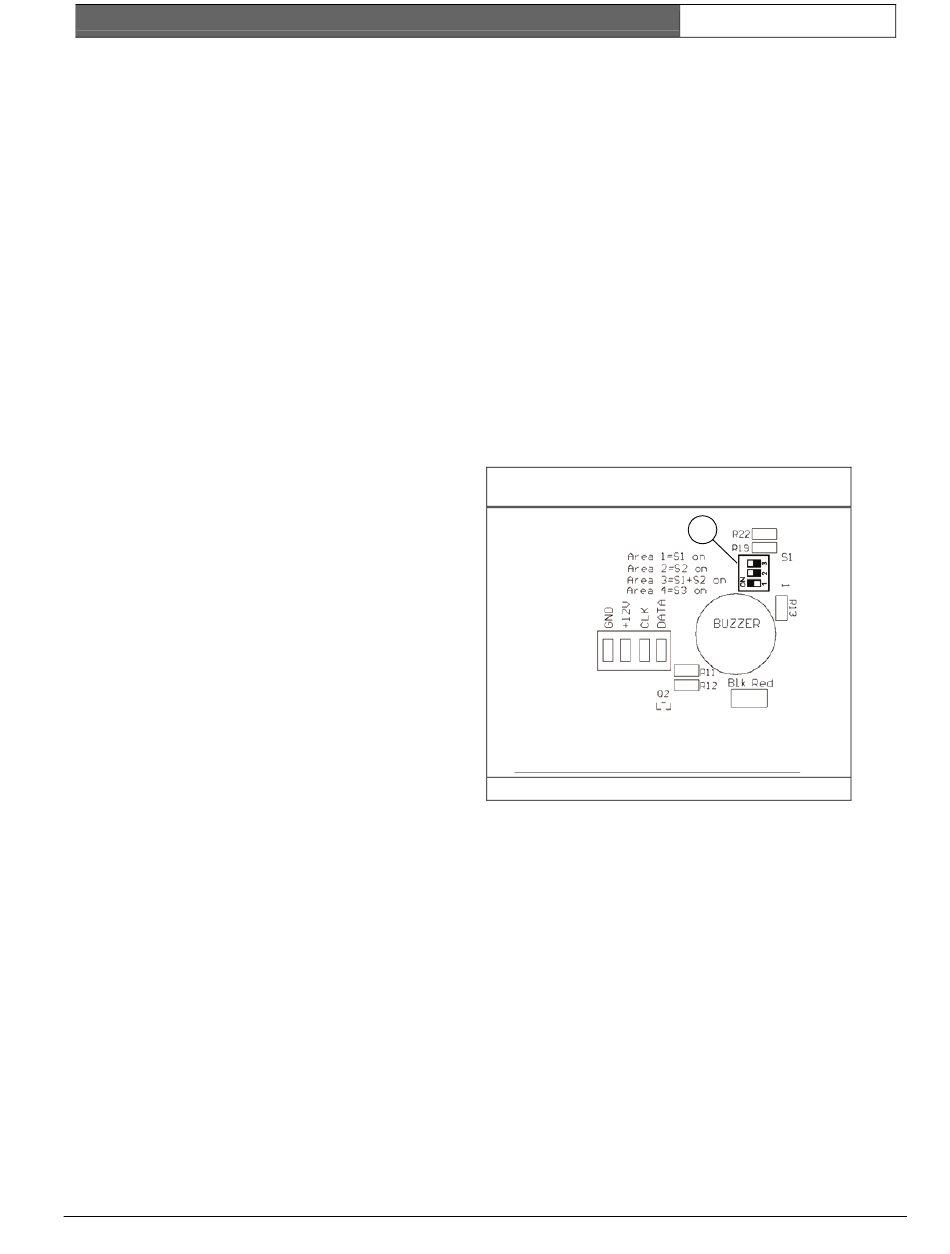

Figure 12: DIP Switch Location on Codepad

1 – DIP switches
