ICP-CC408 | Installation Guide | 20.0

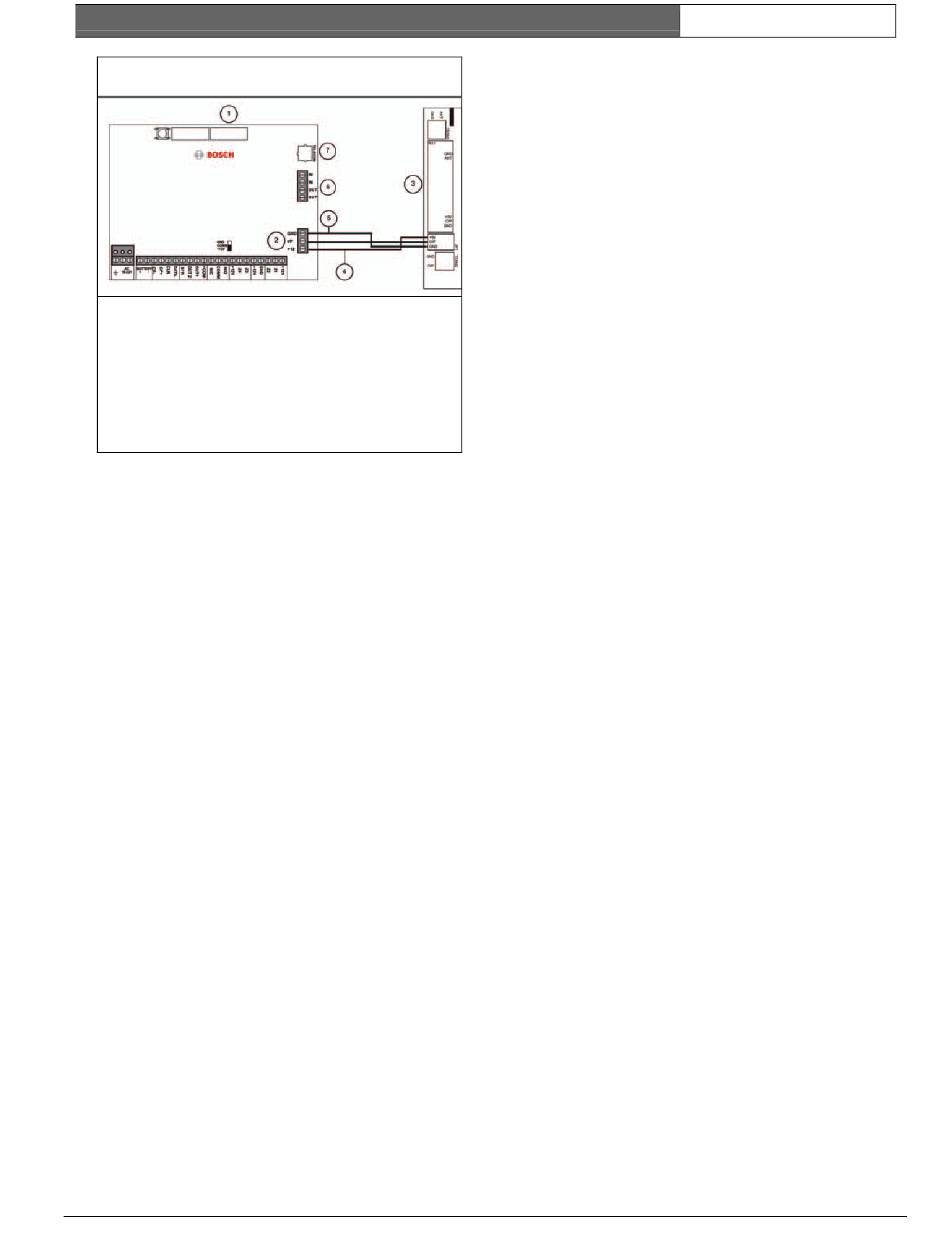

Figure 19: WE800/E Wireless ON/OFF Interface
1 – Direct link cable
2 – Receiver interface connection
3 – Solution Wireless ON/OFF Interface
4– Red
5 – Black
6 – Termination for phone line
7 – Socket for telecom lead connection
20.3
RE005/E: 2-Channel Radio
Interface
The 2-channel radio interface allows customers to
operate ICP-CC408 Control Panels remotely and to
control two on-board relays. The interface can be
used as a stand-alone receiver, independent of an
ICP-CC408 Control Panel, used solely for remote
control of external devices connected to the two on-
board relays.
The interface's operating frequency is 304 MHz with
the ability to store up to 120 radio remote codes.
Connect the interface to an ICP-CC408 Control
Panel using a three-wire connection in parallel with
the codepad and select Option 8 in Location 427
(refer to Section 18.4 System Options 4 on page 80).
20.4
SS914 EDMSAT Satellite Siren
The EDMSAT Satellite Siren is a totally self-
contained unit incorporating a high-powered siren
and a weatherproof strobe. A 1.2 Ah sealed lead-acid
battery must be installed. The EDMSAT requires
only two wires, which enable charging of the battery
and activateing of the siren and strobe. This is
accomplished by pulse code modulating (PCM) the
charging voltage. Any attempt to tamper with the
wiring or to substitute an alternate power source
across the wiring disrupts the data transmission and
activates the EDMSAT immediately. When the
EDMSAT executes a Battery Test, the unit sounds
for 2 sec if the Battery Test fails. Use Output Event
Type 0,0 EDMSAT - Satellite Siren (refer to page 69)
when programming an output for the satellite siren.
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Optional Equipment
20.5
CC891 Programming Key
The programming key copies and stores all
information programmed in your control panel. The
programming key can hold all your common
configuration data such as monitoring station
telephone numbers and zone reporting channels.
20.6
CC816 Alarm Link Software
This software package is designed to program the
ICP-CC408 Control Panel by either the direct link or
remote connect methods. This software can access all
options and features and maintain history and service
reports. Program options to use this feature in
Location 180 (refer to Section 8.2 Alarm Link Options
on page 42). Refer to Section 8.0 Alarm Link Software
on page 41 for more information on using Alarm
Link software.
20.7
ICP-CP508W Eight Zone LED
Codepad
This codepad operates with the ICP-CC408 control
panels. It provides indications for up to eight zones.
20.8
ICP-CP508LW Eight Zone LCD
Codepad)
This codepad operates with the ICP-CC408 control
panels. This codepad has a fixed icon display and
provides indications for up to eight zones.
20.9
ICP-CP500AW Eight Zone Area
Addressable Codepad
This codepad operates with a partitioned ICP-CC408
Control Panel. This codepad has a DIP switch on the
back to select the area to which the codepad belongs.
Refer to Section 19.6 Setting Up and Programming
Codepads for Partitioning on page 84 and Section 19.7
Codepad Connections For Partitioning on page 85 for
more information.
20.10 CP500PW Master Partitioned
Codepad
This codepad operates with a partitioned ICP-CC408
Control Panel. This codepad enables you to operate
the entire system from a single codepad by toggling
between the two areas by pressing [AWAY]. With
this codepad, it is not necessary to have separate CP5
Area Addressable (CP500AW) codepads for each
area. Refer to Section 19.6 Setting Up and Programming
Codepads for Partitioning on page 84 and Section 19.7
Codepad Connections For Partitioning on page 85 for
more information.
EN | 87
