ICP-CC408 | Installation Guide | 3.0
3.0 Codepad Indicators
3.1
ICP-CP508W Eight Zone LED
Codepad

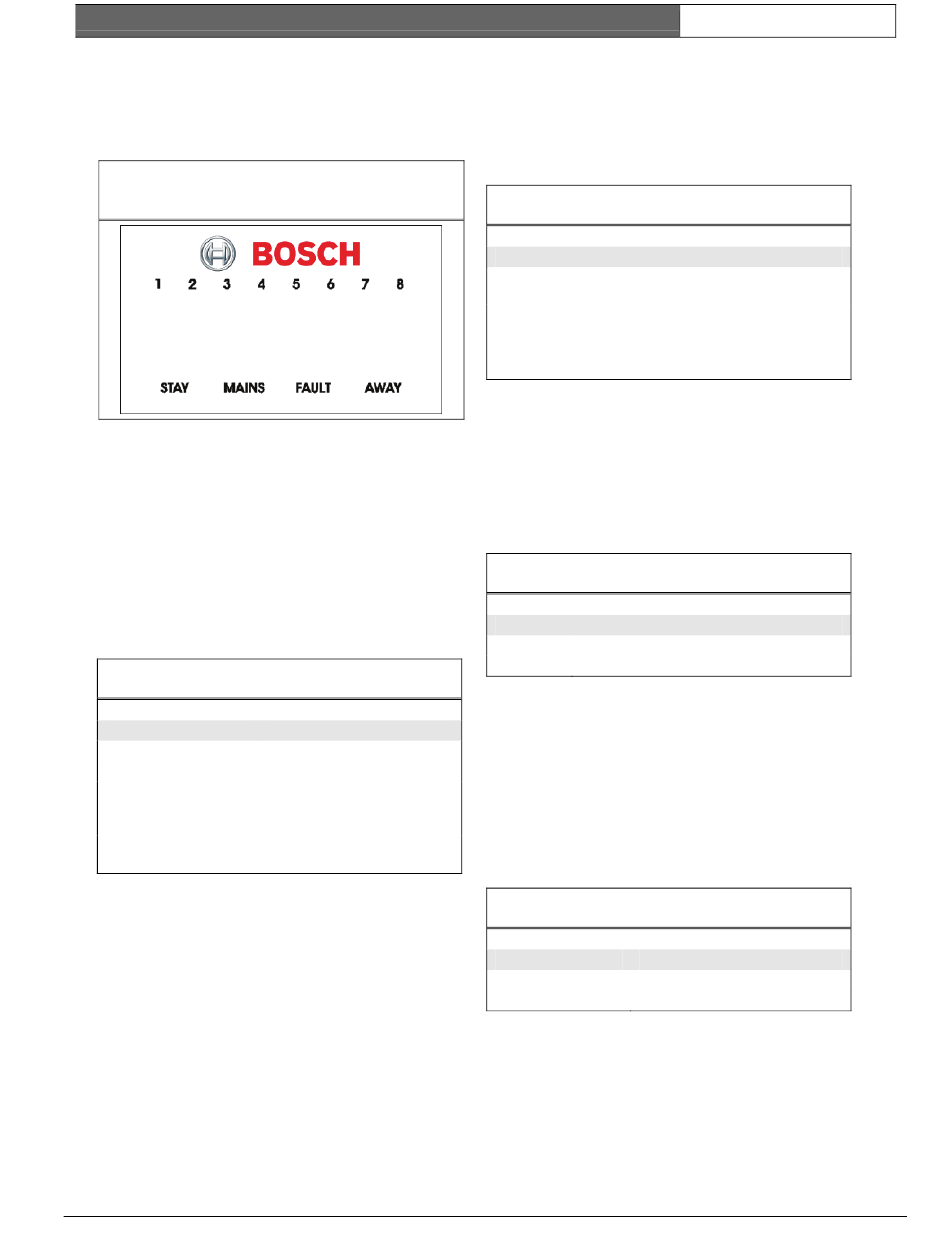

Figure 1:
ICP-CP508W Eight Zone LED
Codepad
The codepad is the communications interface
between you and the alarm system. The codepad
allows you to issue commands and offers visual and
audible indications to guide you through general
operation.
The codepad incorporates a number of indicators:
eight zone indicators show the condition of each zone
and four other indicators show general status. These
indicators are described in Table 8 through Table 13
on pages 16 through 17.
Zone Indicators
Table 8:
Zone Indicators
Indicator
On
Off
Flashing fast
(0.25 sec. on/
0.25 sec. off)
Flashing slow
(1 sec. on/1 sec. off)
STAY Indicator
The STAY indicator lights when the system is armed
in STAY Mode 1 or STAY Mode 2. The STAY
indicator flashes with the AWAY indicator when you
are in Installer's Programming Mode or you are
using a Master Code function.
For more information, refer to:
•
Section 4.3 on page 20 to arm the system in
STAY Mode 1.
•
Section 14.3.5 on page 60 to set zones to be
automatically isolated in STAY Mode 1.
•
Section 4.5 on page 21 to arm the system in
STAY Mode 2.
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Codepad Indicators
Definition
The zone is unsealed.
The zone is sealed.
The zone is in alarm.
The zone is manually isolated.
•
Section 6.1.4 on page 31 to use the Installer Code
to set zones to be automatically isolated in STAY
Mode 2.
•
Section 6.2.6 on page 37 to use the Master Code
to set zones to be automatically isolated in STAY
Mode 2.
Table 9:
STAY Indicator
Indicator
Definition
On
The system is armed in STAY
Mode 1 or STAY Mode 2.
Off
The system is not armed in STAY
Mode 1 or STAY Mode 2.
Flashing
Zone Isolating Mode or setting
STAY Mode 2 zones.
AWAY Indicator
The AWAY indicator lights when the system is
armed in AWAY Mode. The AWAY indicator
flashes with the STAY indicator when you are in
Installer's Programming Mode or you are using a
Master Code function.
Refer to Section 4.1 Arming the System in AWAY Mode
on page 19 for more information.
Table 10: AWAY Indicator
Indicator
Definition
On
The system is armed in AWAY Mode.
Off
The system is not armed in AWAY Mode.
MAINS Indicator
The MAINS indicator shows whether the system's
AC MAINS supply is normal or failed.
When programming in Installer's Programming
Mode or using a Master Code function, the MAINS
indicator lights to indicate a location value from 10 to
15. The MAINS indicator represents the 10 digit,
which is added to the value of the lit zone indicator
(for example, if the value programmed in a location
is 12, the MAINS and Zone 2 indicators light).
Table 11: MAINS Indicator
Indicator
Definition
On
The AC MAINS power is normal.
Flashing
The AC MAINS supply failed.
FAULT Indicator
The FAULT indicator lights when the system detects
a system fault. Refer to Section 4.12 Fault Analysis
Mode on page 23 for more information on system
faults.
Each time a new system fault is detected (the FAULT
indicator flashes), the codepad beeps once per min.
EN | 16
