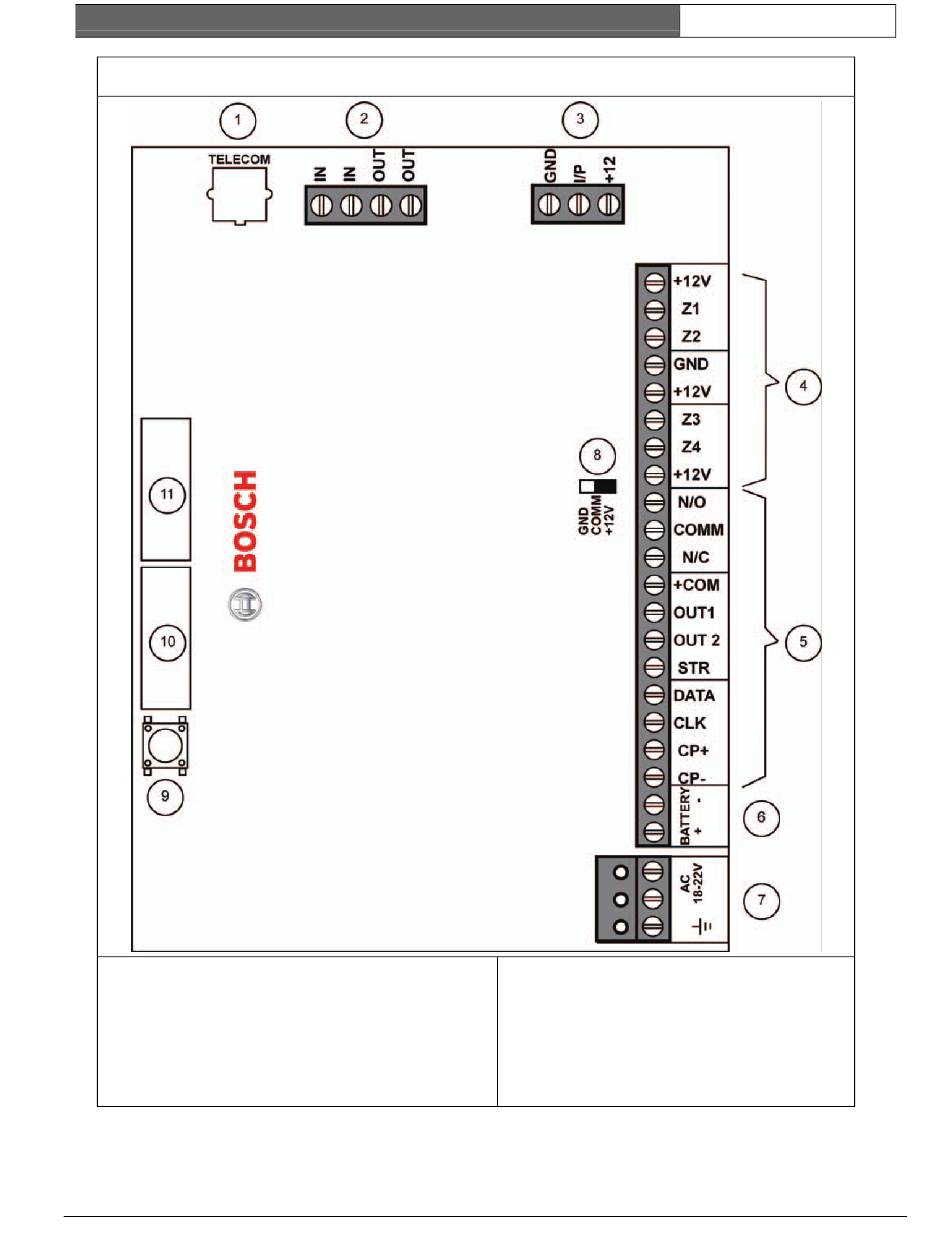

Figure 21: ICP-CC408 Component Overlay
1 – Socket for telecom lead connect
2 – Termination for phone line
OUT – internal phone line
IN – telecom line (street)
3 – Receiver interface connection
4 – Zone termination strip
5 – Output termination strip
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Terminals and Descriptions
6 –
Battery input
7 –
Plug pack input (Bosch TF008)
8 –
Relay contact select
9 –
Default switch
10 – Programming key
11 – Auxiliary Module: direct link cable
