3.0 Codepad Indicators

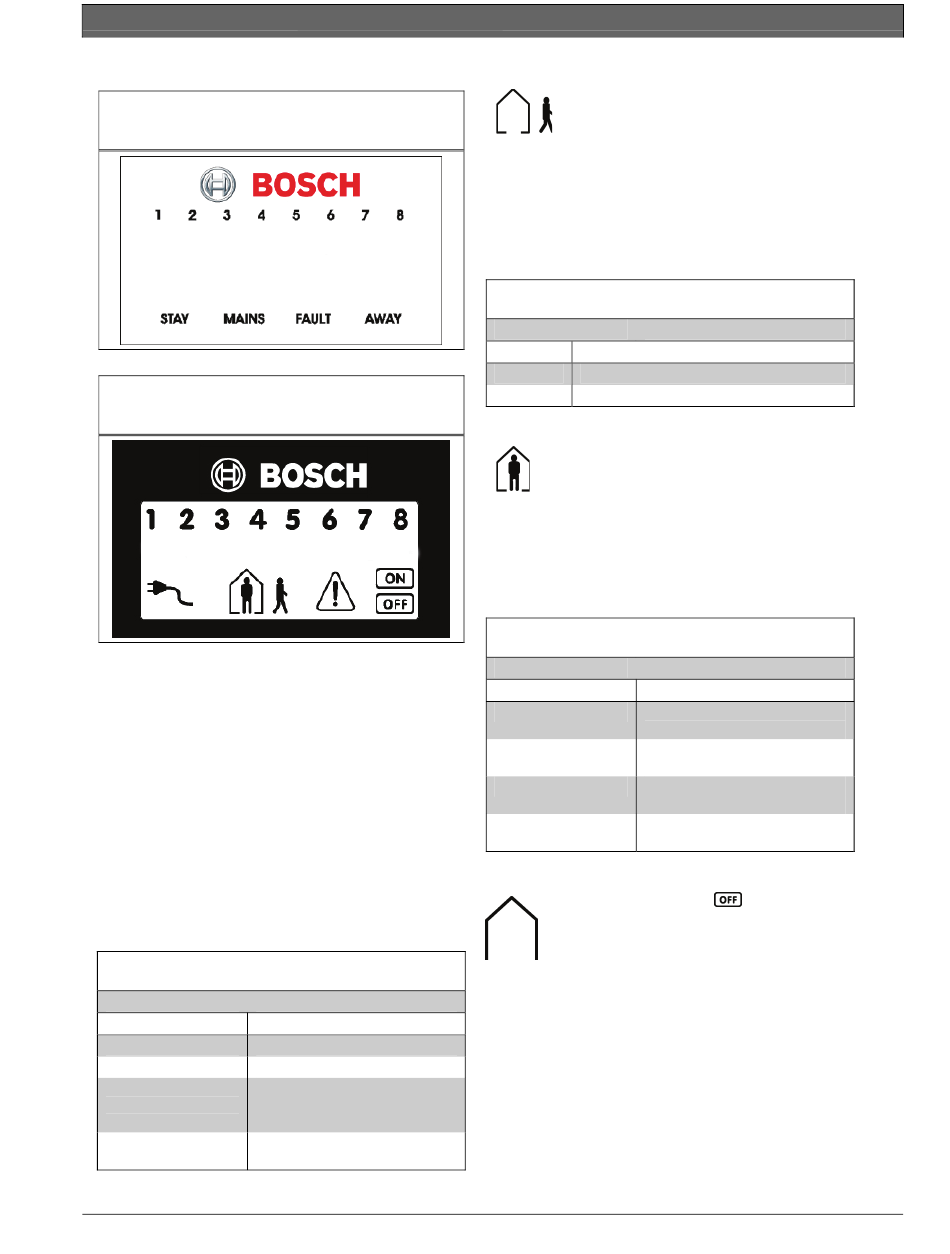

Figure 1: ICP-CP508W Eight Zone LED
Codepad
Figure 2: ICP-CP508LW Eight Zone LCD
Codepad
The codepad is the communications interface
between you and your alarm system. Use the
codepad to issue commands. The codepad offers
both visual and audible indications that guide you
through general operation.
The codepad incorporates a number of indicators.
Eight zone indicators show the status of each zone
and four other indicators show general status.
3.1

Zone Indicators

The zone indicators (1 to 8) display
1 2 3 ....
the status of the zones. Table 1 lists the
status that the indicators display (such
as, Zone Sealed/Zone Unsealed).
Table 1: Zone Indicators
Status Definition
On Zone is unsealed.
Off Zone is sealed.
Flashing fast Zone is in alarm.
(0.25 sec on/
0.25 sec off)
Flashing slow Zone is manually isolated or
(1 sec on/1 sec off) selected to be isolated.
Bosch Security Systems, Inc. | 10/08 | F01U089400-01
Codepad Indicators
3.2

AWAY Indicator

Table 2: AWAY Indicator
Status
On
Off
3.3

STAY Indicator

Table 3: STAY Indicator
Status
On
Off
Flashing twice a sec
Flashing once every
3 sec
3.4

System Disarmed

The AWAY indicator shows the system
is armed in AWAY Mode. The AWAY
indicator also flashes in unison with the
STAY indicator when programming
the control panel.
Refer to Section 4.1 Arming in AWAY
Mode on page 7 for information on the
different methods of arming the system
in AWAY Mode.
Definition
System is armed in AWAY Mode.
System is not armed in AWAY Mode.
The STAY indicator shows the system is
armed in STAY Mode 1 or STAY
Mode 2. The STAY indicator also flashes
in unison with the AWAY indicator
when programming the control panel.
Refer to Section 4.2 Arming in STAY Mode
1 on page 7 and Section 4.3 Arming in
STAY Mode 2 on page 7.
Definition
System is armed in STAY Mode
1 or STAY Mode 2.
System is not armed in STAY
Mode 1 or STAY Mode 2.
Zone Isolating Mode or setting
STAY Mode 2 zones.
Day alarm status – day alarm
turned on.
This indicator and the
when the system is disarmed.
indicator light
5
