CDM-625 Advanced Satellite Modem
Ethernet Management
6.5.4.3.3
Config | Overhead
The 'Config | Overhead' page (Figure 6-8) is used to configure the following overhead
interfaces:
•
•
•
•
Once the desired configuration settings have been made in each section, the user should then click
[Submit] as needed in that section to save those changes.

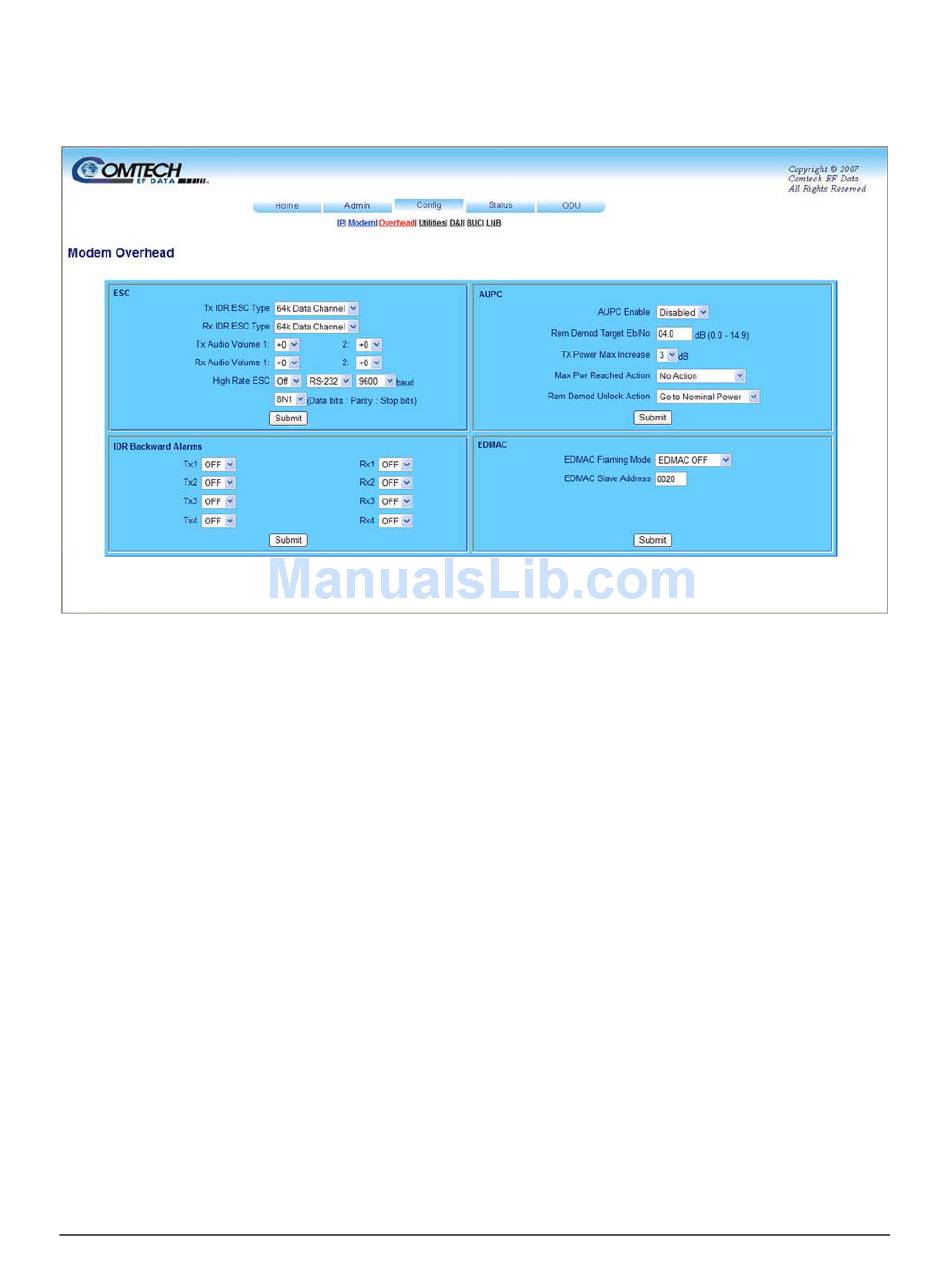

Figure 6-8. Config | Overhead page
ESC, including Tx / Rx IDR Esc Type, Audio Volume, High Rate ESC
IDR Backward Alarms for Tx 1-4 and Rx 1-4
AUPC
EDMAC Framing Mode and Slave Address.
MN-0000036 (Ref MN/CDM625.IOM)
6–15
Revision 1
