CDM-625 Advanced Satellite Modem
Front Panel Operation
Otherwise:
If data rate is
1544 kbps (T1)
2048 kbps (E1)
6312 kbps (T2)
8448 kbps (E2)
Otherwise

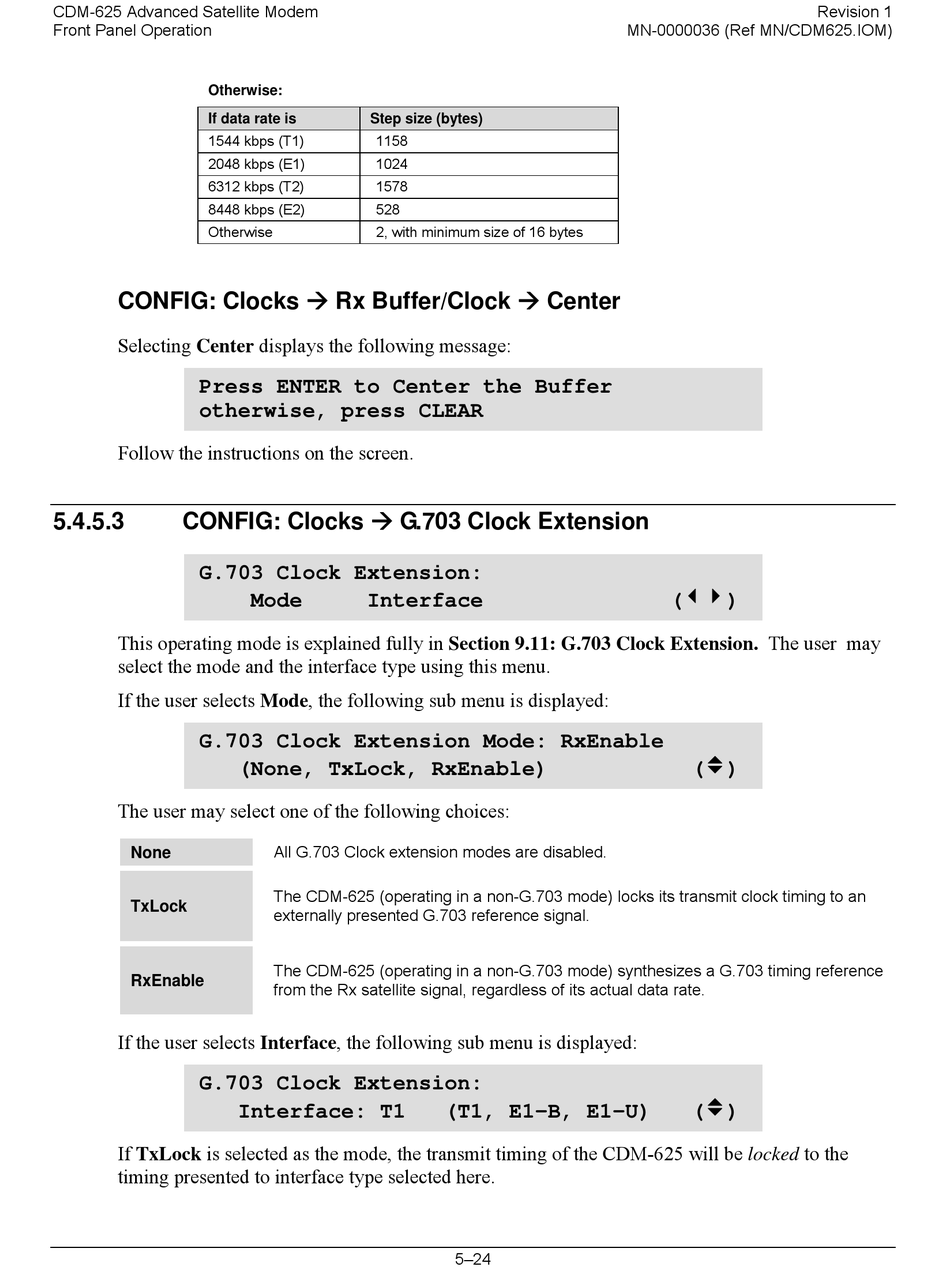

CONFIG: Clocks
Selecting Center displays the following message:
Press ENTER to Center the Buffer
otherwise, press CLEAR
Follow the instructions on the screen.
5.4.5.3
CONFIG: Clocks
G.703 Clock Extension:
This operating mode is explained fully in Section 9.11: G.703 Clock Extension. The user may
select the mode and the interface type using this menu.
If the user selects Mode, the following sub menu is displayed:
G.703 Clock Extension Mode: RxEnable
The user may select one of the following choices:
None
TxLock
RxEnable
If the user selects Interface, the following sub menu is displayed:
G.703 Clock Extension:
If TxLock is selected as the mode, the transmit timing of the CDM-625 will be locked to the
timing presented to interface type selected here.
Step size (bytes)
1158
1024
1578
528
2, with minimum size of 16 bytes
Rx Buffer/Clock
G.703 Clock Extension
Mode
Interface
(None, TxLock, RxEnable)
All G.703 Clock extension modes are disabled.
The CDM-625 (operating in a non-G.703 mode) locks its transmit clock timing to an
externally presented G.703 reference signal.
The CDM-625 (operating in a non-G.703 mode) synthesizes a G.703 timing reference
from the Rx satellite signal, regardless of its actual data rate.
Interface: T1
Center
(T1, E1-B, E1-U)
5–24
MN-0000036 (Ref MN/CDM625.IOM)
(34)
(v)
(v)
Revision 1
