CDM-625 Advanced Satellite Modem

Cable Drawings

MN-0000036 (REF MN/CDM625.IOM)

A.1.1 EIA-530 to RS-422/449 Data Cable

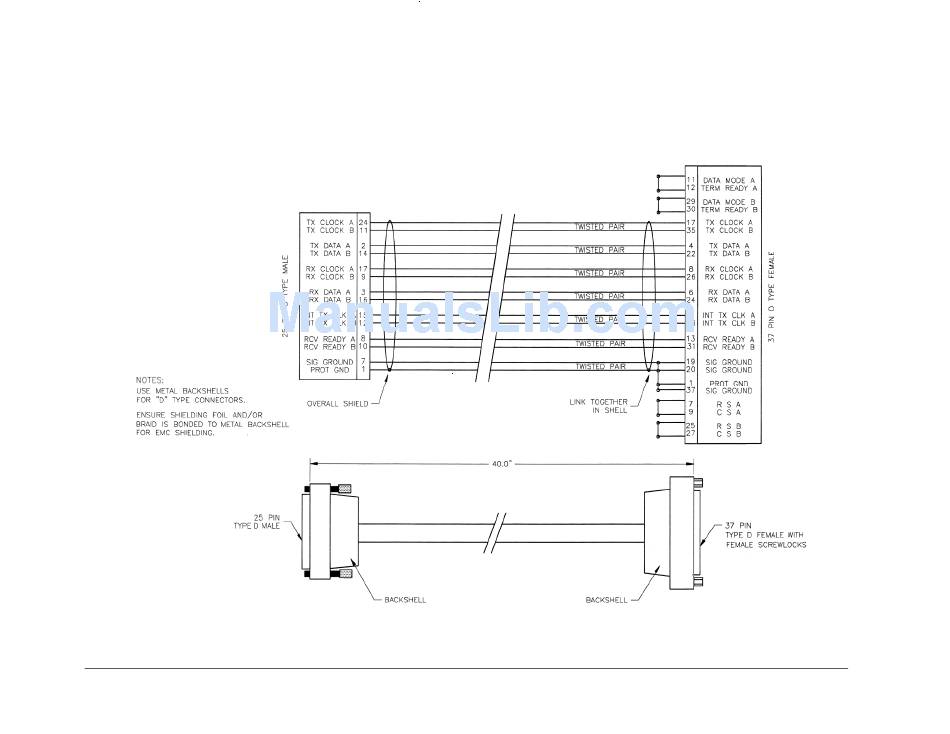

Figure A-1 depicts the cable drawing for a EIA-530 to RS-422/449 DCE conversion for connections between the CDM-625 and the user data.

Figure A-1. DCE Conversion Cable – EIA-530 to RS-422/449 (CA/WR0049)
