Output Setting
11
Output Setting
11.1

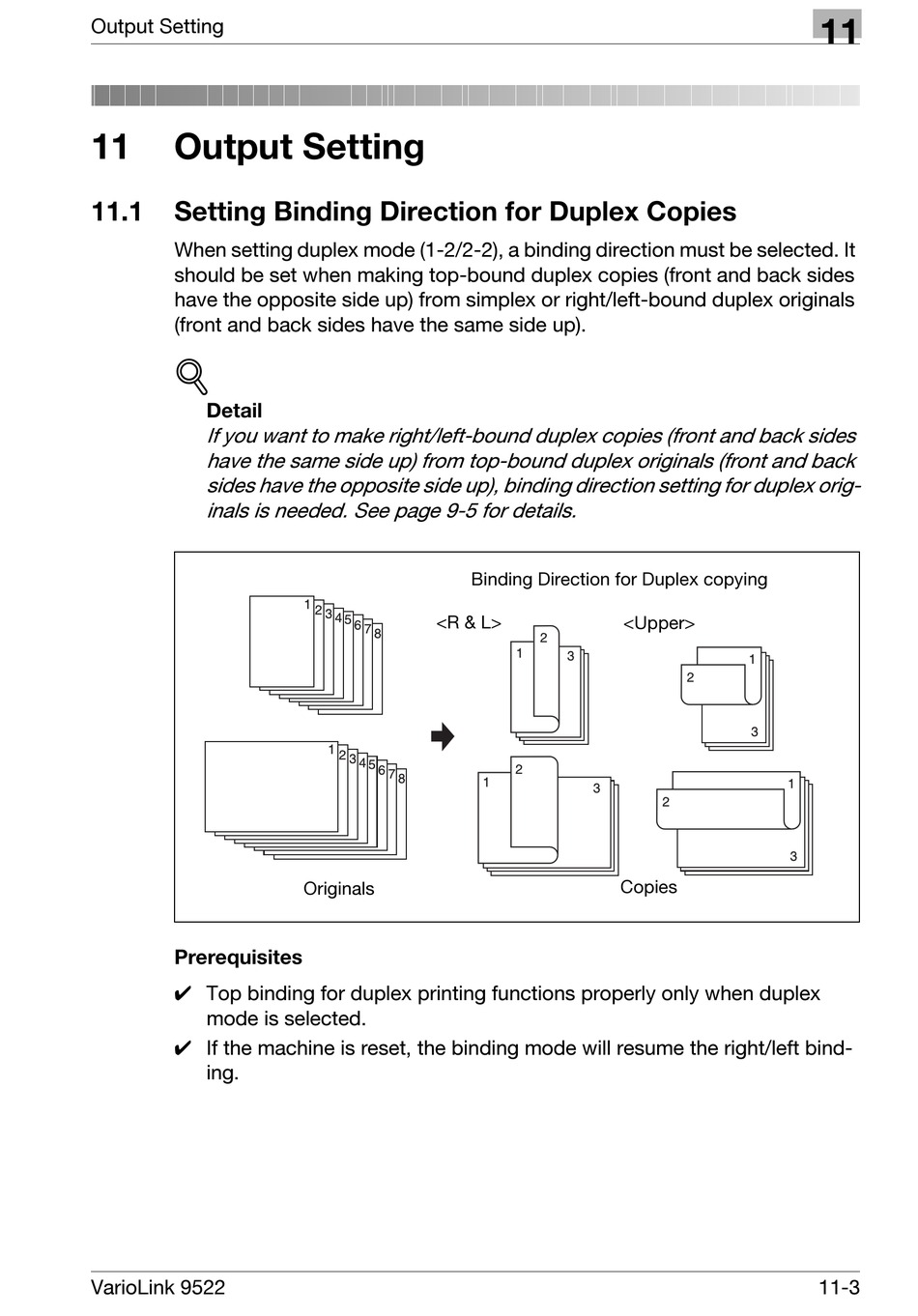

Setting Binding Direction for Duplex Copies
When setting duplex mode (1-2/2-2), a binding direction must be selected. It
should be set when making top-bound duplex copies (front and back sides
have the opposite side up) from simplex or right/left-bound duplex originals
(front and back sides have the same side up).
!
Detail
If you want to make right/left-bound duplex copies (front and back sides
have the same side up) from top-bound duplex originals (front and back
sides have the opposite side up), binding direction setting for duplex orig-
inals is needed. See page 9-5 for details.
Prerequisites
0 Top binding for duplex printing functions properly only when duplex
mode is selected.
0 If the machine is reset, the binding mode will resume the right/left bind-
ing.
VarioLink 9522
Binding Direction for Duplex copying
<R & L>
Originals
<Upper>
Copies
11
11-3
