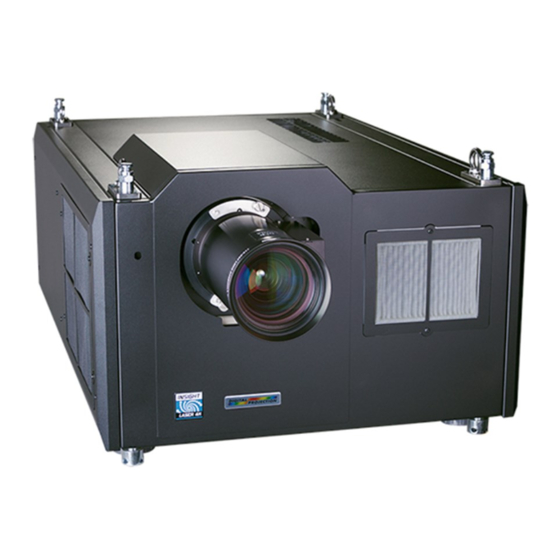

High brightness digital video projector
Hide thumbs Also See for INSIGHT Dual Laser 4K Series:
Table of Contents

Advertisement

Quick Links

Download this manual

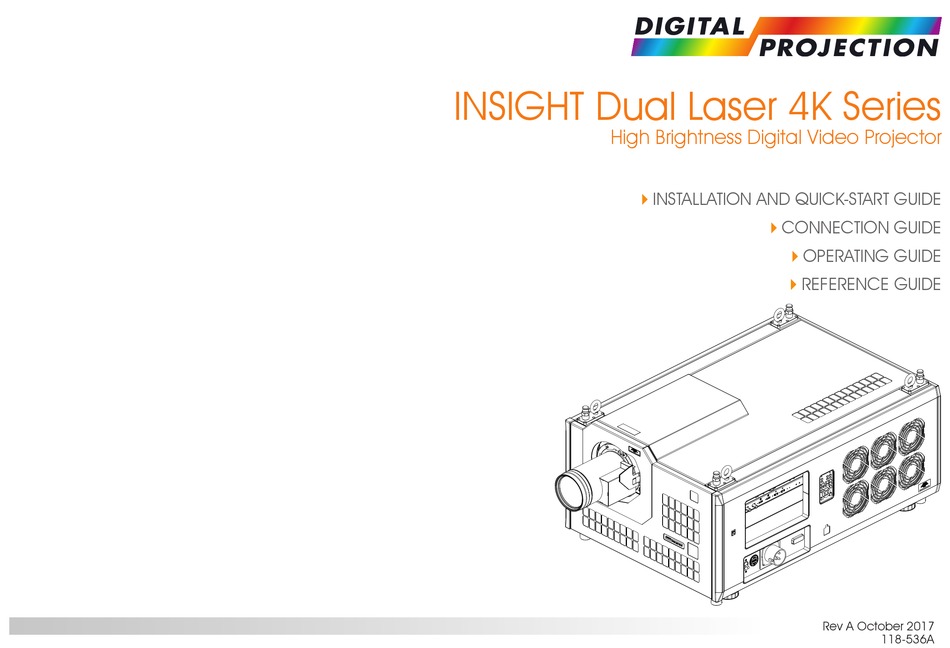

INSIGHT Dual Laser 4K Series
High Brightness Digital Video Projector
4INSTALLATION AND QUICK-START GUIDE
4CONNECTION GUIDE
4OPERATING GUIDE
4REFERENCE GUIDE
Rev A October 2017
118-536A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSIGHT Dual Laser 4K Series and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Projection INSIGHT Dual Laser 4K Series

Summary of Contents for Digital Projection INSIGHT Dual Laser 4K Series

  • Page 1 INSIGHT Dual Laser 4K Series High Brightness Digital Video Projector 4INSTALLATION AND QUICK-START GUIDE 4CONNECTION GUIDE 4OPERATING GUIDE 4REFERENCE GUIDE Rev A October 2017 118-536A...
  • Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
  • Page 3 Digital Projection INSIGHT Dual Laser 4K Series Laser Information Notes MODEL WARNING Isolate mains before removing cover. Part No. To reduce the risk of re or electric shock, do not expose this equipment to rain or moisture. Serial No. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference.
  • Page 4 Digital Projection INSIGHT Dual Laser 4K Series Risk Group 3 Information Notes Light hazard warning Failure to comply with the following may result in serious injury: • No direct exposure to the beam is permitted, RG3 IEC 62471-5:2015. • Operators control access to the beam within the hazard distance or install the projector at sufficient height to prevent exposures of spectators’...
  • Page 5 Digital Projection INSIGHT Dual Laser 4K Series Light hazard labels on the body of the projector Notes Light hazard labelling is part of the product label. Product label Risk Group 3 label MODEL MODEL WARNING Isolate mains before removing cover.
  • Page 6 Digital Projection INSIGHT Dual Laser 4K Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • 4K resolution up to 60 fps via single DisplayPort input. • Dual laser light source for long-life low-maintenance operation.

  • Page 7: Table Of Contents

    Digital Projection INSIGHT Dual Laser 4K Series CONTENTS CONNECTION GUIDE INSTALLATION AND QUICK-START GUIDE ................19 ......1 SIGNAL INPUTS ................21 CONNECTING THE POWER SUPPLY ..........3 3D Sync....................22 PROJECTOR OVERVIEW ............... 4 Indicators on the connections panel............ 23 Front and rear views ................4 EDID on the HDMI and DisplayPort inputs .........
  • Page 8 Digital Projection INSIGHT Dual Laser 4K Series CONTENTS (continued) SYSTEM MENU ................41 APPENDIX B: LENS CHARTS ............63 How to use the lens charts ..............63 INFORMATION MENU ..............42 Lens chart, up to 100 m throw............. 64 Laser Information ................43 Lens chart, 10 m throw in detail ............

  • Page 9: Installation And Quick-Start Guide

    INSIGHT Dual Laser 4K Series High Brightness Digital Video Projector INSTALLATION AND QUICK-START GUIDE Rev A October 2017...
  • Page 10 Digital Projection INSIGHT Dual Laser 4K Series IN THIS GUIDE IN THIS GUIDE Connecting The Power Supply ................ 3 Projector Overview ..................... 4 Front and rear views ....................Keypad ......................... Keypad indicators ....................... Laser status lights ...................... Interlock LED status window indicators ..............

  • Page 11: Connecting The Power Supply

    Digital Projection INSIGHT Dual Laser 4K Series CONNECTING THE POWER SUPPLY Connecting The Power Supply Notes Firmly push the mains connector into the socket , then press the ON/OFF switch Use only the power cable provided. A digital meter shows the value of the connected line voltage.

  • Page 12: Projector Overview

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Projector Overview Notes Front and rear views Front IR window Inputs Air inlet An identical air inlet is located at the bottom of the projector, The air inlet at the bottom of right below this one.

  • Page 13: Keypad

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Keypad Notes POWER ON/OFF (with indicator) FOCUS Use with the arrow keys to adjust focus. OPEN Press to enter FOCUS ADJUSTMENT mode, then press an arrow key to POWER SHUTTER focus the image.

  • Page 14: Keypad Indicators

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Keypad indicators Notes POWER Behavior Meaning The projector is switched off. OPEN On (amber) The projector is in Standby mode. POWER SHUTTER The projector is switched on CLOSE On (green) (Normal mode).

  • Page 15: Laser Status Lights

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Laser status lights Notes LAMP SERIAL ERROR WIRED REMOTE IN OUT Lamp 1 and 2 indicators These indicators correspond to the two laser light sources within the projector. (Lamp 3 and 4 remain switched off.)

  • Page 16: Interlock Led Status Window Indicators

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Interlock LED status window indicators Notes The interlock LED status window shows whether an interlock switch has been activated. The exact location of each interlock switch can be found in the Each LED signals a problem with closing or attaching the following: Important Information document.

  • Page 17: Remote Control

    Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Remote control Notes The remote control is shipped with no battery fitted. Remove the back cover and insert the supplied cells while observing the correct cell polarity. Not all keys are used on this projector.
  • Page 18 Digital Projection INSIGHT Dual Laser 4K Series PROJECTOR OVERVIEW Remote control continued Notes Number keys for input selection and lens presets Select input source. Press: Not all keys are used on this for HDMI A, for HDMI B, for DisplayPort A,...

  • Page 19: Positioning The Screen And Projector

    Digital Projection INSIGHT Dual Laser 4K Series POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a...

  • Page 20: Tilt

    Digital Projection INSIGHT Dual Laser 4K Series POSITIONING THE SCREEN AND PROJECTOR Tilt Notes The projector can be operated in numerous positions. It is recommended to position the projector in portrait mode with inputs facing upward, as shown in the diagram: 30°...

  • Page 21: Essential Maintenance

    Digital Projection INSIGHT Dual Laser 4K Series ESSENTIAL MAINTENANCE Essential Maintenance Notes Before changing the lens, Fitting the lens always make sure the projector is switched off and fully disconnected from its power Insert the lens into the mount. supply.

  • Page 22: Replacing The Filters

    Digital Projection INSIGHT Dual Laser 4K Series ESSENTIAL MAINTENANCE Replacing the filters Notes Loosen the six captive screws, then remove the front/side panel Before changing the filters, always make sure the projector Replace the filters is switched off and fully Reattach the panel and tighten the screws.

  • Page 23: Monitoring The Cooling Liquid Levels

    Digital Projection INSIGHT Dual Laser 4K Series ESSENTIAL MAINTENANCE Monitoring the cooling liquid levels Notes The cooling reservoirs inside the projector require topping up after approximately eighteen months. Please contact your dealer to arrange the service. Installation and Quick-Start Guide...

  • Page 24: Operating The Projector

    Digital Projection INSIGHT Dual Laser 4K Series OPERATING THE PROJECTOR Operating The Projector Notes Switching the projector on Connect the power cable between the mains supply and the socket . Switch on at the Connecting The Power See also ON/OFF switch Supply earlier in this guide.

  • Page 25: Selecting An Input Signal

    Digital Projection INSIGHT Dual Laser 4K Series OPERATING THE PROJECTOR Selecting an input signal Notes The last selected input remains active until a new input is selected. To select a new input: Connect one or more image sources to the projector.

  • Page 26: Adjusting The Image

    Digital Projection INSIGHT Dual Laser 4K Series OPERATING THE PROJECTOR Adjusting the image Notes Orientation This can be set from the menu. Choose from Upper Left Upper Middle Upper Right Mid Left Mid Middle Mid Right Lower Left Lower Middle...

  • Page 27: Connection Guide

    INSIGHT Dual Laser 4K Series High Brightness Digital Video Projector CONNECTION GUIDE Rev A October 2017...
  • Page 28 Digital Projection INSIGHT Dual Laser 4K Series IN THIS GUIDE IN THIS GUIDE Signal Inputs ....................... 21 3D Sync ........................Indicators on the connections panel ............... EDID on the HDMI and DisplayPort inputs ............. Using HDMI/DisplayPort switchers with the projector .............

  • Page 29: Signal Inputs

    Digital Projection INSIGHT Dual Laser 4K Series SIGNAL INPUTS Signal Inputs Notes The following inputs are available on the LAMP SERIAL ERROR WIRED REMOTE connections panel: HDMI A HDMI 1.4 IN OUT HDMI B HDMI 1.4 DisplayPort A DisplayPort 1.2 DisplayPort B DisplayPort 1.2...

  • Page 30: 3D Sync

    Digital Projection INSIGHT Dual Laser 4K Series SIGNAL INPUTS 3D Sync Notes 3D Sync In Sync input signal LAMP SERIAL ERROR WIRED REMOTE Connect the 3D sync from your graphics card or server. 3D Sync Out IN OUT Sync output signal Connect this to your IR emitter or ZScreen.

  • Page 31: Indicators On The Connections Panel

    Digital Projection INSIGHT Dual Laser 4K Series SIGNAL INPUTS Indicators on the connections panel Notes IN OUT Main connections panel 3D Sync In / Out These indicators light solid green if 3D sync is present. HDMI 1 / HDMI 2 / DisplayPort 1 / DisplayPort 2 Each of these indicators lights a solid green color if the adjacent input is in use.

  • Page 32: Edid On The Hdmi And Displayport Inputs

    Digital Projection INSIGHT Dual Laser 4K Series SIGNAL INPUTS EDID on the HDMI and DisplayPort inputs Notes If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the projector.

  • Page 33: Control Connections

    Digital Projection INSIGHT Dual Laser 4K Series CONTROL CONNECTIONS Control Connections Notes LAN port (LAN) Use this port when controlling the projector in LAN connection from a PC. PC control terminal (RS-232) Use this terminal when controlling the projector in serial connection from a PC.
  • Page 34 Digital Projection INSIGHT Dual Laser 4K Series This page is intentionally left blank. Connection Guide...

  • Page 35: Operating Guide

    INSIGHT Dual Laser 4K Series High Brightness Digital Video Projector OPERATING GUIDE Rev A October 2017...
  • Page 36 Digital Projection INSIGHT Dual Laser 4K Series IN THIS GUIDE IN THIS GUIDE Main Menu ......................29 Lens Menu ......................30 Lens Calibrate ......................Lens Presets ......................Image Menu ......................32 Color Menu ......................33 Geometry Menu ....................34 Laser Menu ......................35 Network Menu ....................

  • Page 37: Main Menu

    Digital Projection INSIGHT Dual Laser 4K Series MAIN MENU Main Menu Notes • Input Select an input source from the drop-down list: HDMI A, HDMI B, DisplayPort A, DisplayPort B, Dual Pipe LR, Dual Pipe EW • Lens Adjust lens zoom and focus, calibrate a new lens, use lens presets.

  • Page 38: Lens Menu

    Digital Projection INSIGHT Dual Laser 4K Series LENS MENU Lens Menu Notes • Lens Calibrate Lens Presets Open these submenus to access additional lens settings. • Move Center Select to center the lens. • Main Menu Return to the menu.

  • Page 39: Lens Presets

    Digital Projection INSIGHT Dual Laser 4K Series LENS MENU Lens Presets Notes This menu allows you to recall and save up to five lens presets, containing position, Saving a preset overwrites all data zoom, focus and shift adjustment information. previously saved within the same slot.

  • Page 40: Image Menu

    Digital Projection INSIGHT Dual Laser 4K Series IMAGE MENU Image Menu Notes • Brightness Contrast Gamma Set the slider as required to improve the quality of the image. • Main Menu Return to the Main menu. Operating Guide Rev A October 2017...

  • Page 41: Color Menu

    Digital Projection INSIGHT Dual Laser 4K Series COLOR MENU Color Menu Notes • Lift Gain sliders Lifts allow you to adjust black levels of individual colors, while gains adjust the bright part of the scale Set as required. • Color Preset Choose from the drop-down: User, Peak, REC 709, REC 601, 3200K, 5400K, 6500K, 8000K, 9000K.

  • Page 42: Geometry Menu

    Digital Projection INSIGHT Dual Laser 4K Series GEOMETRY MENU Geometry Menu Notes • Scaler Enabled This feature unlocks functionality accessible via the web served OSD. If this feature is enabled, the web served OSD allows you to open a Scaler Points editor window, where you can set bespoke screen sizes and screen aspect ratios.

  • Page 43: Laser Menu

    Digital Projection INSIGHT Dual Laser 4K Series LASER MENU Laser Menu Notes • Laser Mode This feature is currently not supported. • Laser Power Select a value between 30 and 100%. • Laser 1 Hours Laser 1 Starts Laser 2 Hours Laser 2 Starts These items provide information only.

  • Page 44: Network Menu

    Digital Projection INSIGHT Dual Laser 4K Series NETWORK MENU Network Menu Notes • Enable DHCP Network Address Subnet Mask Select if the are to be Enable DHCP Network Address Subnet Mask assigned by a DHCP server. Deselect Enable DHCP to enter...

  • Page 45: Osd Menu

    Digital Projection INSIGHT Dual Laser 4K Series OSD MENU OSD Menu Notes • Position Determine where the OSD should appear on the screen when activated. • Language Set the OSD language. • Timeout Determine how long the OSD should stay on the screen if no buttons are pressed.

  • Page 46: Web Served Osd

    Digital Projection INSIGHT Dual Laser 4K Series WEB SERVED OSD Web Served OSD Notes The web served OSD mirrors and enhances the functionality of the OSD found on the projector. This section explains how to access it and shows some of the enhanced functions.

  • Page 47: Examples Of Enhanced Functionality On The Web Served Osd

    Digital Projection INSIGHT Dual Laser 4K Series WEB SERVED OSD Examples of enhanced functionality on the web served OSD Notes Gamut Editor Operating Guide Rev A October 2017 page 39...

  • Page 48: Blanking Editor And Scaling Editor

    Digital Projection INSIGHT Dual Laser 4K Series WEB SERVED OSD Blanking Editor and Scaling Editor Notes Operating Guide Rev A October 2017 page 40...

  • Page 49: System Menu

    Digital Projection INSIGHT Dual Laser 4K Series SYSTEM MENU System Menu Notes • Orientation Choose from Desktop Front Ceiling Front Desktop Rear Ceiling Rear • Factory Reset Restore factory default settings. Press when asked to confirm. • Main Menu Return to the Main menu.

  • Page 50: Information Menu

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU Information Menu Notes This menu gives information about laser operating times, network configuration, OSD software and hardware, system information such as model name and firmware version, and video configuration. Open a submenu to see related information.

  • Page 51: Laser Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU Laser Information Notes Operating Guide Rev A October 2017 page 43...

  • Page 52: Network Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU Network Information Notes Operating Guide Rev A October 2017 page 44...

  • Page 53: Osd Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU OSD Information Notes OSD Hardware Operating Guide Rev A October 2017 page 45...

  • Page 54: System Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU System Information Notes UDP logs Operating Guide Rev A October 2017 page 46...

  • Page 55: Temperature Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU Temperature Information Notes Operating Guide Rev A October 2017 page 47...

  • Page 56: Video Information

    Digital Projection INSIGHT Dual Laser 4K Series INFORMATION MENU Video Information Notes Operating Guide Rev A October 2017 page 48...

  • Page 57: Reference Guide

    INSIGHT Dual Laser 4K Series High Brightness Digital Video Projector REFERENCE GUIDE Rev A October 2017...
  • Page 58 Digital Projection INSIGHT Dual Laser 4K Series IN THIS GUIDE IN THIS GUIDE The DMD™ ......................51 Technical Specifications ................80 Models ........................Choosing A Lens ....................53 Inputs and outputs ....................Screen Requirements ..................54 Bandwidth ........................Fitting the image to the DMD™ ................

  • Page 59: The Dmd

    Digital Projection INSIGHT Dual Laser 4K Series THE DMD™ The DMD™ Notes A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of approximately 8.8 million moving aluminium mirrors, with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors) and are not used in constructing the image.
  • Page 60 Digital Projection INSIGHT Dual Laser 4K Series THE DMD™ Notes Depending on the voltage polarity applied, each mirror will either tilt to the left to produce a bright pixel or to the right for a dark pixel. When light is applied to the complete DMD™, only the light redirected from a mirror tilting to the left is projected.

  • Page 61: Choosing A Lens

    Digital Projection INSIGHT Dual Laser 4K Series CHOOSING A LENS Choosing A Lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. INSIGHT 4K zoom lenses are...

  • Page 62: Screen Requirements

    Digital Projection INSIGHT Dual Laser 4K Series SCREEN REQUIREMENTS Screen Requirements Notes Fitting the image to the DMD™ The projector supports 4K and Ultra HD formats and is able to achieve 2K and 1080p via frame doubling. 2K and frame doubled 1080p will not utilize the full width of the DMD™, resulting in pillarboxing, as shown in the illustration.

  • Page 63: Diagonal Screen Sizes

    Digital Projection INSIGHT Dual Laser 4K Series SCREEN REQUIREMENTS Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D). When dealing W = width with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).

  • Page 64: Fitting The Image To The Screen

    Digital Projection INSIGHT Dual Laser 4K Series SCREEN REQUIREMENTS Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use.

  • Page 65: Positioning The Screen And Projector

    Digital Projection INSIGHT Dual Laser 4K Series SCREEN REQUIREMENTS Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should The projector should be installed be 1.2 m (4 feet) above the floor and the front row of the...

  • Page 66: Positioning The Image

    Digital Projection INSIGHT Dual Laser 4K Series POSITIONING THE IMAGE Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image.
  • Page 67 Digital Projection INSIGHT Dual Laser 4K Series POSITIONING THE IMAGE Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.

  • Page 68: Maximum Offset Range

    Digital Projection INSIGHT Dual Laser 4K Series POSITIONING THE IMAGE Maximum offset range Notes The maximum offset range available is dependent on which lens is used. Shifting the lens beyond its undistorted limits may be physically possible, however you may experience excessive vignetting or distortion.

  • Page 69: Aspect Ratios Explained

    Digital Projection INSIGHT Dual Laser 4K Series ASPECT RATIOS EXPLAINED Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on: • the DMD™ resolution, which is 4K with a 4096 x 2160 resolution, corresponding to an aspect ratio of 256:135, or approximately 1.9:1.

  • Page 70: Appendix A: Lens Part Numbers

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX A: LENS PART NUMBERS Appendix A: Lens Part Numbers Notes Lens Lens Part No. Focus Range Lens Shift extension 0.93:1 fixed 117-310 0.5 m - 40+ m Vert: 0.210 (U) 0.210 (D) frame, Hor: 0.08 (L) 0.08 (R) 257 mm At 1.13:1 zoom:...

  • Page 71: Appendix B: Lens Charts

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX B: LENS CHARTS Appendix B: Lens Charts Notes How to use the lens charts The lens charts on the following pages provide a quick guide to the type of lens needed for a particular projector.

  • Page 72: Lens Chart, Up To 100 M Throw

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX B: LENS CHARTS Lens chart, up to 100 m throw Notes 0.93 : 1 fixed lens 1.13-1.72 : 1 zoom lens 1.65-2.60 : 1 zoom lens 100 m (328.1 ft) 2.53-4.98 : 1 zoom lens 80 m (262.5 ft) 60 m (196.9 ft)

  • Page 73: Lens Chart, 10 M Throw In Detail

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX B: LENS CHARTS Lens chart, 10 m throw in detail Notes 0.93 : 1 fixed lens 1.13-1.72 : 1 zoom lens 10 m (32.8 ft) 1.65-2.60 : 1 zoom lens 2.53-4.98 : 1 zoom lens 8 m (26.3 ft) 6 m (19.7 ft)

  • Page 74: Appendix C: Supported Signal Input Modes

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Appendix C: Supported Signal Input Modes Notes INSIGHT Dual Laser 4K is capable of exceeding the Rec. 709 gamut. Resolution 3D Capability Comments HDMI formats up to 2K are...
  • Page 75 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Notes Resolution 3D Capability Comments INSIGHT Dual Laser 4K is capable of exceeding the Rec. 709 gamut. 720p @ 24 Hz — — — Up to 10 bit ...

  • Page 76: Appendix D: Wiring Details

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX D: WIRING DETAILS Appendix D: Wiring Details Notes Signal inputs - main connections panel HDMI 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield HDMI: pin view of panel connector...

  • Page 77: Displayport

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX D: WIRING DETAILS DisplayPort Notes DisplayPort 1.2 Pin 1 ML_Lane 0 (p) Lane 0 (positive) Pin 2 Ground Pin 3 ML_Lane 0 (n) Lane 0 (negative) DisplayPort: pin view of panel connector...

  • Page 78: Control Connections

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX D: WIRING DETAILS Control connections Notes RJ45 socket Only one remote connection (RS232 or LAN) should be used at any one time. Update port RS232 9 way D-type connector RS-232C Functions as RS-232C...

  • Page 79: Appendix E: Glossary Of Terms

    Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Appendix E: Glossary Of Terms Notes 1080p HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector.
  • Page 80 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Aspect ratio Notes The proportional relationship between the width and the height of the projected image. It is represented by two numbers separated by a colon, indicating the ratio of image width and height respectively: for example, 16:9 or 2.35:1.
  • Page 81 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Color temperature Notes The position along the black body curve on the chromaticity diagram, normally quoted in Kelvin. It takes into account the preset values for color balance in the service set-up to take up the variations in the prism. The projector allows you to adjust this temperature (i.e. adjust the picture color temperature).
  • Page 82 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS DHCP (Dynamic Host Configuration Protocol) Notes A network protocol that is used to configure network devices so that they can communicate on an IP network, for example by allocating an IP address.
  • Page 83 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Frame Notes One of the many still images displayed in a sequence to create a moving picture. A frame is made of horizontal lines of pixels. For example, a 1920x1080 frame consists of 1080 lines, each containing 1920 pixels.
  • Page 84 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Horizontal Scan Rate Notes synchronization The rate at which the lines of the incoming signal are refreshed. The rate is set by the horizontal from the source and measured in Hertz.
  • Page 85 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Overlapping region Notes blend region. Pillarboxing Black margins at the left and right of the image. Pillarboxing appears when a narrower image is packed into a wider frame...
  • Page 86 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS RGB (Red, Green and Blue) Notes Component Video An uncompressed standard. Scope aspect ratio of 2.35:1. Synchronization A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes.
  • Page 87 Digital Projection INSIGHT Dual Laser 4K Series APPENDIX E: GLOSSARY OF TERMS Vertical Scan Rate Notes frames synchronization The rate at which the of the incoming signal are refreshed. The rate is set by the vertical from the source and measured in Hertz.

  • Page 88: Technical Specifications

    Digital Projection INSIGHT Dual Laser 4K Series TECHNICAL SPECIFICATIONS Technical Specifications Notes Digital Projection reserves the right to change product specifications without prior notice. Models The specifications on these pages refer to the following projector: Series name INSIGHT Dual Laser 4K Color system: 3-chip DLP®...

  • Page 89: Automation Control

    Digital Projection INSIGHT Dual Laser 4K Series TECHNICAL SPECIFICATIONS Automation control Notes • RS232 • Information on lenses in this guide: • Appendix A: Lens Part Numbers Color temperature - detailed descriptions of available • User selectable from 3,300 to 10,000K lenses.

  • Page 90: Electrical And Physical Specifications

    Digital Projection INSIGHT Dual Laser 4K Series TECHNICAL SPECIFICATIONS Electrical and physical specifications Notes • Power requirements 200-240 VAC, 50-60 Hz (single phase) • Power Consumption 3,400 W • Thermal Dissipation 11,602 BTU/hr • Fan Noise 54 dBA • Operating Temperature 0°C to 40°C (32 to 104F)
  • Page 91 Digital Projection INSIGHT Dual Laser 4K Series This page is intentionally left blank. Reference Guide...

  • Page 92: Contact Information

    Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 118-536A INSIGHT Dual Laser 4K Series User Manual...
