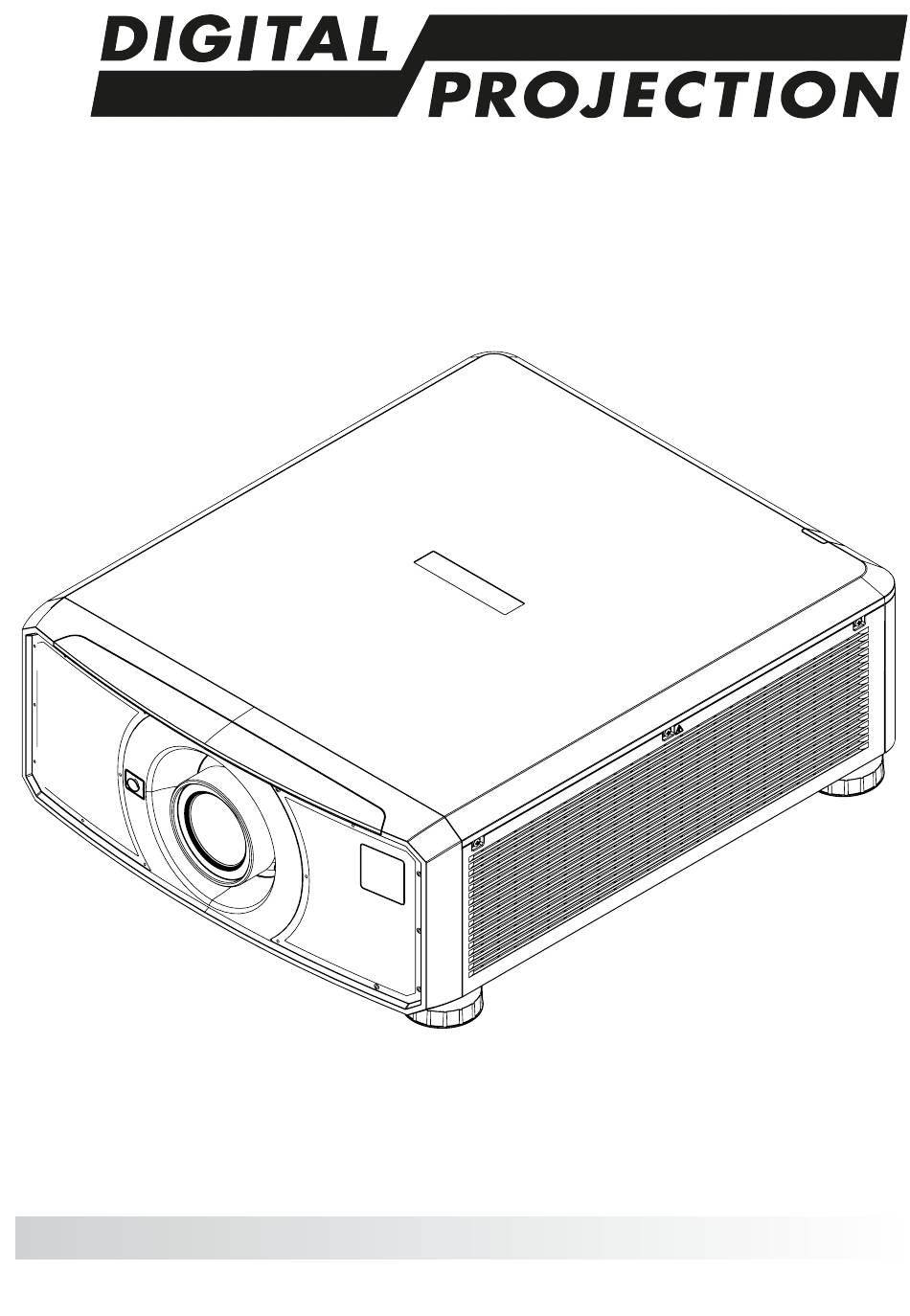

- Page 1 E-Vision Laser 15000 Series IMPORTANT INFORMATION Rev B April 2021 120-999B...
- Page 2 Digital Projection E-Vision Laser 15000 Series This page is intentionally left blank Important Information Rev B April 2021 page 2...
-
Page 3: Contact Information
Contact Information Digital Projection E-Vision Laser 15000 Series Contact Information China North America Europe Digital Projection China Digital Projection Inc. Digital Projection Limited 中 国 北 京 市 朝 阳 区 芍 药 居 北 55 Chastain Road, Suite 115, Greenside Way, Middleton, 里... -
Page 4: Table Of Contents
Digital Projection E-Vision Laser 15000 Series Contents Contents Contact Information Contents Symbols used in this document Additional Documentation Legal notice Third Party Credits What's in the box? Electrical and Physical Specifications General Precautions Laser Safety Precautions Laser Parameters Compliance with International Standards... - Page 5 Contents Digital Projection E-Vision Laser 15000 Series Voltage selection Operation and Configuration Precautions Basic Operating Instructions Switching the projector on Switching the projector off Interlock reset Selecting an input signal Selecting a test pattern Adjusting the lens OSD Lens menu...
-
Page 6: Symbols Used In This Document
Please use the QR code (also located on the projector) to access the latest E- Vision projector user guides and other documentation via the Digital Projection website. Or visit the products specification page on the Digital Projection website to download the latest user guide and other documentation. Legal notice Trademarks and trade names mentioned in this document remain the property of their respective owners. -
Page 7: What's In The Box
What's in the box? Digital Projection E-Vision Laser 15000 Series What's in the box? Remote Control Batteries (2xAAA) Projector Important Information Book Security Screw Power Cable, UK Power Cable, Europe Power Cable, China NEMA 5-15P - C19 Power NEMA L6-20P - C19 Power... -
Page 8: Electrical And Physical Specifications
Digital Projection E-Vision Laser 15000 Series Electrical and Physical Specifications Electrical and Physical Specifications Mains Voltage 200-240 VAC 8.2A 50/60Hz 100-130 VAC 11.9A 50/60Hz Operating Temperature 0°C to 35°C (32°F to 95°F), 35°C to 40°C (95°F to 104°F) with reduced light output Storage Temperature -20°C to 60°C (-4°F to 140°F) -
Page 9: General Precautions
General Precautions Digital Projection E-Vision Laser 15000 Series General Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Eye Hazard! Do not look directly into the lens when the light source is on. The high... - Page 10 Digital Projection E-Vision Laser 15000 Series General Precautions Take care to prevent small objects such as paper or wire from falling into the projector. If this does happen, switch off immediately, and have the objects removed by authorised service personnel.
-
Page 11: Laser Safety Precautions
Laser Safety Precautions Digital Projection E-Vision Laser 15000 Series Laser Safety Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Permanent/Temporary Blindness Hazard Not for household use. Class 1 RG3 Laser Product. No direct exposure to the beam shall be permitted, RG3 IEC 62471-5:2015. -
Page 12: Laser Parameters
Digital Projection E-Vision Laser 15000 Series Laser Safety Precautions Laser Parameters Wavelength (Red) 635nm - 647nm Wavelength (Blue) 450nm - 460nm Mode of operation Pulsed, due to frame rate Pulse duration (Red) 1.6ms Pulse duration (Blue) 0.87ms Maximum pulse energy (Red) 0.72mJ... -
Page 13: Compliance With International Standards
RF Interference The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment. -
Page 14: Product Labels
Digital Projection E-Vision Laser 15000 Series Product Labels Product Labels Projector DLP Projector / DLP Projecteur Caution : Do not open the cover. No user-serviceable parts inside Avertissement : ne pas ouvrir le couvercle. Le produit ne contient 數 位 投 影 機 / 数 字 投 影 机... -
Page 15: Label Locations
Product Labels Digital Projection E-Vision Laser 15000 Series Label Locations Projector 1. Location of Explanatory Label with Certification Statement and Risk Statement on the body of the projector. 2. Location of Hazard Warning Symbol TEMP. LIGHT STATUS POWER DO NOT let a laser beam directly enter the projector lens. -
Page 16: Location Of Laser Aperture
Digital Projection E-Vision Laser 15000 Series Location of Laser Aperture Location of Laser Aperture 1. The laser aperture is located as indicated below. Be careful not to expose the eye to direct laser light. Important Information Rev B April 2021... -
Page 17: Interlock Switches
InterlockSwitches Digital Projection E-Vision Laser 15000 Series Interlock Switches Interlock switches are installed at the main frame, inside the cover. These will power-off the system individually when activated. 1. Will be activated when the projection lens is removed or misplaced. -
Page 18: Installation Precautions
Digital Projection E-Vision Laser 15000 Series Installation Precautions Installation Precautions The projector must be installed only by suitably qualified personnel, in accordance with local building codes. The projector is heavy. Use safe handling techniques when lifting the projector. Do not drop or knock the projector. - Page 19 Installation Precautions Digital Projection E-Vision Laser 15000 Series Before installation, make sure that the surface, ceiling or rigging that is to support the projector is capable of supporting the combined weight of the projector and lens. Backup safety chains or wires should always be used with ceiling mount installations.
- Page 20 Digital Projection E-Vision Laser 15000 Series Installation Precautions Minimum 500mm Minimum 500mm Minimum 500mm (19.69in) (19.69in) (19.69in) Minimum 100mm (3.94in) Minimum 500mm Minimum 300mm (19.69in) (11.81in) Example Positioning Make sure the lens cap is removed from the lens before operating the projector.
- Page 21 Installation Precautions Digital Projection E-Vision Laser 15000 Series The projector generates heat during use. The internal fans dissipate the heat of the projector when shutting down, which could continue for a certain period. After the projector enters STANDBY MODE, remove the power cord. DO NOT remove the power cord during shutdown as it may cause damage to the projector and may affect the service life of the projector.
-
Page 22: Risk Group 3 Laser Hazard Installation Precautions
Digital Projection E-Vision Laser 15000 Series RiskGroup 3 Laser Hazard Installation Precautions Risk Group 3 Laser Hazard Installation Precautions This product is a risk group 3 laser product. It must be installed in a safe place and must be handled by qualified and professionally trained personnel. -
Page 23: Fitting A Lens
Fitting a lens Digital Projection E-Vision Laser 15000 Series Fitting a lens The projector must be fully turned off prior to attempting a lens change. When changing the lens, avoid using excessive force as this may damage the equipment. Avoid touching the surface of the lens as this may result in image impairment. -
Page 24: Removing The Lens
Digital Projection E-Vision Laser 15000 Series Fitting a lens Removing the lens 1. Push the lens release button all the way in 2. Turn the lens anti-clockwise until it disengages 3. Slowly remove the lens 4. Fit lens caps to the front and rear of the lens 5. -
Page 25: Fitting A Lens Hood
Fitting a lens Digital Projection E-Vision Laser 15000 Series Fitting a lens hood A lens hood can be fitted to the projector after the lens is inserted. 1. Place the hood over the lens and align the screw holes on the hood with the holes on the bottom of the projector 2. -
Page 26: Positioning The Screen And Projector
Digital Projection E-Vision Laser 15000 Series Positioning the screen and projector Positioning the screen and projector 1. Install the screen, ensuring that it is in the best position for viewing by your audience. 2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 27: Ac Power Precautions
AC Power Precautions Digital Projection E-Vision Laser 15000 Series AC Power Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Shock Hazard! Only use the AC power cord provided or recommended by the manufacturer Fire & Shock Hazard! Do not operate the product unless the power cord, socket and... -
Page 28: Voltage Selection
Digital Projection E-Vision Laser 15000 Series AC Power Precautions Voltage selection The VOLTAGE SELECT switch must be set to match the power supply you are using: Voltage of power supply used Position of VOLTAGE SELECT switch 200-240 V~ AC100-130V outlet... -
Page 29: Operation And Configuration Precautions
Operation and Configuration Precautions Digital Projection E-Vision Laser 15000 Series Operation and Configuration Precautions Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector. -
Page 30: Basic Operating Instructions
Digital Projection E-Vision Laser 15000 Series Basic Operating Instructions Basic Operating Instructions Switching the projector on 1. Ensure a lens is fitted. Connect the power cable between the mains supply and the projector. 2. Switch on at the switch next to the power connector. -
Page 31: Selecting A Test Pattern
Basic Operating Instructions Digital Projection E-Vision Laser 15000 Series Selecting a test pattern The following test patterns are available: White, Black, Red, Green, Blue, Checkerboard, White Crosshatch, Red Crosshatch, Green Crosshatch, Blue Crosshatch, Color Bar, Screen Layout, To display a test pattern: Press TEST on the remote control. -
Page 32: Adjusting The Image
Digital Projection E-Vision Laser 15000 Series Basic Operating Instructions Adjusting the image Orientation This can be set from the Setup menu. Highlight Orientation and choose from Front Tabletop, Front Ceiling, Rear Tabletop, Rear Ceiling and Auto-front. Geometry Settings such as Keystone, Rotation, Pincushion / Barrel and Arc can be set from the Geometry menu. -
Page 33: Control Panel
Control panel Digital Projection E-Vision Laser 15000 Series Control panel 1. POWER Switches the projector on and off (STANDBY). AUTO CENTER 2. INPUT POWER INPUT ASPECT PIC MUTE SYNC LENS Displays the input selection menu. 3. AUTO SYNC Re-synchronises with the current input signal. -
Page 34: Projector Indicators
Digital Projection E-Vision Laser 15000 Series Control panel Projector indicators TEMP. Off = no problem Flashing red = temperature error LIGHT Off = light is switched off Flashing green (cycles of single flashes) = shutter is on and light is temporarily off TEMP. -
Page 35: Remote Control
Remote control Digital Projection E-Vision Laser 15000 Series Remote control 1. Power ON / OFF Turns power on and off. 2. Pic Mute OPEN / CLOSE Press CLOSE to hide the projected image. When closed, Pic Mute the light source is completely... - Page 36 Digital Projection E-Vision Laser 15000 Series Remote control 9. FREEZE Freeze the current frame. 10. LENS adjustment FOCUS IN / OUT: adjust focus. SHIFT: press and hold this Pic Mute button, then use the Navigation OPEN CLOSE arrow buttons to move the lens.
- Page 37 Remote control Digital Projection E-Vision Laser 15000 Series 17. DISPLAYPORT 1 / R / numeric input 4 Select DisplayPort 1 input. 18. HD-T / G / numeric input 5 Select the HDBaseT input. 19. ADDR / ALL (with red indicator at the...
- Page 38 Digital Projection E-Vision Laser 15000 Series Remote control 21. VGA / 3D / numeric input 7 Select the VGA input. Use with ALT to toggle the 3D Format setting between Off and Auto. 22. COMP1 / EYE / numeric input 8 Pic Mute Select the Component 1 input.
