Summary of Contents for Digital Projection INSIGHT 4K Laser Series

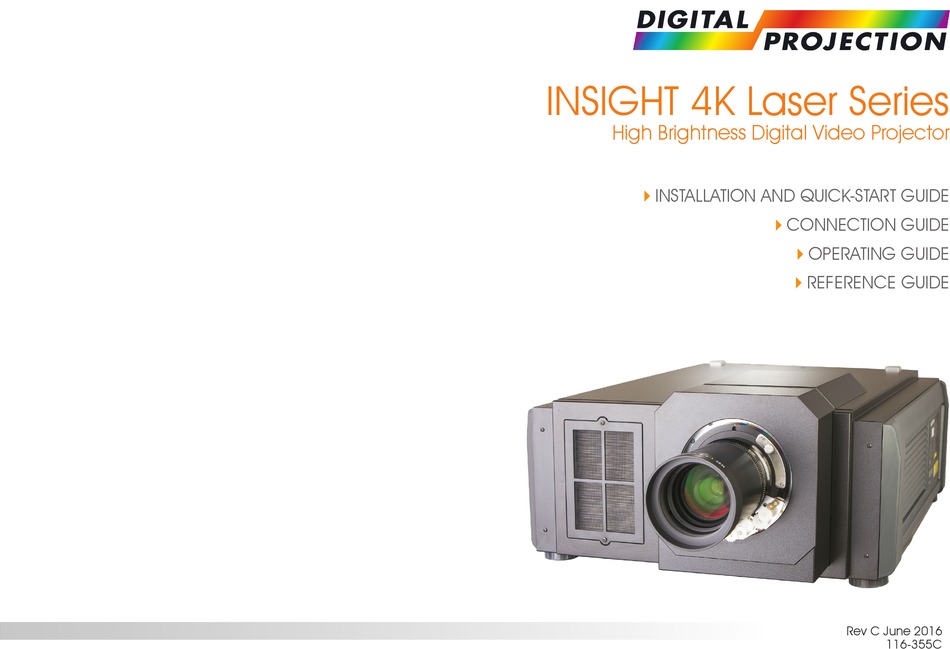

- Page 1 INSIGHT 4K Laser Series High Brightness Digital Video Projector 4INSTALLATION AND QUICK-START GUIDE 4CONNECTION GUIDE 4OPERATING GUIDE 4REFERENCE GUIDE Rev C June 2016 116-355C...
- Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
- Page 3 Digital Projection INSIGHT 4K Laser Series Laser Information Notes LASER LIGHT AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT 455-470nm <13Watts CLASSIFIED EN/IEC 60825-1 2007 Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Rev C June 2016 page ii...
- Page 4 Digital Projection INSIGHT 4K Laser Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • 4K resolution up to 60 fps via single DisplayPort input. • Dual Pipe input capability (2 x DisplayPort 1.2).
-
Page 5: Table Of Contents
Digital Projection INSIGHT 4K Laser Series CONTENTS CONNECTION GUIDE INSTALLATION AND QUICK-START GUIDE ................23 ......1 SIGNAL INPUTS ................25 CONNECTING THE POWER SUPPLY ..........3 Main connections panel ..............25 PROJECTOR OVERVIEW ............... 4 .................... 26 Front and rear views ................4 3D Sync ........... - Page 6 Digital Projection INSIGHT 4K Laser Series CONTENTS (continued) USING THE PROJECTOR ............. 37 POSITIONING THE IMAGE ............52 Title Select menu ................37 Maximum offset range ................. 54 ................37 Selecting a test pattern ASPECT RATIOS EXPLAINED ............55 Configuration menu ................38 APPENDIX A: LENS PART NUMBERS ..........
- Page 7 Digital Projection INSIGHT 4K Laser Series CONTENTS (continued) APPENDIX G: EARLIER VERSIONS ..........79 How to check the version of your projector ......... 79 Lens assembly and fitting..............80 ................80 Assembling the lens ................82 Inserting a new lens ................
- Page 8 Digital Projection INSIGHT 4K Laser Series This page is intentionally left blank.
-
Page 9: Installation And Quick-Start Guide
INSIGHT 4K Laser Series High Brightness Digital Video Projector INSTALLATION AND QUICK-START GUIDE Rev C June 2016... - Page 10 Digital Projection INSIGHT 4K Laser Series IN THIS GUIDE IN THIS GUIDE Connecting The Power Supply ................ 3 Projector Overview ..................... 4 Front and rear views ....................Control panel ....................... Control panel button indicators ................. Status indicators ......................Positioning The Screen And Projector ............8 Tilting restrictions .......................
-
Page 11: Connecting The Power Supply
Digital Projection INSIGHT 4K Laser Series CONNECTING THE POWER SUPPLY Connecting The Power Supply Notes When the projector is viewed from the back, the AC mains Use only the power cable inlet is located on the right hand side, toward the rear. -
Page 12: Projector Overview
Digital Projection INSIGHT 4K Laser Series PROJECTOR OVERVIEW Projector Overview Notes Front and rear views Air inlet and filter SYSTEM status indicator When the projector is operating normally, this indicator lights green or orange. If an error occurs, the light becomes red. Depending on the scenario, the light can be steady or flashing. -
Page 13: Control Panel
Digital Projection INSIGHT 4K Laser Series PROJECTOR OVERVIEW Control panel Notes LCD display KEY LOCK button (with indicator) Arrow buttons MENU button ENTER button not used in this configuration Entering alphanumeric values (except for entering alphanumeric values) in the Operating Guide. -
Page 14: Control Panel Button Indicators
Digital Projection INSIGHT 4K Laser Series PROJECTOR OVERVIEW Control panel button indicators Notes KEY LOCK Behavior Meaning Key lock is inactive. Key lock is activated. POWER ON / OFF Behavior Meaning The projector is switched off from the power supply or in STANDBY mode. -
Page 15: Status Indicators
Digital Projection INSIGHT 4K Laser Series PROJECTOR OVERVIEW Status indicators Notes LIGHT status indicator Behavior Meaning The light source is switched off. The light source is switched on. SYSTEM status indicator Behavior Meaning The projector is switched off. Flashing green The projector is warming up. -
Page 16: Positioning The Screen And Projector
Digital Projection INSIGHT 4K Laser Series POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Installation should be carried out by authorised personnel only. Install the screen, ensuring that it is in the best position for viewing by your audience. -
Page 17: Tilting Restrictions
Digital Projection INSIGHT 4K Laser Series POSITIONING THE SCREEN AND PROJECTOR Tilting restrictions Notes The projector can be operated in numerous positions. The only non-workable angles are: Portrait mode installation requires • fitting a safety guard underneath Upright mode with lens pointing upward. the projector (as shown in the •... -
Page 18: Fitting The Lens
Digital Projection INSIGHT 4K Laser Series FITTING THE LENS Fitting The Lens Notes This procedure applies to version C of the projector. If your projector Insert the lens into the mount. is an earlier version or if you are unsure which version you have,... -
Page 19: Cleaning And Replacing The Filters
Digital Projection INSIGHT 4K Laser Series CLEANING AND REPLACING THE FILTERS Cleaning And Replacing The Filters Notes Rear filters The knobs are captive on the removable cover. Loosen the two knobs holding the filter cover by turning them counterclockwise. Use a Phillips screwdriver if necessary. - Page 20 Digital Projection INSIGHT 4K Laser Series CLEANING AND REPLACING THE FILTERS If you are replacing the filters, skip this step. Notes To clean the filters, use a vacuum cleaner brush attachment to vacuum away dust from the air filters. Avoid making direct contact without an attachment or using a nozzle attachment.
-
Page 21: Front Filter
Digital Projection INSIGHT 4K Laser Series CLEANING AND REPLACING THE FILTERS Front filter Notes Loosen the two captive screws on the filter cover and remove the cover. Before changing the filters, always make sure the projector is switched off and fully disconnected from its power supply. - Page 22 Digital Projection INSIGHT 4K Laser Series CLEANING AND REPLACING THE FILTERS Mount the air filter to the projector. Notes Look for an arrow indicating the installation direction on the side of the air filter. Point the arrow towards the projector.
-
Page 23: Reset The Air Filter Usage Time
Digital Projection INSIGHT 4K Laser Series CLEANING AND REPLACING THE FILTERS Reset the air filter usage time Reset Notes Turn on the projector. Filter Usage Open the menu and go to Configuration > Reset Filters should be replaced when ... -
Page 24: Operating The Projector
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Operating The Projector Notes Switching the projector on Make sure the power switch above the AC mains inlet is in the OFF Connecting The Power See also position. Connect the power cable between the mains supply and the Supply earlier in this guide. -
Page 25: Switching The Projector Off
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Switching the projector off Notes Press and hold the POWER button for three seconds or longer. Do not turn off the projector from The light source switches off and the projector begins cooling down. During... -
Page 26: Selecting A Title Or Test Pattern
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Selecting a title or test pattern Notes The projector arrives with titles and test patterns already configured. If you need For detailed information about to change the configuration, contact your dealer. -
Page 27: Selecting A Test Pattern
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Selecting a test pattern Notes Switch on the projector and, if necessary, unlock the keypad. For detailed information about If the test pattern is assigned a shortcut, press switching on the projector and... -
Page 28: Adjusting The Lens
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Adjusting the lens Notes Press MENU Configuration Press the LEFT RIGHT button to cycle through the list of menus until Configuration appears on the LCD screen. The list of menus is as follows: ... -
Page 29: Adjusting The Brightness
Digital Projection INSIGHT 4K Laser Series OPERATING THE PROJECTOR Adjusting the brightness Notes Press MENU Press the LEFT RIGHT button to cycle through the list of menus until Configuration appears on the LCD screen. The list of menus is as follows: •... - Page 30 Digital Projection INSIGHT 4K Laser Series This page is intentionally left blank. Installation and Quick-Start Guide...
-
Page 31: Connection Guide
INSIGHT 4K Laser Series High Brightness Digital Video Projector CONNECTION GUIDE Rev C June 2016... - Page 32 Digital Projection INSIGHT 4K Laser Series IN THIS GUIDE IN THIS GUIDE Signal Inputs ....................... 25 Main connections panel ................... 3D Sync .......................... Indicators on the main connections panel ............... Option board ......................EDID on the DVI, HDMI and DisplayPort inputs .............
-
Page 33: Signal Inputs
Digital Projection INSIGHT 4K Laser Series SIGNAL INPUTS Signal Inputs Notes Main connections panel The following inputs are available on the main connections panel: HDMI 1 HDMI 1.4 HDMI 2 HDMI 1.4 DisplayPort 1 DisplayPort 2 Connection Guide Rev C June 2016... -
Page 34: 3D Sync
Digital Projection INSIGHT 4K Laser Series SIGNAL INPUTS 3D Sync Notes Main connections panel 3D Sync In Sync input signal Connect the 3D sync from your graphics card or server. 3D Sync Out Sync output signal Connect this to your IR emitter or ZScreen. -
Page 35: Indicators On The Main Connections Panel
Digital Projection INSIGHT 4K Laser Series SIGNAL INPUTS Indicators on the main connections panel Notes Main connections panel 3D Sync In / Out These indicators light solid green if 3D sync is present. HDMI 1 / HDMI 2 / DisplayPort 1 / DisplayPort 2 Each of these indicators lights a solid green color if the adjacent input is in use. -
Page 36: Option Board
Digital Projection INSIGHT 4K Laser Series SIGNAL INPUTS Option board Notes The option board can be installed in addition to the main board. It is not part of the default hardware configuration. The following additional inputs can be made available if the... -
Page 37: Edid On The Dvi, Hdmi And Displayport Inputs
Digital Projection INSIGHT 4K Laser Series SIGNAL INPUTS EDID on the DVI, HDMI and DisplayPort inputs Notes If you are using a computer DVI card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the projector. -
Page 38: Control Connections
Digital Projection INSIGHT 4K Laser Series CONTROL CONNECTIONS Control Connections Notes PC control terminal (RS-232) Use this terminal when controlling the projector in serial connection from a PC. LAN port (LAN) Use this port when controlling the projector in LAN connection from a PC. -
Page 39: Operating Guide
INSIGHT 4K Laser Series High Brightness Digital Video Projector OPERATING GUIDE Rev C June 2016... - Page 40 Digital Projection INSIGHT 4K Laser Series IN THIS GUIDE IN THIS GUIDE Using The Control Panel ................. 33 LCD display overview ....................In STANDBY mode ......................In operation ........................When showing menus ..................... Locking and unlocking the control panel ...............
-
Page 41: Using The Control Panel
Digital Projection INSIGHT 4K Laser Series USING THE CONTROL PANEL Using The Control Panel Notes LCD display overview In STANDBY mode When the projector is in STANDBY mode, the following is displayed on the LCD screen. Standby Light Off In operation When the projector is in operation, the following is displayed on the LCD screen. -
Page 42: When Showing Menus
Digital Projection INSIGHT 4K Laser Series USING THE CONTROL PANEL When showing menus Notes Typically the LCD display shows information on four lines: Title Select TEST Pattern Alignment Menu name Submenu or setting name An asterisk indicates the value shown below is the currently assigned value... -
Page 43: Locking And Unlocking The Control Panel
Digital Projection INSIGHT 4K Laser Series USING THE CONTROL PANEL Locking and unlocking the control panel Notes Depending on the Auto Key Lock setting, the control panel may automatically lock itself following a period of inactivity. When the control panel is locked, the KEY LOCK indicator lights amber. -
Page 44: Working With Menus
Digital Projection INSIGHT 4K Laser Series USING THE CONTROL PANEL Working with menus Notes • To access the projector menus, press MENU • Navigate with the arrow buttons: • Press the button to go above the current menu level. •... -
Page 45: Using The Projector
Digital Projection INSIGHT 4K Laser Series USING THE PROJECTOR Using The Projector Notes Title Select menu If the title you want to display is Use this menu to select a title to be projected. assigned a preset button, you can skip the procedure on this page by The projector contains a list of up to 100 registered titles. -
Page 46: Configuration Menu
Digital Projection INSIGHT 4K Laser Series USING THE PROJECTOR Configuration menu Configuration Notes Press DOWN to access various projector settings. Light Setup Light Setup Use this menu to adjust the light output. Adjust 100 [%] >... -
Page 47: Information Menu
Digital Projection INSIGHT 4K Laser Series USING THE PROJECTOR Information menu Notes Displays information relating to the light source, the usage time of the projector, the version Information information and error codes. Light Output Light Output Displays the value of the Light Output setting as percentage of the maximum light source <... -
Page 48: Version
Digital Projection INSIGHT 4K Laser Series USING THE PROJECTOR Version Information Notes Displays version information about the projector, optional boards, and IMB Version System Displays the version information of the projector. System ... -
Page 49: Ip Address
Digital Projection INSIGHT 4K Laser Series USING THE PROJECTOR IP Address IP Address Notes Displays the IP address set up in the projector. System < > The projector has a default IP address. Access the IP Address ( 192.168.10.10) page to connect the IP address of the projector to your network. - Page 50 Digital Projection INSIGHT 4K Laser Series This page is intentionally left blank. Operating Guide...
-
Page 51: Reference Guide
INSIGHT 4K Laser Series High Brightness Digital Video Projector REFERENCE GUIDE Rev C June 2016... - Page 52 Digital Projection INSIGHT 4K Laser Series IN THIS GUIDE IN THIS GUIDE The DMD™ ......................45 Signal inputs - option board ..................DVI ..........................Choosing A Lens ....................47 3G-SDI In ........................Screen Requirements ..................48 Control connections ....................Fitting the image to the DMD™ ................
-
Page 53: The Dmd
Digital Projection INSIGHT 4K Laser Series THE DMD™ The DMD™ Notes A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of approximately 8.8 million moving aluminium mirrors, with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors) and are not used in constructing the image. - Page 54 Digital Projection INSIGHT 4K Laser Series THE DMD™ Notes Depending on the voltage polarity applied, each mirror will either tilt to the left to produce a bright pixel or to the right for a dark pixel. When light is applied to the complete DMD™, only the light redirected from a mirror tilting to the left is projected.
-
Page 55: Choosing A Lens
Digital Projection INSIGHT 4K Laser Series CHOOSING A LENS Choosing A Lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. The information on this page applies The following table shows all available lenses in order of their throw ratios: to version C of the projector. -
Page 56: Screen Requirements
Digital Projection INSIGHT 4K Laser Series SCREEN REQUIREMENTS Screen Requirements Notes Fitting the image to the DMD™ The projector supports 4K and Ultra HD formats and is able to achieve 2K and 1080p via frame doubling. 2K and frame doubled 1080p will not utilize the full width of the DMD™, resulting in pillarboxing, as shown in the illustration. -
Page 57: Diagonal Screen Sizes
Digital Projection INSIGHT 4K Laser Series SCREEN REQUIREMENTS Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D). When dealing W = width with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H). -
Page 58: Fitting The Image To The Screen
Digital Projection INSIGHT 4K Laser Series SCREEN REQUIREMENTS Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use. -
Page 59: Positioning The Screen And Projector
Digital Projection INSIGHT 4K Laser Series SCREEN REQUIREMENTS Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should The projector should be installed be 1.2 m (4 feet) above the floor and the front row of the as close to the power outlet as audience should not have to look up more than 30°... -
Page 60: Positioning The Image
Digital Projection INSIGHT 4K Laser Series POSITIONING THE IMAGE Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. - Page 61 Digital Projection INSIGHT 4K Laser Series POSITIONING THE IMAGE Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.
-
Page 62: Maximum Offset Range
Digital Projection INSIGHT 4K Laser Series POSITIONING THE IMAGE Maximum offset range Notes The maximum offset range available is dependent on which lens is used. Shifting the lens beyond its undistorted limits may be physically possible, however you may experience excessive vignetting or distortion. -
Page 63: Aspect Ratios Explained
Digital Projection INSIGHT 4K Laser Series ASPECT RATIOS EXPLAINED Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on: • the DMD™ resolution, which is 4K with a 4096 x 2160 resolution, corresponding to an aspect ratio of 256:135, or approximately 1.9:1. -
Page 64: Appendix A: Lens Part Numbers
Digital Projection INSIGHT 4K Laser Series APPENDIX A: LENS PART NUMBERS Appendix A: Lens Part Numbers Notes The information on this page applies Lens to version C of the projector. If your Lens Part No. Focus Range Lens Shift extension... -
Page 65: Appendix B: Lens Charts
Digital Projection INSIGHT 4K Laser Series APPENDIX B: LENS CHARTS Appendix B: Lens Charts Notes How to use the lens charts The information in this section The lens charts on the following pages provide applies to version C of the projector. -
Page 66: Lens Chart, Up To 100 M Throw
Digital Projection INSIGHT 4K Laser Series APPENDIX B: LENS CHARTS Lens chart, up to 100 m throw Notes The information in this section 0.93 : 1 fixed lens applies to version C of the projector. If your projector is an earlier version 1.13-1.72 : 1 zoom lens... -
Page 67: Lens Chart, 10 M Throw In Detail
Digital Projection INSIGHT 4K Laser Series APPENDIX B: LENS CHARTS Lens chart, 10 m throw in detail Notes The information in this section 0.93 : 1 fixed lens applies to version C of the projector. If your projector is an earlier version 1.13-1.72 : 1 zoom lens 10 m (32.8 ft) -
Page 68: Appendix C: Supported Signal Input Modes
Digital Projection INSIGHT 4K Laser Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Appendix C: Supported Signal Input Modes Notes INSIGHT 4K Laser is capable of ICP60 exceeding the Rec. 709 gamut. HDMI formats up to 2K are automatically detected and... -
Page 69: Option Board
Digital Projection INSIGHT 4K Laser Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Option board Notes 3G-SDI is Level B only. Resolution 3D Capability Comments 4K interlaced signal is not supported by ICP. DVI (A or B) 720p @ 24 Hz —... -
Page 70: Screen Allocation Of Option Board Input Signals
Digital Projection INSIGHT 4K Laser Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Screen allocation of Option board input signals Notes 3G-SDI A 3G-SDI B 3G-SDI C 3G-SDI D DVI A DVI B 3840 4096 SDI A: 1920 x 1080 SDI B: 1920 x 1080... -
Page 71: Appendix D: Menu Map
Digital Projection INSIGHT 4K Laser Series APPENDIX D: MENU MAP Appendix D: Menu Map Notes Menu Sub Menus Description Some of the information in this menu TITLE SELECT map is summarised. See the actual menu on the projector for full details. -
Page 72: Information
Digital Projection INSIGHT 4K Laser Series APPENDIX D: MENU MAP Notes Menu Sub Menus Description Some of the information in this menu INFORMATION map is summarised. See the actual Light Output Displays the light source output setting. menu on the projector for full details. -
Page 73: Appendix E: Wiring Details
Digital Projection INSIGHT 4K Laser Series APPENDIX E: WIRING DETAILS Appendix E: Wiring Details Notes Signal inputs - main connections panel HDMI 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield HDMI: pin view of panel connector... -
Page 74: Displayport
Digital Projection INSIGHT 4K Laser Series APPENDIX E: WIRING DETAILS DisplayPort Notes DisplayPort 1.2 Pin 1 ML_Lane 0 (p) Lane 0 (positive) Pin 2 Ground Pin 3 ML_Lane 0 (n) Lane 0 (negative) DisplayPort: pin view of panel connector Pin 4... -
Page 75: Signal Inputs - Option Board
Digital Projection INSIGHT 4K Laser Series APPENDIX E: WIRING DETAILS Signal inputs - option board Notes 24 way D-type connector The default hardware configuration does not include an option board, Pin 1 TMDS data 2− Digital red− (link 1) which can be ordered separately. -
Page 76: 3G-Sdi In
Digital Projection INSIGHT 4K Laser Series APPENDIX E: WIRING DETAILS 3G-SDI In Notes 75 ohm BNC 3G-SDI connector Reference Guide Rev C June 2016 page 68... -
Page 77: Control Connections
Digital Projection INSIGHT 4K Laser Series APPENDIX E: WIRING DETAILS Control connections Notes RJ45 socket Only one remote connection (RS232 or LAN) should be used at any one time. Update port RS232 9 way D-type connector RS-232C Functions as RS-232C... -
Page 78: Appendix F: Glossary Of Terms
Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Appendix F: Glossary Of Terms Notes 1080p HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 79 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Aspect ratio Notes The proportional relationship between the width and the height of the projected image. It is represented by two numbers separated by a colon, indicating the ratio of image width and height respectively: for example, 16:9 or 2.35:1.
- Page 80 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Color temperature Notes The position along the black body curve on the chromaticity diagram, normally quoted in Kelvin. It takes into account the preset values for color balance in the service set-up to take up the variations in the prism. The projector allows you to adjust this temperature (i.e. adjust the picture color temperature).
- Page 81 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS DHCP (Dynamic Host Configuration Protocol) Notes A network protocol that is used to configure network devices so that they can communicate on an IP network, for example by allocating an IP address. DMD™ (Digital Micromirror Device™) The optical tool that transforms the electronic signal from the input source into an optical image projected on the screen.
- Page 82 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Frame Notes One of the many still images displayed in a sequence to create a moving picture. A frame is made of horizontal lines of pixels. For example, a 1920x1080 frame consists of 1080 lines, each containing 1920 pixels. In analog video frames are scanned one at a time...
- Page 83 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Horizontal Scan Rate Notes synchronization The rate at which the lines of the incoming signal are refreshed. The rate is set by the horizontal from the source and measured in Hertz.
- Page 84 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Overlapping region Notes blend region. Pillarboxing Black margins at the left and right of the image. Pillarboxing appears when a narrower image is packed into a wider frame without changing aspect ratio.
- Page 85 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS RGB (Red, Green and Blue) Notes Component Video An uncompressed standard. Scope aspect ratio of 2.35:1. Synchronization A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes.
- Page 86 Digital Projection INSIGHT 4K Laser Series APPENDIX F: GLOSSARY OF TERMS Vertical Scan Rate Notes frames synchronization The rate at which the of the incoming signal are refreshed. The rate is set by the vertical from the source and measured in Hertz.
-
Page 87: Appendix G: Earlier Versions
Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Appendix G: Earlier Versions Notes This section contains information that is relevant to earlier versions of the projector and not relevant to the latest version. Use the information in this section if you have an earlier version of INSIGHT 4K Laser. -
Page 88: Lens Assembly And Fitting
Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Lens assembly and fitting Notes Assembling the lens Assembling the lens is the process of fitting the lens holder and motor cover to the lens. If your lens already has these parts fitted, skip this Before changing the lens, always procedure. - Page 89 Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Keeping the lens and holder aligned, secure the retaining plates removed earlier. Notes Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply.
-
Page 90: Inserting A New Lens
Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Inserting a new lens Notes Remove the connector cover : it is held in position by two screws and a key. Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. - Page 91 Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Insert the lens into the mount. Notes Engage the three locating studs into the corresponding slots on the mount. Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply.
- Page 92 Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Notes Insert the control cable plug into the connector socket Place the excess wire behind the front cover of the projector. Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply.
-
Page 93: Removing The Lens
Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Removing the lens Notes Loosen the two captive screws on the lens remote lock cover, then release the lock using the provided key. Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. - Page 94 Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Notes Loosen the two captive screws on the lens and rotate the lens counterclockwise until it stops. Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply.
-
Page 95: Lens Part Numbers
Digital Projection INSIGHT 4K Laser Series APPENDIX G: EARLIER VERSIONS Lens part numbers Notes Throw ratios Lens extension Part number 1.13 - 1.31 : 1 zoom lens 253 mm 116-340 Before changing the lens, always make sure the projector is switched 1.13 - 1.66 : 1 zoom lens... -
Page 96: Technical Specifications
Digital Projection INSIGHT 4K Laser Series TECHNICAL SPECIFICATIONS Technical Specifications Notes Digital Projection reserves the right to change product specifications without prior notice. Models The specifications on these pages refer to the following projector: Series name INSIGHT 4K Laser Color system: 3-chip DLP®... -
Page 97: Inputs And Outputs
Digital Projection INSIGHT 4K Laser Series TECHNICAL SPECIFICATIONS Inputs and outputs Notes Type Connector Type Connector Video & Computer Communication & Control The default hardware configuration does not include an option board, DisplayPort 1.2 DisplayPort 3D Sync Out which can be ordered separately. -
Page 98: Lenses
Digital Projection INSIGHT 4K Laser Series TECHNICAL SPECIFICATIONS Lenses Notes Detailed information about available lenses can be found in Appendix A: Lens Part Numbers. Further information about lens offsets can be found in Positioning The Image > Maximum offset range. -
Page 99: Electrical And Physical Specifications
Digital Projection INSIGHT 4K Laser Series TECHNICAL SPECIFICATIONS Electrical and physical specifications Notes • Power requirements 200-240 VAC, 50-60 Hz (single phase) • Power Consumption 1600 W • Thermal Dissipation 5027 BTU/hr • Fan Noise 48 dBA • Operating Temperature 0°C to 35°C (32 to 104F) - Page 100 Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 116-355C INSIGHT 4K Laser Series User Manual...
