Microprocessor
release lever
3
2
Microprocessor
release lever

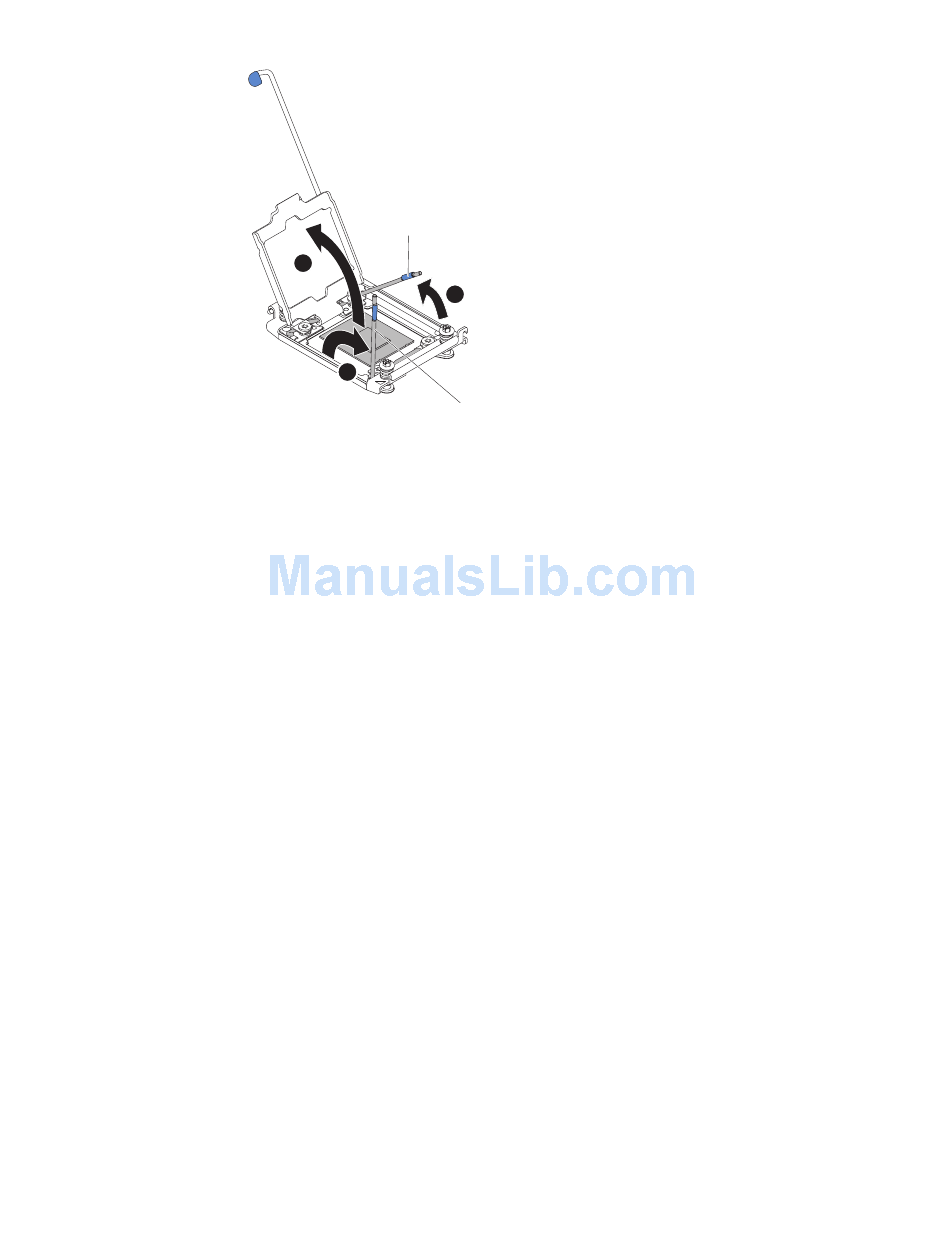

Figure 218. Microprocessor socket levers and retainer disengagement
a. Identify which release lever is labeled as the first release lever to open and
open it.
b. Open the second release lever on the microprocessor socket.
c. Open the microprocessor retainer.
Attention: Do not touch the microprocessor contacts. Contaminants on
the microprocessor contacts, such as oil from your skin, can cause
connection failures between the contacts and the socket.
9. Remove the microprocessor from the socket.
a. Select the empty installation tool and ensure that the handle is in the
unlocked position. If the installation tool handle is not in the unlocked
position, use the following instructions for your installation tool:
v ▌1▐lift the interlock latch and hold it up while you▌2▐twist the
microprocessor installation tool handle counterclockwise to the unlocked
position, and then release the interlock latch. The following illustration
of the installation tool shows the location of the interlock latch and
counterclockwise rotation of the handle before loading the
microprocessor.
1
