Stick Adjustment

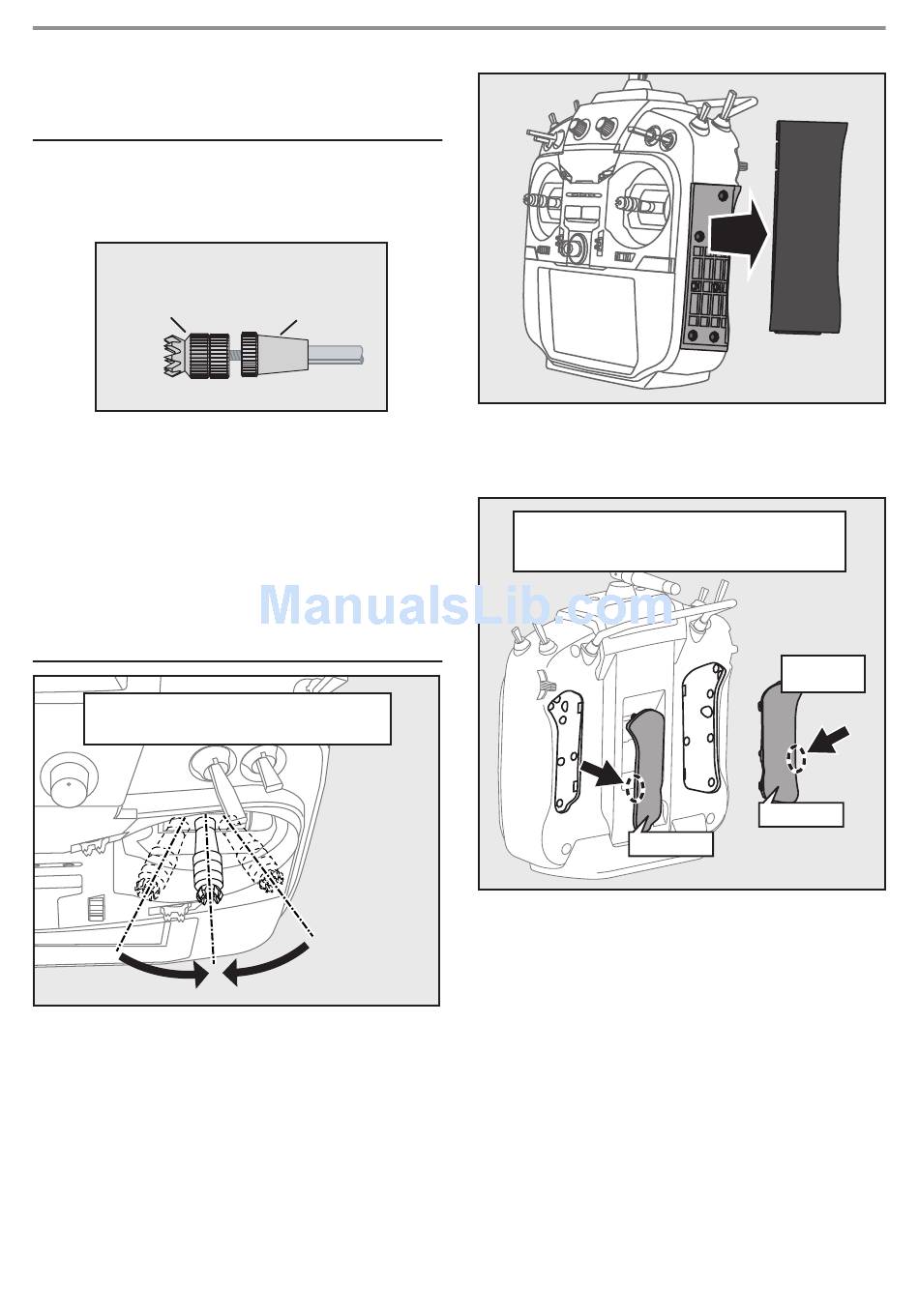

Adjustment of the stick lever
length
You can adjust the length of stick levers, as you
like. It is recommended to adjust the length of the
sticks in line with your hand size.
Stick head
A
1. Hold the lever head "B" and turn the lever
head "A" counter-clockwise. The lock will be
released.
2. Turn the lever-head "A" clockwise as you hold
the lever-head "B" after placing it as you like.
Adjustment of stick lever
tension
The stick can be adjusted to how
quickly it returns to neutral.
The tension of the self-return type stick lever can
be adjusted.
1. First, Remove the battery cover on the
bottom of the transmitter. Next, unplug the
battery wire and remove the battery from
the transmitter.
2. Next, using a hand, remove the transmitter's
side cover (rubber). When using Mode 2, you
will need to remove the side cover to expose
the tension screw.
28
＜ Before Use ＞
Stick head
B
3. Using your hand remove the transmitters rear
rubber grips.
*It is difficult to remove rear grips from the central
site of a transmitter.
Therefore, remove from the outside of rear grips.
Rear Grip
4. Use a 1.5mm hexagonal wrench to adjust
the spring strength as you prefer by turning
the adjusting screw of the stick you want to
adjust.
*Turning the screw clockwise increases the tension.
CAUTION: If you loosen the screw too much,
it can interfere with the operation of the
sticks internally.
Side cover
It removes
from here
Rear Grip
