FUTABA T18MZ WC Instruction Manual

18 channel computer system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM

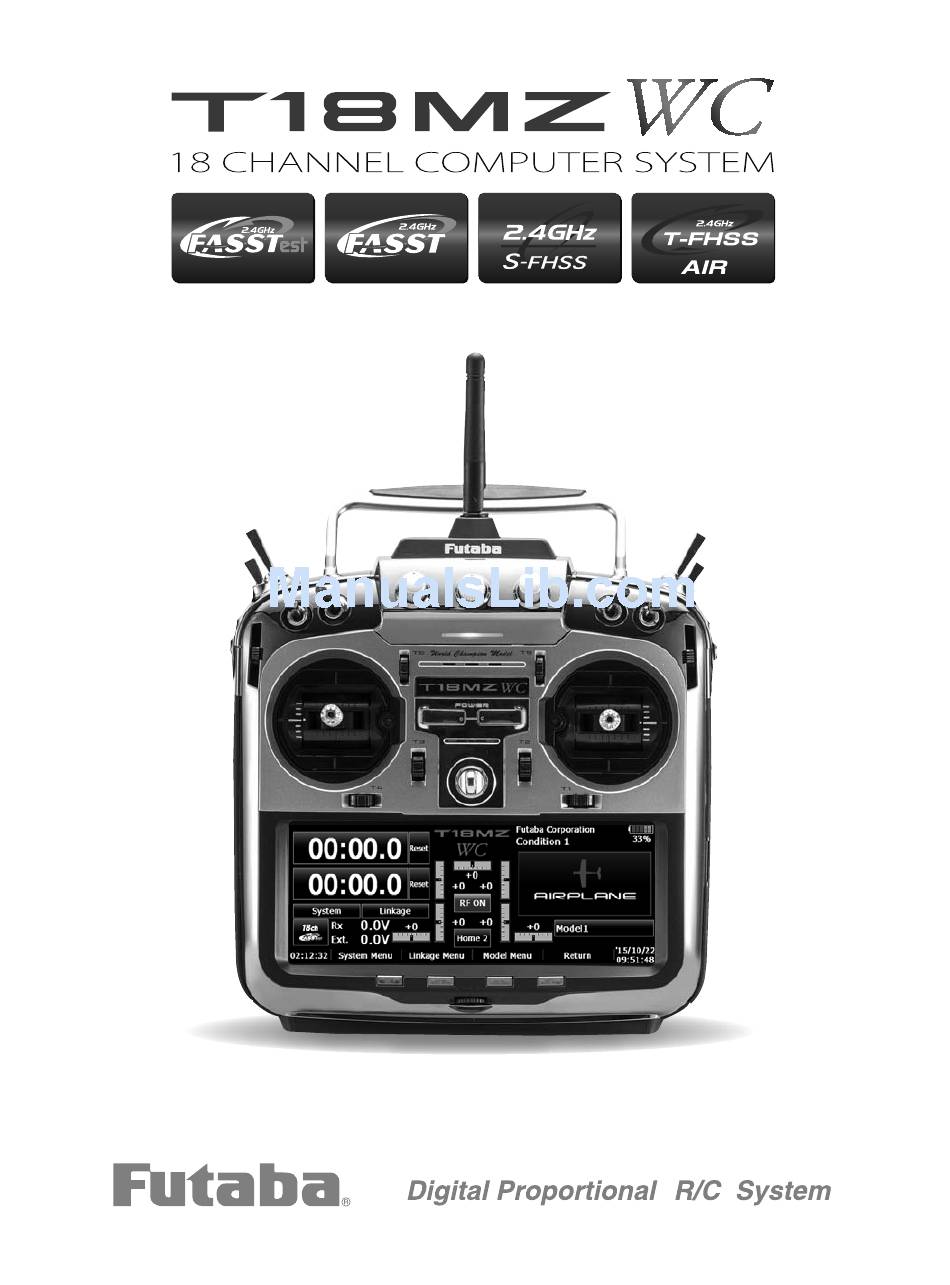

INSTRUCTION MANUAL
1M23N26421

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T18MZ WC and is the answer not in the manual?

Questions and answers

Roy Longfellow
February 17, 2025

What does WC mean on T18MZWC

0
1 comments:
Mr. Anderson
May 14, 2025

WC on the FUTABA T18MZ WC refers to the use of the Windows CE operating system in the transmitter.

This answer is automatically generated

0
