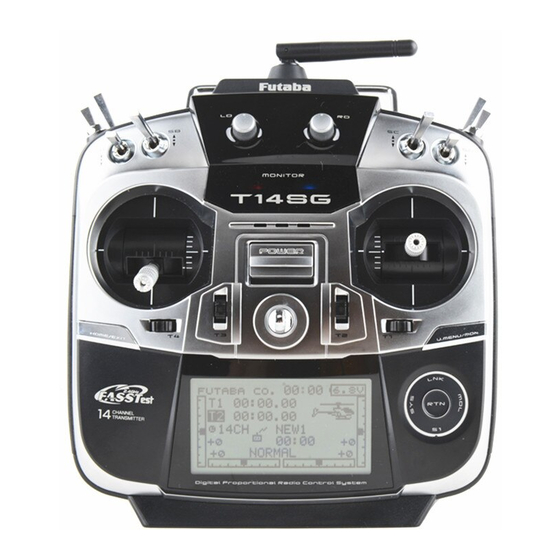

FUTABA T14SG Software Update Manual

Hide thumbs Also See for T14SG:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
T14SG SOFTWARE UPDATE MANUAL
[Updating procedure]
1. SD card format
1. You should format the SD card first by using T14SG. When the SD card is formatted,
all the data is deleted. Please do not format it when there is critical data.
① Push to open.
②Slide in the direction of the
arrow on the battery cover.
2. Please turn on power switch of T14SG. If the SD card not
formatted is set, the following screen is displayed. Please
select "FORMAT" by scroll operation of touch sensor and
touch "RTN" .
3. Please select "YES" and touch "RTN" .
4. The following screen is displayed during
formatting.
5. When the format is completed, the following screen is
displayed.
6. Please turn off power switch and detach the SD card
from card slot.
2. Making of card for soft update
1. Please unzip the zipped file. The following files will create.
・T14sgUpdate.exe
・T14sgUpdate.dat
・T14SG_UPDATE.dat ... Identified file of T14SG
・T14SG_TS.bin
・T14SG_AP.bin
・T14SG_UPLD.bin
③ Battery cover will open downward.
... File copy utility
... Information file for T14sgUpdate.exe
... Update file of T14SG (piece 3)
... Update file of T14SG (piece 2)
... Update file of T14SG (piece 1)
-1-
SD card slot
④ SD card is inserted in a slot
 by direction of a figure.

Advertisement

loading

Related Manuals for FUTABA T14SG

Summary of Contents for FUTABA T14SG

  • Page 1 [Updating procedure] 1. SD card format 1. You should format the SD card first by using T14SG. When the SD card is formatted, all the data is deleted. Please do not format it when there is critical data. SD card slot ① Push to open.
  • Page 2 2. Please attach the SD card formatted to the card reader of PC. 3. Please run "T14sgUpdate.exe". 4. Please select the drive that attached the SD card. Click the "OK" button. 5. Please select the drive that attached the Update SD card.
  • Page 3 3. Update software of T14SG 1. Please insert the SD card which includes the update file. 2. Push the HOME/EXIT button. 3. Keep pushing the HOME/EXIT button and turn on the power switch. HOME/EXIT U.MENU/MON. button button 4. The following screen is displayed after a few second.
  • Page 4 This software update modifies features found on the 14SG. If you have questions about these updated directions, please consult your instruction manual or futaba-rc.com for further details. Refer to the original manual where applicable but replace the steps indicated below with these instructions.

  • Page 5: Governor Mixing

    4.TELEMETRY: 5.GOVERNOR MIXING (Corresponding CURRENT, VOLTAGE,CAPACITY model: helicopter) This function transmits a reference signal Compatible with the ROBBE current sensor from the transmitter for setting the governor (F1678). The current, voltage and battery side speed display. The gover nor and capacity can be displayed.
  • Page 6 MODE>, if a power supply is turned on after touching RTN next.) This problem will be solved if it updates to Ver1.51 from Ver1.5. FUTABA CORPORATION Phone: +81 475 32 6982, Facsimile: +81 475 32 6983 1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba 299-4395, Japan ©FUTABA CORPORATION...
