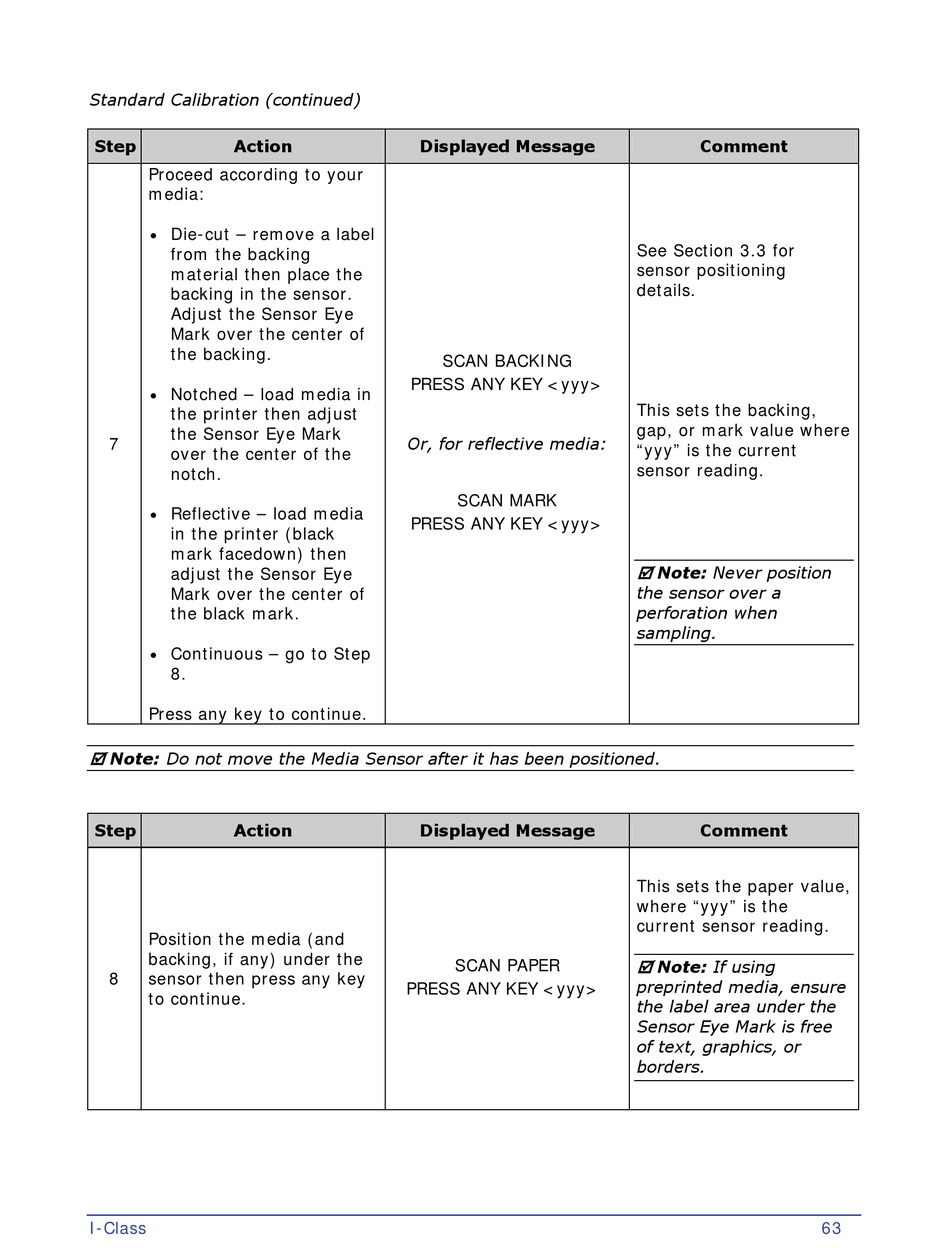

Standard Calibration (continued)
Step Action
Proceed according to your
media:
Die-cut – remove a label
•
from the backing
material then place the
backing in the sensor.
Adjust the Sensor Eye
Mark over the center of
the backing.
Notched – load media in
•
the printer then adjust
the Sensor Eye Mark
7
over the center of the
notch.
Reflective – load media
•
in the printer (black
mark facedown) then
adjust the Sensor Eye
Mark over the center of
the black mark.
Continuous – go to Step
•
8.
Press any key to continue.
Note: Do not move the Media Sensor after it has been positioned.
Step Action
Position the media (and
backing, if any) under the
8 sensor then press any key
to continue.
I-Class
Displayed Message
SCAN BACKING
PRESS ANY KEY <yyy>!
!
!
Or, for reflective media:
!
!
SCAN MARK
PRESS ANY KEY <yyy>
Displayed Message
SCAN PAPER
PRESS ANY KEY <yyy>
Comment
See Section 3.3 for
sensor positioning
details.
This sets the backing,
gap, or mark value where
"yyy" is the current
sensor reading.
!
Note: Never position
the sensor over a
perforation when
sampling.
Comment
This sets the paper value,
where "yyy" is the
current sensor reading.
Note: If using
preprinted media, ensure
!
the label area under the
Sensor Eye Mark is free
of text, graphics, or
borders.
