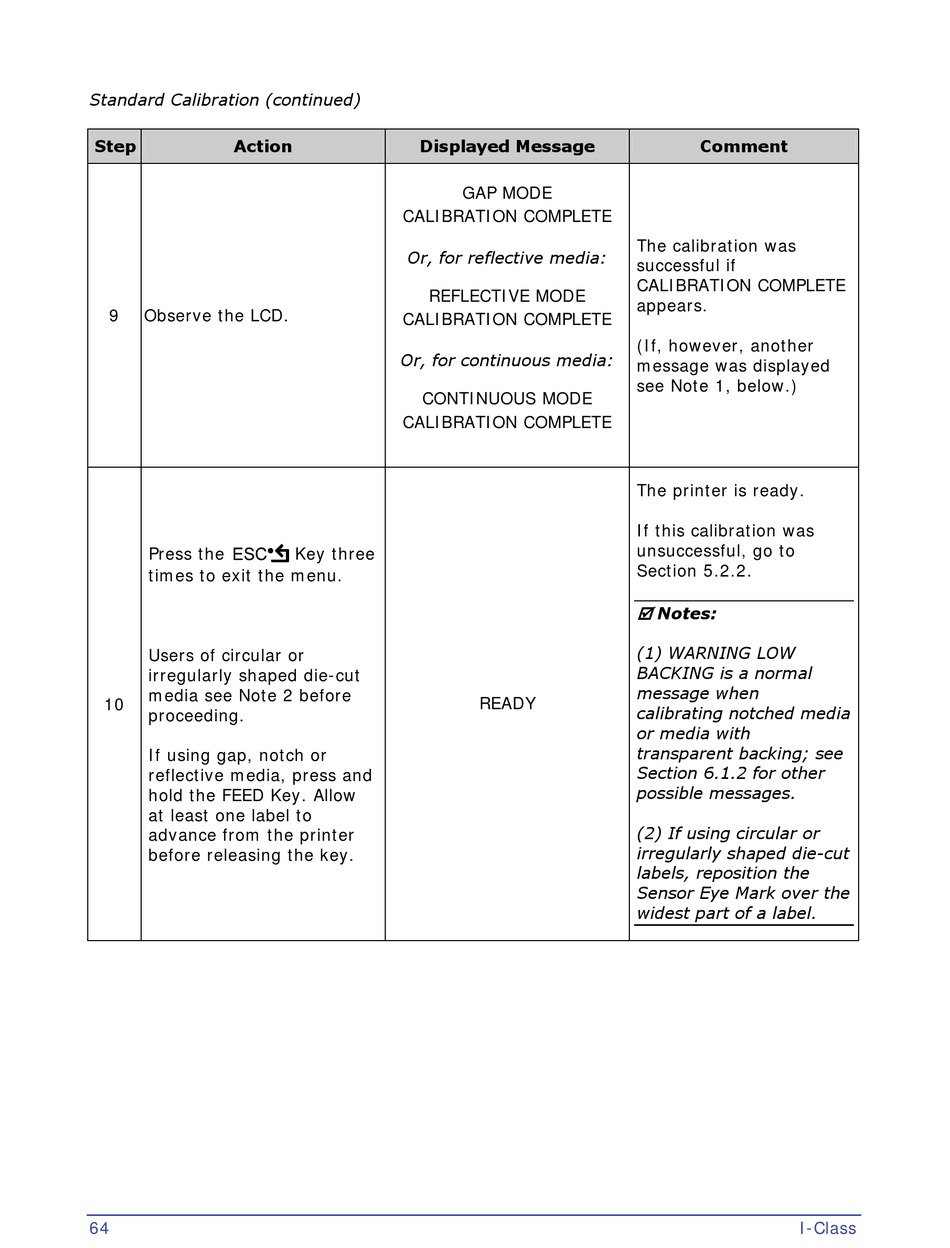

Standard Calibration (continued)
Step Action
9 Observe the LCD.
Press the
times to exit the menu.
Users of circular or
irregularly shaped die-cut
media see Note 2 before
10
proceeding.
If using gap, notch or
reflective media, press and
hold the FEED Key. Allow
at least one label to
advance from the printer
before releasing the key.
64
Displayed Message
GAP MODE
CALIBRATION COMPLETE
Or, for reflective media:
REFLECTIVE MODE
CALIBRATION COMPLETE!
Or, for continuous media:
CONTINUOUS MODE
CALIBRATION COMPLETE
!
Key three
!
The calibration was
successful if
!
CALIBRATION COMPLETE
appears.
!
(If, however, another
message was displayed
!!
see Note 1, below.)
The printer is ready.
If this calibration was
unsuccessful, go to
Section 5.2.2.
Notes:
(1) WARNING LOW
BACKING is a normal
message when
READY
calibrating notched media
!
or media with
transparent backing; see
Section 6.1.2 for other
possible messages.
(2) If using circular or
irregularly shaped die-cut
labels, reposition the
Sensor Eye Mark over the
widest part of a label.
Comment
I-Class
