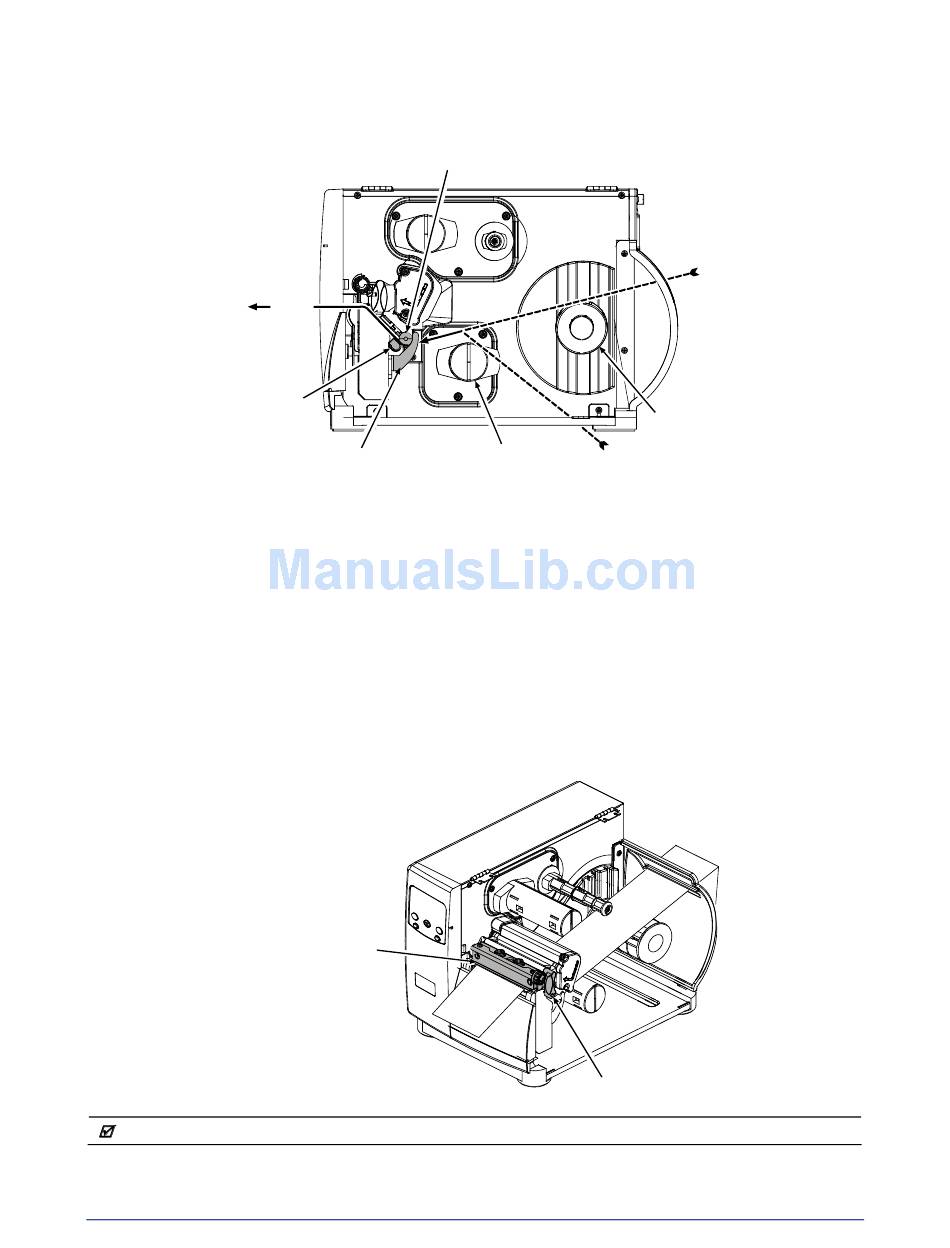

B. Route the Media under the Media Idler (also, if equipped over the Internal Rewinder;
and, if through the Rear Media Slot, over the Media Hub).
Media
Sensor
C. Pass the media through the Media Sensor then straight out the front of the printer.
D. Raise then slide the Media Guide over so that it rests lightly against the edge of the
media.
E. Position the Media Sensor; see Section 3.3.
F. If using thermal transfer media, load ribbon (see Section 3.3); otherwise, go to Step G.
G. Lower the Printhead Assembly and rotate the Printhead Latch into the locked position.
Close the cover then turn ON the printer. After READY is displayed, press and hold the
FEED Key until at least one label gap (or mark) is advanced; see Section 3.5.
Printhead Assembly
Note: Adjust the Leveling Cam if using narrow media; see Section 5.4.1.
14
Media Idler
Media
Internal Rewinder
Media
(Optional Equipment)
Guide
Media
Hub
Printhead Latch
I-Class
