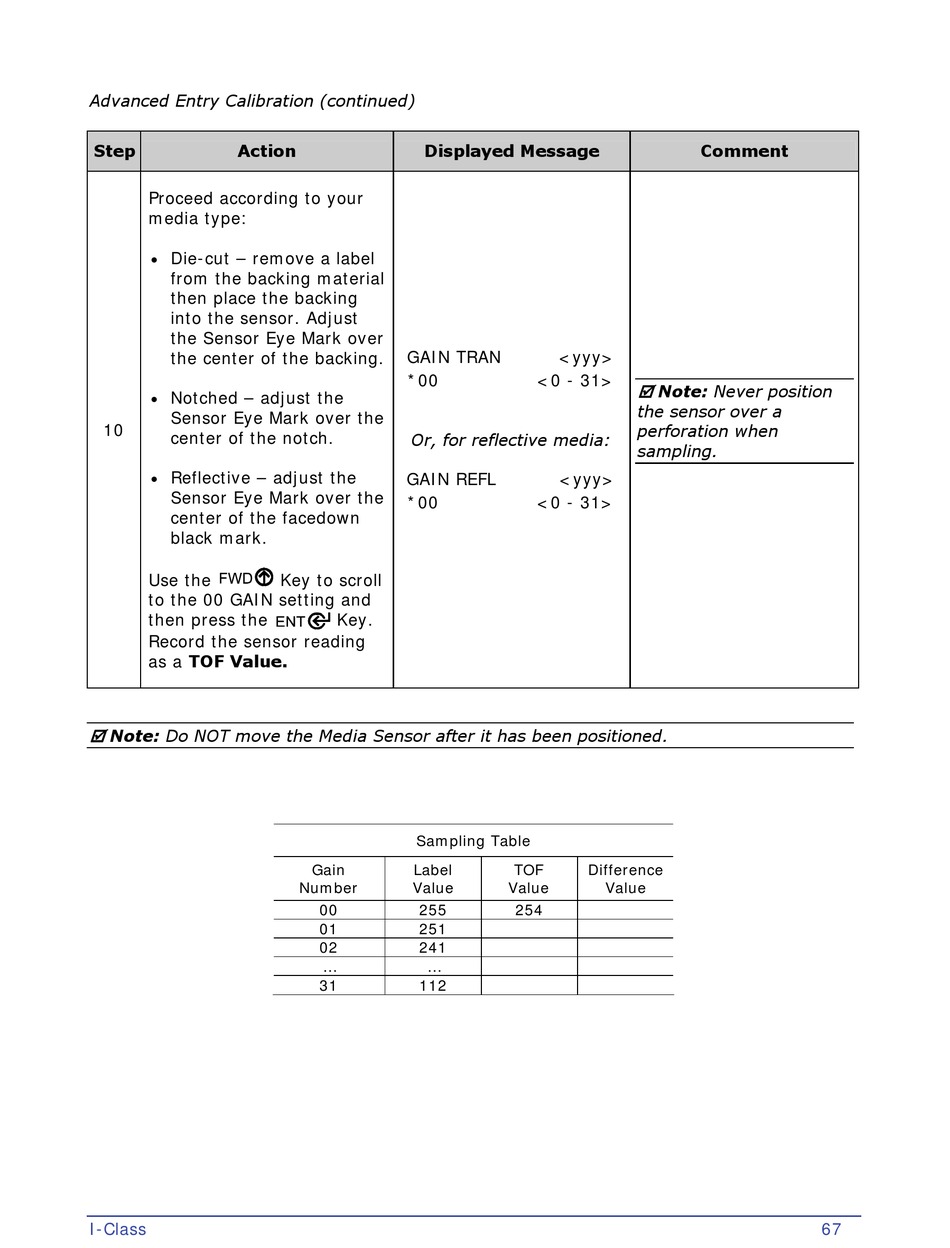

Advanced Entry Calibration (continued)
Step Action
Proceed according to your
media type:
Die-cut – remove a label
•
from the backing material
then place the backing
into the sensor. Adjust
the Sensor Eye Mark over
the center of the backing.
Notched – adjust the
•
Sensor Eye Mark over the
10
center of the notch.
Reflective – adjust the
•
Sensor Eye Mark over the
center of the facedown
black mark.
Use the
to the 00 GAIN setting and
then press the
Record the sensor reading
as a TOF Value.
Note: Do NOT move the Media Sensor after it has been positioned.
I-Class
Displayed Message
GAIN TRAN
*00
Or, for reflective media:
GAIN REFL
*00
Key to scroll
Key.
Sampling Table
Gain Label
Number Value
00 255
01 251
02 241
... ...
31 112
<yyy>
<0 - 31>
Note: Never position
!
the sensor over a
!
perforation when
sampling.
<yyy>
<0 - 31>
!
TOF Difference
Value Value
254
Comment
