Datamax Iclass Operator's Manual page 70

Displayed Message
DISPLAY CONTRAST
DMXNET INITIALIZING
NOT INSTALLED
PAUSED
PRINTHEAD CLEANING
READY
REMOVE LABEL!!
REMOVE RIBBON
PRESS ANY KEY
SUCCESSFUL
PRESS ANY KEY
60

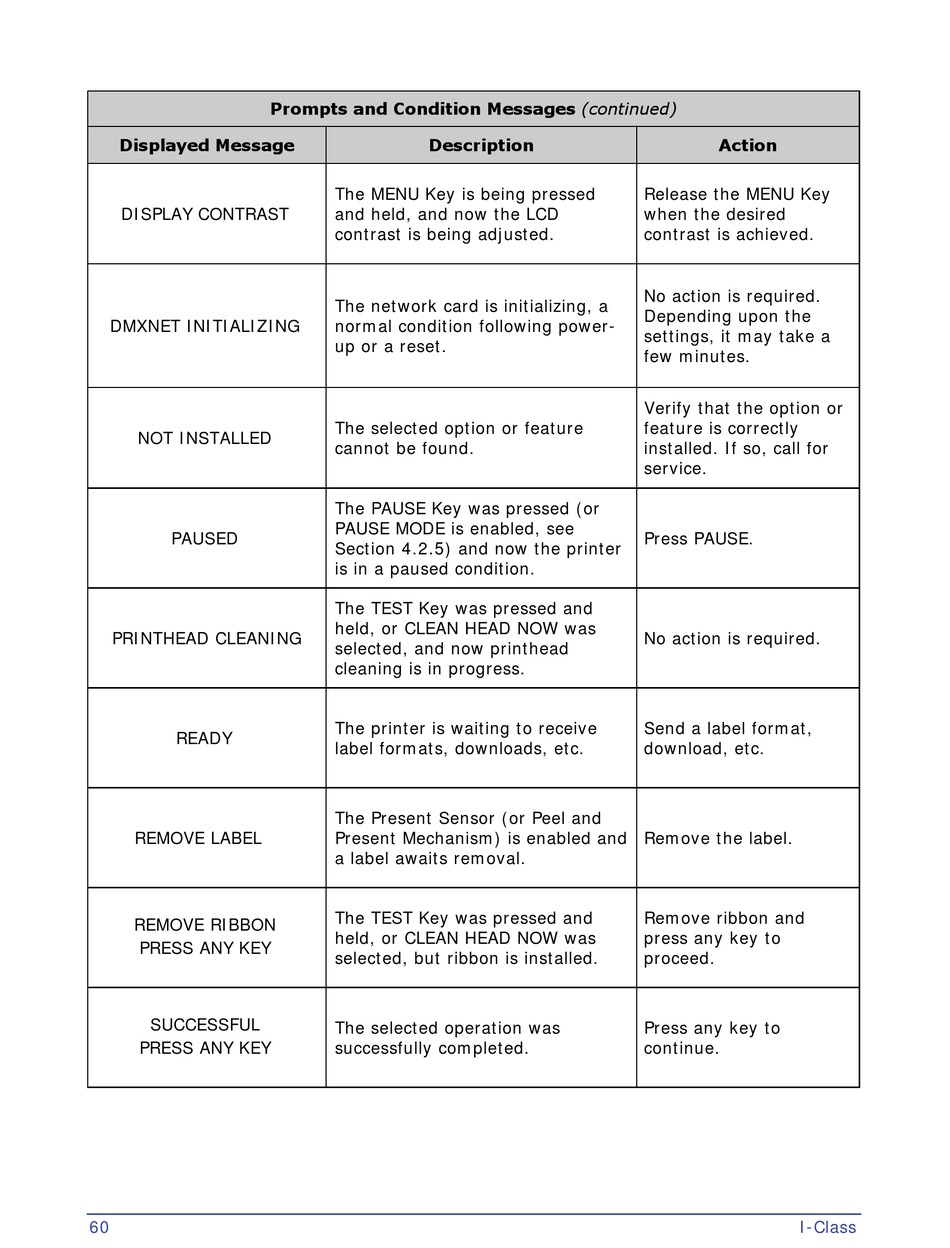

Prompts and Condition Messages (continued)
Description
The MENU Key is being pressed
and held, and now the LCD
contrast is being adjusted.
The network card is initializing, a
normal condition following power-
up or a reset.
The selected option or feature
cannot be found.
The PAUSE Key was pressed (or
PAUSE MODE is enabled, see
Section 4.2.5) and now the printer
is in a paused condition.
The TEST Key was pressed and
held, or CLEAN HEAD NOW was
selected, and now printhead
cleaning is in progress.
The printer is waiting to receive
label formats, downloads, etc.
The Present Sensor (or Peel and
Present Mechanism) is enabled and
a label awaits removal.
The TEST Key was pressed and
held, or CLEAN HEAD NOW was
selected, but ribbon is installed.
The selected operation was
successfully completed.
Action
Release the MENU Key
when the desired
contrast is achieved.
No action is required.
Depending upon the
settings, it may take a
few minutes.
Verify that the option or
feature is correctly
installed. If so, call for
service.
Press PAUSE.
No action is required.
Send a label format,
download, etc.
Remove the label.
Remove ribbon and
press any key to
proceed.
Press any key to
continue.
I-Class
