Diagnostics (continued)
Menu Item
SENSOR READINGS
THR TRAN RIBM
127 159 093
 PS HD RANK
000 254 000
RIBBON SENSOR LIMITS
RIBBON ADC LOW HIGH
070

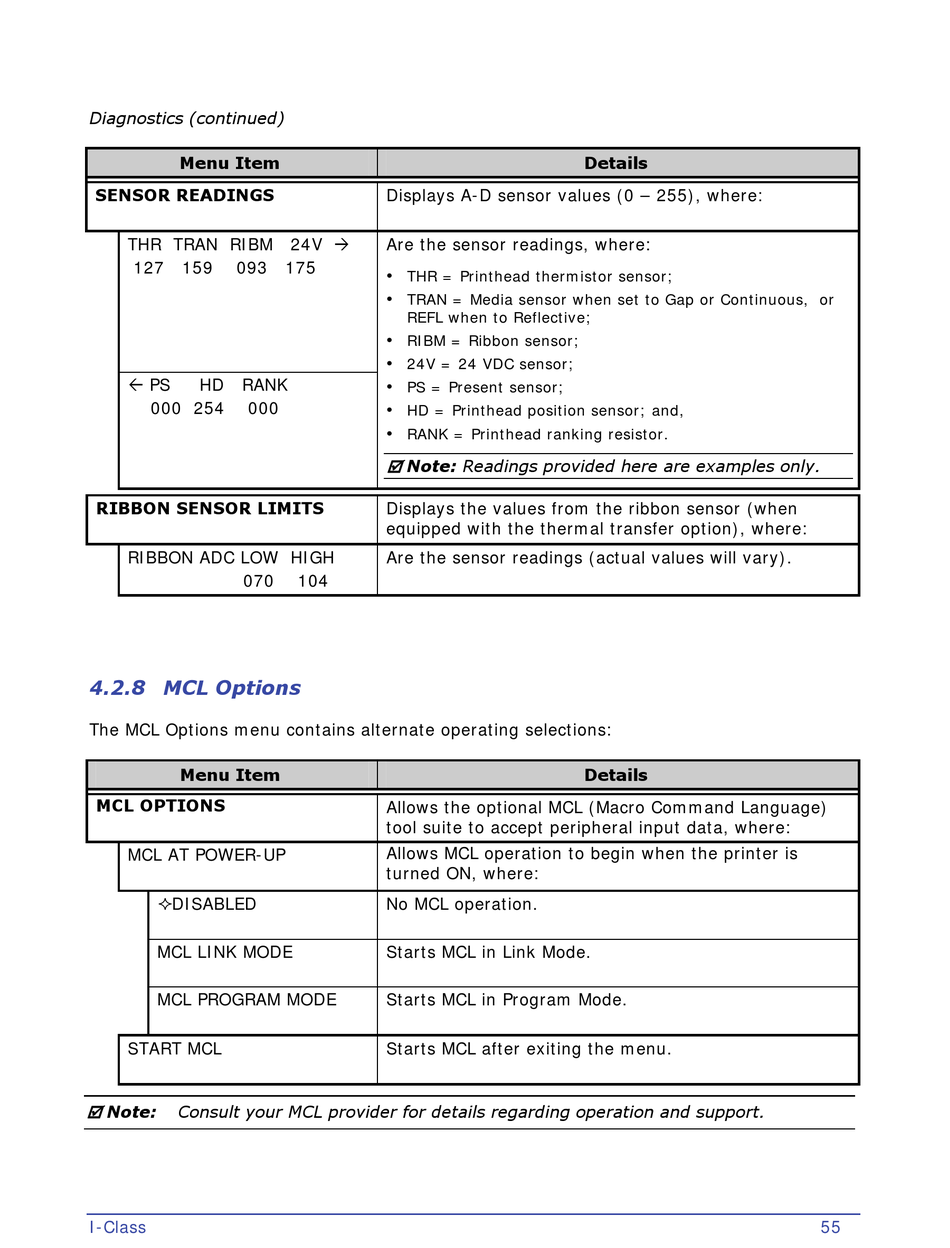

4.2.8 MCL Options

The MCL Options menu contains alternate operating selections:
Menu Item
MCL OPTIONS
MCL AT POWER-UP
DISABLED
MCL LINK MODE
MCL PROGRAM MODE
START MCL
Note: Consult your MCL provider for details regarding operation and support.
I-Class
Displays A-D sensor values (0 – 255), where:
24V Are the sensor readings, where:
175
THR = Printhead thermistor sensor;
•
TRAN = Media sensor when set to Gap or Continuous, or
•
REFL when to Reflective;
RIBM = Ribbon sensor;
•
24V = 24 VDC sensor;
•
PS = Present sensor;
•
HD = Printhead position sensor; and,
•
RANK = Printhead ranking resistor.
•
Note: Readings provided here are examples only.
Displays the values from the ribbon sensor (when
equipped with the thermal transfer option), where:
Are the sensor readings (actual values will vary).
104
Allows the optional MCL (Macro Command Language)
tool suite to accept peripheral input data, where:
Allows MCL operation to begin when the printer is
turned ON, where:
No MCL operation.
Starts MCL in Link Mode.
Starts MCL in Program Mode.
Starts MCL after exiting the menu.
Details
Details
55
