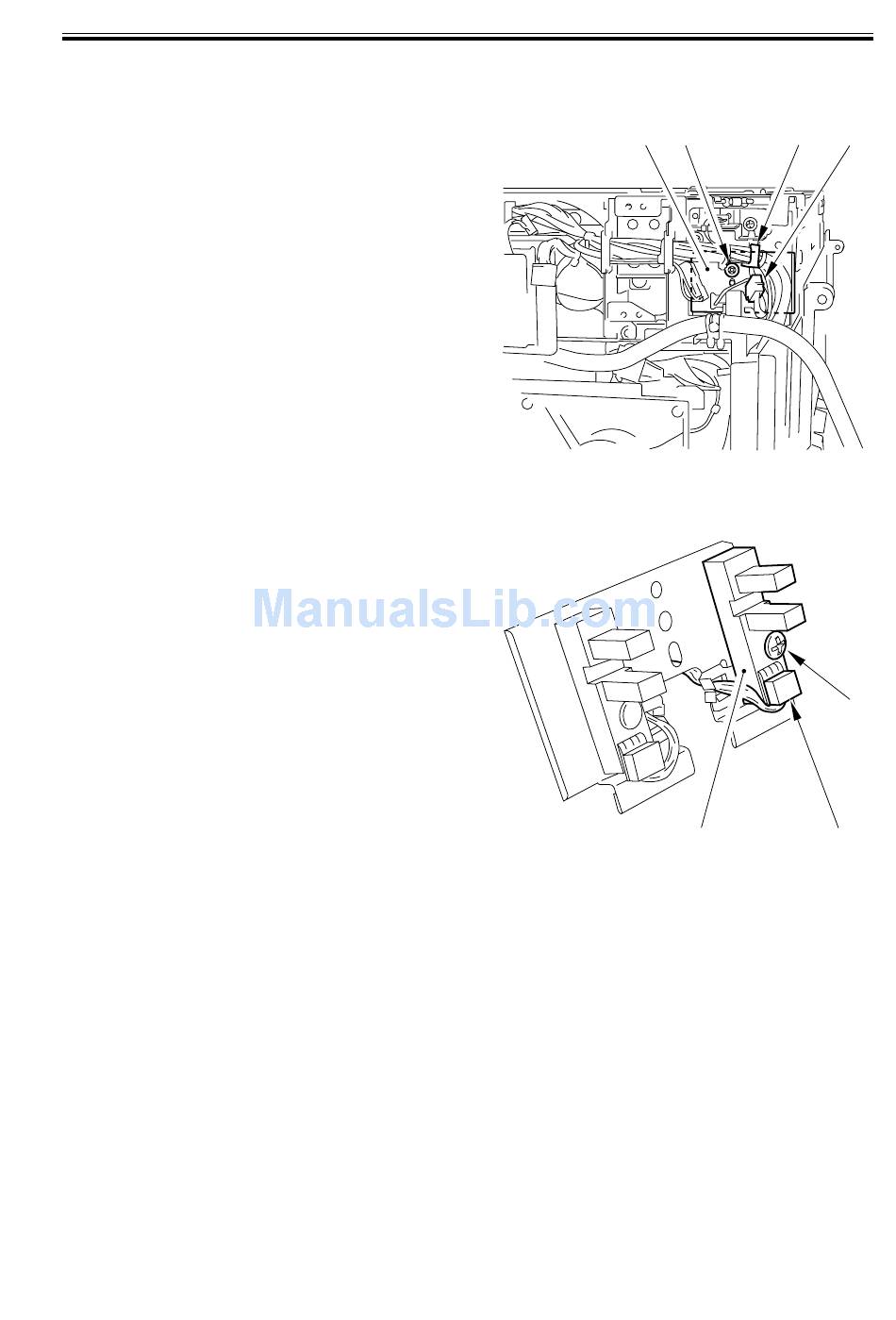

e. Removing the Image Leading Edge Sensor
1) Remove the transformer unit (See
2.9.3.c.).
2) Free the harness from the wire saddle
[1]; then, disconnect the connector [2],
remove the screw [3], and detach the
sensor mounting plate [4].
3) Disconnect the connector [1], remove
the screw [2], and detach the image
leading edge sensor [3].
COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 2 NEW FUNCTIONS
[4] [3]
F02-209-42
[3]
F02-209-43
[1] [2]
[2]
[1]
2-37
