Removing the Upper Media Guide
88
• In case of removing pieces of labels stuck to the media guide assembly or
replacement of the upper LSS, you may need to remove the upper part
in order to gain better access. It is fi tted to the lower part with a snap-
lock. Lift up the inner part of the upper media guide and pull it out as
far as the cable allows.
When removing stuck labels, do not use any sharp tools like screwdriv-
ers, knives, etc., that may scratch the surface. Dissolve the adhesive with
isopropyl alcohol until you can peel away the labels with your fi ngers.
Lift and pull out

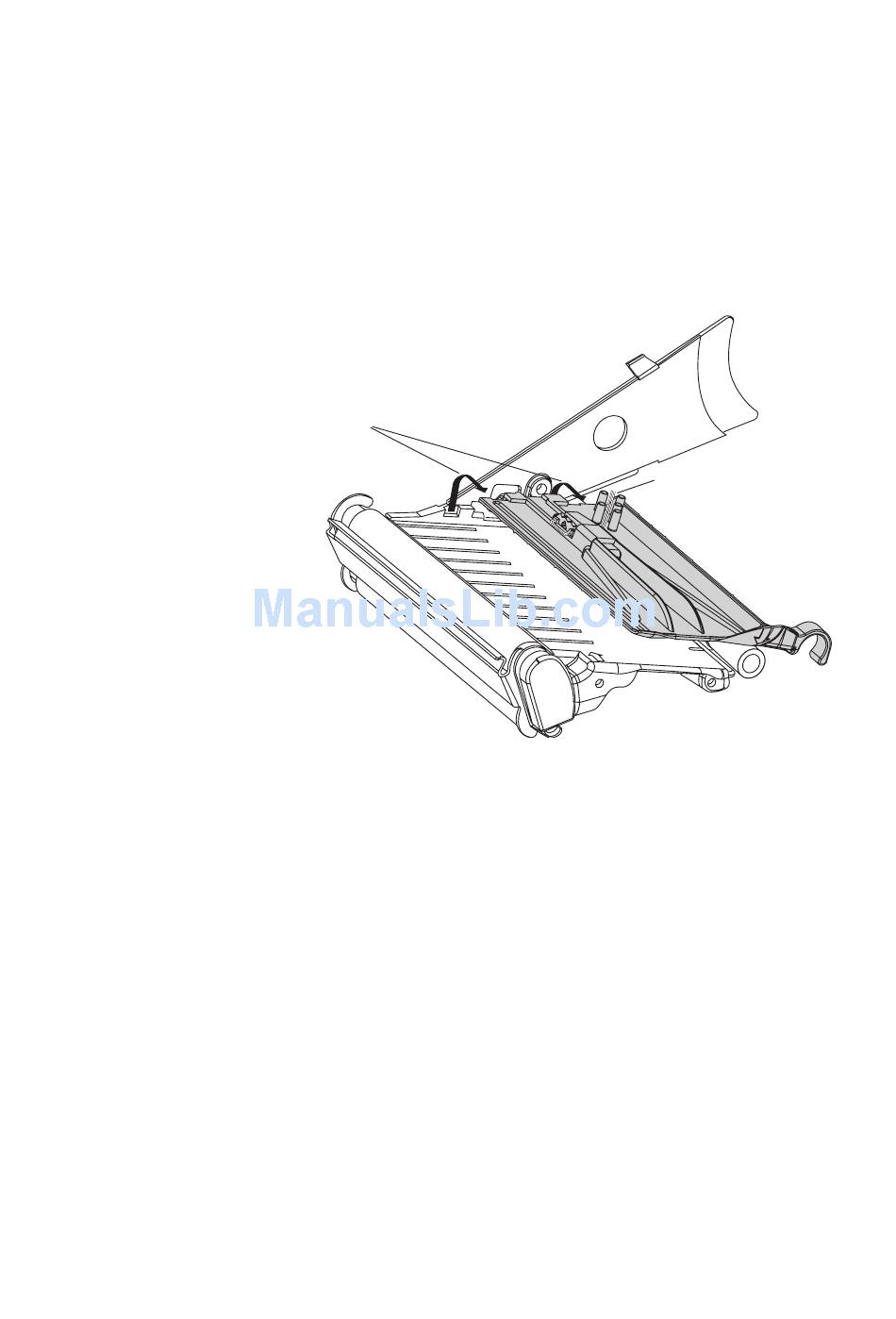

The illustration shows the media guide of an EasyCoder PF4i or
The same principles apply to the EasyCoder PF2i.
• Before fi tting back the upper part, check that the cable still is fi tted
between the plastic pins and does not prevent the LSS to be moved
between its extreme positions. Insert the upper guide into the snap-
lock in the lower guide and fold it down so the semicircular snap-lock
engages the edge guide shaft.
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
PF4i Compact Industrial.
Cable held by 5 pins
