5.2 Media Guides

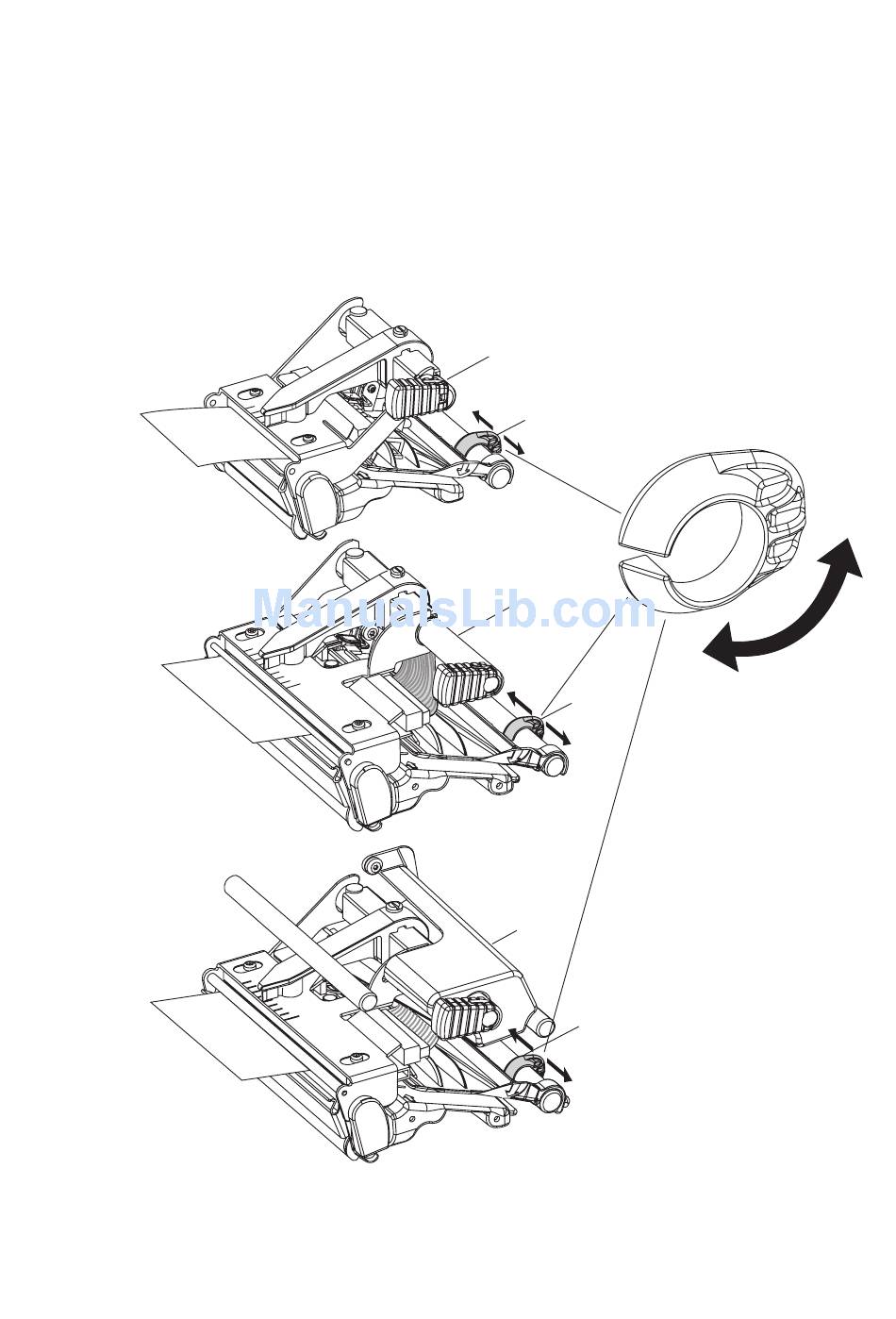

Standard Edge Guide
EasyCoder PF2i
EasyCoder PF4i
EasyCoder PF4i
Compact Industrial
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
The standard edge guide can be moved sideways on its shaft to fi t different
media widths. It can also be rotated between horizontal attitude for most
types of internal media supplies and vertical attitude for external media
supply.
Chapter 5—Media Supply
Standard edge guide
57
