Chapter 7—Print Mechanism
7.4 Belts
Description
Replacement
Adjustment
82

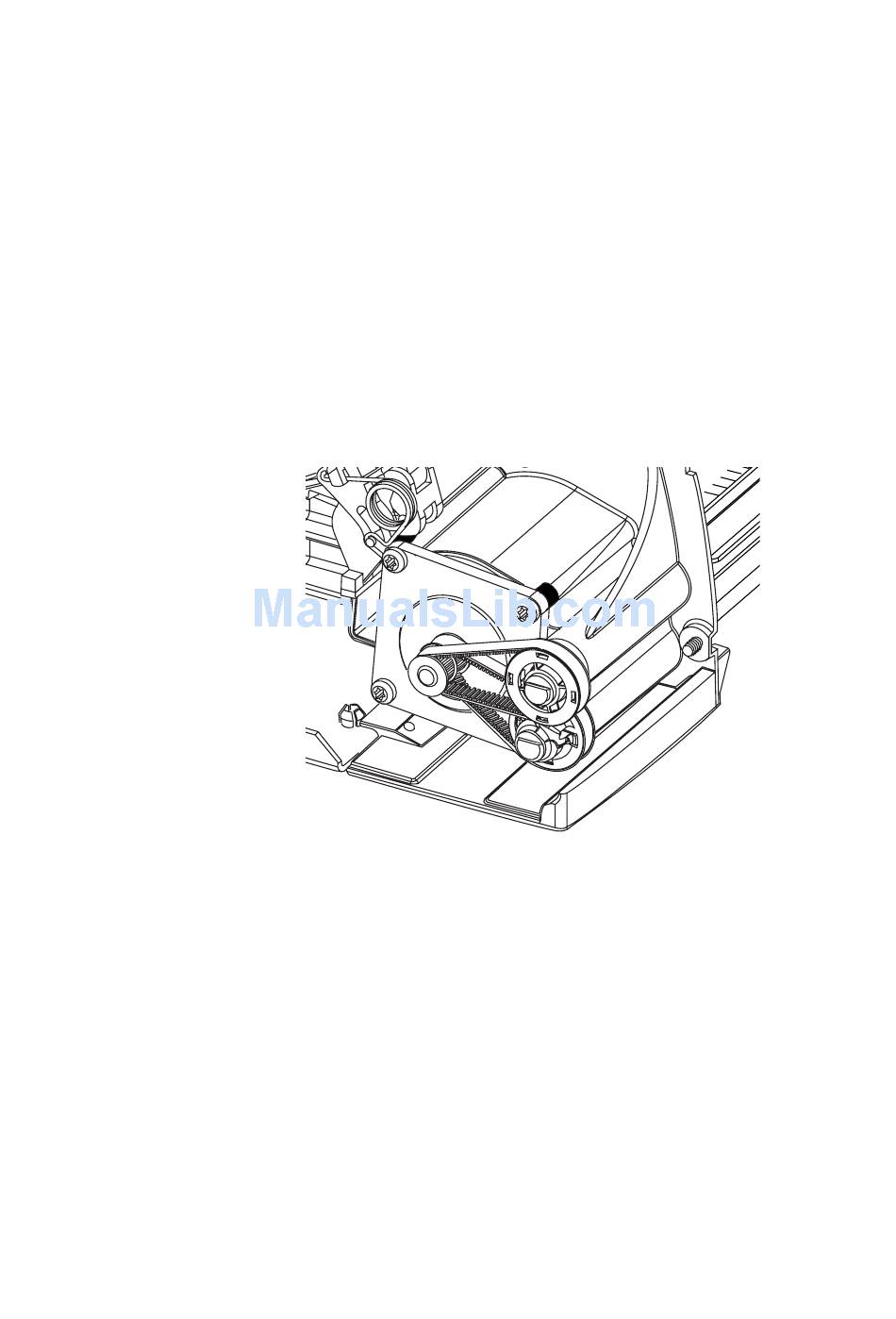

The print mechanism has two timing belts, one that drives the platen roller
and another that drives the liner drive roller. The belts are subject to wear
and may need periodic replacement.
Replace a worn out or broken belt using the same method as when replac-
ing the stepper motor, see Chapter 7.3.
The belts cannot be adjusted.
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
