Intermec EasyCoder PF2i Service Manual page 83

Headlift mechanism
Stepper motor,
belts, and pulleys
Printhead
Printhead bracket
Ribbon motor
Front ribbon
break shaft
Printhead ribbon
break shaft
Tear bar
Platen roller
Liner drive roller
Guide link
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual

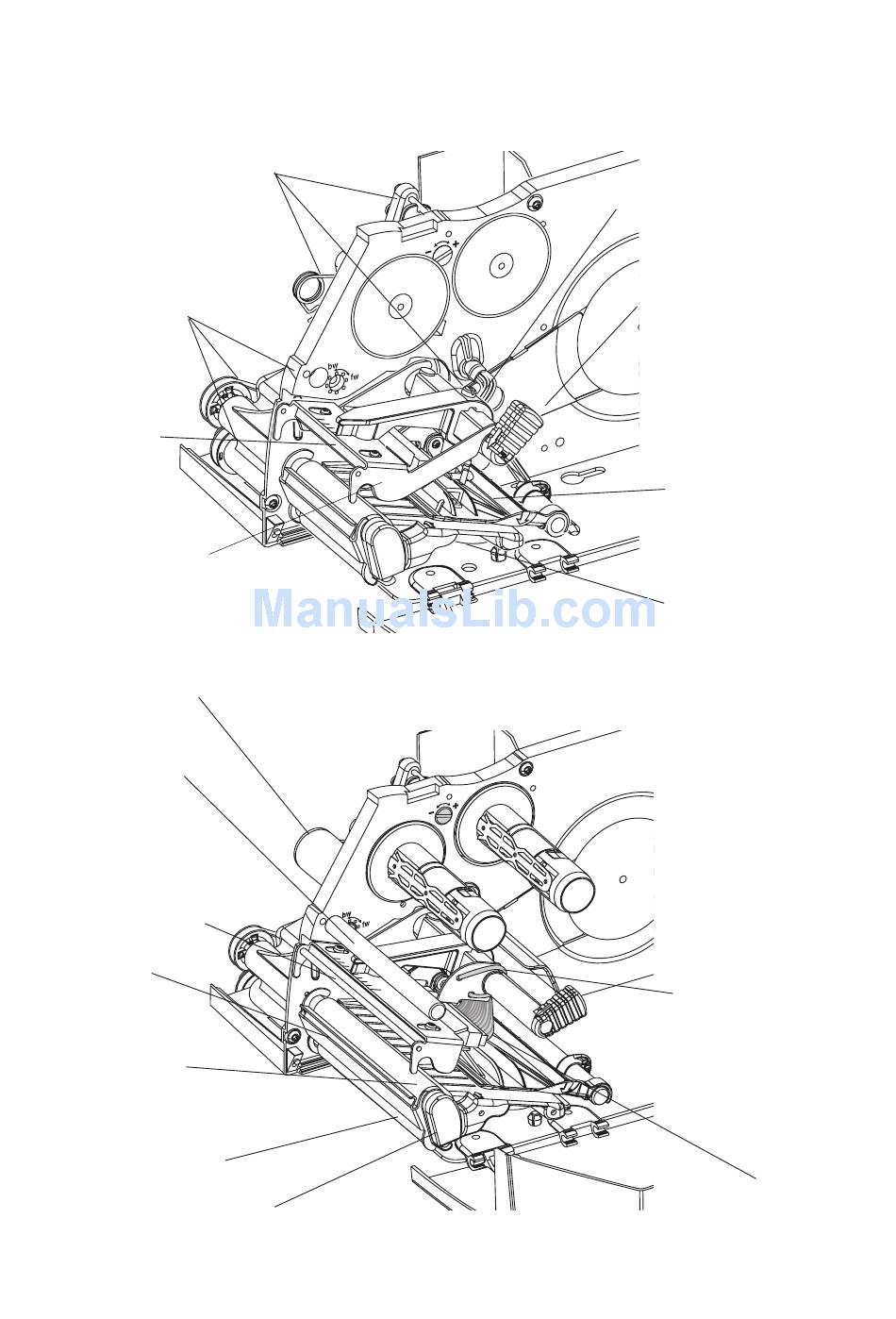

The parts of the print mechanism, as seen from the media compartment
side of the center section, are illustrated below.
Print mechanism in an EasyCoder PF2i (direct thermal version)
Print mechanism in an EasyCoder PF4i (thermal transfer version)
Chapter 7—Print Mechanism
Pressure arm
Headlift lever
Upper label stop sensor
Media guide assy with LSS
Optional spring
for vertical installation
Printhead
cable
75
