Chapter 11—Electronics Compartment

11.1 Introduction

11.2 Accessing the Electronics Compartment

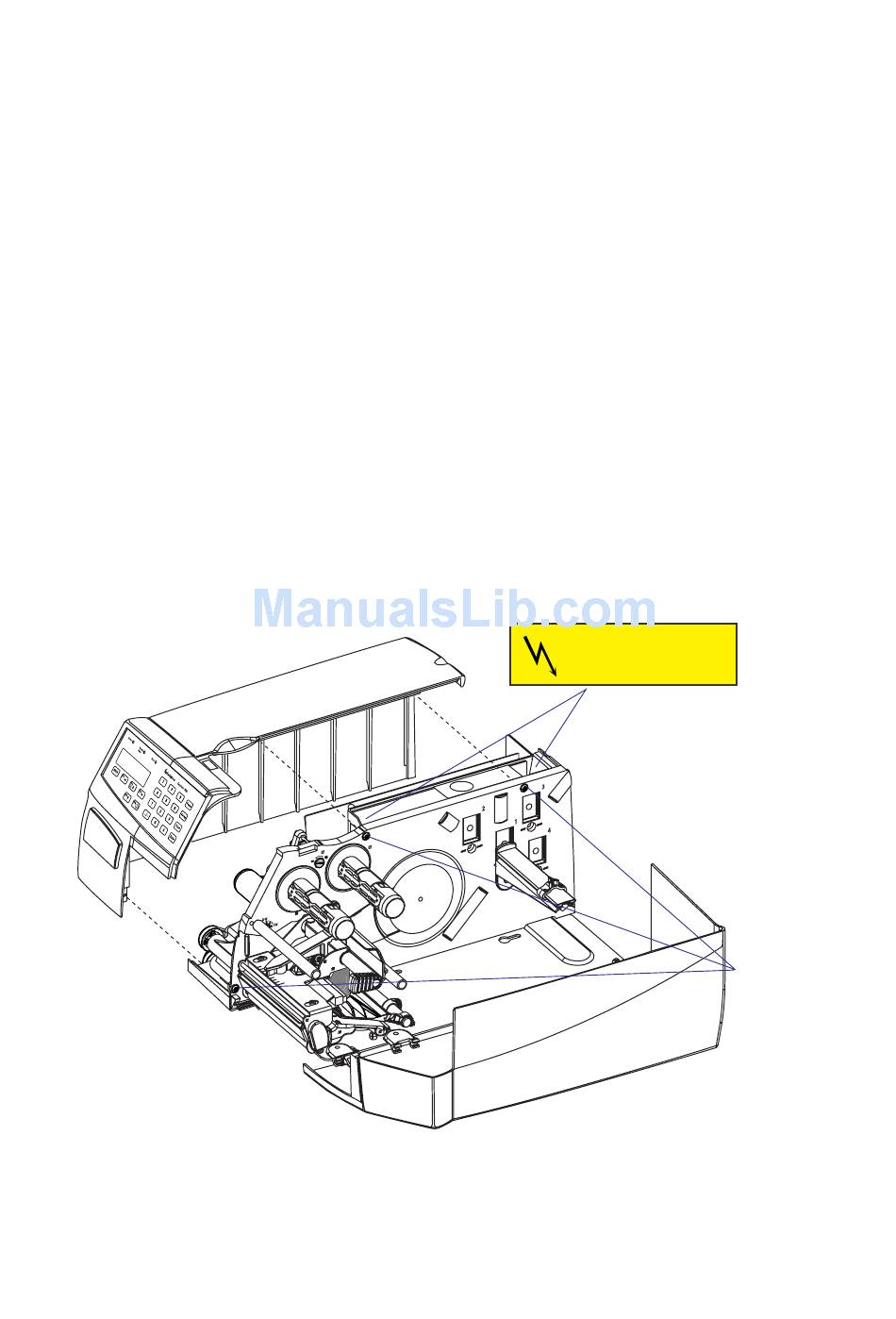

The illustration shows an EasyCoder PF4i, but the same principles apply to all EasyCoder PF-series printers.
128
The Electronics Compartment is off limits to the normal user, but for the
authorized service technician, it contains a number of parts of great inter-
est:
• The stepper motor and timing belts of the platen and liner drive rollers.
• The ribbon feed motor.
• The headlift mechanism and sensor.
• The CPU board.
• The power supply unit.
• Optionally one extra interface board and/or one EasyLAN board.
To gain access to the electronics compartment, remove the front/left-hand
cover as described in Chapter 3.2. To completely remove the cover, you
will need to disconnect the cable to the console pcb from J50 on the CPU
board.
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Power Supply
High voltage!
#T20 Torx
screws
(x3)
