Verify that the slide-rails and the CMA are operating properly before routing cables through the
15
CMA: a) Ensure all rack anti-tilt devices are extended to prevent the rack from tipping. b) Extend
the server from the front of the rack until the CMA is fully extended.
Return the storage controller to the rack. As you push the storage controller into the rack, verify
16
that the CMA retracts without binding.

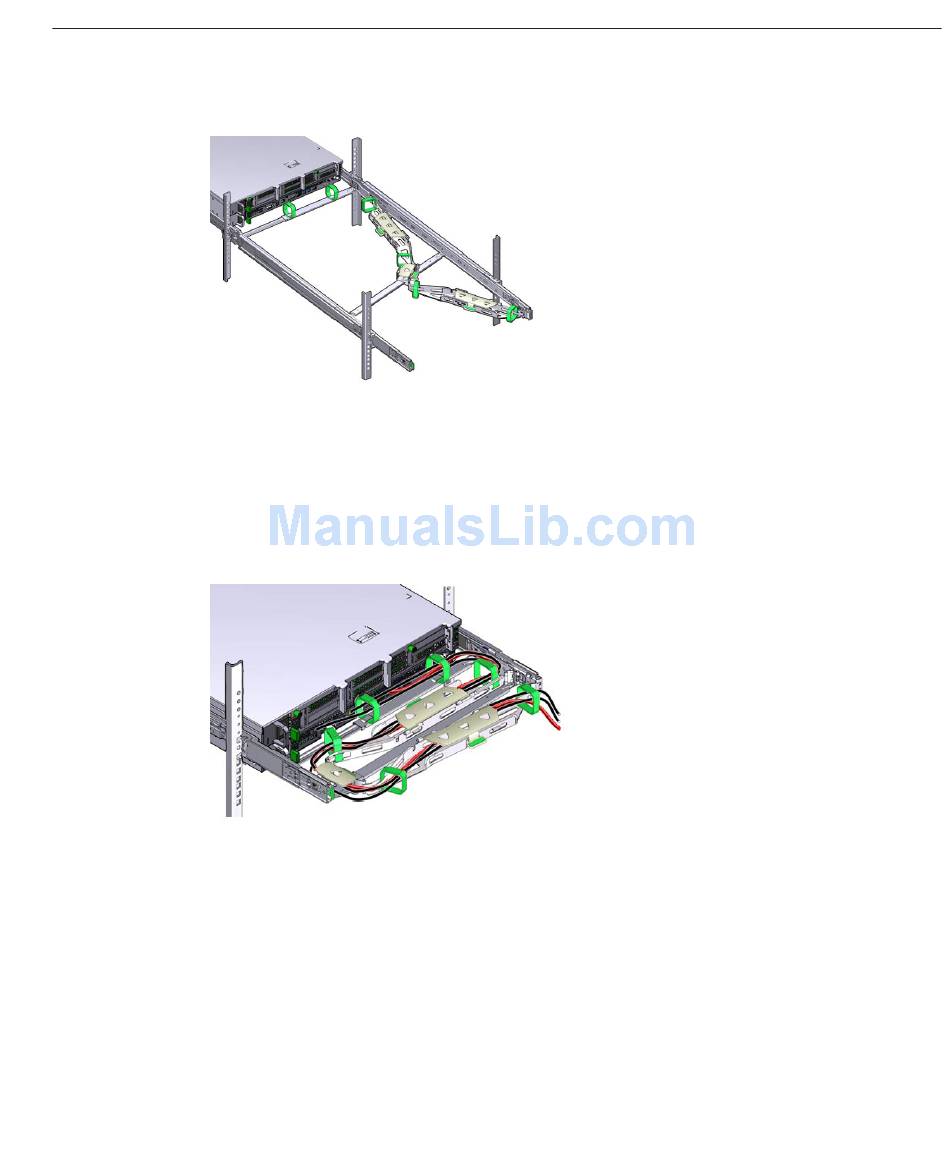

Open the CMA cable covers, route server cables through the CMA's cable troughs, close the
17
cable covers, and secure the cables with the six Velcro straps. Route the cables through the cable
troughs in this order: a) Route the cables through the front-most cable trough, b) then through
the small cable trough, c) then through the rear-most cable trough.
When securing the cables with the Velcro straps located on the front slide bar, ensure that the
18
Velcro straps do not wrap around the bottom of the slide bar; otherwise, expansion and
contraction of the slide bar might be hindered when the server is extended from the rack and
returned to the rack.
Ensure that the secured cables do not extend above the top or below the bottom of the server to
19
which they are attached; otherwise, the cables might snag on other equipment installed in the
rack when the server is extended from the rack or returned to the rack.
Chapter 2 • Installation
ZS3-2 Controllers
91
