DE2 to ZS3-4/7420 Standalone

DE2 to ZS3-4/7420 Standalone
Connecting the ZS3-4/7420 Standalone Controller to
Disk Shelves (3 HBAs)
The following figures show a subset of the supported configurations for Oracle ZFS Storage
ZS3-4/7420 standalone controllers with three HBAs.
Note: For hardware port locations, see the PCIe Options section in the Hardware Maintenance
Overview for your controller model.
Cable Diagrams

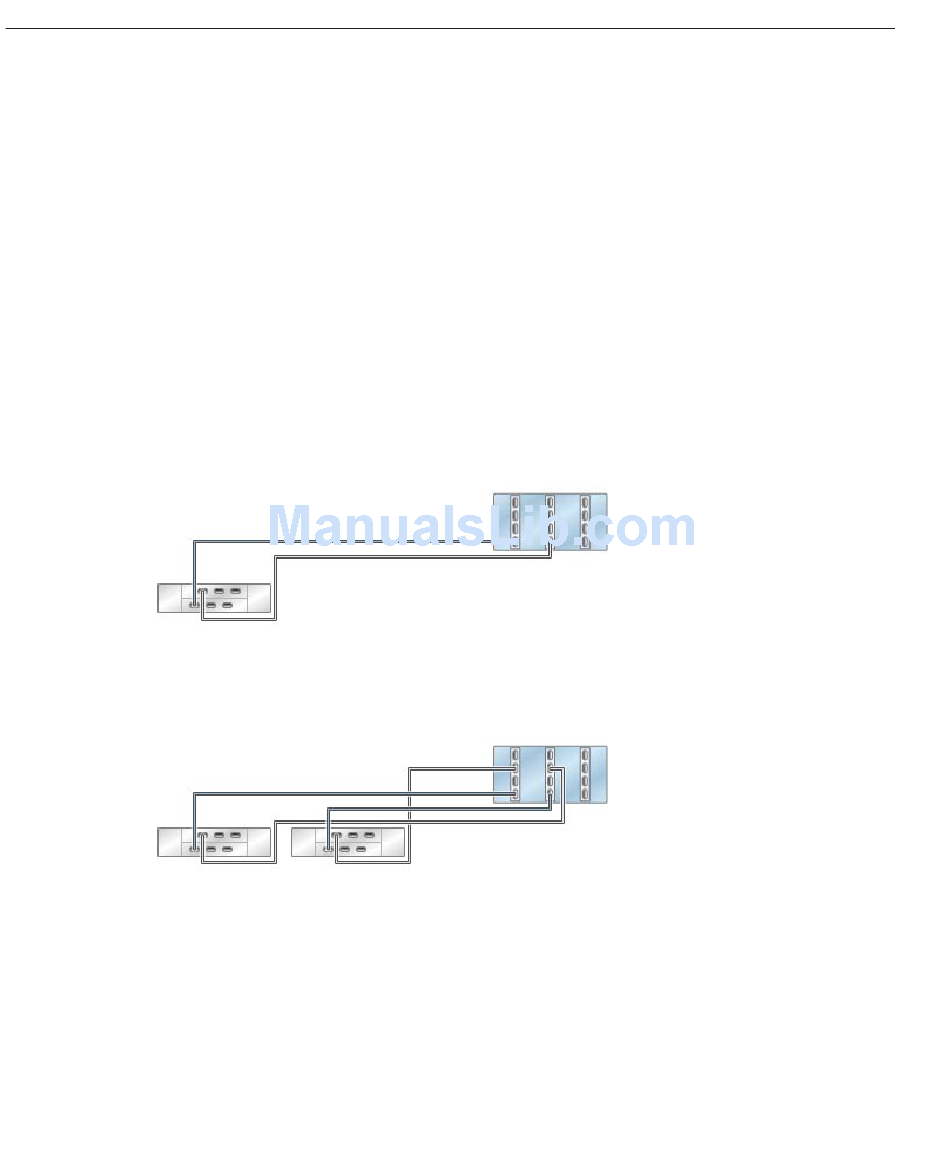

fig.1 Standalone controller with three HBAs and one disk shelf in a single chain.
fig.2 Three HBAs and two disk shelves in two chains.
144 Oracle ZFS Storage Appliance Installation Guide • January 2014 E48491–02
