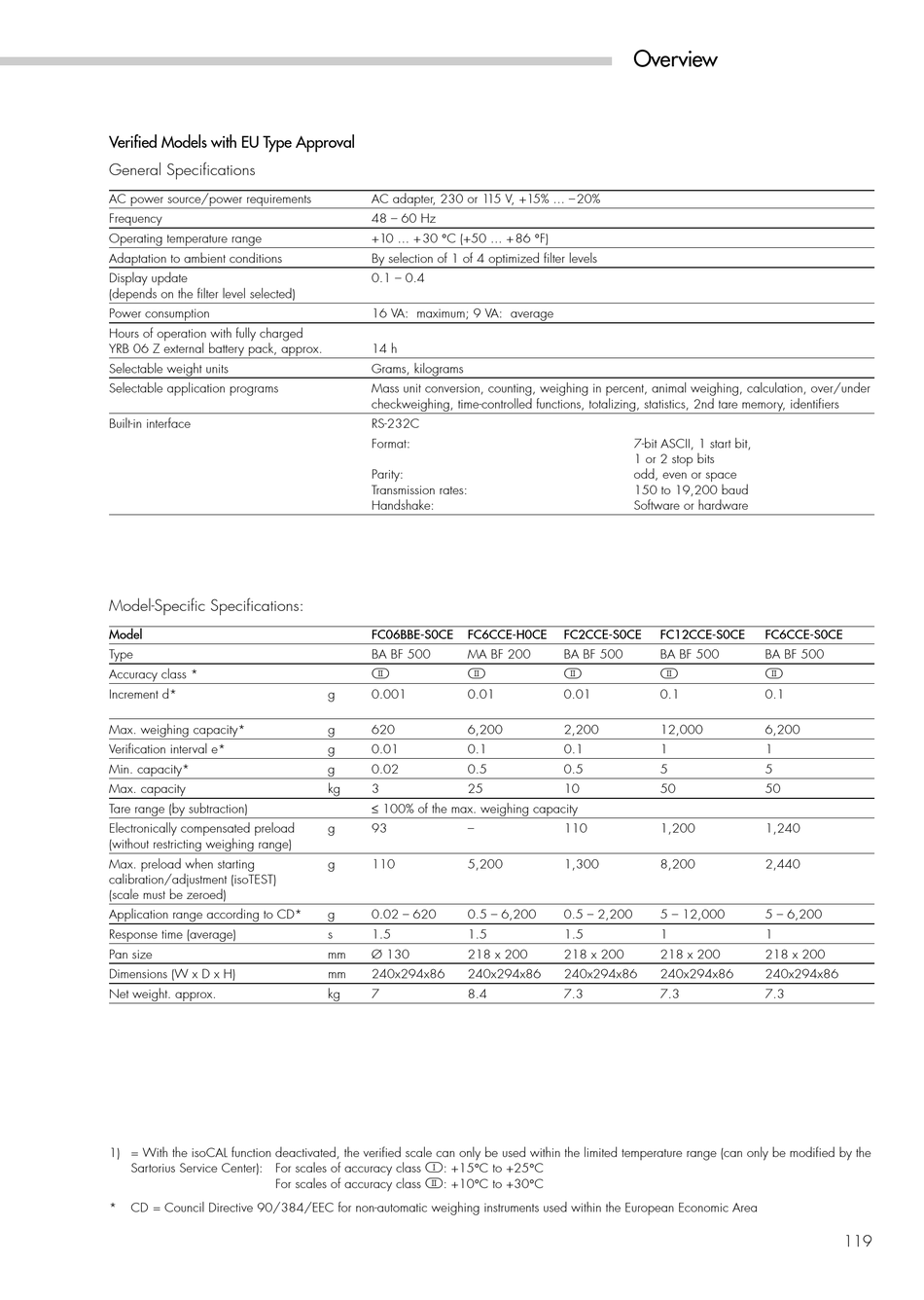

Verified Models with EU Type Approval
General Specifications
AC power source/power requirements
Frequency
Operating temperature range
Adaptation to ambient conditions
Display update
(depends on the filter level selected)
Power consumption
Hours of operation with fully charged
YRB 06 Z external battery pack, approx.
Selectable weight units
Selectable application programs
Built-in interface
Model-Specific Specifications:
Model
Type
Accuracy class *
Increment d*
Max. weighing capacity*
Verification interval e*
Min. capacity*
Max. capacity
Tare range (by subtraction)
Electronically compensated preload
(without restricting weighing range)
Max. preload when starting
calibration/adjustment (isoTEST)
(scale must be zeroed)
Application range according to CD*
Response time (average)
Pan size
Dimensions (W x D x H)
Net weight. approx.
1) = With the isoCAL function deactivated, the verified scale can only be used within the limited temperature range (can only be modified by the
Sartorius Service Center): For scales of accuracy class k: +15°C to +25°C
For scales of accuracy class K: +10°C to +30°C
*
CD = Council Directive 90/384/EEC for non-automatic weighing instruments used within the European Economic Area
AC adapter, 230 or 115 V, +15% ... – 20%
48 – 60 Hz
+10 ... + 30 °C (+50 ... + 86 °F)
By selection of 1 of 4 optimized filter levels
0.1 – 0.4
16 VA: maximum; 9 VA: average
14 h
Grams, kilograms
Mass unit conversion, counting, weighing in percent, animal weighing, calculation, over/under
checkweighing, time-controlled functions, totalizing, statistics, 2nd tare memory, identifiers
RS-232C
Format:
Parity:
Transmission rates:
Handshake:
FC06BBE-S0CE
FC6CCE-H0CE
BA BF 500
MA BF 200
K
K
g
0.001
0.01
g
620
6,200
g
0.01
0.1
g
0.02
0.5
kg
3
25
≤ 100% of the max. weighing capacity
g
93
g
110
5,200
g
0.02 – 620
0.5 – 6,200
s
1.5
1.5
mm
Ø 130
218 x 200
mm
240x294x86
240x294x86
kg
7
8.4
Overview
7-bit ASCII, 1 start bit,
1 or 2 stop bits
odd, even or space
150 to 19,200 baud
Software or hardware
FC2CCE-S0CE
FC12CCE-S0CE
BA BF 500
BA BF 500
K
K
0.01
0.1
2,200
12,000
0.1
1
0.5
5
10
50
110
1,200
1,300
8,200
0.5 – 2,200
5 – 12,000
1.5
1
218 x 200
218 x 200
240x294x86
240x294x86
7.3
7.3
FC6CCE-S0CE
BA BF 500
K
0.1
6,200
1
5
50
1,240
2,440
5 – 6,200
1
218 x 200
240x294x86
7.3
119
