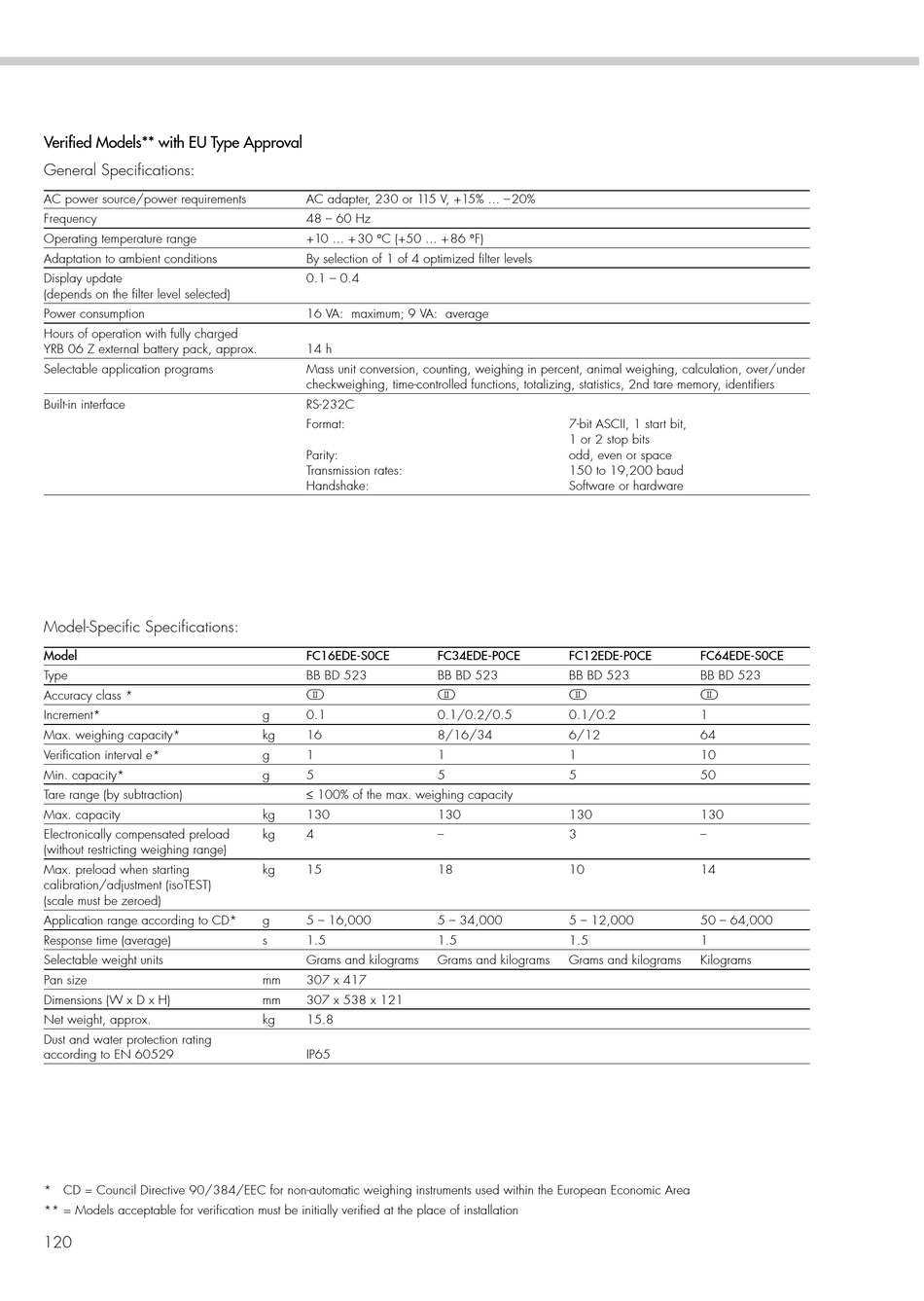

Verified Models** with EU Type Approval
General Specifications:
AC power source/power requirements
Frequency
Operating temperature range
Adaptation to ambient conditions
Display update
(depends on the filter level selected)
Power consumption
Hours of operation with fully charged
YRB 06 Z external battery pack, approx.
Selectable application programs
Built-in interface
Model-Specific Specifications:
Model
Type
Accuracy class *
Increment*
Max. weighing capacity*
Verification interval e*
Min. capacity*
Tare range (by subtraction)
Max. capacity
Electronically compensated preload
(without restricting weighing range)
Max. preload when starting
calibration/adjustment (isoTEST)
(scale must be zeroed)
Application range according to CD*
Response time (average)
Selectable weight units
Pan size
Dimensions (W x D x H)
Net weight, approx.
Dust and water protection rating
according to EN 60529
* CD = Council Directive 90/384/EEC for non-automatic weighing instruments used within the European Economic Area
** = Models acceptable for verification must be initially verified at the place of installation
120
AC adapter, 230 or 115 V, +15% ... – 20%
48 – 60 Hz
+10 ... + 30 °C (+50 ... + 86 °F)
By selection of 1 of 4 optimized filter levels
0.1 – 0.4
16 VA: maximum; 9 VA: average
14 h
Mass unit conversion, counting, weighing in percent, animal weighing, calculation, over/under
checkweighing, time-controlled functions, totalizing, statistics, 2nd tare memory, identifiers
RS-232C
Format:
Parity:
Transmission rates:
Handshake:
FC16EDE-S0CE
BB BD 523
K
g
0.1
kg
16
g
1
g
5
≤ 100% of the max. weighing capacity
kg
130
kg
4
kg
15
g
5 – 16,000
s
1.5
Grams and kilograms
mm
307 x 417
mm
307 x 538 x 121
kg
15.8
IP65
7-bit ASCII, 1 start bit,
1 or 2 stop bits
odd, even or space
150 to 19,200 baud
Software or hardware
FC34EDE-P0CE
FC12EDE-P0CE
BB BD 523
BB BD 523
K
K
0.1/0.2/0.5
0.1/0.2
8/16/34
6/12
1
1
5
5
130
130
3
18
10
5 – 34,000
5 – 12,000
1.5
1.5
Grams and kilograms
Grams and kilograms
FC64EDE-S0CE
BB BD 523
K
1
64
10
50
130
14
50 – 64,000
1
Kilograms
