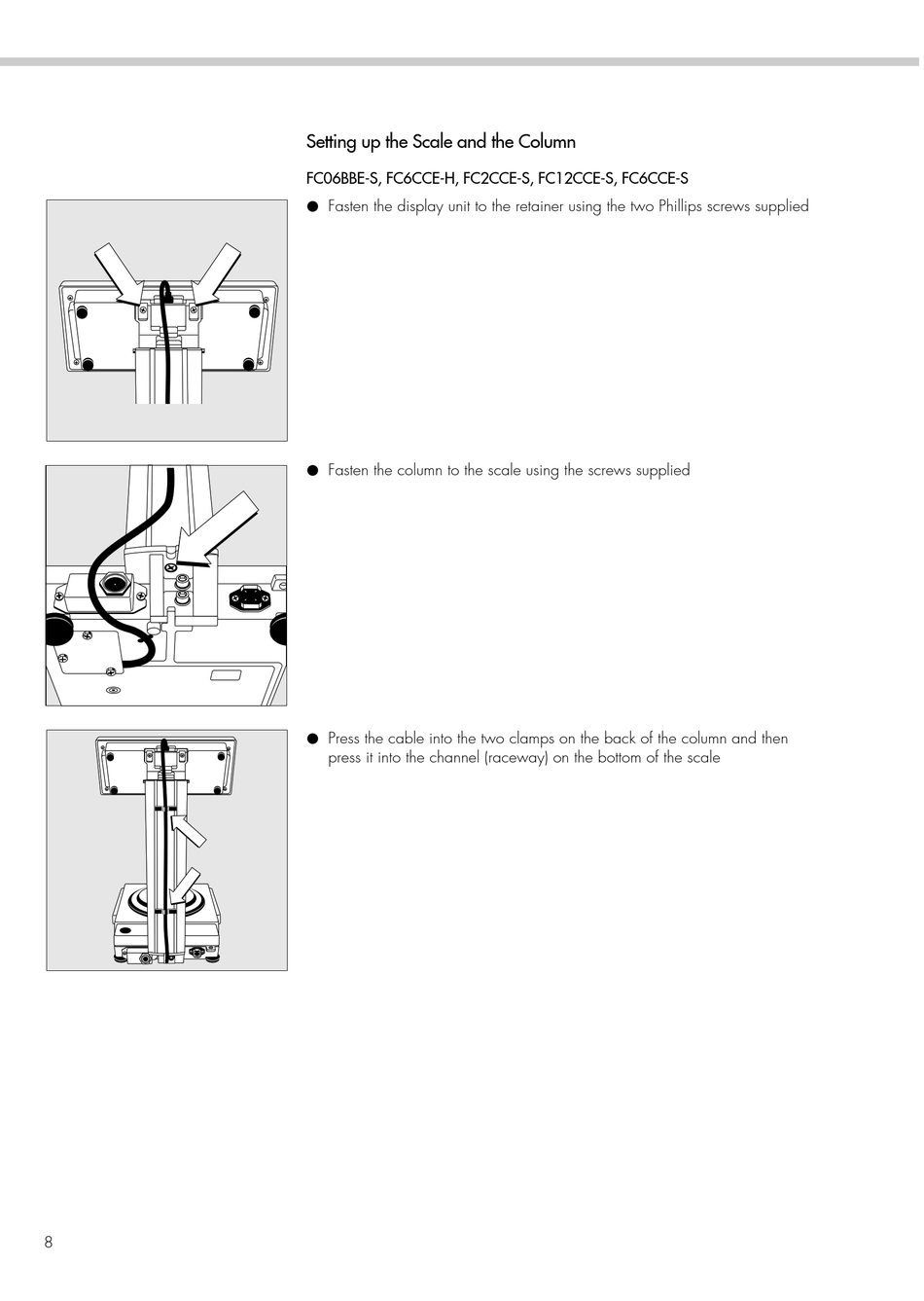

Setting up the Scale and the Column
FC06BBE-S, FC6CCE-H, FC2CCE-S, FC12CCE-S, FC6CCE-S
§ Fasten the display unit to the retainer using the two Phillips screws supplied
§ Fasten the column to the scale using the screws supplied
§ Press the cable into the two clamps on the back of the column and then
press it into the channel (raceway) on the bottom of the scale
8
