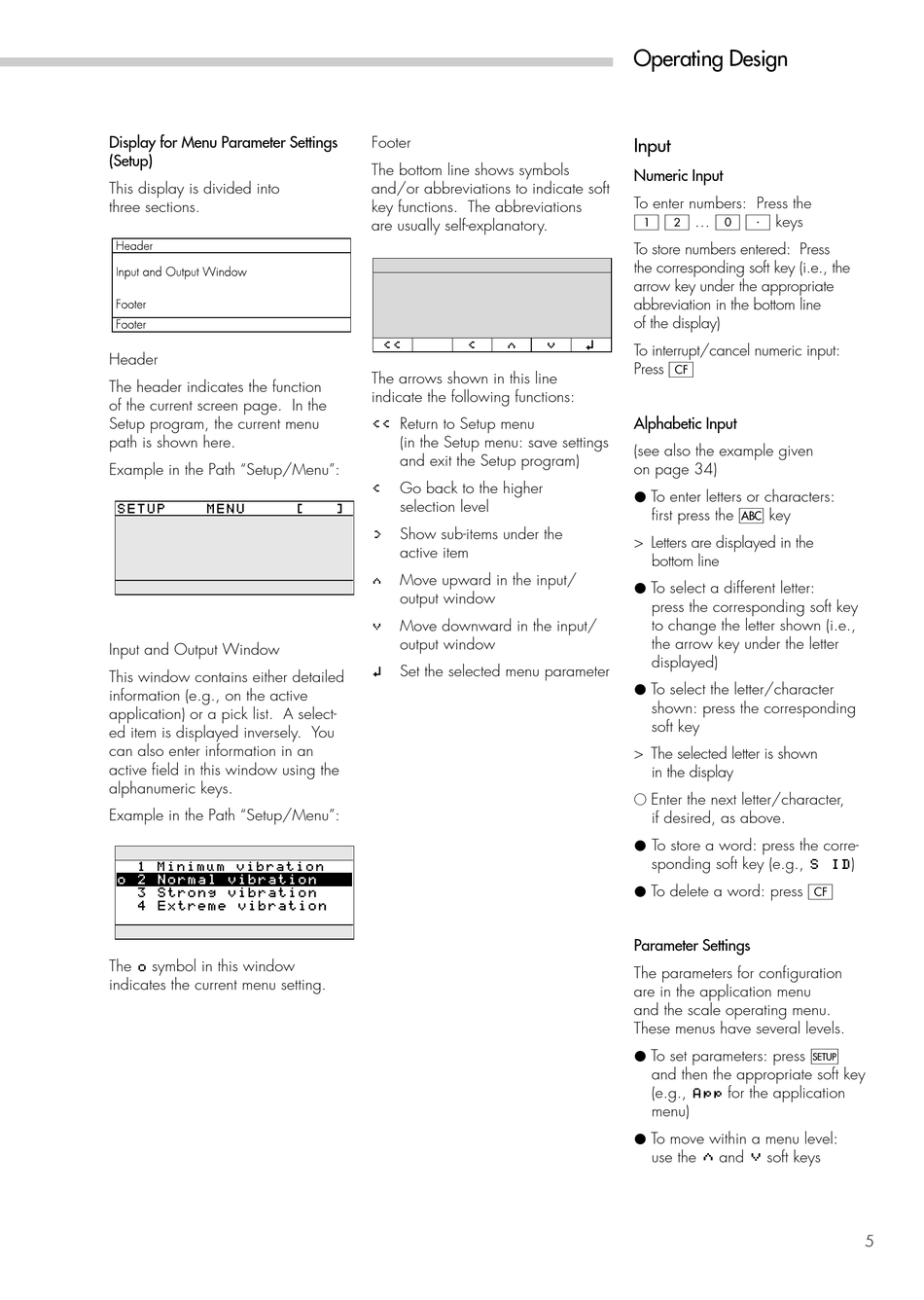

Display for Menu Parameter Settings
(Setup)
This display is divided into
three sections.
Header
The header indicates the function
of the current screen page. In the
Setup program, the current menu
path is shown here.
Example in the Path "Setup/Menu":
Input and Output Window
This window contains either detailed
information (e.g., on the active
application) or a pick list. A select-
ed item is displayed inversely. You
can also enter information in an
active field in this window using the
alphanumeric keys.
Example in the Path "Setup/Menu":
The
symbol in this window
o
indicates the current menu setting.
Footer
The bottom line shows symbols
and/or abbreviations to indicate soft
key functions. The abbreviations
are usually self-explanatory.
The arrows shown in this line
indicate the following functions:
Return to Setup menu
oo
(in the Setup menu: save settings
and exit the Setup program)
Go back to the higher
o
selection level
Show sub-items under the
O
active item
Move upward in the input/
Q
output window
Move downward in the input/
q
output window
Set the selected menu parameter
l
Operating Design
Input
Numeric Input
To enter numbers: Press the
1 2 ... 0 . keys
To store numbers entered: Press
the corresponding soft key (i.e., the
arrow key under the appropriate
abbreviation in the bottom line
of the display)
To interrupt/cancel numeric input:
Press c
Alphabetic Input
(see also the example given
on page 34)
§ To enter letters or characters:
first press the a key
> Letters are displayed in the
bottom line
§ To select a different letter:
press the corresponding soft key
to change the letter shown (i.e.,
the arrow key under the letter
displayed)
§ To select the letter/character
shown: press the corresponding
soft key
> The selected letter is shown
in the display
$ Enter the next letter/character,
if desired, as above.
§ To store a word: press the corre-
sponding soft key (e.g.,
§ To delete a word: press c
Parameter Settings
The parameters for configuration
are in the application menu
and the scale operating menu.
These menus have several levels.
§ To set parameters: press M
and then the appropriate soft key
(e.g.,
for the application
App
menu)
§ To move within a menu level:
use the Q and q soft keys
)
S ID
5
