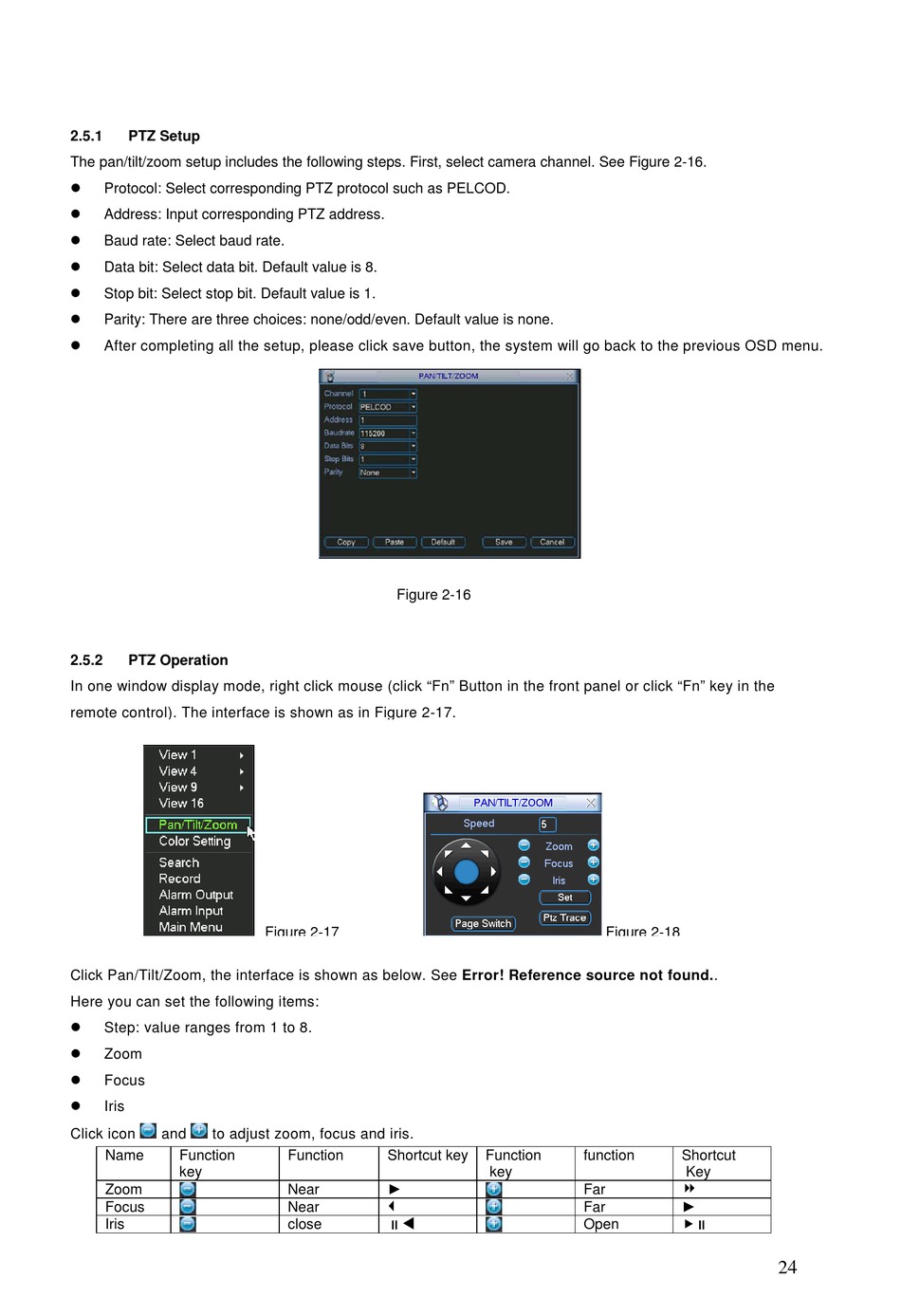

2.5.1

PTZ Setup

The pan/tilt/zoom setup includes the following steps. First, select camera channel. See Figure 2-16.

Protocol: Select corresponding PTZ protocol such as PELCOD.

Address: Input corresponding PTZ address.

Baud rate: Select baud rate.

Data bit: Select data bit. Default value is 8.

Stop bit: Select stop bit. Default value is 1.

Parity: There are three choices: none/odd/even. Default value is none.

After completing all the setup, please click save button, the system will go back to the previous OSD menu.
2.5.2

PTZ Operation

In one window display mode, right click mouse (click "Fn" Button in the front panel or click "Fn" key in the
remote control). The interface is shown as in Figure 2-17.
Click Pan/Tilt/Zoom, the interface is shown as below. See Error! Reference source not found..
Here you can set the following items:

Step: value ranges from 1 to 8.

Zoom

Focus

Iris
Click icon and to adjust zoom, focus and iris.
Name Function
key
Zoom
Focus
Iris
Figure 2-16
Figure 2-17
Function Shortcut key
►
Near

Near

close
Figure 2-18
Function function
key
Far
Far
Open
Shortcut
Key

►

